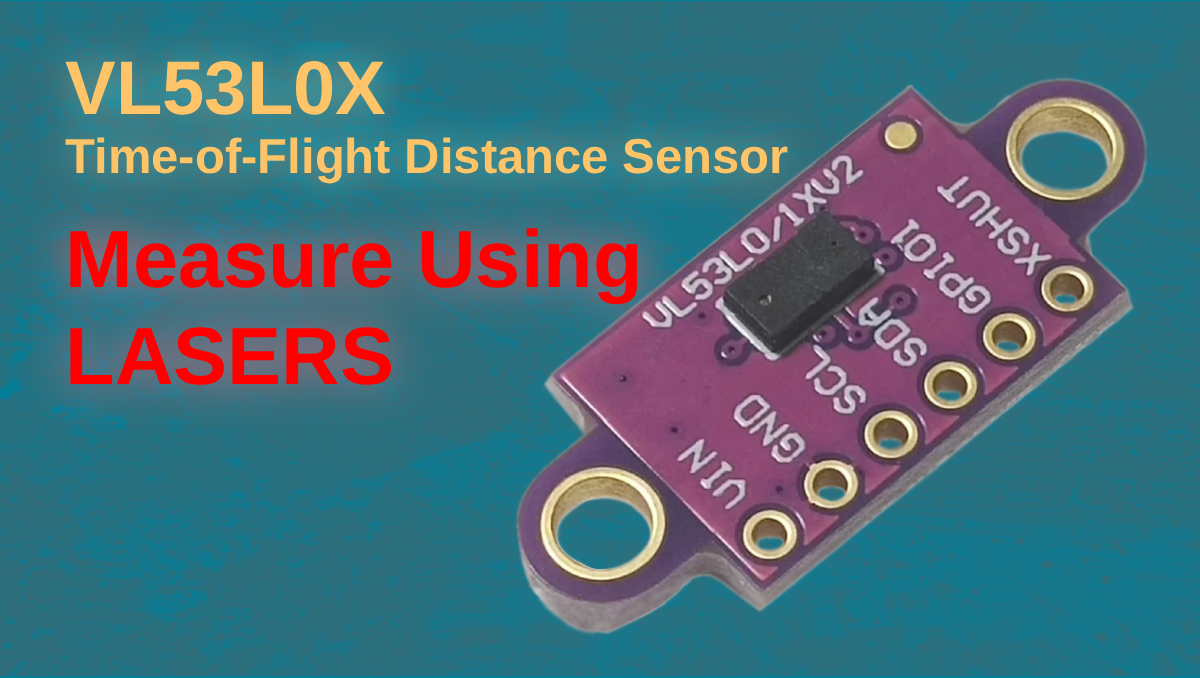

What is VL53L0X Time-of-Flight Distance Sensor - Advanced guide

The VL53L0X is a precise time-of-flight (ToF) distance sensor that measures distance using lasers. The VL53L0X measures distance directly via the time it takes infrared light pulses to reflect from an object.

How it Works

The sensor works by emitting pulses of invisible 940 nm infrared light and measures the time taken to return after reflecting off a surface. The distance is then calculated as half the product of the speed of light and the measured time, which provides a far more accurate distance estimation than ultrasonic sensors such as the HC-SR04. Due to the emitter's restrictions, the VL53L0X is rated to only measure distances of up to 2 meters.

Key Features

• Accurately measuremes distance up to 2 meters
• Compact size for tight spaces
• Low power consumption
• I2C interface for Arduino/ESP32
• High-speed measurements suitable for robotics

Technical Specifications

Pinout and Pin Description

VL53L0X Wiring & Examples

The VL53L0X uses I2C, which requires SDA and SCL, which many boards have dedicated pins for. For the Arduino Uno, that is A4 for SDA and A5 for SCL. We've produced a reference guide that includes the I2C pinouts for many common boards.

VL53L0X to Arduino Uno Pinout & Wiring Diagram

Basic Distance Reading Example

This example sketch, based off of Adafruit's example 'vl53l0x' measures the distance between the sensor and the nearest object every 100ms and prints to the Serial Monitor.

/*
 * Ethan Zaitchik
 * VL53L0X Distance Sensor Basic Example
 * Full guide: https://zaitronics.com.au/blogs/guides/vl53l0x-time-of-flight-distance-sensor-advanced-guide
*/

#include "Adafruit_VL53L0X.h" // Include the Adafruit VL53L0X library

Adafruit_VL53L0X lox;

void setup() {
  Serial.begin(115200);
  if (!lox.begin()) {
    Serial.println("Failed to boot VL53L0X");
    while (1); // stop here
  }
}

void loop() {
  VL53L0X_RangingMeasurementData_t measure;
  lox.rangingTest(&measure, false); // pass in 'true' to get debug data printout!

  if (measure.RangeStatus != 4) { // phase failures have incorrect data
    Serial.println(measure.RangeMilliMeter);
  } else {
    Serial.println("Out of range");
  }

  delay(100);
}

Code Explanation

This Arduino sketch demonstrates basic use of the VL53L0X Time-of-Flight (ToF) distance sensor using the Adafruit library. The sensor measures distance in millimeters and sends the results to the Serial Monitor every 100 ms.

Here is a detailed explanation of the code:

#include "Adafruit_VL53L0X.h" // Include the Adafruit VL53L0X library

• Includes the Adafruit VL53L0X library, which provides easy functions to communicate with the sensor over I2C and handle ranging measurements.

Adafruit_VL53L0X lox;

• Creates a global instance of the Adafruit_VL53L0X class named lox. This object will be used to control the sensor.

void setup() {
  Serial.begin(115200);

• Starts serial communication at 115200 baud (a fast, common rate for sensor data).
• You must open the Serial Monitor at the same baud rate to see the output.

  if (!lox.begin()) {
    Serial.println("Failed to boot VL53L0X");
    while (1); // stop here
  }
}

• lox.begin() initializes the sensor (powers it up, configures I2C, and checks communication).
• If initialization fails (e.g., wrong wiring, no power, or sensor not present), it prints an error message and enters an infinite loop (while(1);), halting the program.

void loop() {
  VL53L0X_RangingMeasurementData_t measure;

• loop() runs repeatedly.
• Declares a structure variable measure of type VL53L0X_RangingMeasurementData_t to hold the measurement results (distance, status, etc.).

  lox.rangingTest(&measure, false); // pass in 'true' to get debug data printout!

• Performs a single distance measurement and stores the data in measure.
• The second parameter (false) disables debug output. Change to true if you want the library to print detailed internal data to Serial.

  if (measure.RangeStatus != 4) { // phase failures have incorrect data
    Serial.println(measure.RangeMilliMeter);
  } else {
    Serial.println("Out of range");
  }

• Checks RangeStatus; Status 4 means "out of range" (target too far or no valid return signal). Other values (0, 1, 2, etc.) indicate a valid measurement.
• If valid, prints the distance in millimeters (RangeMilliMeter).
• If out of range, prints "Out of range".

  delay(100);
}

• Pauses for 100 milliseconds before taking the next measurement.
• This gives approximately 10 readings per second, fast enough for most applications while avoiding overwhelming the serial output.

Using the interrupt pin for event-driven detection

The following example measures the distance from the VL53L0X sensor and prints it to the Serial Monitor, just like the previous example. The difference is that we’ve now introduced a 5mm LED, which turns on whenever an object is closer than 50mm. Instead of continuously checking the distance in the loop(), this version uses the sensor’s interrupt pin, allowing the LED to respond immediately when the object crosses the threshold. This demonstrates how to use the VL53L0X’s interrupt functionality to create real-time visual feedback based on distance measurements.

Additional Required Parts:

• 220 Ω resistor (200-400 Ω will work)
• 5mm LED (3mm LED will work as well)

Pinout:

• GPIO1 → D6 on the Arduino
• LED anode (longer leg) → D5 on the Arduino
• LED cathode (shorter leg) → GND through a 220 Ω resistor

/*
 * Ethan Zaitchik
 * VL53L0X Distance Sensor Basic Example
 * Full guide: https://zaitronics.com.au/blogs/guides/vl53l0x-time-of-flight-distance-sensor-advanced-guide
*/

#include "Adafruit_VL53L0X.h"

// Pin definitions
const byte VL53LOX_InterruptPin = 6; // Sensor interrupt pin connected to Arduino
const byte LED_Pin = 5;              // 5mm LED
Adafruit_VL53L0X lox;

volatile bool objectDetected = false; // Flag updated by ISR

void setup() {
  Serial.begin(115200);
  pinMode(VL53LOX_InterruptPin, INPUT_PULLUP); // Interrupt input
  pinMode(LED_Pin, OUTPUT);                     // LED output
  digitalWrite(LED_Pin, LOW);

  attachInterrupt(digitalPinToInterrupt(VL53LOX_InterruptPin), sensorISR, CHANGE);

  if (!lox.begin()) {
    Serial.println("Failed to boot VL53L0X");
    while (1);
  }

  // Configure interrupt mode: trigger when object < 50mm
  lox.setGpioConfig(
    VL53L0X_DEVICEMODE_CONTINUOUS_RANGING,
    VL53L0X_GPIOFUNCTIONALITY_THRESHOLD_CROSSED_LOW,
    VL53L0X_INTERRUPTPOLARITY_LOW
  );

  FixPoint1616_t LowThreshold = 50 * 65536.0; // 50mm
  FixPoint1616_t HighThreshold = 65536.0 * 1000; // max high threshold (not used)
  lox.setInterruptThresholds(LowThreshold, HighThreshold, true);

  lox.setDeviceMode(VL53L0X_DEVICEMODE_CONTINUOUS_RANGING, false);
  lox.startMeasurement();

  Serial.println("Sensor ready, using interrupt-based LED");
}

// Interrupt service routine
void sensorISR() {
  objectDetected = digitalRead(VL53LOX_InterruptPin) == LOW; // LOW = object detected
  digitalWrite(LED_Pin, objectDetected);                     // Update LED immediately
}

void loop() {
  // Optional: print distance when object is detected
  if (objectDetected) {
    VL53L0X_RangingMeasurementData_t measure;
    lox.getRangingMeasurement(&measure, false);
    if (measure.RangeStatus != 4) {
      Serial.print("Distance (mm): ");
      Serial.println(measure.RangeMilliMeter);
    } else {
      Serial.println("Out of range");
    }

    lox.clearInterruptMask(false); // clear interrupt for next event
  }

  delay(10); // small delay to avoid busy looping
}

Code Explanation

This advanced Arduino sketch uses the VL53L0X sensor in continuous ranging mode with hardware interrupt to achieve extremely fast and efficient proximity detection. When an object comes closer than 50mm, the sensor itself triggers an interrupt on its GPIO pin. The Arduino responds instantly by turning on an LED, without constantly polling the sensor. Distance is printed to Serial only when the object is detected.

const byte VL53LOX_InterruptPin = 6; // Sensor interrupt pin connected to Arduino
const byte LED_Pin = 5;              // 5mm LED
Adafruit_VL53L0X lox;

volatile bool objectDetected = false; // Flag updated by ISR

• Defines pin 6 as the interrupt input (connected to the VL53L0X GPIO1).
• Defines pin 5 for the external LED.
• Creates the sensor object lox.
• volatile bool objectDetected: A flag that the Interrupt Service Routine (ISR) can safely modify. The volatile keyword is required because it's accessed from both interrupt and main code.

void setup() {
  Serial.begin(115200);
  pinMode(VL53LOX_InterruptPin, INPUT_PULLUP);
  pinMode(LED_Pin, OUTPUT);
  digitalWrite(LED_Pin, LOW);

  attachInterrupt(digitalPinToInterrupt(VL53LOX_InterruptPin), sensorISR, CHANGE);

• Sets up serial output and pin modes.
• Enables internal pull-up resistor on the interrupt pin (VL53L0X uses active-low interrupt).
• Attaches an interrupt to pin 6 that calls sensorISR() on any CHANGE (rising or falling edge).

  if (!lox.begin()) {
    Serial.println("Failed to boot VL53L0X");
    while (1);
  }

• Initializes the sensor. Halts if it fails.

  lox.setGpioConfig(
    VL53L0X_DEVICEMODE_CONTINUOUS_RANGING,
    VL53L0X_GPIOFUNCTIONALITY_THRESHOLD_CROSSED_LOW,
    VL53L0X_INTERRUPTPOLARITY_LOW
  );

• Configures the sensor's GPIO pin to trigger low when a low threshold is crossed (object closer than set distance) during continuous ranging.

  FixPoint1616_t LowThreshold = 50 * 65536.0; // 50mm
  FixPoint1616_t HighThreshold = 65536.0 * 1000; // max high threshold (not used)
  lox.setInterruptThresholds(LowThreshold, HighThreshold, true);

• The sensor uses a special 16.16 fixed-point format (value × 65536).
• Sets low threshold to 50mm. When distance drops below this, interrupt triggers.
• High threshold is set very high (effectively disabled).
• true enables window mode (trigger on crossing low threshold).

  lox.setDeviceMode(VL53L0X_DEVICEMODE_CONTINUOUS_RANGING, false);
  lox.startMeasurement();

• Sets the sensor to continuous ranging mode and starts taking measurements automatically.

void sensorISR() {
  objectDetected = digitalRead(VL53LOX_InterruptPin) == LOW;
  digitalWrite(LED_Pin, objectDetected);
}

• The Interrupt Service Routine runs instantly when the sensor pin changes state.
• Reads the pin: if LOW → object is closer than 50mm.
• Immediately updates the LED, this gives a near zero latency response.
• Also updates the flag for use in loop().

void loop() {
  if (objectDetected) {
    VL53L0X_RangingMeasurementData_t measure;
    lox.getRangingMeasurement(&measure, false);
    if (measure.RangeStatus != 4) {
      Serial.print("Distance (mm): ");
      Serial.println(measure.RangeMilliMeter);
    } else {
      Serial.println("Out of range");
    }
    lox.clearInterruptMask(false); // clear interrupt for next event
  }
  delay(10);
}

• Only when an object is detected, the main loop reads the latest distance and prints it.
• Calls clearInterruptMask() to acknowledge and re-arm the sensor interrupt for the next event.
• Small delay(10) prevents excessive CPU usage.

Using Multiple VL53L0X Sensors on the Same I2C Bus

The VL53L0X Time-of-Flight sensor has a fixed default I2C address of 0x29. This means that if you connect more than one sensor directly to the same SDA and SCL lines, they will conflict and neither will work properly.

To use two (or more) VL53L0X sensors simultaneously on the same Arduino, you must assign each a unique I2C address at startup using their XSHUT (shutdown) pins. This is a standard, reliable method used in most multi-sensor examples.

How It Works

• XSHUT LOW → sensor is in hardware shutdown (off, no I2C activity).
• XSHUT HIGH → sensor powers up and uses the default address 0x29.

By carefully controlling the XSHUT pins, only one sensor is active at a time during initialization. This allows you to change its address before turning on the next sensor.

Note: Address changes are not permanent, they are lost on power-off. You must run this initialization sequence every time the Arduino starts.

Full Working Example (Two Sensors)

This compact, proven code initializes two VL53L0X sensors with new addresses (0x30 and 0x31) and continuously reads distance from both.

/*
 * Ethan Zaitchik
 * VL53L0X Distance Sensor Basic Example
 * Full guide: https://zaitronics.com.au/blogs/guides/vl53l0x-time-of-flight-distance-sensor-advanced-guide
*/

Adafruit_VL53L0X lox1;
Adafruit_VL53L0X lox2;

// Pin definitions
const byte XSHUT_1 = 4;  // XSHUT for first sensor
const byte XSHUT_2 = 5;  // XSHUT for second sensor


void setup() {
  Serial.begin(115200);

  // Set both XSHUT pins as outputs and hold sensors in shutdown
  pinMode(XSHUT_1, OUTPUT);
  pinMode(XSHUT_2, OUTPUT);
  digitalWrite(XSHUT_1, LOW);
  digitalWrite(XSHUT_2, LOW);

  // Enable and configure first sensor with new address 0x30
  digitalWrite(XSHUT_1, HIGH);
  delay(10); // Small delay for sensor to wake up
  if (!lox1.begin(0x30)) {
    Serial.println("Failed to boot sensor 1");
    while (1);
  }

  // Enable and configure second sensor with new address 0x31
  digitalWrite(XSHUT_2, HIGH);
  delay(10);
  if (!lox2.begin(0x31)) {
    Serial.println("Failed to boot sensor 2");
    while (1);
  }

  Serial.println("Both sensors initialized with unique addresses!");
}

Key Points in the Code

• Brief full reset at start ensures clean state.
• After wake-up, immediately disable sensor 2 so only sensor 1 responds at default address.
• lox1.begin(0x30) changes sensor 1’s address permanently for this session.
• Then enable sensor 2, it wakes up at 0x29, but no conflict because sensor 1 is now at 0x30.
• Finally assign sensor 2 to 0x31.

Wiring Summary

• Both sensors: VIN → 5V (or 3.3V), GND → GND, SDA → A4, SCL → A5 (Uno/Nano).
• Sensor 1 XSHUT → Arduino pin 7
• Sensor 2 XSHUT → Arduino pin 6

Valid New Addresses

Any address from 0x30 to 0x7F works (avoid 0x29). Safe common choices:

• 0x30, 0x31, 0x32, 0x33, … up to about 8-10 sensors max (limited by I2C bus load).

Pro Tip:
The short delay(10) after changing XSHUT state gives the sensor time to stabilize, essential for reliable initialization.

Common Issues:
• Forgetting to set XSHUT pins as OUTPUT and LOW at start.
• Skipping delays after XSHUT changes.
• Using the same new address for both sensors.
• Powering sensors from 3.3V while Arduino is 5V (I2C levels may be incompatible, use level shifter or power from 5V).

Once initialized, you can treat each sensor independently, take single shots, continuous measurements, or even set different modes/thresholds per sensor.

Performance on Different Surfaces

The VL53L0X measures distance based on reflected infrared light, so the surface material, color, and angle have a direct impact on accuracy and maximum range. For best results, distances should always be measured from the sensor’s optical window to the target surface.

Under ideal conditions with flat, light-colored objects, the sensor can approach its rated maximum range. Real-world performance varies depending on the target.

Surface	Expected Behavior
Dark or matte objects	Shorter usable range and slightly noisier readings due to lower infrared reflectivity
Light colored surfaces	Best accuracy and most stable measurements, ideal for calibration and testing
Highly reflective surfaces	Occasional incorrect or jumpy readings caused by signal saturation or multiple reflections
Angled targets	Reduced accuracy or no detection if reflected light does not return to the sensor
Transparent materials	Often unreliable as infrared light passes through glass or clear plastic

For robotics or proximity detection, keeping targets perpendicular to the sensor and within 30 mm to 1000 mm produces the most reliable results.

Measured distance compared to actual distance graph:

Environmental Factors and Limitations

While the VL53L0X is very precise indoors, environmental conditions can significantly affect its performance.

• Direct sunlight can overwhelm the receiver and reduce maximum range
• Strong infrared sources such as halogen lamps may introduce noise
• Dust, smoke, or steam can scatter the laser pulses
• Very small or thin objects may not reflect enough light to be detected

For outdoor use, shielding the sensor from direct sun and limiting measurement range improves reliability.

Common Problems & Fixes

Problem	Likely Cause	Solution
Sensor not detected on I2C bus	Incorrect wiring or no power	Check VIN, GND, SDA, and SCL connections. Run an I2C scanner to confirm the address (default 0x29).
Always returns 0mm or 8190mm	Timeout error or object too close/far	Ensure the target is within 30–1000mm. Increase the timeout value in your sketch and recheck alignment.
Unstable or flickering readings	Electrical noise or long jumper wires	Use shorter wires, avoid breadboard power rails, and reduce measurement speed in code.
Multiple sensors not working together	All sensors share the same I2C address	Use the XSHUT pins to enable sensors one at a time and assign unique I2C addresses in software.
Frequent “out of range” errors	Target is outside recommended range or poorly reflective	Keep objects between 30–1000mm and avoid dark or angled surfaces.

Common Sensor Configurations

The VL53L0X is flexible and can be adapted to many different applications depending on how it is configured.

• Single sensor short range detection for obstacle avoidance or presence sensing
• Multiple sensors on one I2C bus using XSHUT for robotics or scanning arrays
• Interrupt driven proximity detection for ultra fast response systems
• Low power polling for battery powered projects

Choosing the correct configuration early in your project helps reduce code complexity and improves reliability.

VL53L0X vs Ultrasonic Sensors

Compared to ultrasonic sensors, the VL53L0X offers several key advantages.

• Faster response time with no audible noise
• Much smaller sensing cone for precise measurements
• Light based measurement allows operation behind thin enclosures
• Not affected by air temperature or wind

However, ultrasonic sensors still perform better for very long distances, outdoor use, and highly reflective transparent targets. When measuring in direct sunlight, on transparent surfaces, or beyond roughly two meters, consider ultrasonic alternatives such as the HC-SR04 or the waterproof JSN-SR04T

Final Notes

You now know how to wire, configure, and troubleshoot the VL53L0X for basic, advanced, and multi-sensor applications. With correct alignment and configuration, it provides highly accurate distance measurements in a compact and power efficient package.

Resources:

• VL53L0X Datasheet
