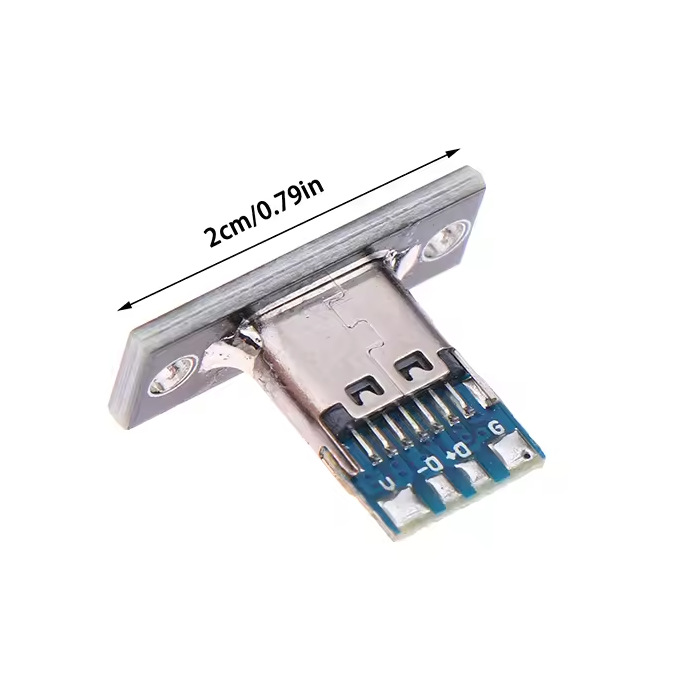

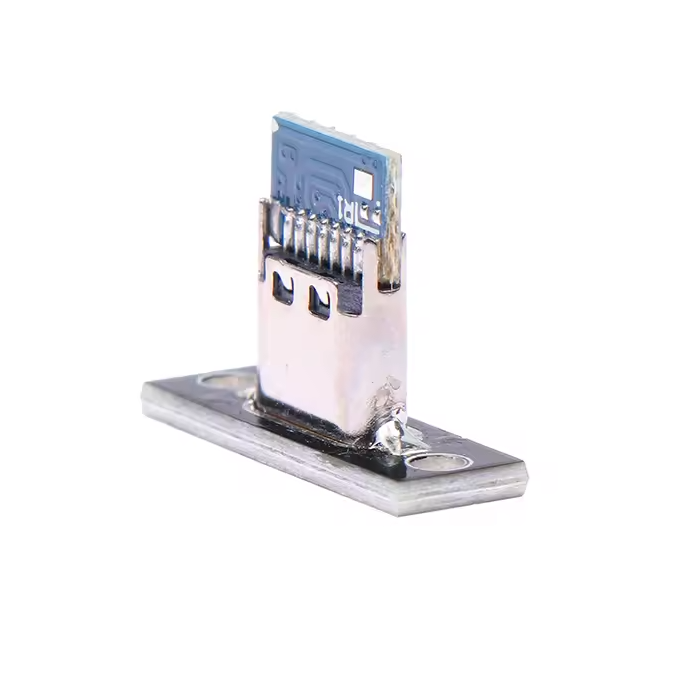

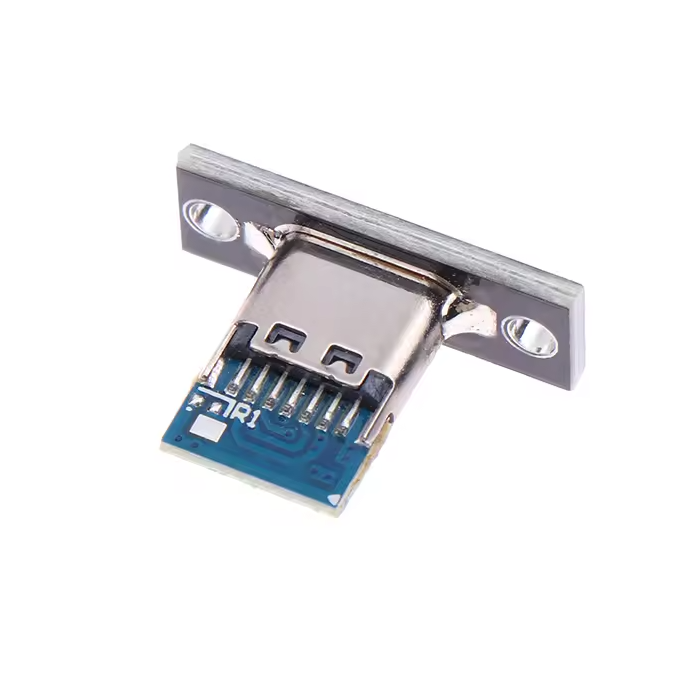

USB-C Panel Mount Breakout Board 4 Pin

This USB-C Panel Mount Breakout Board 4 Pin is designed for projects that need a clean, secure USB-C connection mounted directly to an enclosure or panel. With a panel-mount USB-C receptacle and 2.54mm spaced pins, it's perfect for building custom devices, prototypes, and embedded systems that require a professional finish.

The board breaks out the essential USB-C power and data connections, VBUS, GND, D+, and D-, giving you everything you need for USB 2.0 communication and power delivery up to 5V. The panel-mount design allows you to securely fasten the connector to your enclosure, making it ideal for permanent installations and finished products.

Features

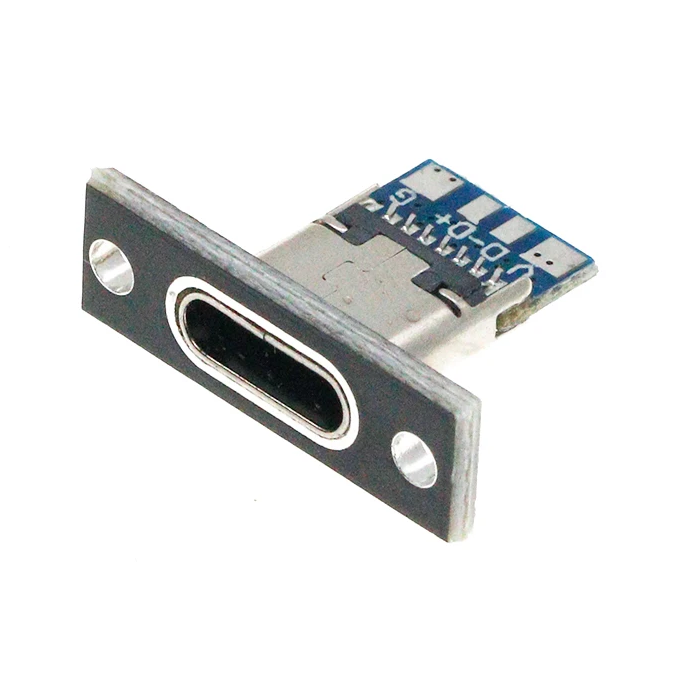

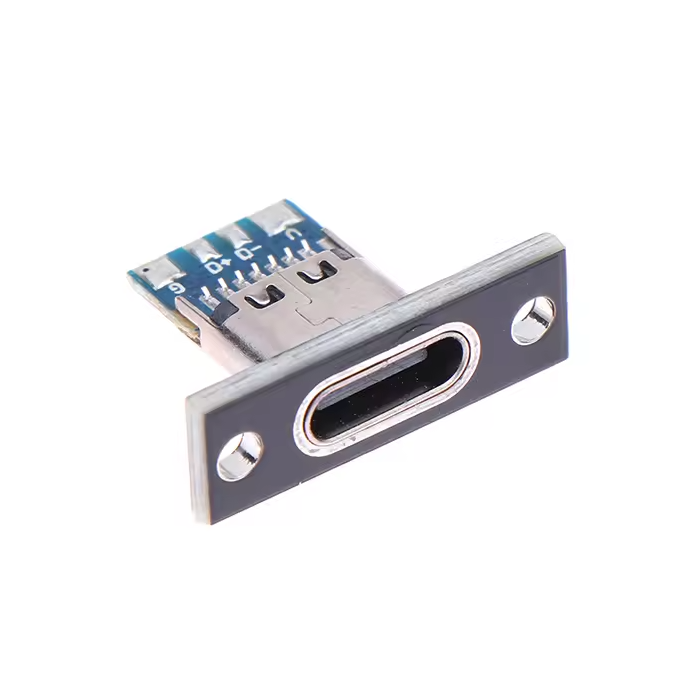

• Panel-mount USB-C receptacle for secure enclosure mounting

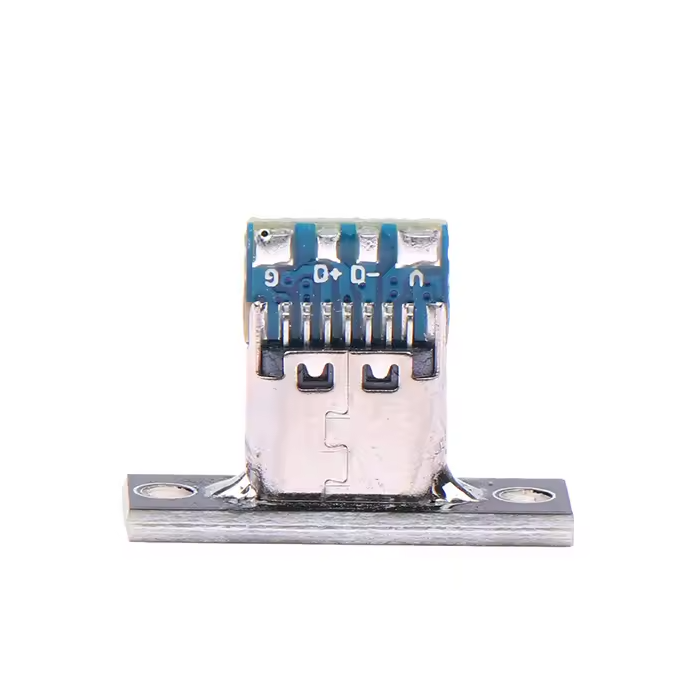

• Breaks out VBUS, GND, D+, D- on 2.54mm pitch pins
• Supports USB 2.0 data and up to 1.5A power delivery
• Compact design for space-constrained builds

Typical Applications

• Custom enclosures and finished products
• Embedded systems requiring panel-mount USB connectivity
• DIY electronics projects with professional aesthetics
• Prototypes transitioning to production

Need Different USB-C Options?

Explore our other USB-C breakout boards for different mounting styles and pin configurations:

• USB-C Breakout Board 6 Pin - Breadboard-friendly with additional CC and SBU pin access
• USB-C Male Breakout Board 24 Pin - Full pin access for advanced USB-C features
• USB-C Female Breakout Board 24 Pin - Complete USB-C receptacle with all pins exposed

This panel-mount breakout is the ideal choice when you need a robust, professional USB-C connection for your enclosure-based projects.
