12V to 24V 3A DC-DC Boost Converter Voltage Booster Module IP67
Zaitronics | SKU:
Z0511
$16.30 AUD
Unit price
/
Unavailable
$14.82 exc GST
12V to 24V 3A DC-DC Boost Converter Voltage Booster Module IP67 has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
★
★
★
★
★
12V to 24V 3A DC-DC Boost Converter Voltage Booster Module IP67
$16.30 AUD
Unit price
/
Unavailable

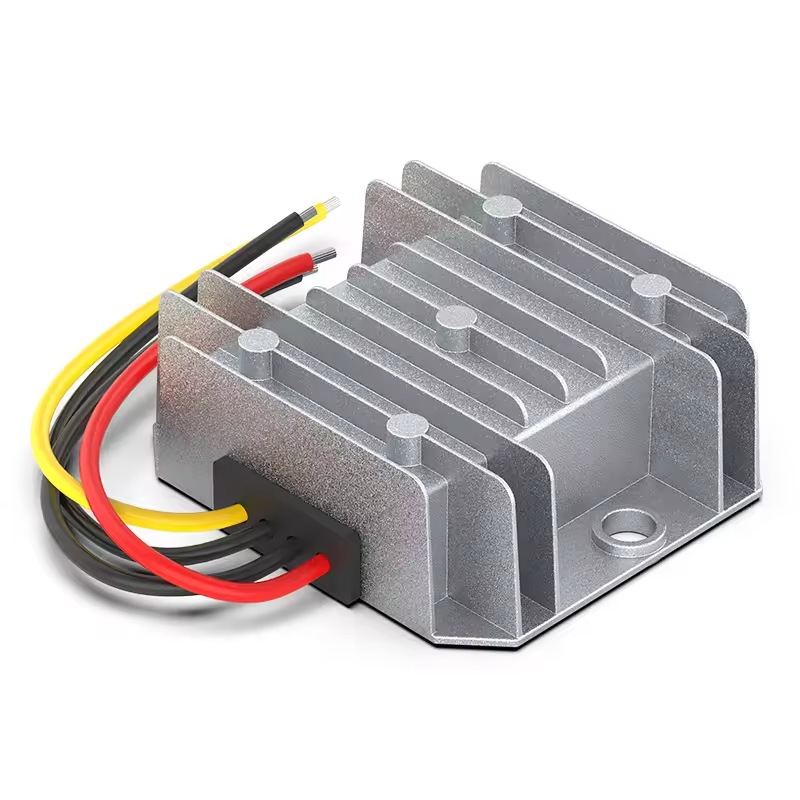

This waterproof DC-DC boost converter steps up an input voltage range of 10V to 22V to a stable 24V output at up to 3A (72W). Well suited for 24V servo motors, LED lighting, and industrial control equipment powered from a 12V automotive or solar system.
New to DC-DC converters? Read our guide: How Buck Converters, Boost Converters, and DC Voltage Regulators Work.
Specifications
| Feature | Details |
|---|---|
| Module Type | DC-DC Boost Converter (Step-Up) |
| Input Voltage | 10V to 22V DC |
| Output Voltage | 24V DC (+/-0.25V) |
| Output Current | 3A |
| Max Power | 72W |
| Efficiency | Up to 90% |
| Overheat Protection | 150°C thermal cutoff |
| Operating Temperature | -20°C to +85°C |
| Waterproof Rating | IP67 |
| Housing Material | Die-cast aluminium |

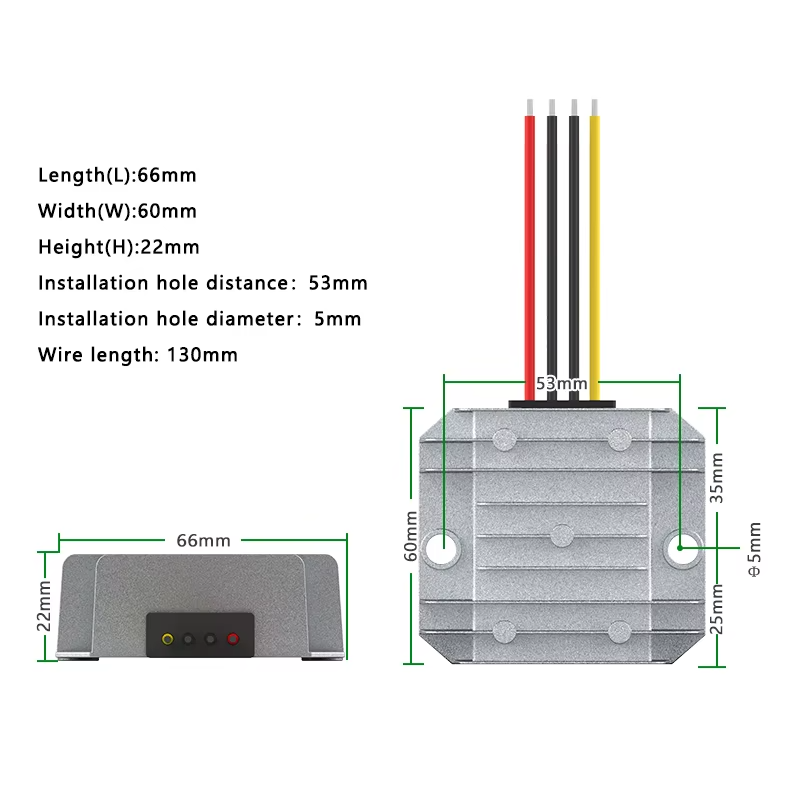

| Dimensions | 66mm x 60mm x 22mm |
| Weight | Approx. 100g |
| Wire Length | Approx. 12-13cm |

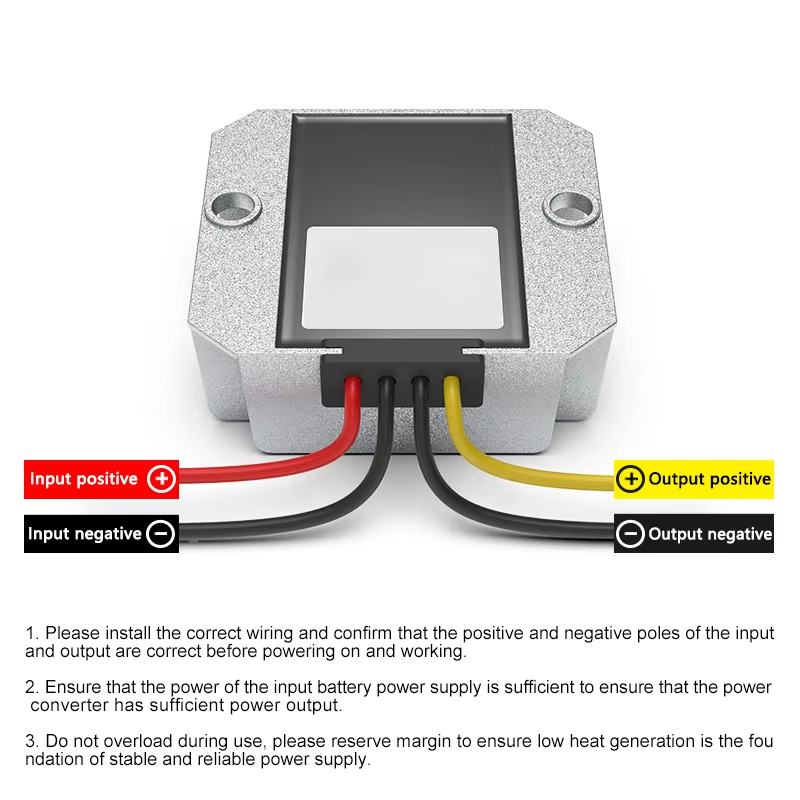

Wiring
- Red: Input Positive (+)
- Black: Input Negative (-)
- Yellow: Output Positive (+24V)
- Black: Output Negative (-)
Applications
- Automotive 24V accessories from 12V systems
- 24V servo motors and actuators
- 24V LED lighting systems
- Marine and outdoor electronics
- Solar and battery-powered systems
Also Available - IP67 Waterproof DC-DC Converters
12V to 5V (Step-Down)
| Current | Power | Link |
|---|---|---|
| 1A | 5W | 12V to 5V 1A |
| 3A | 15W | 12V to 5V 3A |
| 5A | 25W | 12V to 5V 5A |
| 10A | 50W | 12V to 5V 10A |
| 20A | 100W | 12V to 5V 20A |
12V to 24V (Step-Up)
| Current | Power | Dimensions | Link |
|---|---|---|---|
| 1A | 24W | 66x60x22mm | 12V to 24V 1A |
| 2A | 48W | 66x60x22mm | 12V to 24V 2A |
| 3A | 72W | 66x60x22mm | You are here |
| 5A | 120W | 74x74x32mm | 12V to 24V 5A |
| 10A | 240W | 74x74x32mm | 12V to 24V 10A |
| 20A | 480W | 100x80x39mm | 12V to 24V 20A |
24V to 12V (Step-Down)
| Current | Power | Link |
|---|---|---|
| 1A | 12W | 24V to 12V 1A |
| 3A | 36W | 24V to 12V 3A |
| 5A | 60W | 24V to 12V 5A |
| 10A | 120W | 24V to 12V 10A |
| 15A | 180W | 24V to 12V 15A |
| 20A | 240W | 24V to 12V 20A |
