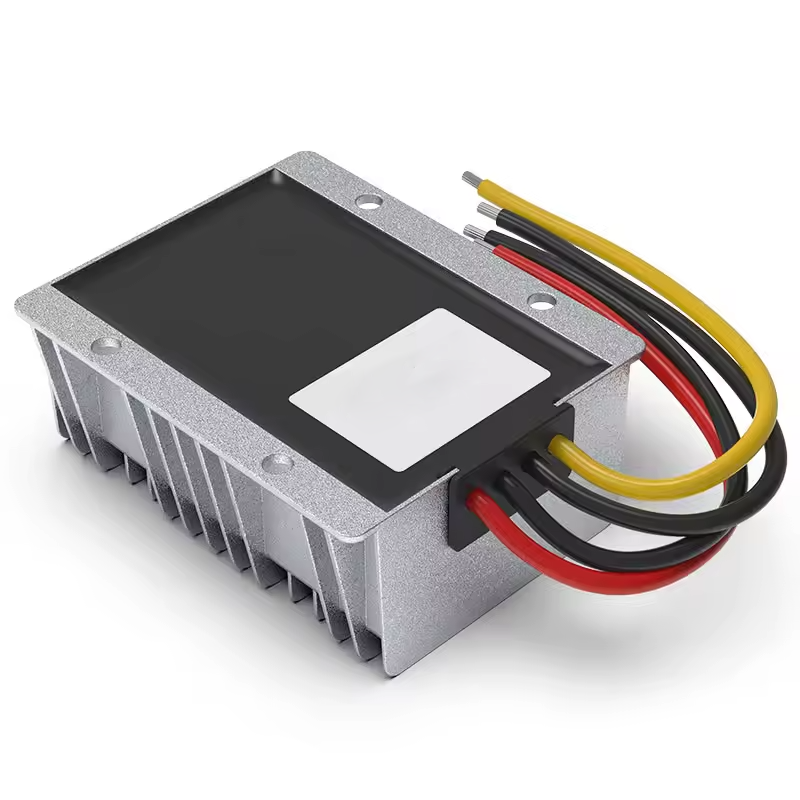

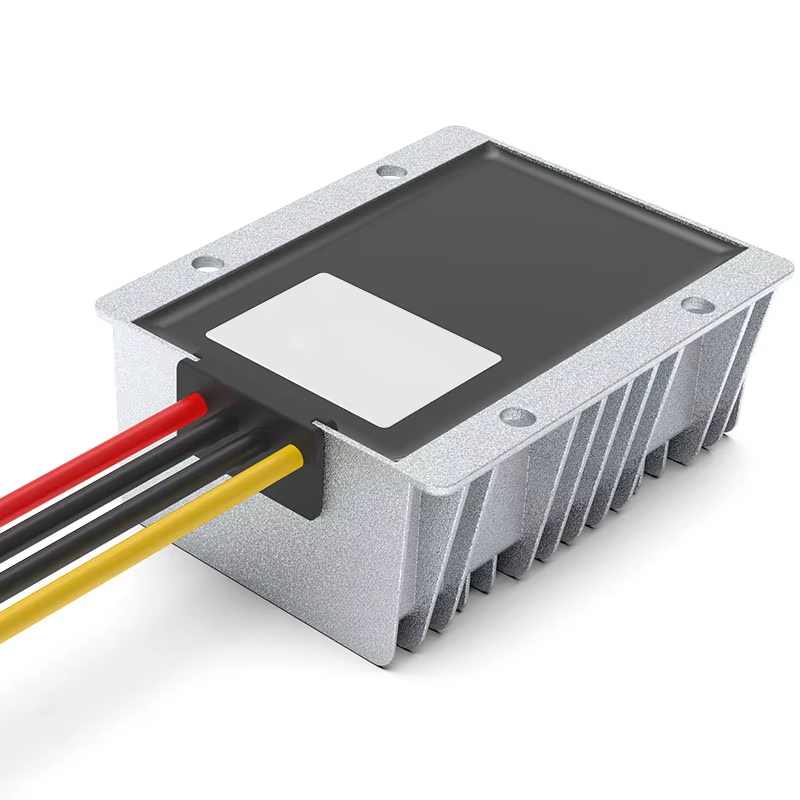

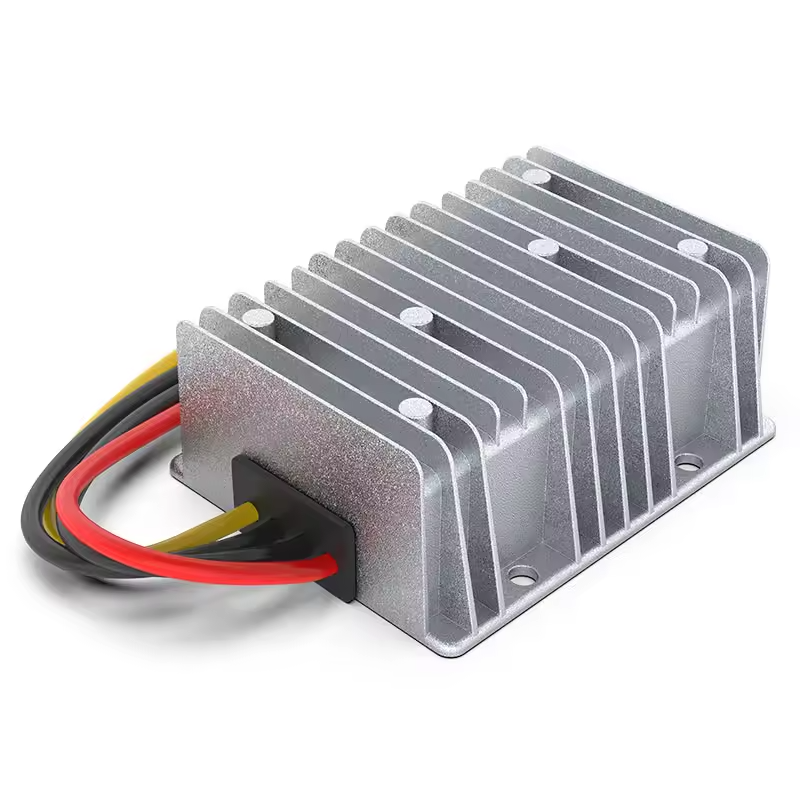

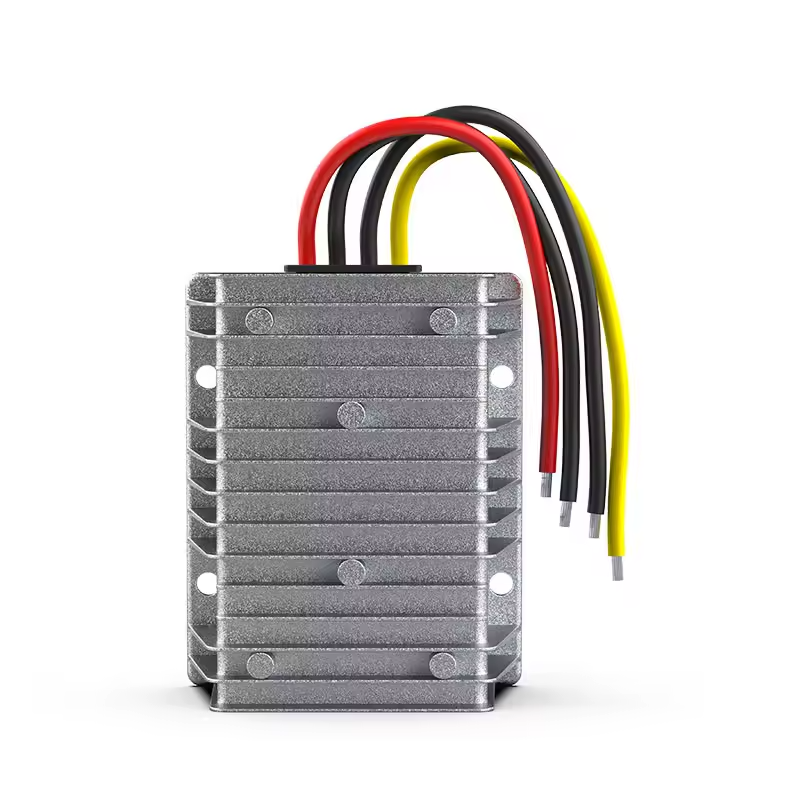

12V to 24V 20A DC-DC Boost Converter Voltage Booster Module IP67

This high-current waterproof DC-DC boost converter steps up 12V DC to a stable 24V output at up to 20A (480W). Built for the most demanding 24V applications including industrial machinery, high-power motor drives, and large LED installations running from a 12V automotive or battery source.

New to DC-DC converters? Read our guide: How Buck Converters, Boost Converters, and DC Voltage Regulators Work.

Specifications

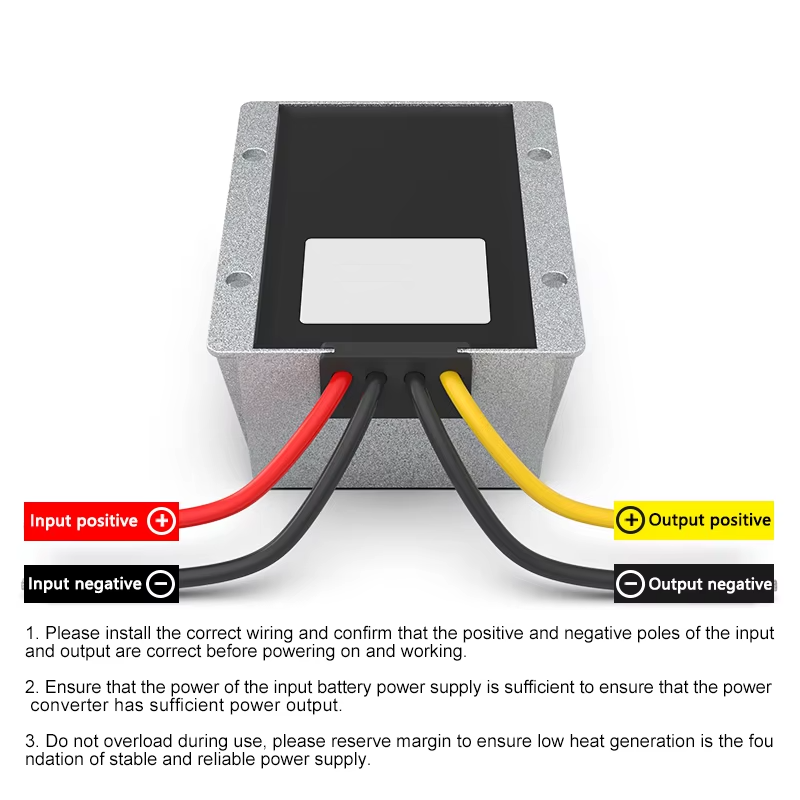

Wiring

• Red: Input Positive (+)
• Black: Input Negative (-)
• Yellow: Output Positive (+24V)
• Black: Output Negative (-)

Applications

• Industrial machinery and motor drives
• High-power 24V LED installations
• Automotive 24V systems from 12V source
• Marine and outdoor power systems
• Solar and battery installations
