XH-M609 12-36V Low Voltage Disconnect Protection Module
XH-M609 12-36V Low Voltage Disconnect Protection Module has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
XH-M609 12-36V Low Voltage Disconnect Protection Module

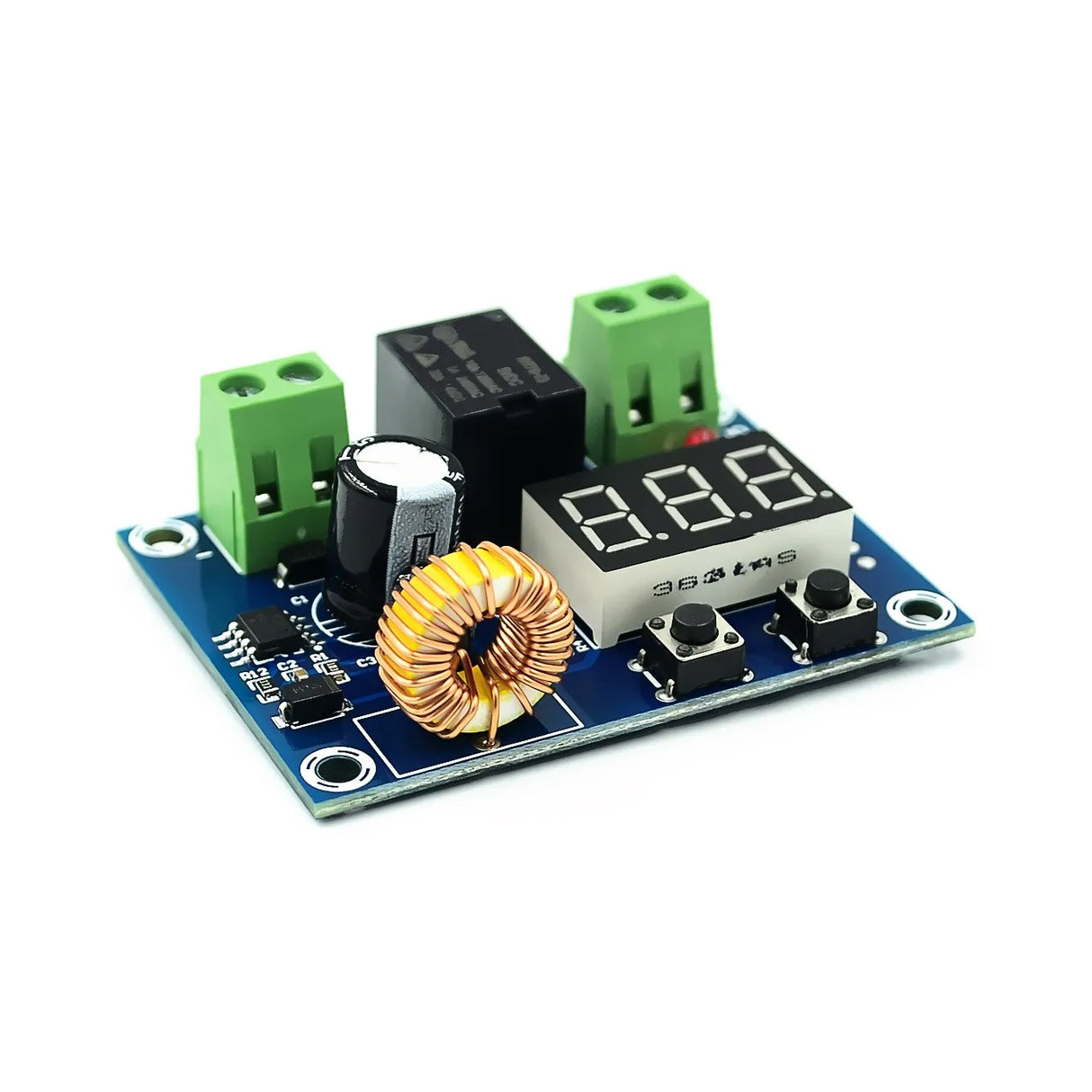

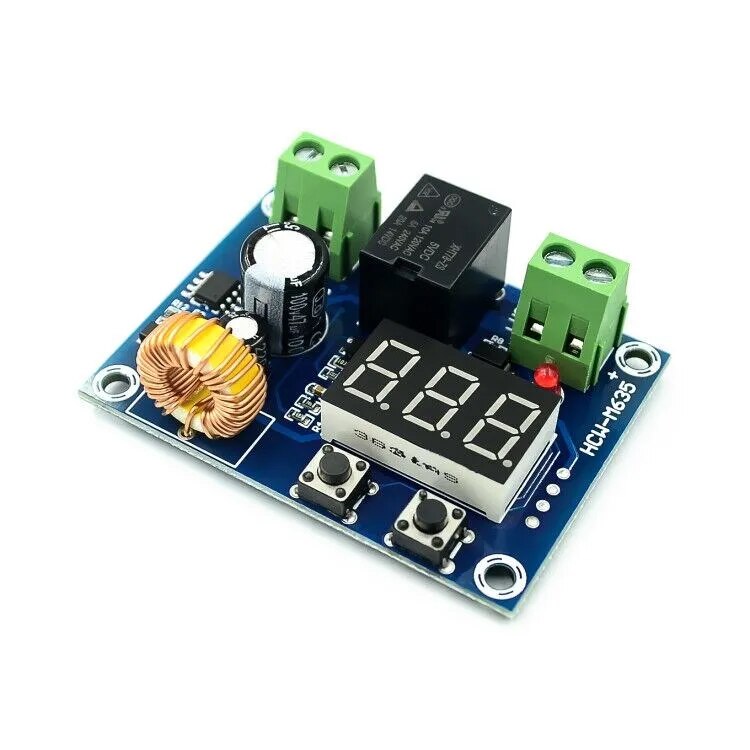

The XH-M609 12-36V Low Voltage Disconnect Protection Module is a reliable and versatile solution designed to protect your DC-powered circuits and devices from damage caused by overvoltage or undervoltage conditions. Perfect for battery systems, electronic devices, and control circuits, this module ensures safe operation while maintaining low power consumption.
Key Features:
- Reliable Protection: Provides both overvoltage and undervoltage protection to safeguard batteries and connected devices.
- Adjustable Parameters: Easily customize the trigger thresholds for overvoltage and undervoltage based on your system requirements.
- User-Friendly Installation: Simple wiring and setup make it compatible with various DC power systems, electronic devices, and control modules.

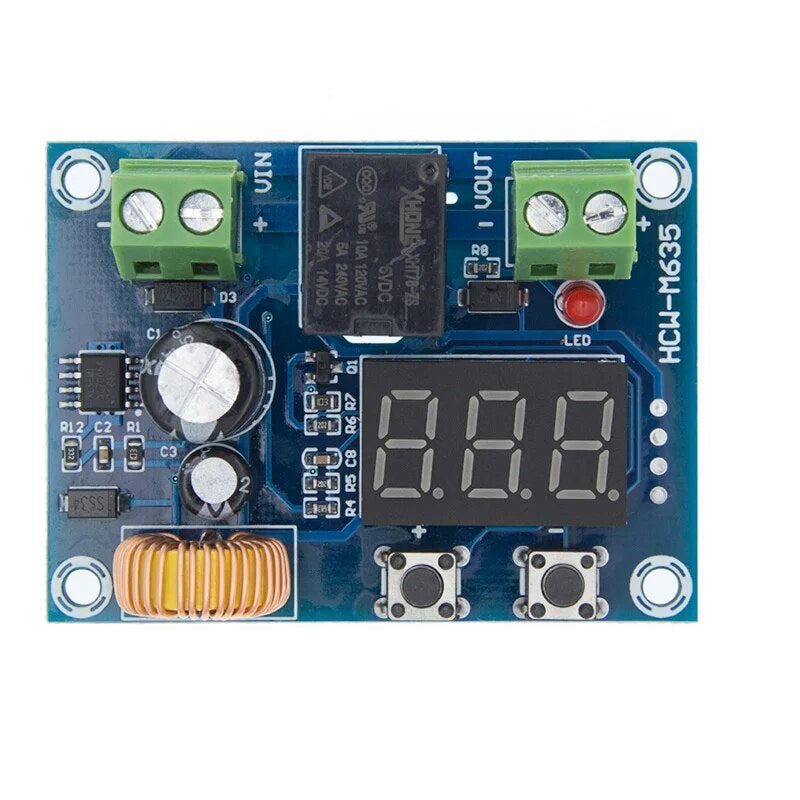

- LED Indicator: Built-in 3-digit red LED display shows the current voltage setting for easy monitoring.
- Low Power Consumption: Draws less than 1.5W, minimal impact on your system's power supply while providing continuous protection.
- Settings Retained on Power Loss: Saves your configured thresholds even after power is disconnected.
Specifications:
- Module Type: Battery Over Discharge Protection Module (Model: XH-M609)
- Input Voltage: DC 12V–36V
- Display Accuracy: 0.1V
- Control Accuracy: 0.1V
- Voltage Error: ±0.1V
- Power Consumption: Less than 1.5W
- Applicable Range: 12–36V lead acid and lithium ion batteries
- Product Size: 57mm x 42mm x 19mm (2.24 x 1.65 x 0.75 inches)
- Net Weight: 28g
- Output Voltage: Equals input voltage

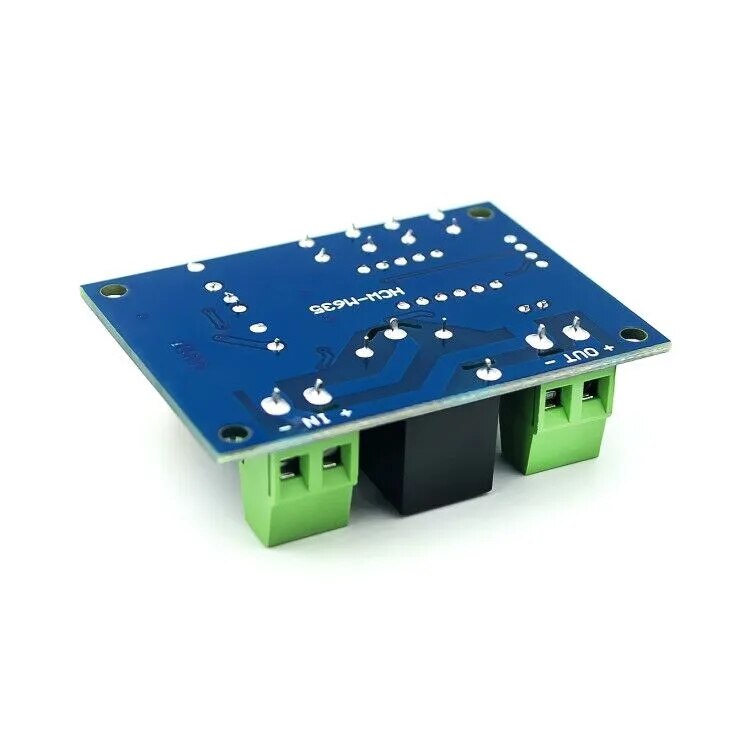

Manual, Datasheet & Wiring Diagram
Full setup instructions and the wiring diagram are available in the XH-M609 instruction manual (PDF). A quick summary of the on-board controls is below.
Setting the Disconnect Voltage
- Press the + button to display the current low voltage disconnect setting.
- Hold the + button to enter setting mode and adjust the disconnect voltage.
- Press the - button to display the current difference value (reconnect offset).
- Hold the - button to enter setting mode and adjust the difference value.
What is the Difference Value?
The difference value is the gap between the voltage at which the module disconnects the load and the voltage at which it reconnects. Two worked examples:
- To disconnect at 11V and reconnect at 11.6V, set the disconnect voltage to 11 using the + button, then set the difference value to 0.6V using the - button.
- To disconnect at 12.5V and reconnect at 14.8V, set the disconnect voltage to 12.5, then set the difference value to 2.3V (14.8V minus 12.5V).
To explore other relay modules and protection devices, visit our full relay collection.
The XH-M609 module provides dependable protection for your battery-powered systems, helping prevent damage, extend battery life, and ensure reliable operation of your electronics.
