SUL180A 24 Hour Mechanical Timer Switch AC

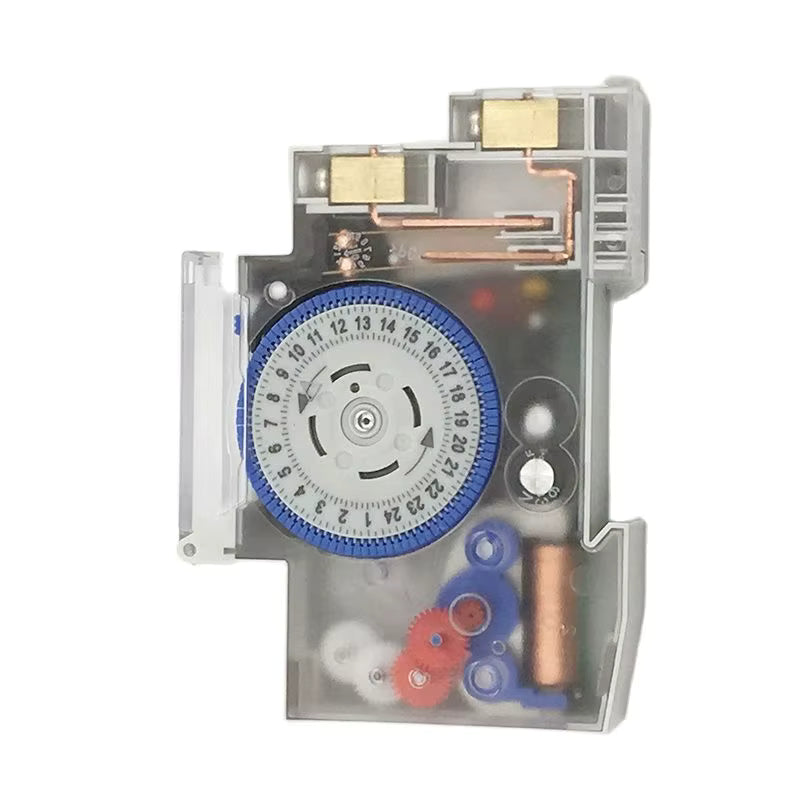

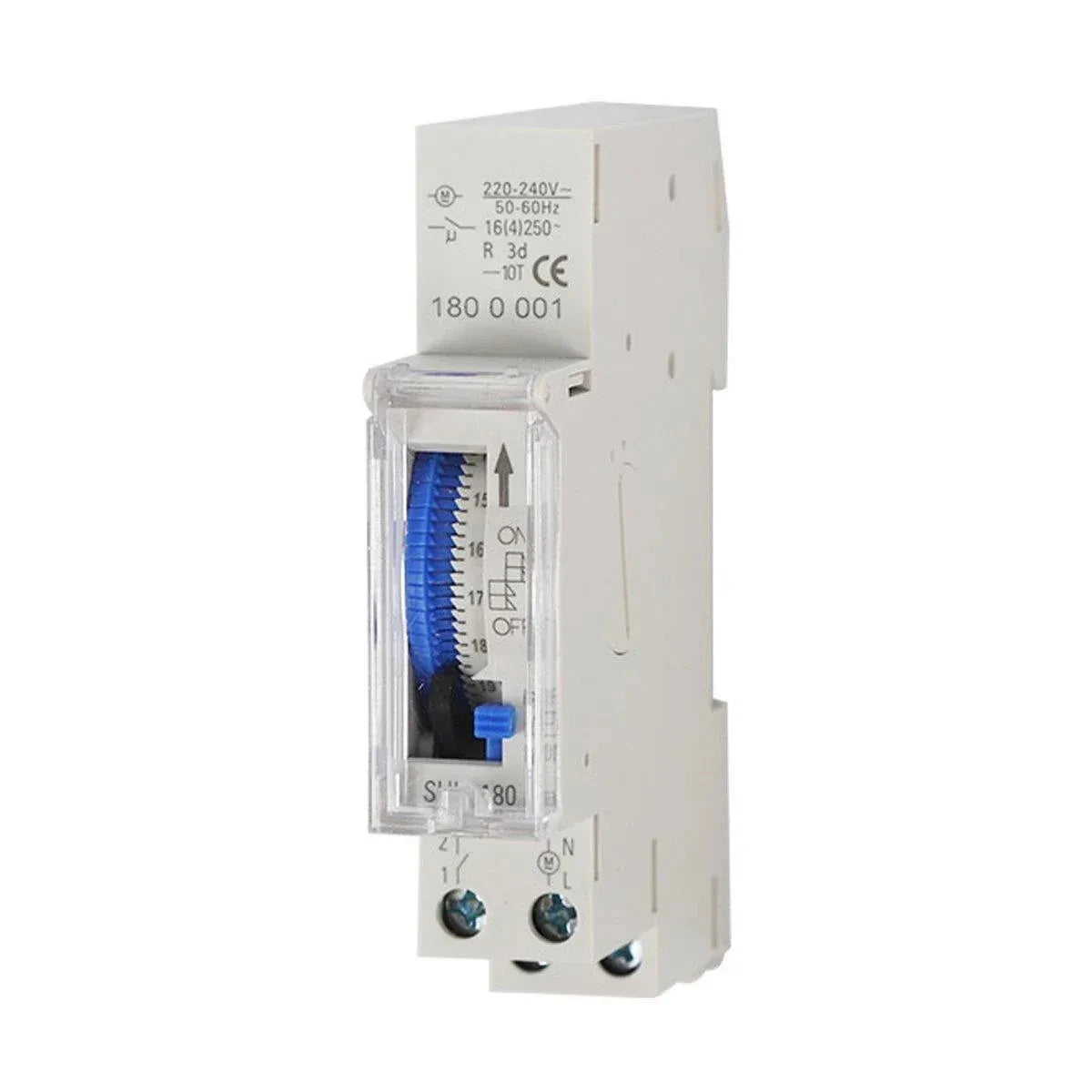

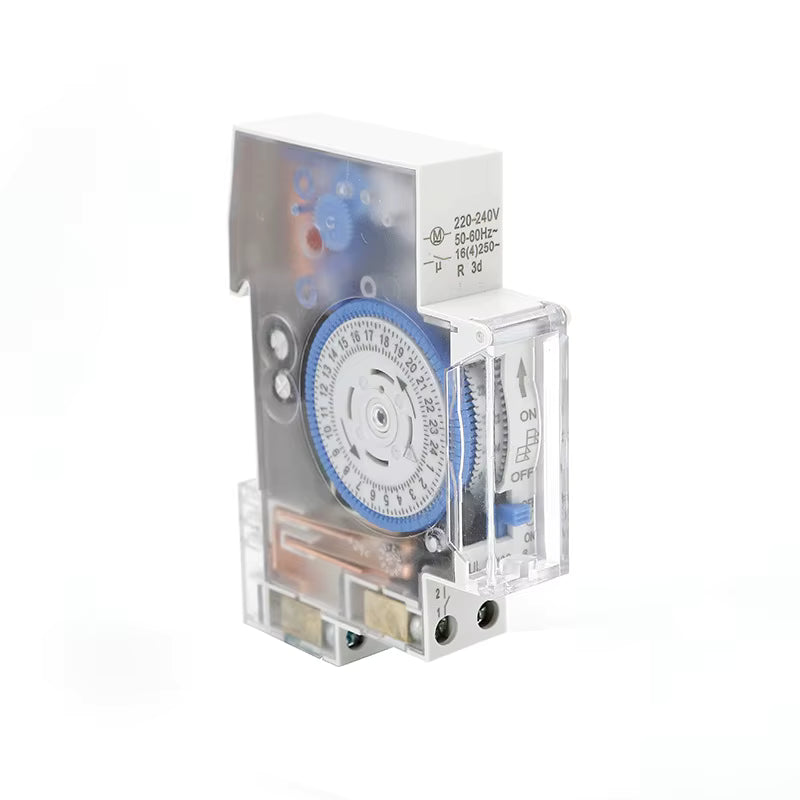

The SUL180A is a compact 24 hour mechanical timer switch for DIN rail mounting. A quartz controlled stepping motor keeps accurate time, and the daily on/off schedule is set by pushing the dial segments in or out, with no programming or menus. A 72 hour working reserve keeps the clock running through short power outages. It is a simple way to automate lighting, pumps, fans, signage and other mains powered loads on a fixed daily schedule.
Key Features

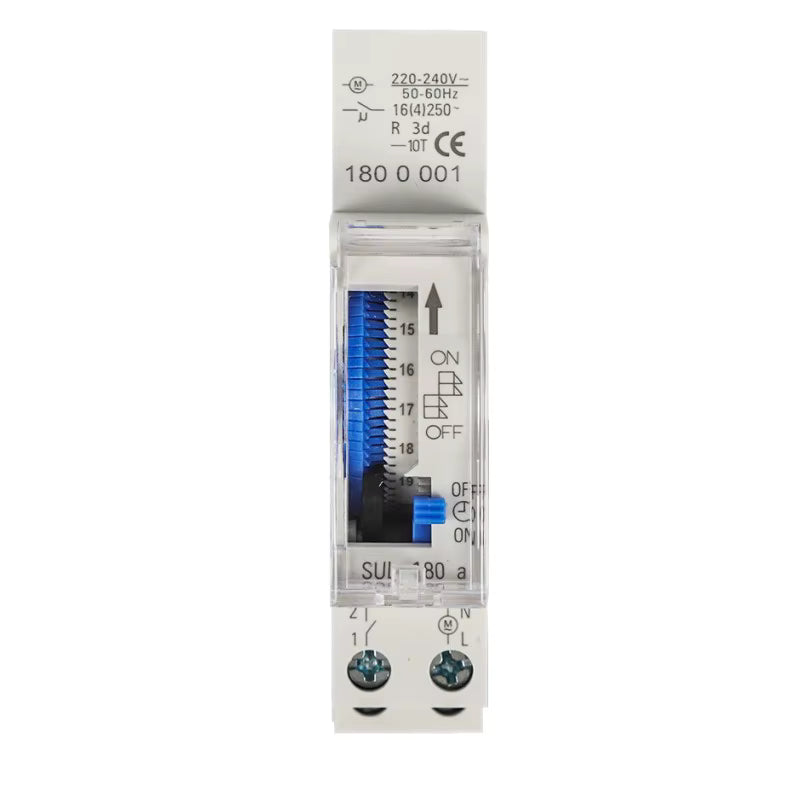

- 24 hour repeating cycle with a simple mechanical dial
- Quartz controlled stepping motor, accurate to within +/-3 seconds per day at 22°C
- 72 hour working reserve to keep time during power outages
- Rated for 220VAC supplies, 50Hz or 60Hz

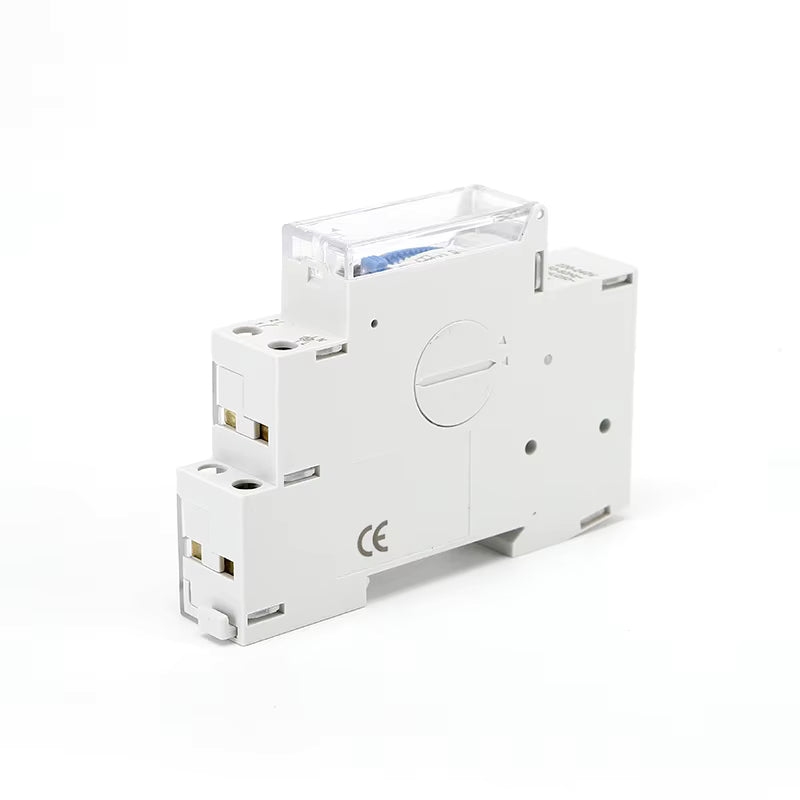

- Slim 18mm wide body for DIN rail mounting in a standard switchboard or enclosure
- Low power consumption of just 1W
- Instruction manual included
Load Ratings
- Resistive load: 15A
- Incandescent lamp: 1000W
- Inductive load: 4A
- Energy saving lamps: 150W
Specifications
| Model | SUL180A |
|---|---|
| Rated voltage | 220VAC |
| Voltage tolerance | 200-264VAC (220V) |
| Frequency | 50Hz / 60Hz |
| Movement | Quartz controlled stepping motor |
| Time precision | +/-3 seconds per day at 22°C |
| Cycle | 24 hours |
| Power consumption | 1W |
| Working reserve | 72 hours |
| Resistive load | 15A |
| Incandescent lamp load | 1000W |
| Inductive load | 4A |
| Energy saving lamp load | 150W |
| Ambient temperature | -10°C to +50°C |
| Ambient humidity | Max 85% |
| Mounting | DIN rail |
| Dimensions | 18mm (W) x 66mm (L) x 90mm (H) |
Typical Applications
- Lighting control for shopfronts, signage, garden and staircase lights
- Irrigation and garden watering pumps
- Ventilation fans and heating
- Aquarium and aquaculture equipment
- Any appliance that needs to run on a fixed daily schedule
What's Included

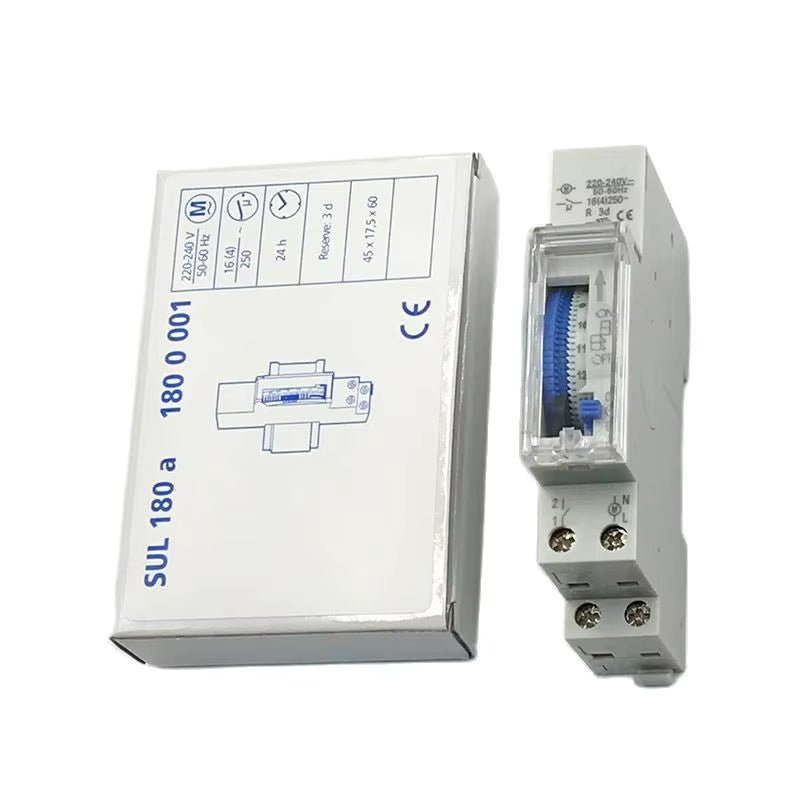

- 1 x SUL180A mechanical timer switch
- 1 x instruction manual
Safety note: This product switches mains voltage. Installation and wiring should be carried out by a licensed electrician in accordance with local regulations. Do not exceed the rated load for the type of load being switched.
