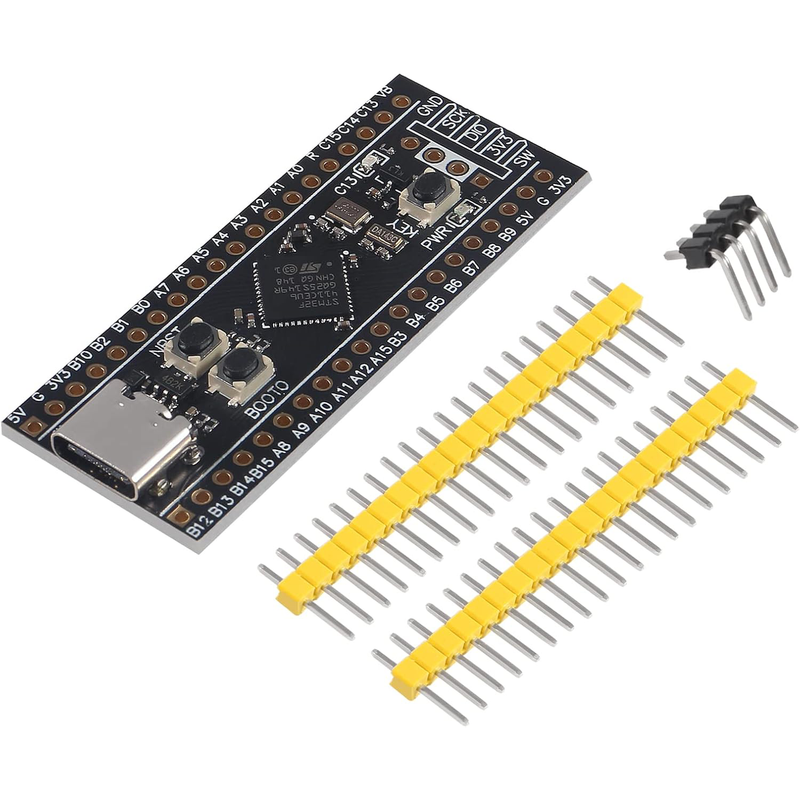

STM32 Minimum System Development Board Black Pill STM32F411CEU6

The STM32 Minimum System Development Board Black Pill STM32F411CEU6 is a high-performance microcontroller board ideal for robotics, IoT, and embedded systems. Powered by the ARM Cortex-M4 core with a 100 MHz clock and floating-point unit (FPU), it delivers faster processing, more memory, and advanced peripherals compared to the classic STM32 Minimum System Development Board Blue Pill STM32F103C8T6.

Key specifications of the Black Pill STM32F411CEU6 include:

• Microcontroller: STM32F411CEU6, ARM Cortex-M4
• CPU Frequency: 100 MHz with hardware FPU
• Flash Memory: 256 KB
• SRAM: 128 KB
• GPIO Pins: Multiple digital and analog pins
• Timers: Advanced PWM and general-purpose timers
• ADC: 12-bit high-speed
• USB: Full-speed device and host support
• Programming: Compatible with ST-Link V2 Programmer for STM8 & STM32 Boards

For programming and debugging, pair your board with the ST-Link V2 Programmer for STM8 & STM32 Boards for a reliable firmware upload and debugging interface.

Pinout Diagram:

Upgrade from the Blue Pill STM32F103C8T6 to the Black Pill STM32F411CEU6 to benefit from faster computation, larger memory, and advanced features for high-performance projects.

Resources:

• How to configure the Black Pill with the Arduino IDE
• Arduino IDE
• STM32 Cube Programmer
• STM32 Cube IDE
