Seeed Studio XIAO PowerBread - Breadboard Power Supply & Meter
Seeed Studio XIAO PowerBread - Breadboard Power Supply & Meter has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
Seeed Studio XIAO PowerBread - Breadboard Power Supply & Meter

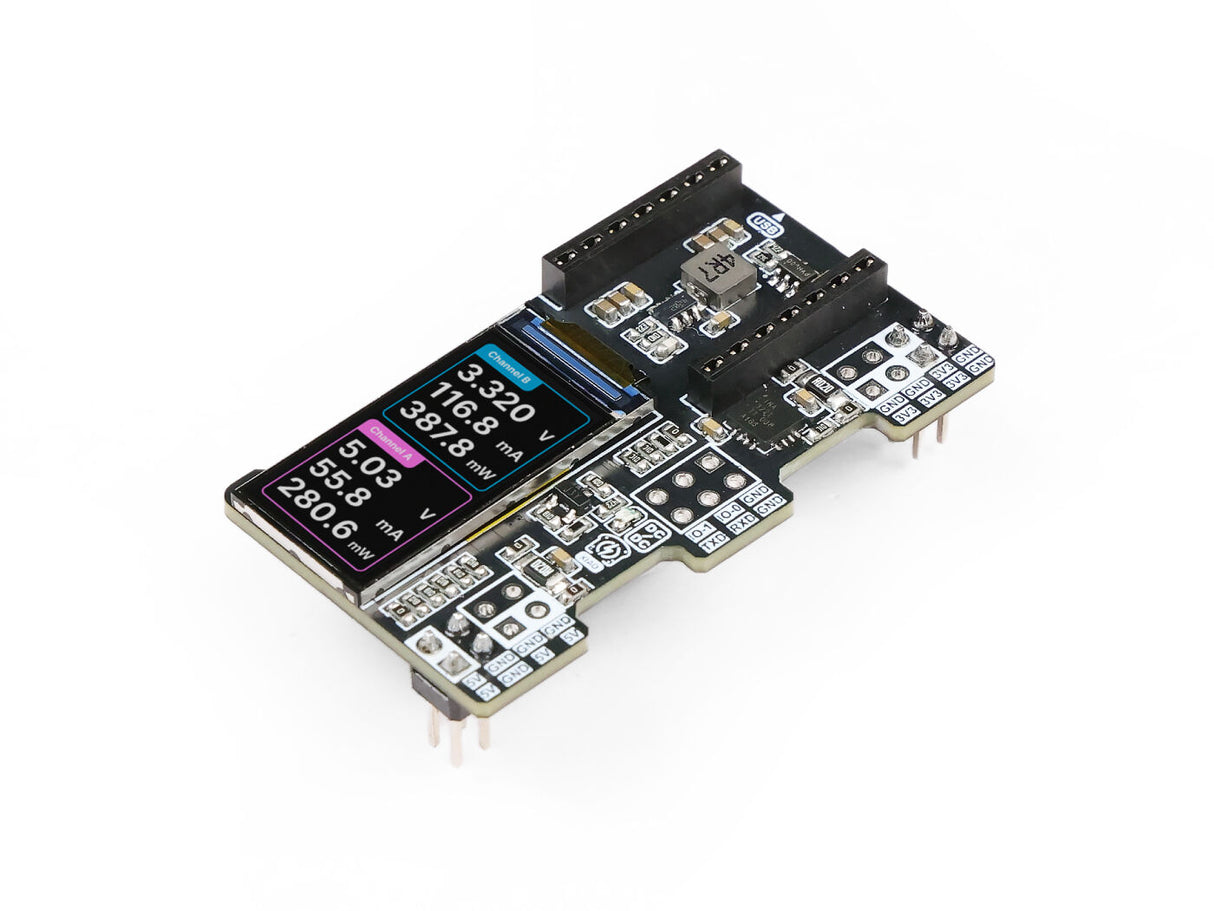

Seeed Studio XIAO PowerBread is a breadboard power supply and meter designed to work alongside your XIAO development board, combining 3.3V and 5V power rails with a built-in colour LCD display for real-time voltage, current, and power monitoring. It's a handy bench tool for anyone prototyping on a breadboard who wants to see what their circuit is actually drawing without reaching for a multimeter.
Real-Time Power Monitoring
Essential power metrics are visible at a glance on the built-in LCD, showing live voltage, current, and power data with line charts and statistics. A TI INA3221 triple-channel monitor handles dual-channel voltage and current sensing, so you can track both output rails simultaneously.
High-Current, Dual-Rail Output
PowerBread delivers up to 1.5A of stable 3.3V power alongside a 5V output, covering most breadboard-based electronics projects in a compact footprint that's designed to minimise space usage on a standard breadboard.
Plug-and-Play Design
It's powered via USB-C through your XIAO board and works straight out of the box on any standard breadboard, with no extra setup required. Long-press the dial to switch between channels in chart and statistic mode, and rotate it to adjust the display for different viewing angles.
Open-Source and XIAO Compatible
PowerBread is compatible with almost all Seeed Studio XIAO dev boards, including the XIAO RP2040, RP2350, ESP32-C3, ESP32-S3, and ESP32-C6, with support for the XIAO SAMD21 and RA4M1 planned. The design and firmware are fully open-source, with active development on new features including PWM generation, ADC reading, and serial monitor functionality.
XPB Web Console
The XPB Web Console is a free companion browser app that turns PowerBread into a full power-analysis workstation. Plug the board into any Chromium-based browser, click Connect, and the firmware streams live measurements over the Web Serial API, with no drivers or installs required. It includes live charts for voltage, current, and power on both channels sampled at 100 Hz, per-channel energy integration in mAh and mWh with a one-click reset, dark and light themes, and a debug console for troubleshooting.
What's Included
- XIAO PowerBread board
- 2x 2x2 pin headers
- 1x 2x3 pin header
Specifications
| Input Voltage | Powered via USB-C through the XIAO board |
| Output Voltages | 5V and 3.3V, up to 1.5A on the 3.3V rail |
| Display | LCD screen for real-time power monitoring |
| Current Sensing | TI INA3221 triple-channel current/voltage/power monitor, dual-channel simultaneous measurement |
| Onboard Microcontroller | RP2040, handles sensor data, display control, and future USB-serial and PWM features |
| Compatible XIAO Boards | XIAO RP2040, RP2350, ESP32-C3, ESP32-S3, ESP32-C6 (SAMD21 and RA4M1 support coming soon) |

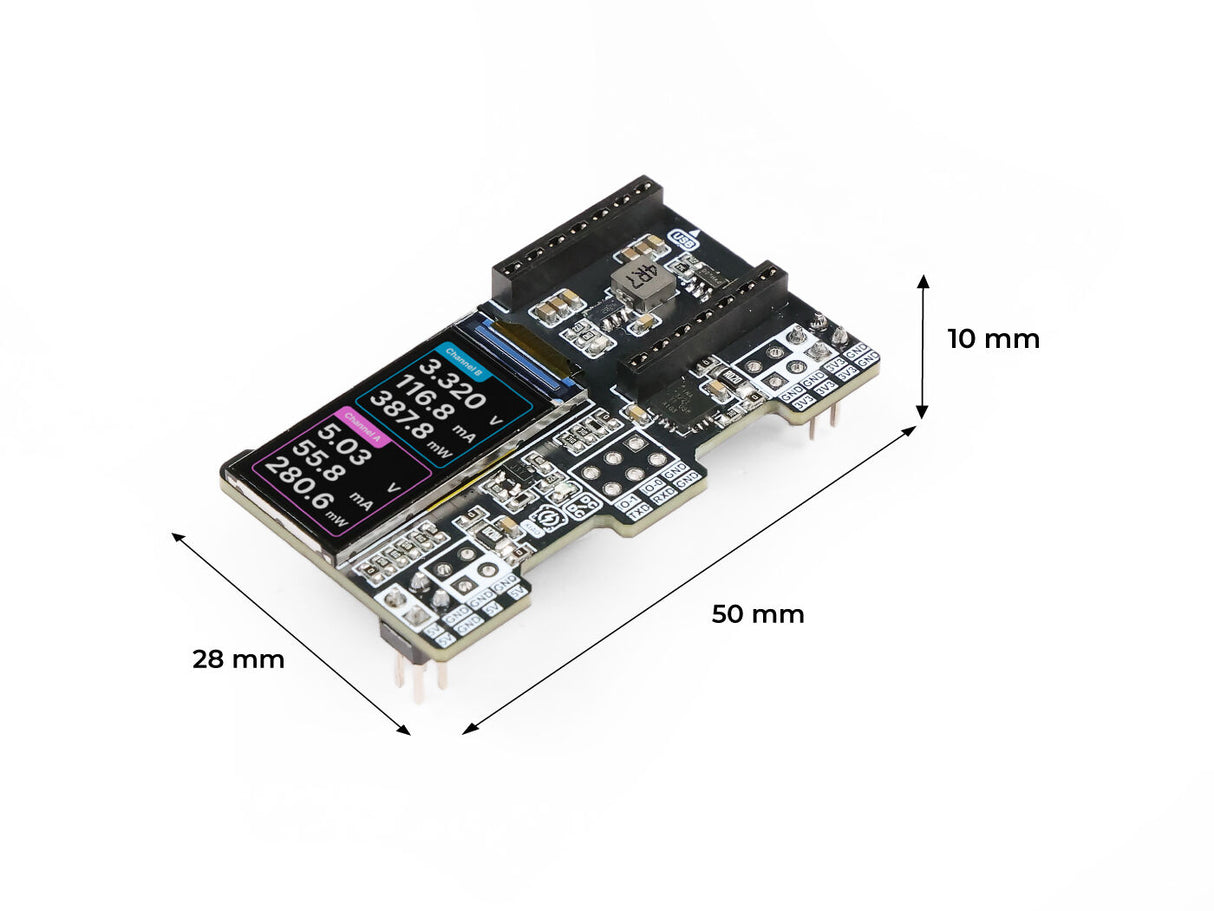

| PCB Dimensions | Designed for seamless breadboard integration with a minimal footprint |

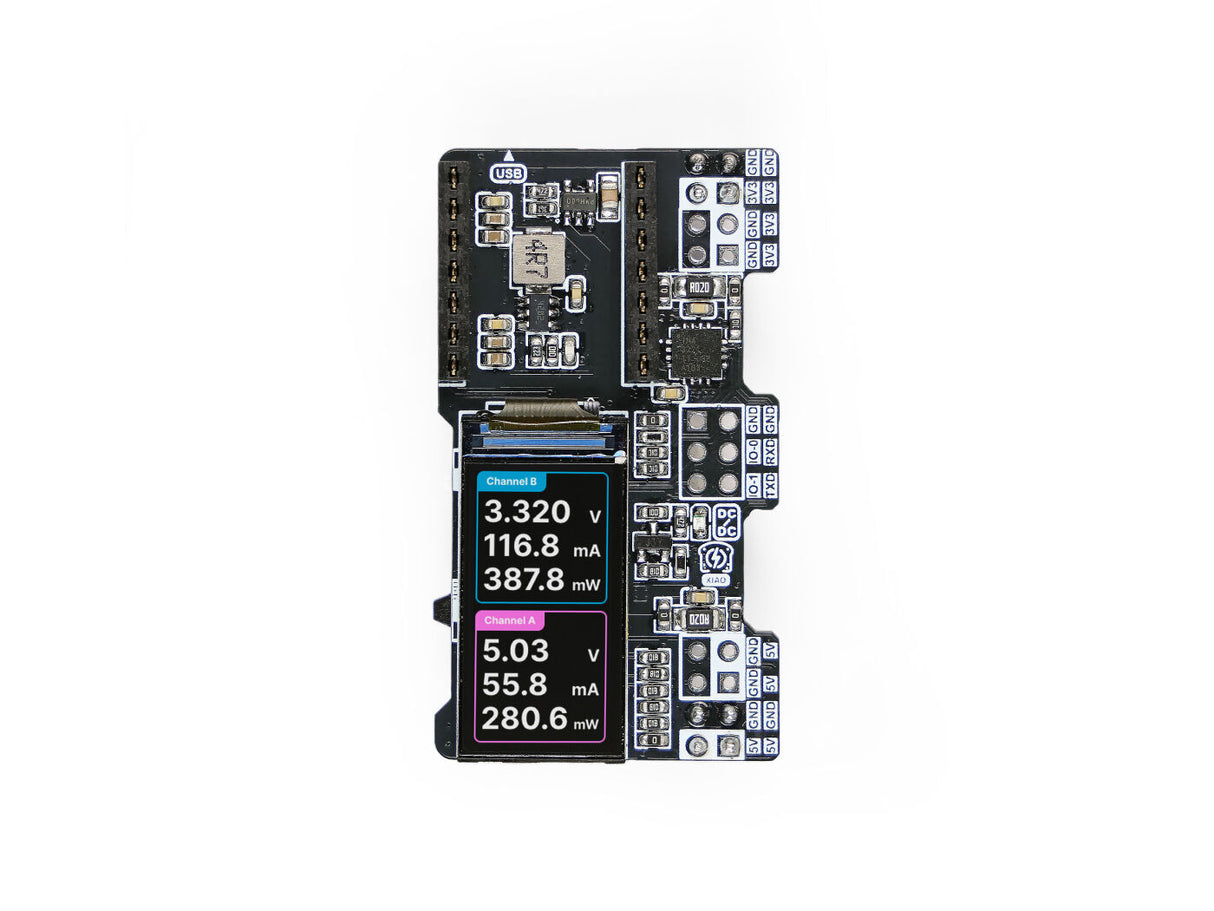

Display Modes
The onboard display switches between monitor mode, a live line chart, and a statistics view.
Long-press the dial to switch between the 3.3V and 5V channels.
Resources
- XPB Web Console, the companion browser app for live power analysis
- GitHub Repository, open-source firmware and hardware design files
