Seeed Studio XIAO nRF52840 (XIAO BLE)
Seeed Studio XIAO nRF52840 (XIAO BLE) has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
Seeed Studio XIAO nRF52840 (XIAO BLE)

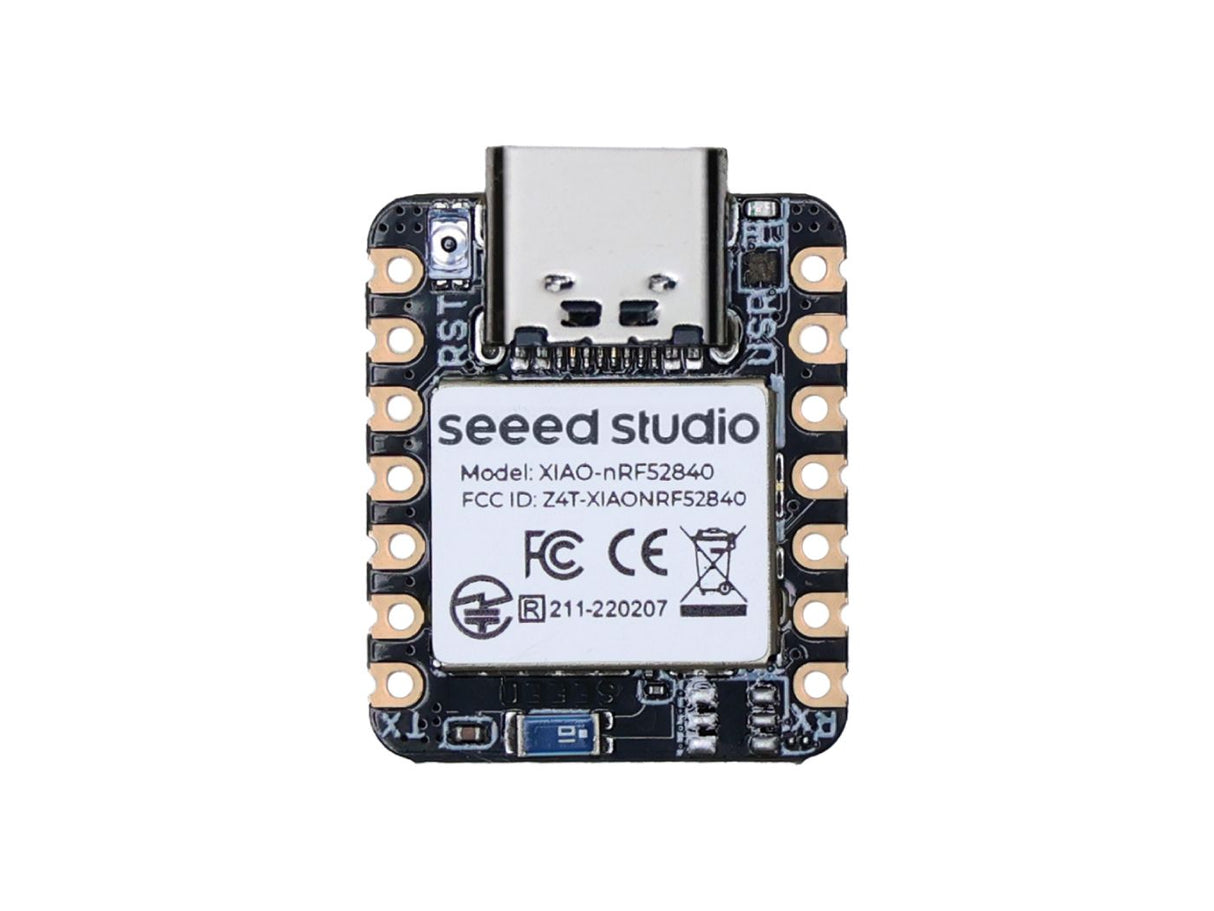

Seeed Studio XIAO nRF52840 (XIAO BLE) is a Bluetooth-enabled development board built around the Nordic nRF52840 chip, packed into the classic 21 x 17.8mm XIAO form factor. It runs an ARM Cortex-M4 with FPU at up to 64 MHz and is supported by Arduino, CircuitPython, and MicroPython, making it a solid choice for both wireless prototyping and low-power embedded projects.
Wireless Connectivity and Low Power Design
The board includes Bluetooth Low Energy 5.4 with an onboard antenna, along with NFC connectivity, all in a single compact module. Power design is equally considered, with deep sleep consumption as low as 5 μA and built-in lithium battery charge management, making it well suited to battery-powered and wearable applications.
Thumb-Sized and Production-Ready

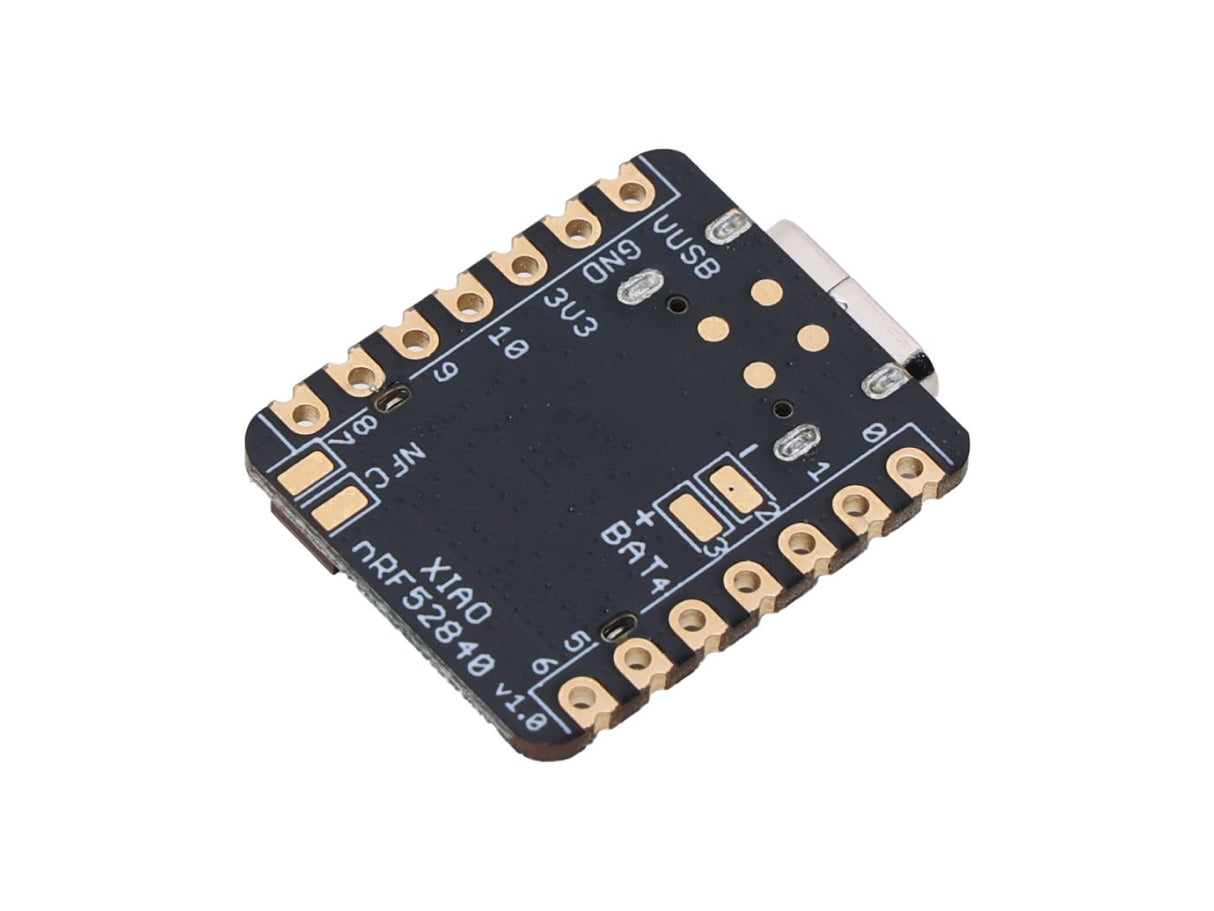

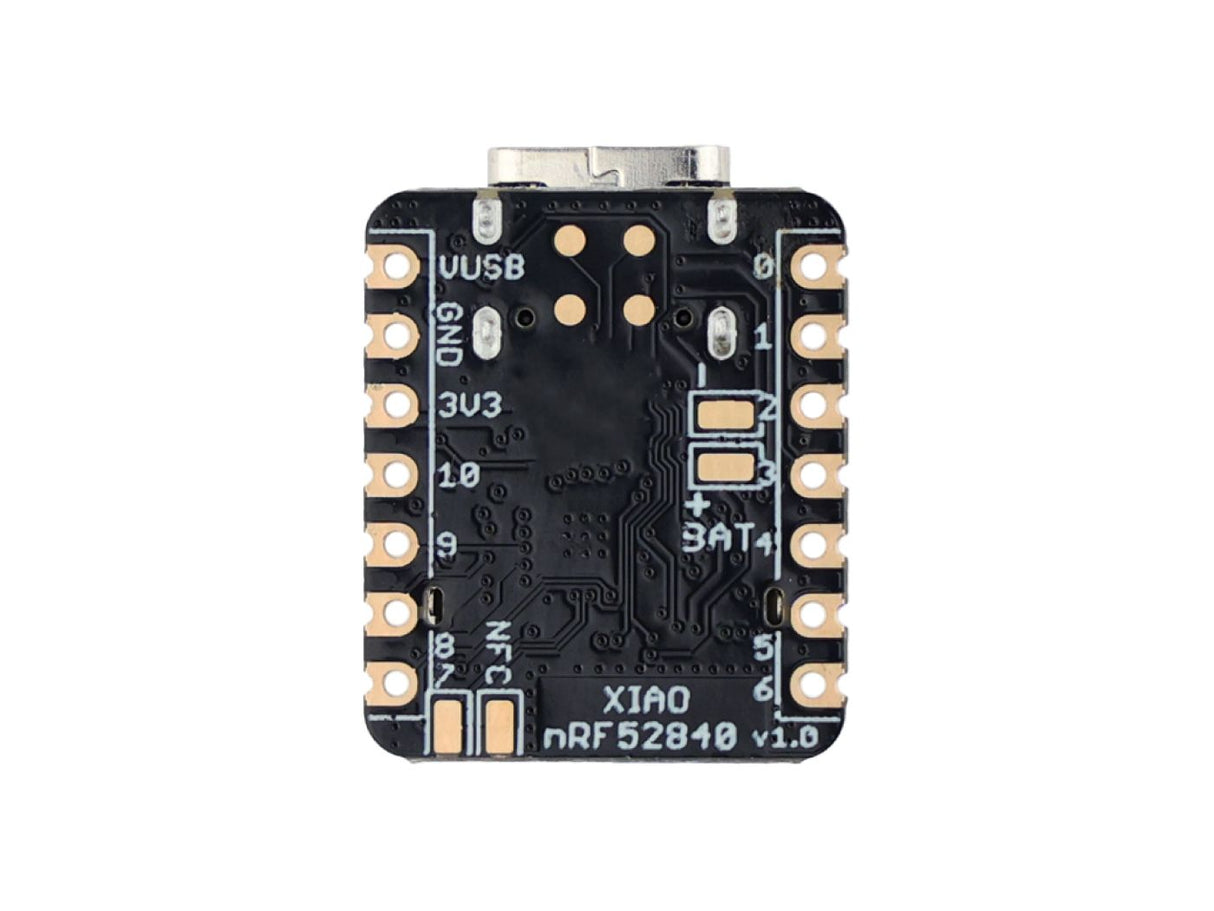

At 21 x 17.8mm, it keeps the classic XIAO footprint, and its breadboard-friendly SMD design with no components on the back makes it easy to work with on the bench or integrate into a finished product.
Specifications
| Processor | Nordic nRF52840, ARM Cortex-M4 with FPU, up to 64 MHz |
| Wireless | Bluetooth Low Energy 5.4, Bluetooth Mesh, NFC |
| On-chip Memory | 1MB flash, 256KB RAM |
| Onboard Memory | 2MB QSPI flash |
| Interface | 1x UART, 1x I2C, 1x SPI, 1x NFC, 1x SWD, 11x GPIO (PWM), 6x ADC |

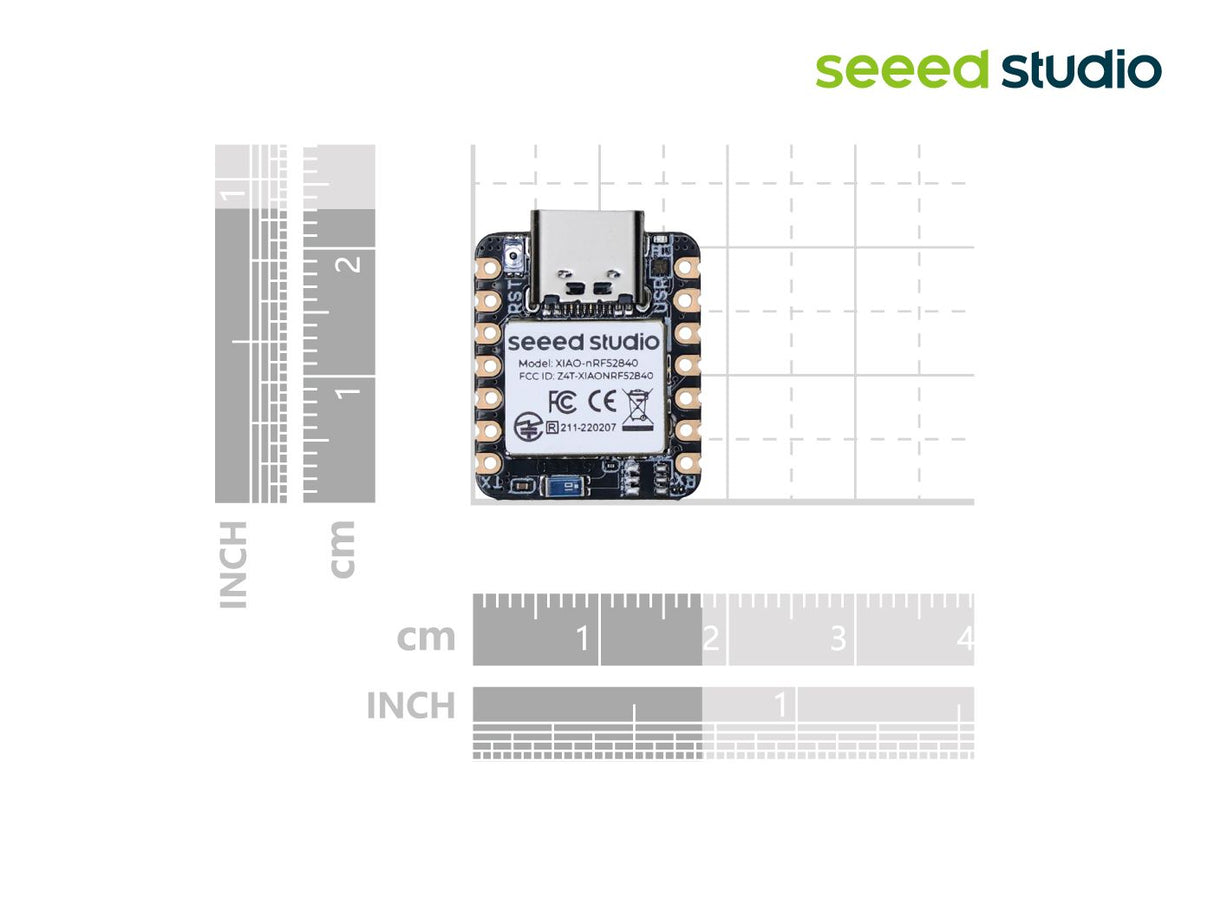

| Dimensions | 21 x 17.8mm |
| Power | 3.3V@200mA operating, 50mA/100mA charging current, 5V via Type-C, 3.7V via BAT, 5 μA standby |
Pinout
Resources
- Seeed Studio Wiki, full setup guides, pinout diagrams, and project examples
- nRF52840 Datasheet
- Browse our full range of XIAO Expansion & Breakout Boards
Prefer plug-and-play? Grab the pre-soldered XIAO nRF52840 instead. Need onboard sensors for machine learning projects? Check out the XIAO nRF52840 Sense.
