Seeed Studio XIAO ESP32-S3 - Soldered
Seeed Studio XIAO ESP32-S3 - Soldered has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
Seeed Studio XIAO ESP32-S3 - Soldered

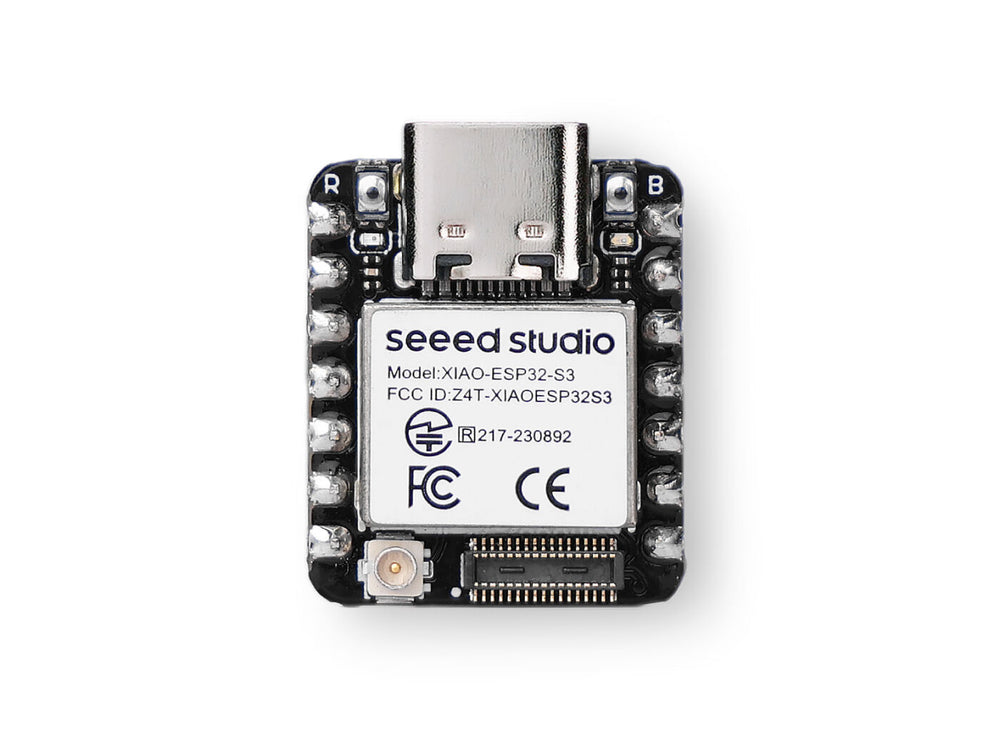

Seeed Studio XIAO ESP32-S3 is a dual-core Wi-Fi and Bluetooth development board built around the ESP32-S3 chip, packed into the classic 21 x 17.8mm XIAO form factor. It runs a Xtensa LX7 dual-core 32-bit processor at up to 240 MHz and is supported by Arduino and MicroPython, giving it plenty of headroom for more demanding IoT and wireless projects.
Solder-Free for Instant Creation
This version comes with headers already soldered on, so there's no soldering iron required. Just unbox it and plug straight into a breadboard, ideal for rapid prototyping, workshops, and beginner-friendly builds.
Wi-Fi and Bluetooth with Long Range
The board includes a complete 2.4GHz Wi-Fi subsystem alongside Bluetooth Low Energy 5.0, and supports communication over 100m or more when connected to a U.FL antenna. Power management offers four modes, with deep sleep consumption as low as 14 μA, plus built-in lithium battery charge management for portable projects.
Thumb-Sized and Production-Ready
At 21 x 17.8mm, it keeps the classic XIAO footprint with single-sided component mounting, and its breadboard-friendly SMD design with no components on the back makes it easy to work with on the bench or integrate into a finished product.
Specifications
| Processor | ESP32-S3R8, Xtensa LX7 dual-core 32-bit, up to 240 MHz |
| Wireless | 2.4GHz Wi-Fi, Bluetooth Low Energy 5.0, Bluetooth Mesh |
| On-chip Memory | 8MB PSRAM, 8MB flash |
| Interface | 1x UART, 1x I2C, 1x SPI, 11x GPIO (PWM), 9x ADC, User LED, Charge LED, Reset Button, Boot Button |

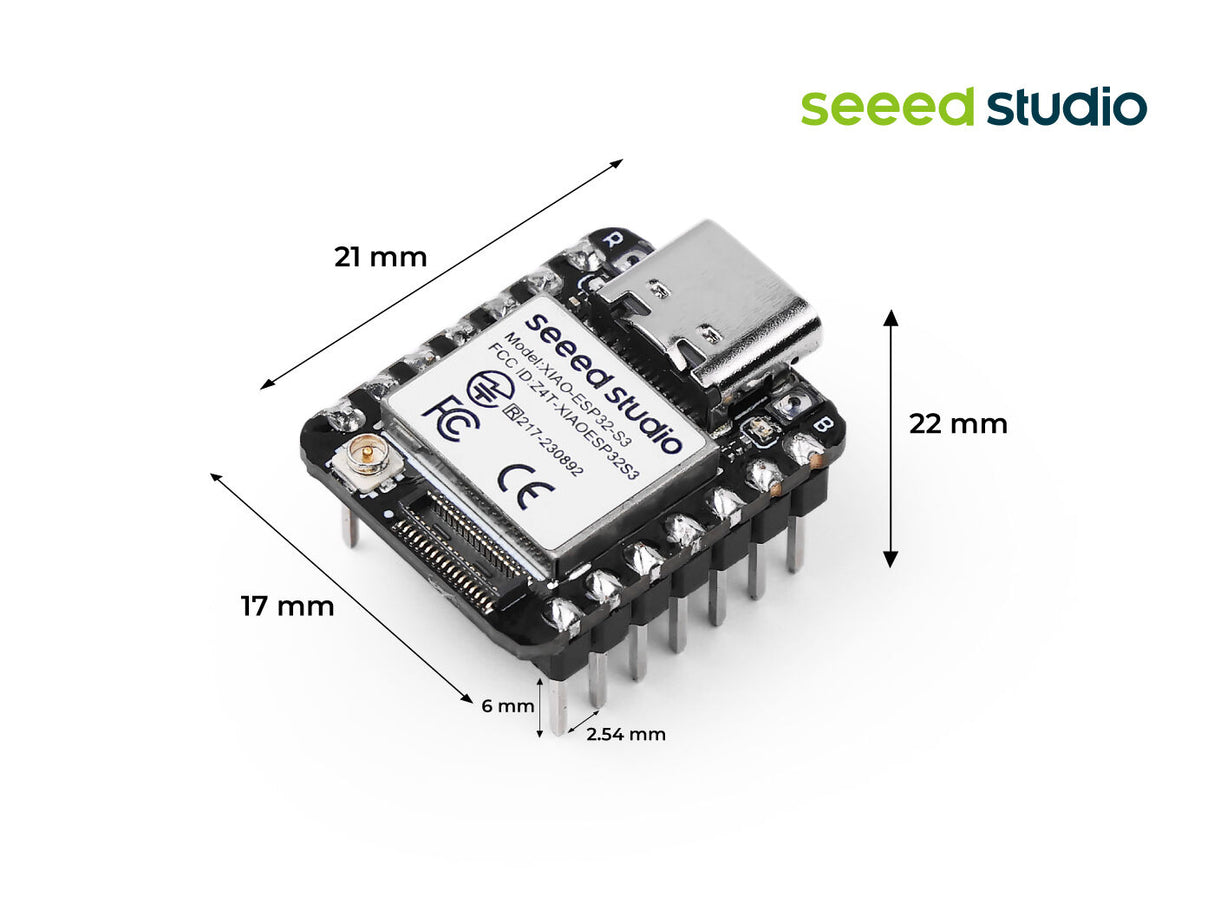

| Dimensions | 21 x 17.8mm |
| Power | 5V via Type-C, 3.7V via BAT, 50mA (fast) / 3.8mA (trickle) charging |
| Low Power Modes | 27mA modem-sleep, 2mA light-sleep, 14 μA deep sleep |
| Wi-Fi Active Power | 220mA |
| BLE Active Power | 217mA |
| Working Temperature | -40°C to 65°C |
Pinout
Resources
- Seeed Studio Wiki, full setup guides, pinout diagrams, and project examples
- ESP32-S3 Datasheet
- Browse our full range of XIAO Expansion & Breakout Boards

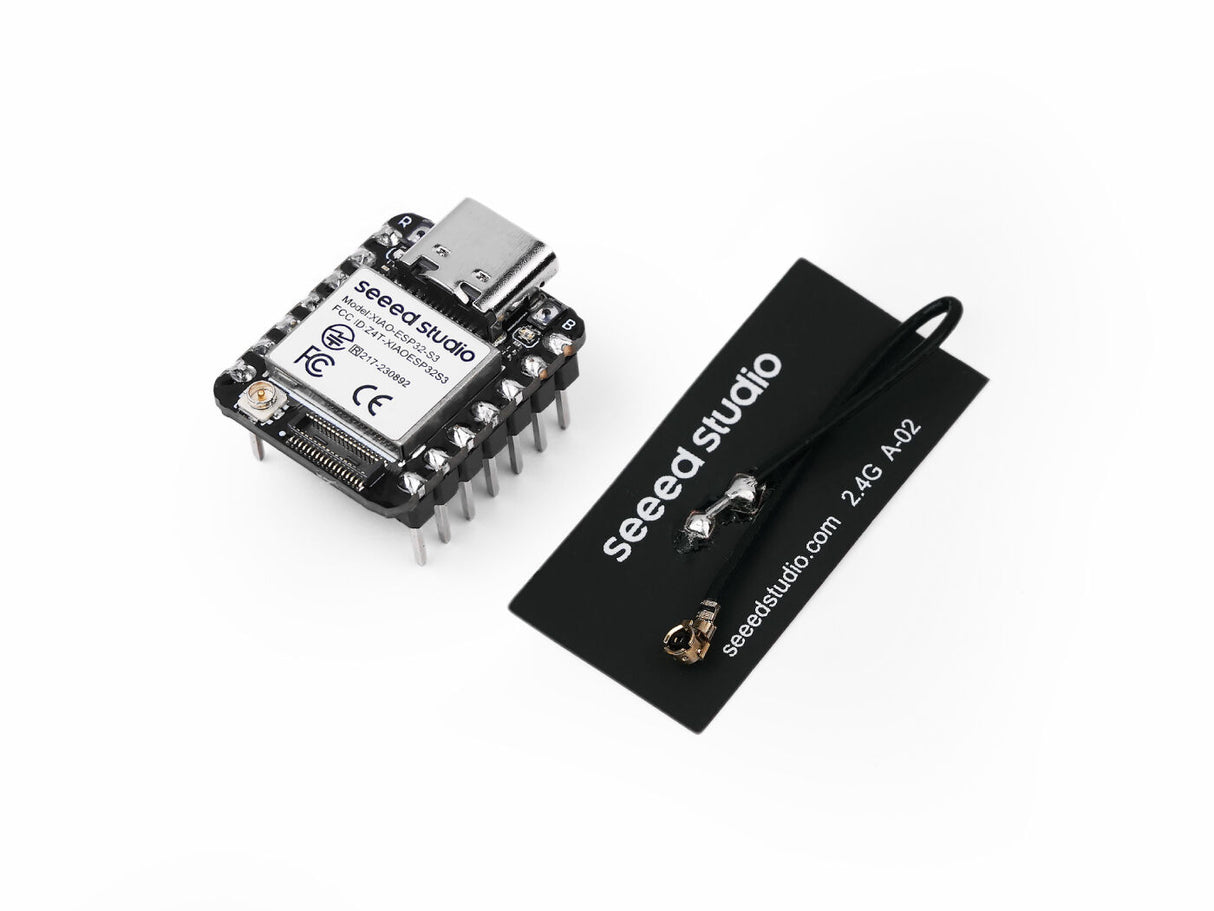

An onboard antenna is included, though if you need extra range for your project, our 2.4GHz Wi-Fi Antenna is compatible with the XIAO ESP32-S3. Prefer to solder your own headers? Grab the unsoldered XIAO ESP32-S3 instead.
