Zaitronics | SKU:
RP-PICO-Z

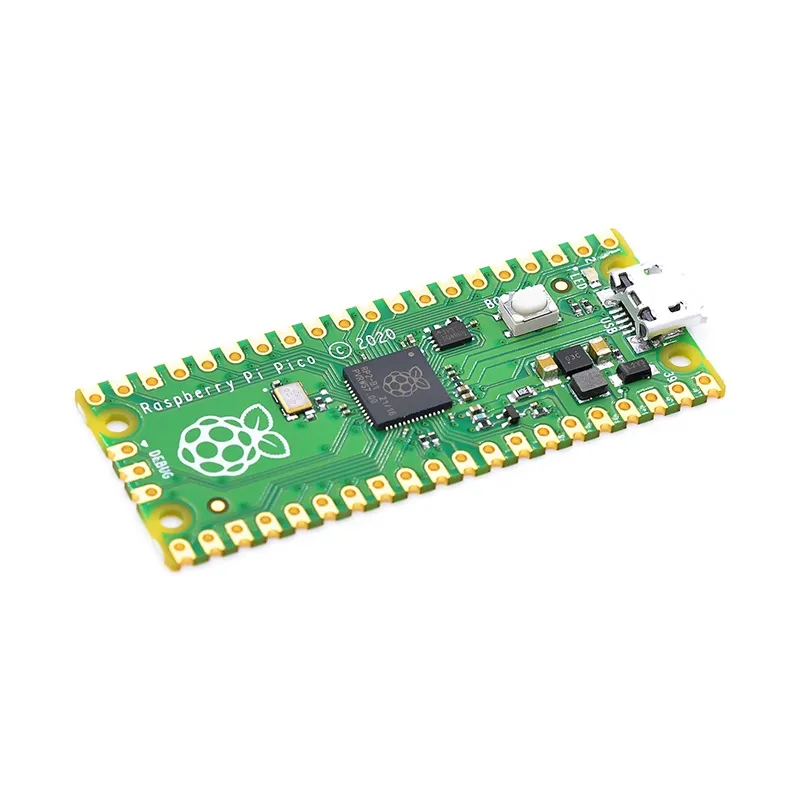

Raspberry Pi Pico RP2040
$6.00 AUD
Unit price
/
Unavailable
Raspberry Pi Pico RP2040 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Delivery Options
We offer several delivery choices to fit your needs:
- AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
- Free Delivery: Orders over $50 qualify for free tracked delivery via AusPost Parcel Standard (3-6 business days). Note: Raspberry Pi Model B boards are not eligible for free delivery.
- AusPost Parcel Standard: $8. Tracked delivery in 3-6 business days.
- AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
Additional Information
- Non-metro addresses in WA, NT, SA & TAS may require extra time.
- Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
- We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
Warranty & Refund Policy
Warranty & Refund Policy
Warranty & Refund Policy
- Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
- Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
- Returns: Contact support via your order confirmation email within 30 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
- Defective/Damaged Items: Notify us within 14 days for a free refund or replacement.
- Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
Raspberry Pi Pico RP2040
$6.00 AUD
Unit price
/
Unavailable
Let’s explore the Raspberry Pi Pico, a powerful microcontroller board based on the RP2040 chip. Here are the key features and specifications:
Introduction:
- The Raspberry Pi Pico is designed to be a low-cost, high-performance microcontroller board.
- It offers flexible digital interfaces and is based on the RP2040 microcontroller chip.
Key Features:
- Dual-Core ARM Cortex-M0+ Processor:
- Runs at up to 133MHz.
- Provides processing power for various applications.
- Memory:
- 264KB of SRAM for data storage.
- 2MB of onboard QSPI Flash memory for code storage.
- GPIO Pins:
- 30 GPIO pins for interfacing with external devices.
- Software Support:
- Comes with official C/C++ SDK and MicroPython SDK.
- Rich community resources available.
- Form Factor:
- Can be used with soldered 0.1" pin-headers or as a surface-mountable module.
- Castellated edges for flexible mounting options.
- USB 1.1 Support:
- Works as both a device and a host.
- Allows drag-and-drop programming using mass storage over USB.
- Interfacing Options:
- SPI, I2C, and UART interfaces.
- 12-bit ADC for analog input.
- 16 controllable PWM channels.
- On-Chip Features:
- Accurate clock and timer functionality.
- Temperature sensor for environmental monitoring.
- Accelerated floating-point libraries.
- 8 programmable I/O (PIO) state machines for custom peripheral support.
Specifications:
- Operating Voltage: Designed by Raspberry Pi in the United Kingdom.
- Castellated Module: Can be soldered directly to carrier boards.
- Low-Power Modes: Supports sleep and dormant modes.
- Programming Interface: Drag-and-drop programming via USB mass storage.
- Dimensions: Compact and versatile.
Whether you’re a beginner or an experienced maker, the Raspberry Pi Pico offers a wealth of possibilities for your creative projects!
Cable not included
This is for a compatible version. There may be slight adjustments between the original and this version.
