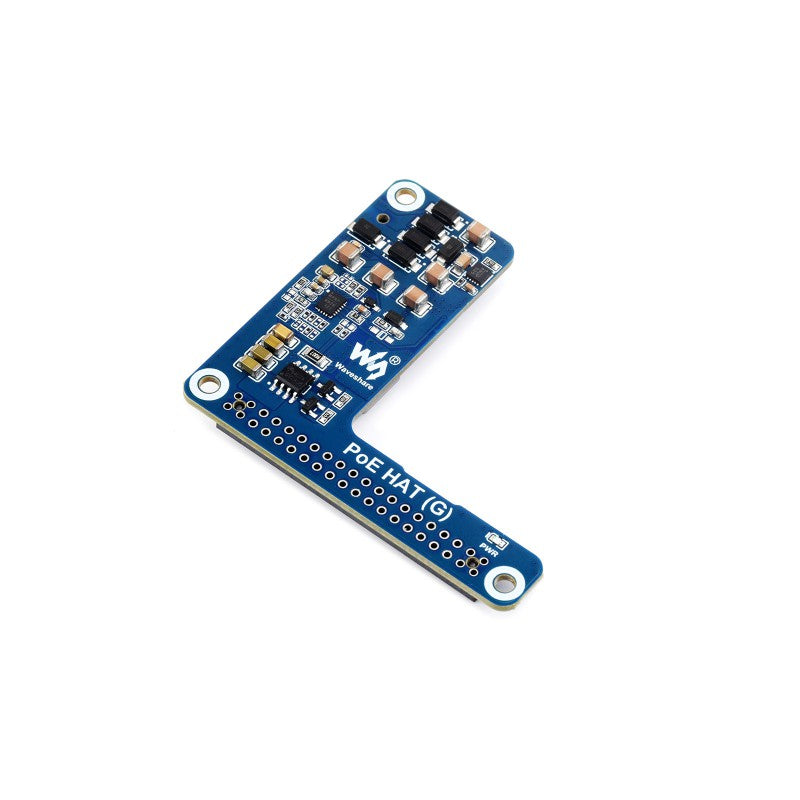

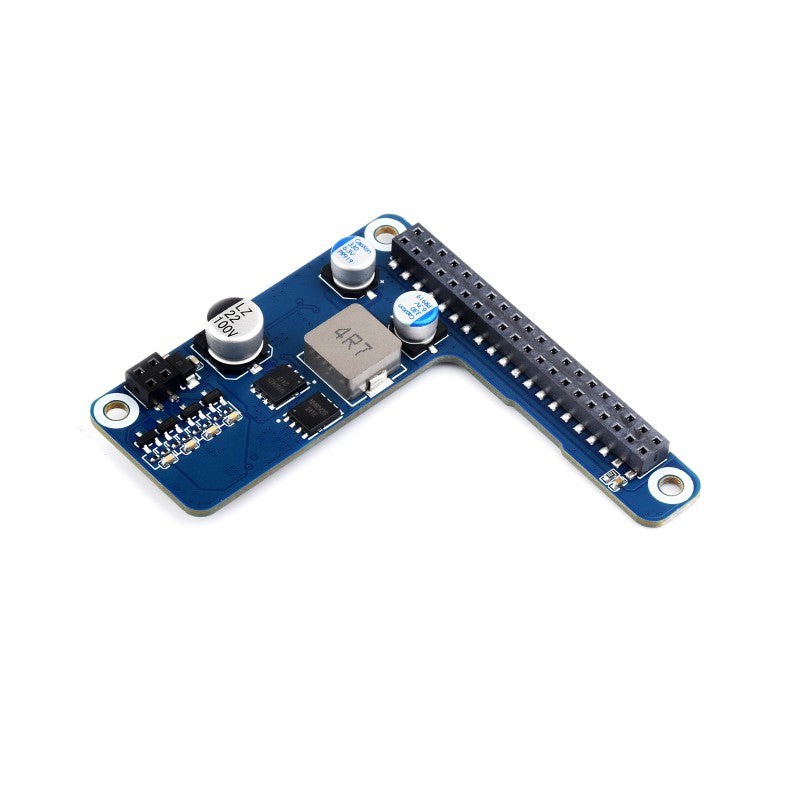

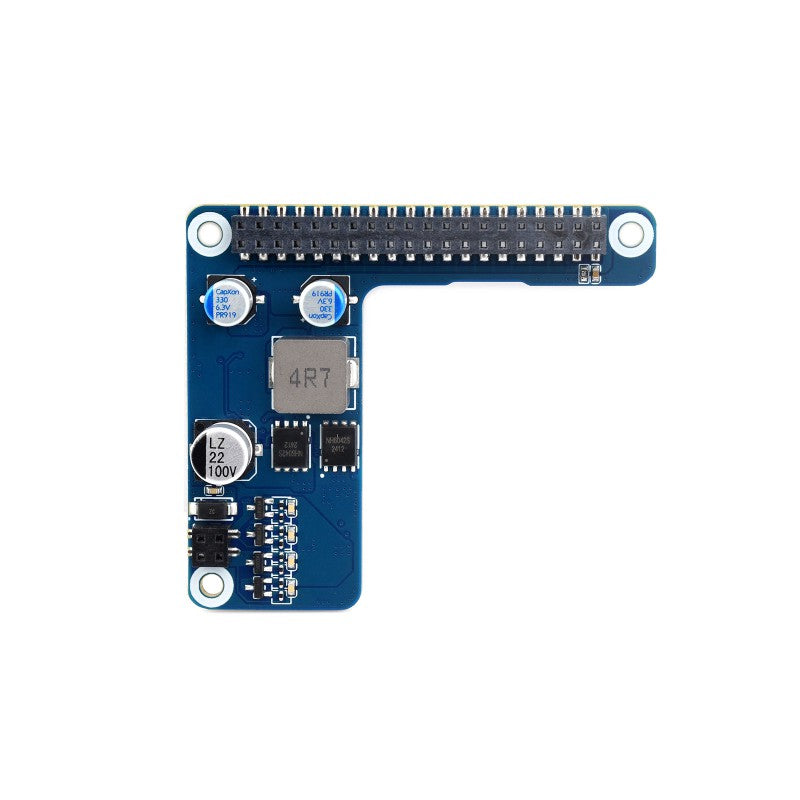

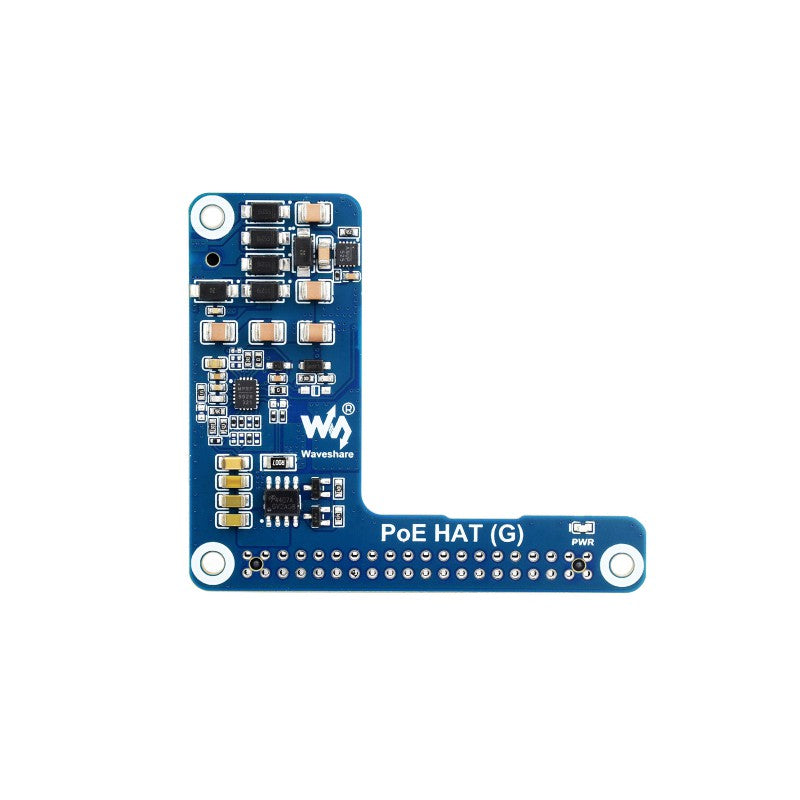

Power Over Ethernet HAT (G) For Raspberry Pi 5 - 5V 5A, 802.3af/at
Features at a glance
The PoE HAT (G) is an IEEE 802.3af/at-compliant PoE+ (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO header
- PoE / PoE+ capability，IEEE 802.3af/at-compliant
- Onboard original IC solution for more stable PoE power performance
- Adopts non-isolated switched-mode power supply (SMPS)
- Compact and easy to assemble
Specifications
| PoE HAT (G) | |
|---|---|
| PoE power input | 38V ~ 57V DC in |
| Power output | GPIO header: 5V 5A (MAX) |
| Dimensions | 56.5 × 64.98mm |
| Network standard | IEEE 802.3af/at PoE / PoE+ |
| Raspberry Pi 5 Official Case | |
|---|---|
| Input voltage | 5V DC (supplied via four-pin fan header on Raspberry Pi 5) |
| Fan speed control | Pulse width modulation control with tachometer |
| Maximum airflow | 2.79 CFM |
| Maximum Fan speed | 8000 RPM ±15% |
| Case material | ABS (base, frame, lid) and PC (fan assembly) |
Standard Raspberry Pi 40PIN GPIO header, easy to assemble into the official case
providing both network connection and power supply for the Raspberry Pi 5 / CM 5 in one cable
