MG90S Metal Gear Servo
$7.00 AUD
Unit price
/
Unavailable

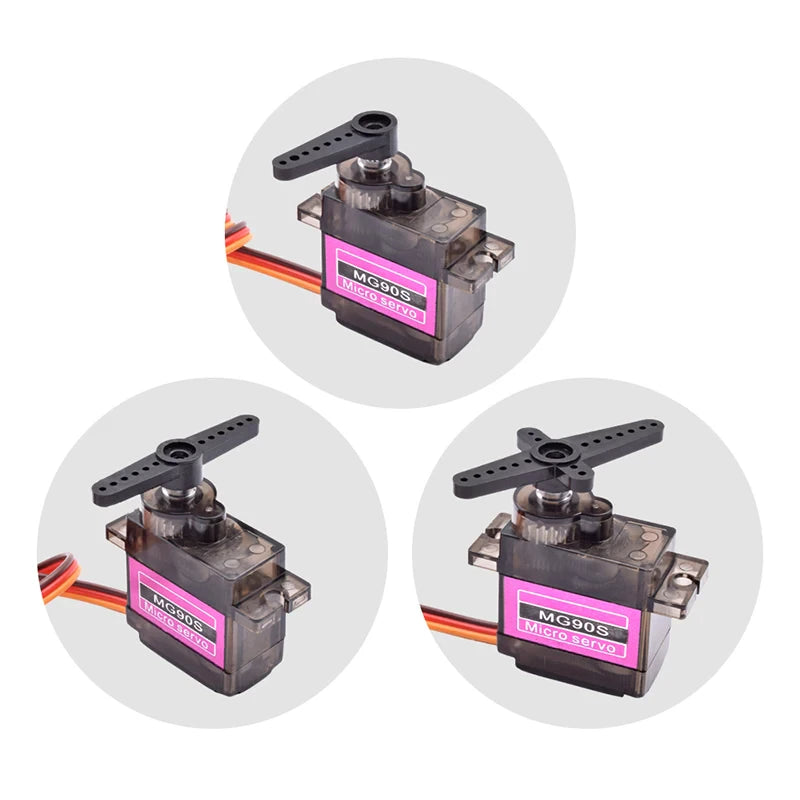

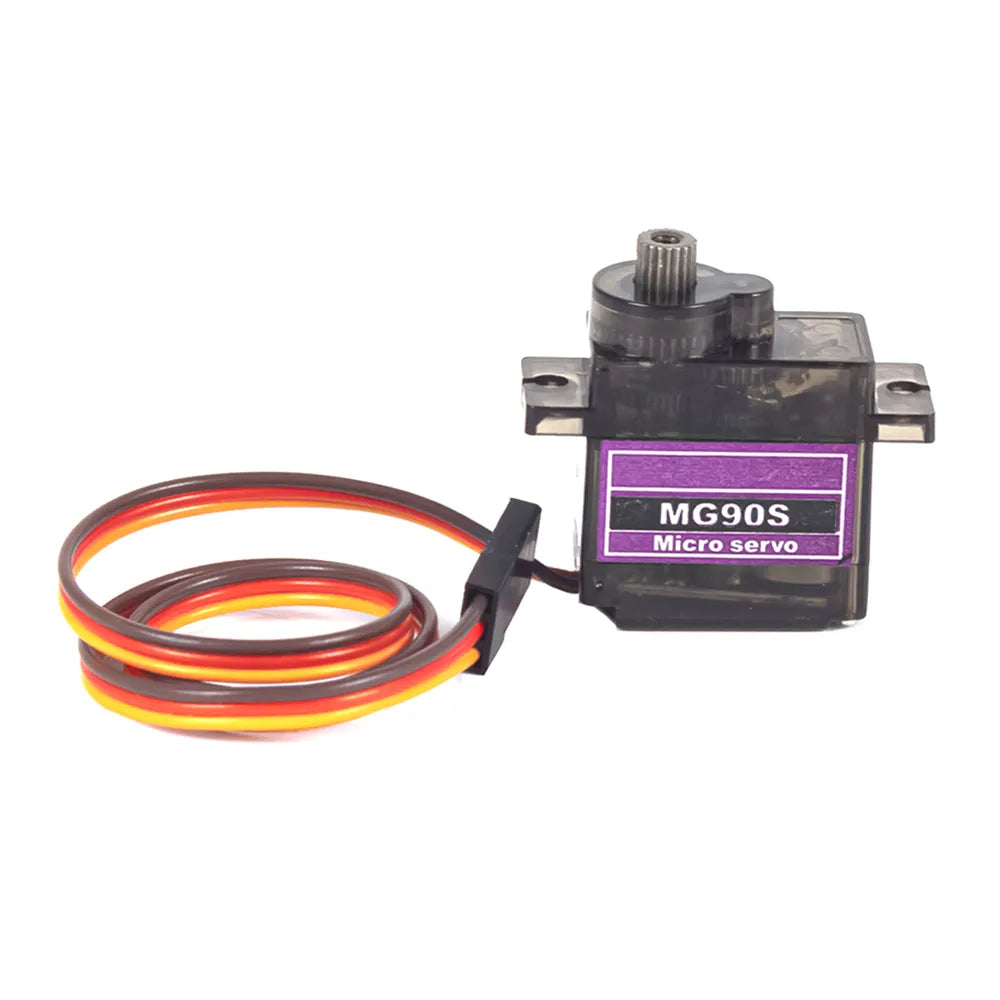

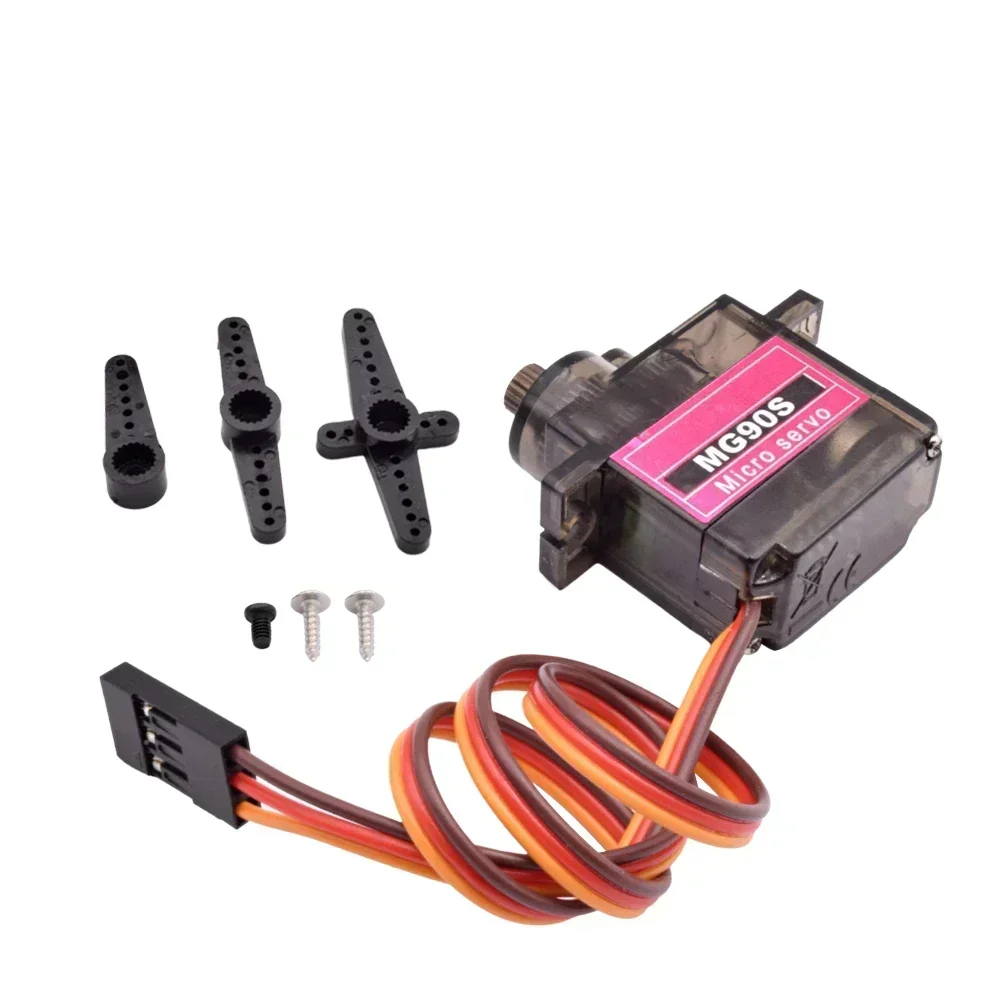

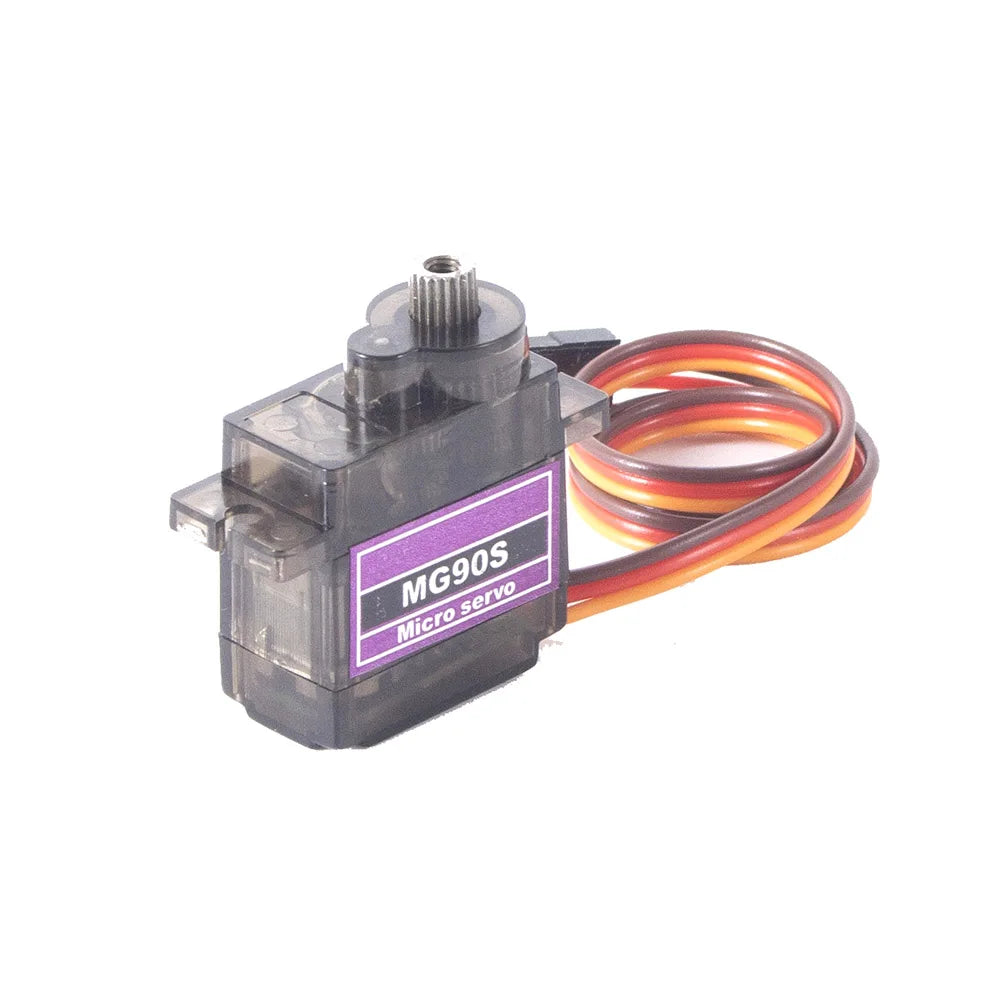

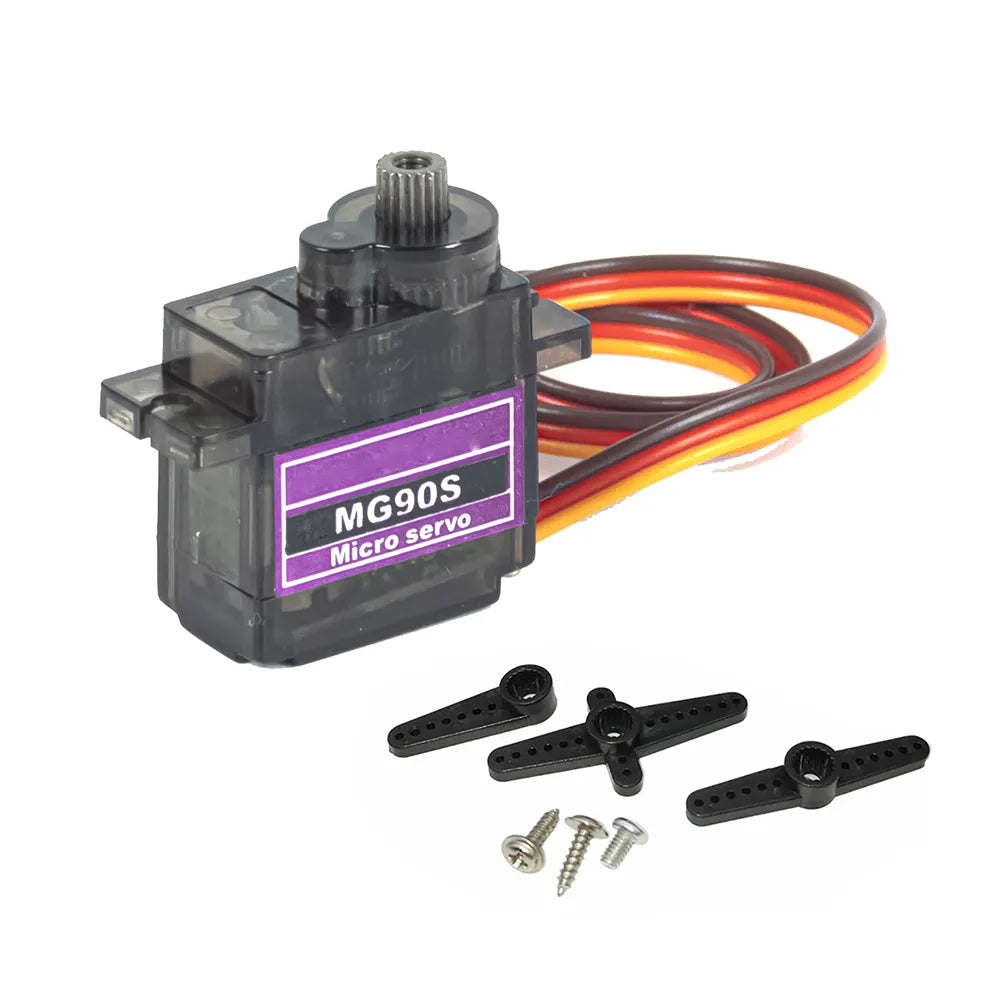

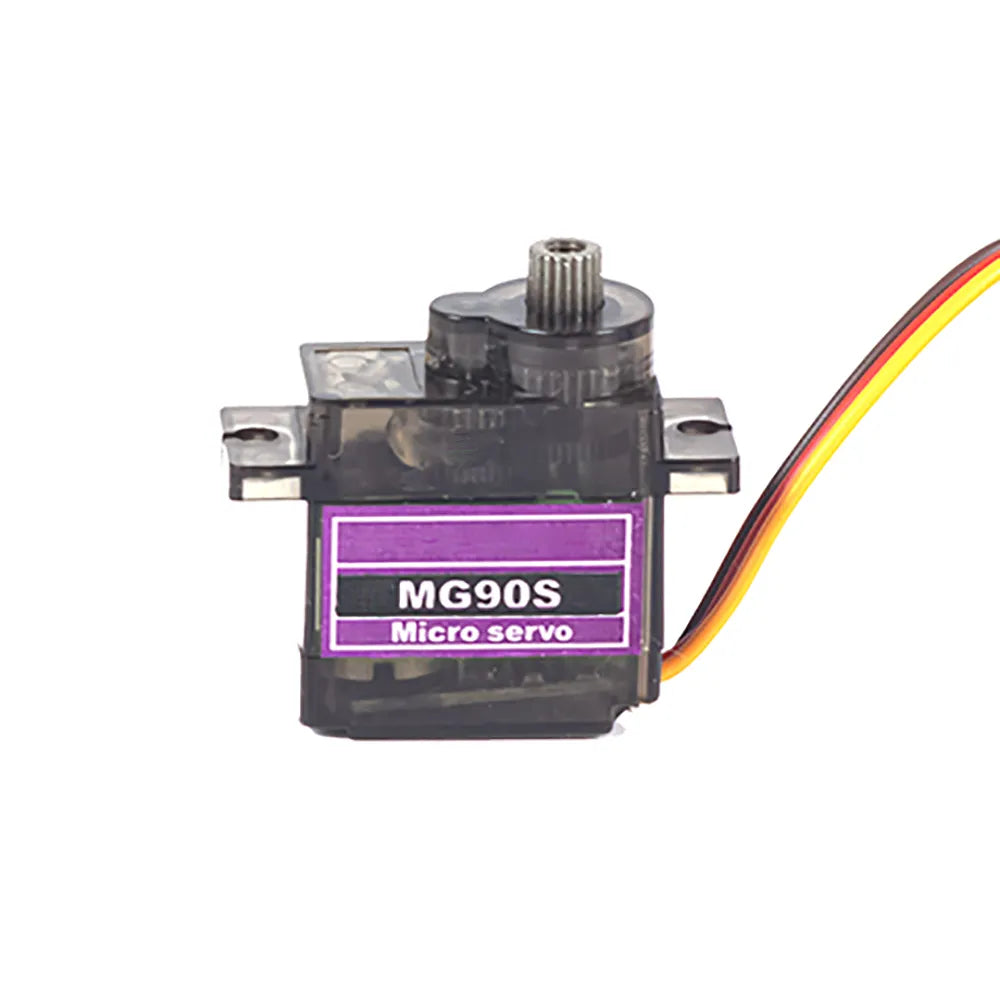

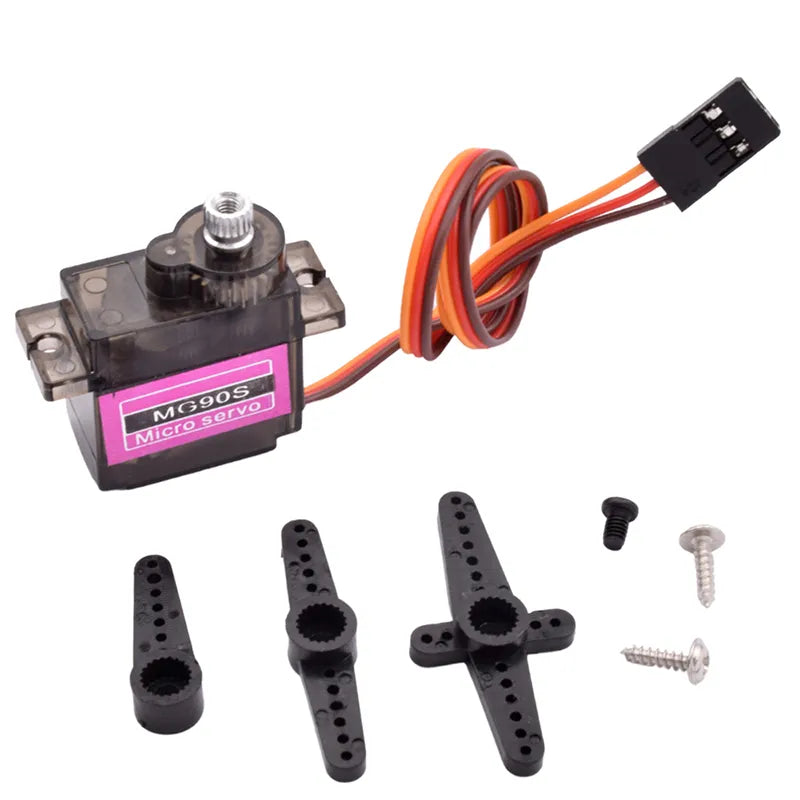

The MG90S is a micro servo motor equipped with metal gears, making it sturdy and reliable. Here are the key specifications and features of this versatile little motor:
Features:
- Operating Voltage:
- Typically operates between 4.8V to 6V, with 5V being the common choice.
- Stall Torque:
- At 4.8V: 1.8 kg/cm
- At 6V: 2.2 kg/cm.
- Operating Speed:
- Rotates at 0.1 seconds per 60 degrees (at 4.8V).
- Gear Type:
- Features metal gears for durability and precision.
- Rotation Range:
- Can rotate from 0° to 180°.
- Weight:
- Lightweight, weighing approximately 13.4 grams.
- Dimensions:
- Compact size: 12mm x 32.5mm x 32.5mm.
- Wiring:
- Brown wire: Ground connection
- Red wire: Powers the motor (typically +5V)
- Orange wire: Receives PWM signal for motor control.
Applications:
- Ideal for RC airplanes, quadcopters, and robotic arms.
- Can be used in various hobby projects that require precise movement and torque.
How to Use MG90S:
- Power: Connect the Red and Brown wires to +5V and ground, respectively.
- Control: Send PWM signals to the Orange wire to control the motor’s position.
- Use a PWM generator (e.g., 555 Timer, Arduino, Raspberry Pi) to create the necessary signals.
- Ensure the PWM frequency is 50Hz (period of 20ms) for proper operation.
Remember, the MG90S may be small, but its metal gears and reliable performance make it a valuable addition to your projects!
