LM2596 + LED Voltage-Buck/Step-Down Converter Regulator

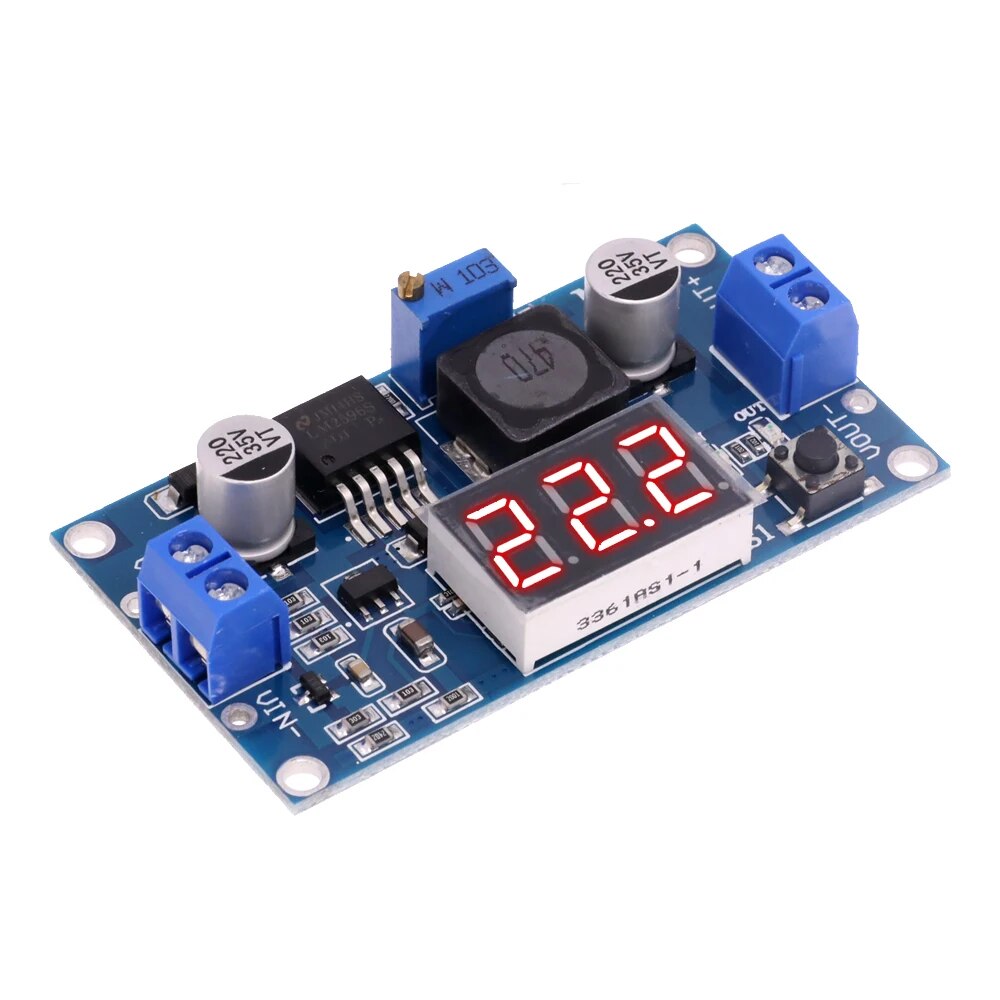

The LM2596 LED Voltage Buck/Step-Down Converter Regulator is a high-performance DC-DC step-down module with an integrated LED display, allowing real-time voltage monitoring. It efficiently converts higher input voltages to stable lower voltages, making it ideal for Arduino, ESP32, Raspberry Pi, and other DIY electronics projects. This module is perfect for powering sensors, motors, LEDs, and other electronic components safely and reliably.
Key Features & Benefits
- Adjustable Output Voltage: Easily set output voltage from 1.25V to 35V to match your project requirements.
- Real-Time Voltage Display: LED screen shows output voltage at a glance, preventing mistakes and improving monitoring.
- High Efficiency: Up to 92% conversion efficiency reduces heat and energy loss.
- Low Ripple Output: Provides clean and stable voltage for sensitive electronics.
- Wide Input Voltage Range: Supports 3.2V to 46V input, making it compatible with a variety of DC sources.
- Compact Design: Small form factor, ideal for embedded projects and tight spaces.
- Buck Module Only: Steps voltage down; for step-up solutions, see the XL6009 Step-Up Voltage Converter.
- Additional Converters: Explore more modules in our Voltage Conversion Module Collection.
Technical Specifications
- Model: LM2596 DC-DC Buck Module with LED Display
- Input Voltage: 3.2V–46V
- Output Voltage: 1.25V–35V
- Output Current: Up to 3A maximum
- Conversion Efficiency: Up to 92%
- Output Ripple: <30mV
- Switching Frequency: 65KHz
- Operating Temperature: -45°C to +85°C

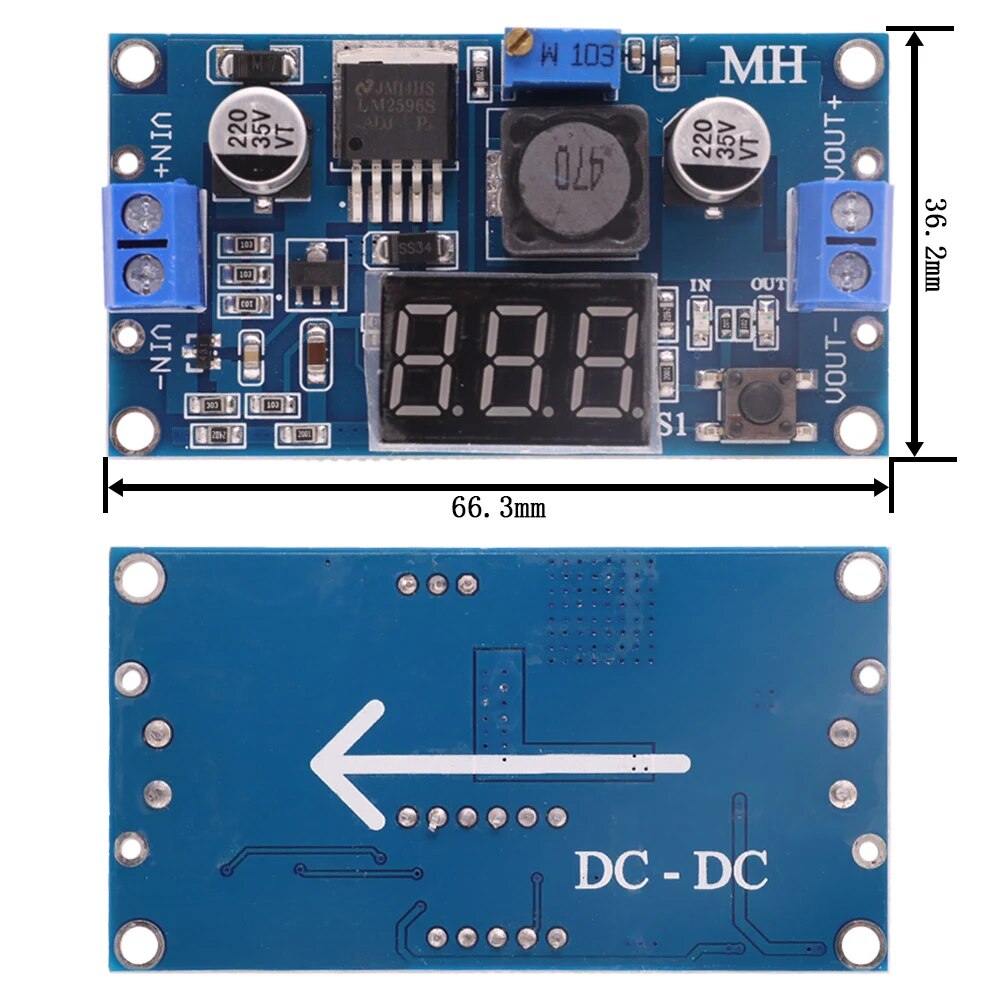

- Product Size: 66mm x 36mm x 14mm
Installation Tips
- Ensure input voltage is higher than your desired output for proper operation.
- Supports up to 2A or 10W without additional heatsinks; higher currents may require heatsinks.
- Check output voltage on the LED display before connecting sensitive electronics.
- Remember: this module only steps voltage down; it does not boost voltage.
