D1 Mini Battery Shield V1.1 – Wemos Single DC Plug Module

Zaitronics
$7.50 AUD

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.

Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.

Ships directly from Melbourne

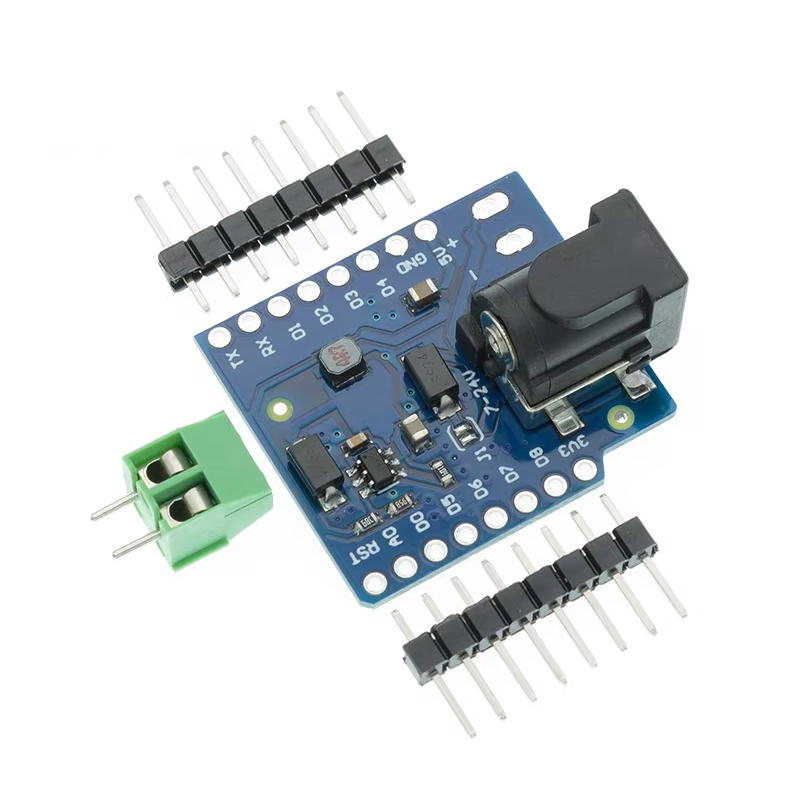

The D1 Mini DC Power Shield V1.1 is a compact, reliable solution for powering your Wemos D1 Mini boards with a wide range of DC input voltages. Designed to work seamlessly with D1 Mini models including the Lite, Pro, V2.0.0, and V1.0.0 versions, this shield accepts DC input from 7V to 24V, regulating it to a stable 5V output with a maximum current of 1A.

Whether you're building automotive ESP projects with fluctuating voltages, setting up WLED lighting, or configuring ESP-HOME devices, this power shield provides a stable power source to ensure reliable performance. The DC input can be connected via the included screw terminals, barrel jack, or directly to the board.

Key Features:

  • Wide Voltage Range: Accepts DC input from 7V to 24V and regulates it to 5V with up to 1A output.
  • Compatibility: Works with Wemos D1 Mini Lite, D1 Mini Pro, D1 Mini V2.0.0, and D1 Mini V1.0.0.
  • Versatile Connection Options: DC input can be connected via the included screw terminals, barrel jack, or header pins.
  • Ideal for ESP Projects: Perfect for automotive and IoT projects where stable 5V power is needed despite fluctuating input voltage.

Specifications:

  • Input Voltage: 7–24V DC
  • Output Voltage: 5V DC, 1A max
  • Size: 2.8 x 2.5 cm (1.10 x 0.98 inches)

Package Includes:

  1. D1 Mini DC Power Shield V1.1 – 1 PCS
  2. Male Header Pins – 2 PCS
  3. Screw Terminal Block – 1 PCS

Compact yet powerful, the D1 Mini DC Power Shield V1.1 is ideal for IoT projects requiring reliable power. With flexible connection options and robust 5V output, it's the perfect addition to your Wemos D1 Mini setup.
