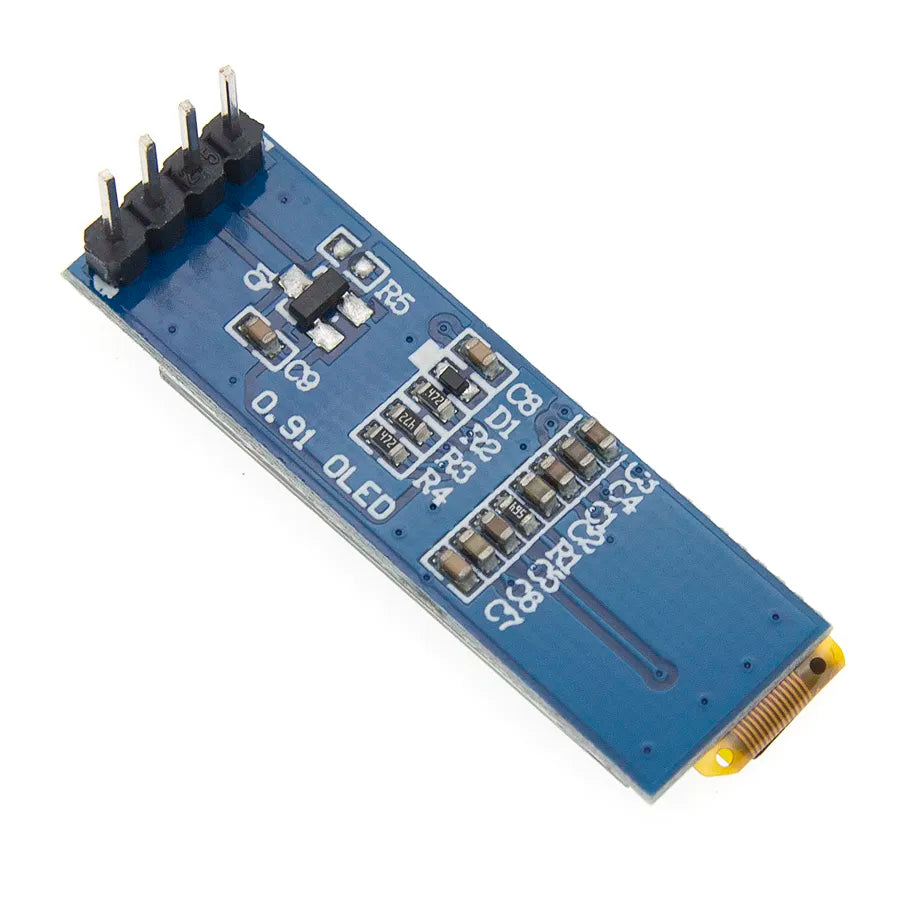

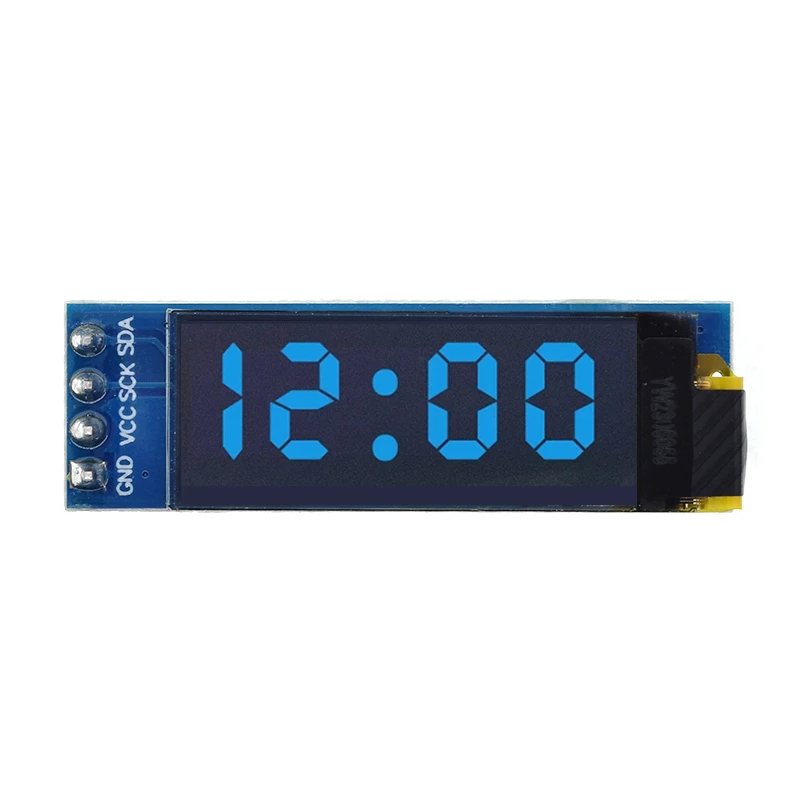

The Blue 0.91-inch OLED I2C display is a compact and versatile module compatible with Arduino, Raspberry Pi, and other microcontrollers.



Details:

  • Size: 0.91 inches
  • Resolution: 128x32 pixels
  • Color: Blue
  • Driver IC: SSD1306
  • Communication Interface: I2C (also known as I²C or TWI—Two Wire Interface)

Features:

  • High Contrast: The display offers excellent readability due to its high contrast.
  • Self-Luminous: No backlight is needed, which contributes to low energy consumption.
  • Wide Viewing Angle: Provides clear visibility from various angles.
  • Operating Temperature: Works well across a wide temperature range.

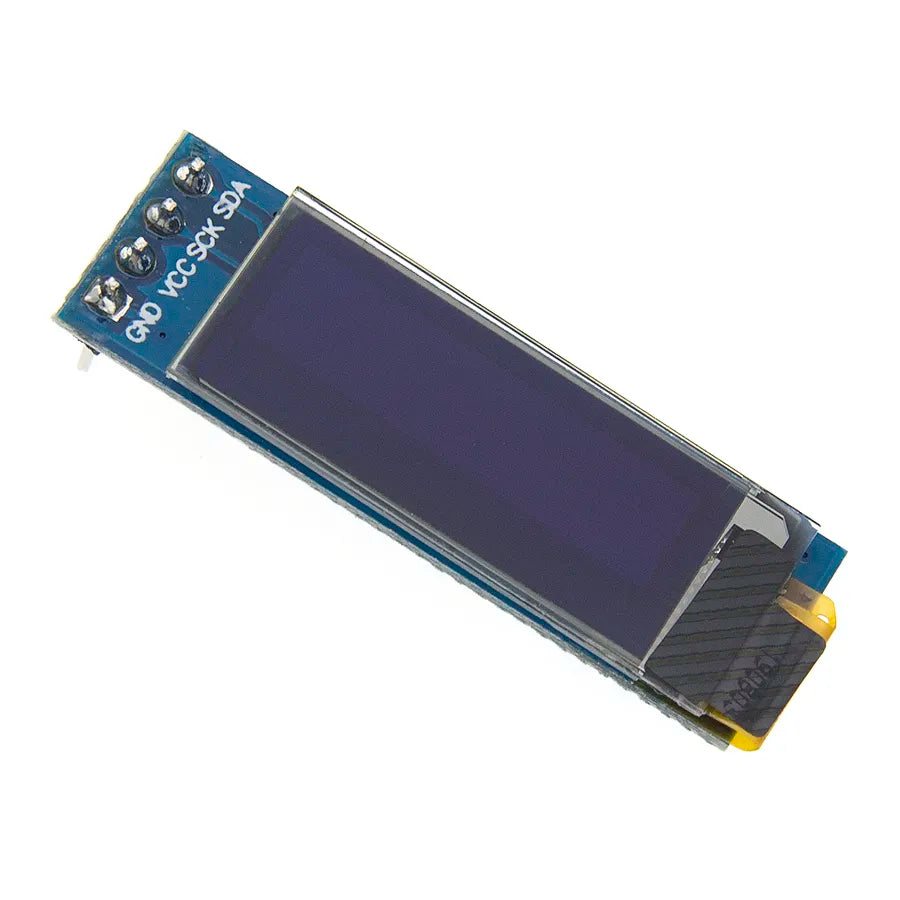

Pinout:

VCC: Connects to the module’s power supply (5V for some variants).
GND: Ground connection.
SDA: I2C data line.
SCL: I2C clock line.


Wiring Examples:


Arduino Uno:

  • OLED GND → Arduino GND
  • OLED VCC → Arduino 5V
  • OLED SCL → Arduino Uno A5
  • OLED SDA → Arduino Uno A4

Arduino MEGA 2560:

  • OLED GND → Arduino GND
  • OLED VCC → Arduino 5V
  • OLED SCL → Arduino MEGA 2560 pin 21
  • OLED SDA → Arduino MEGA 2560 pin 20



Remember to check your specific display’s pinout and voltage compatibility. Some displays may have the GND and VCC pins swapped, so ensure correct connections to avoid any mishaps!
