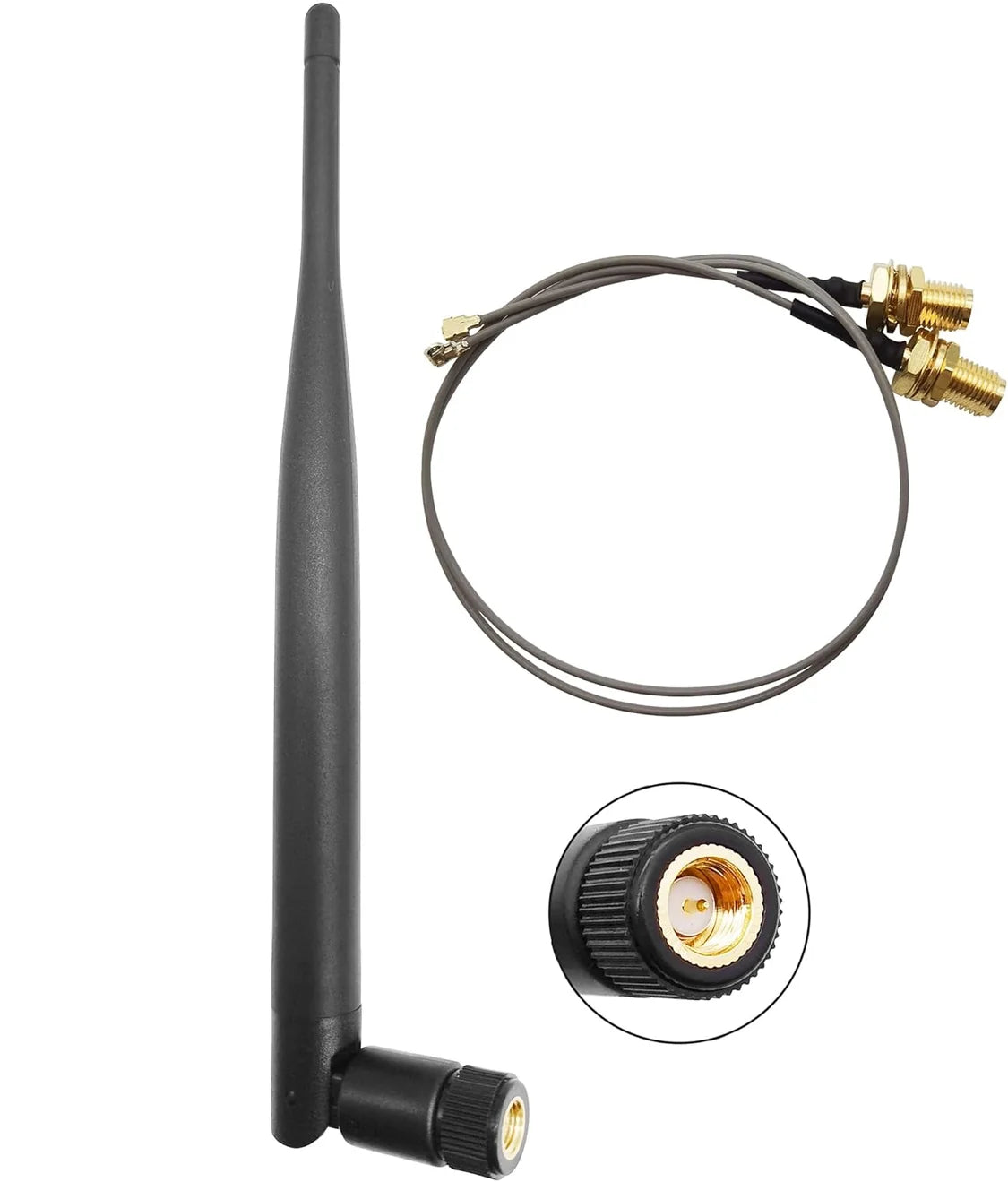

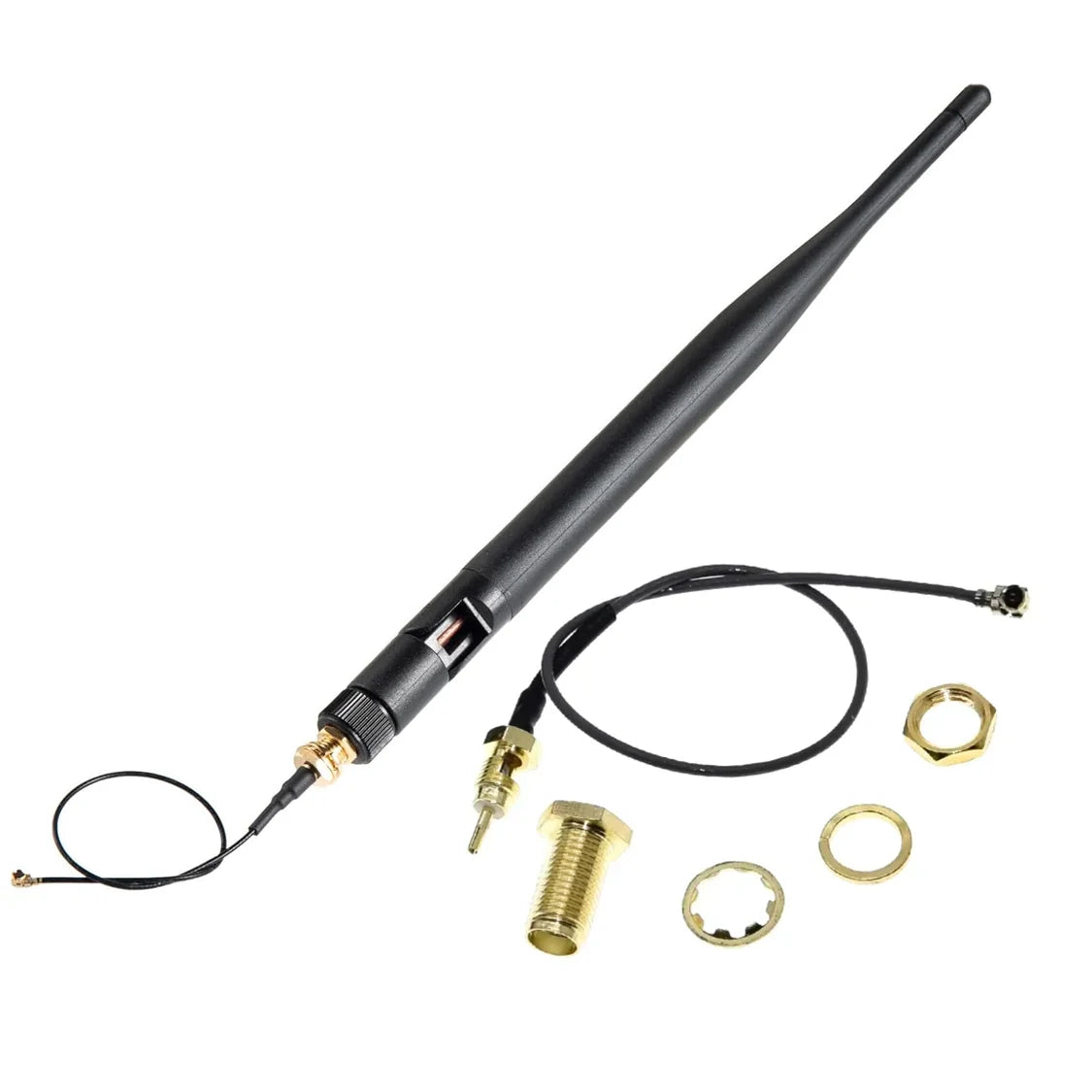

915MHz 5dBi SMA Male Antenna with U.FL (IPEX) Adapter Cable

Improve the range and reliability of your LoRa, ESP32 and IoT projects with this 915MHz 5dBi omnidirectional antenna. Featuring a standard SMA Male connector, it's ideal for boards and enclosures with an existing SMA port, or for pairing with your own U.FL/IPEX adapter cable if required.

Designed for operation across the 868MHz to 915MHz frequency range, this antenna provides stable wireless performance for long-range communication, telemetry, remote monitoring, smart agriculture and industrial IoT applications.

Features

• Suitable for 868MHz and 915MHz wireless applications
• 5dBi gain for improved signal strength and range
• Omnidirectional design for 360° signal coverage
• SMA Male antenna connector
• Compatible with ESP32 LoRa boards, Heltec, LilyGO and other IoT devices (SMA port required)
• Low VSWR for efficient signal transmission
• Durable ABS construction for indoor and outdoor use

Specifications

• Centre Frequency: 868MHz to 915MHz
• Antenna Type: Omnidirectional
• Polarisation: Vertical
• Gain: 5dBi
• VSWR: ≤1.5
• Impedance: 50Ω

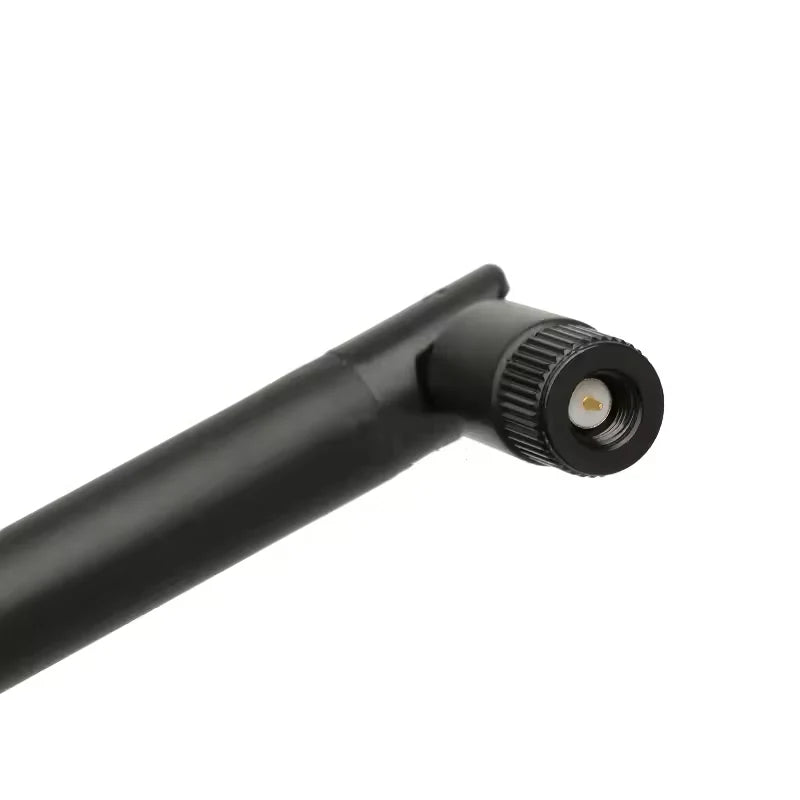

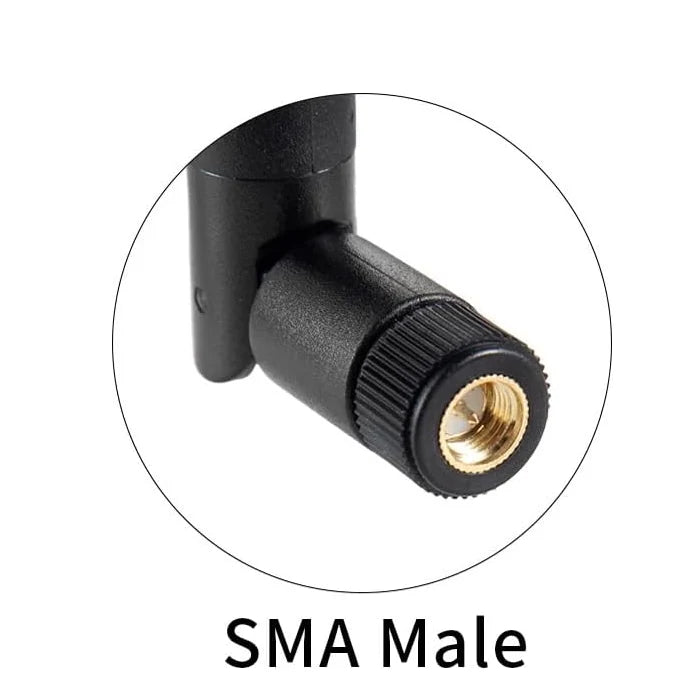

• Antenna Connector: SMA Male
• Antenna Length: 195mm
• Antenna Diameter: 13mm
• Radome Material: ABS
• Connector Material: Copper
• Operating Temperature: -40°C to +85°C
• Relative Humidity: Up to 95%

Ideal for ESP32 LoRa development boards, LoRa gateways, wireless sensors, telemetry systems, smart agriculture, remote monitoring and other long-range IoT projects requiring a high-performance 915MHz antenna with a direct SMA connection.
