915MHz 3dBi SMA Male Antenna with U.FL (IPEX) Adapter Cable - Compact 5cm

A compact 915MHz 3dBi omnidirectional antenna, supplied complete with a U.FL (IPEX) to SMA adapter cable for direct connection to development boards and wireless modules equipped with an IPEX antenna connector. At just 5cm long, it's well suited to handheld devices, small enclosures and portable sensor nodes where a full-size antenna isn't practical.

Designed for the 915MHz band, this antenna delivers reliable performance for telemetry, remote monitoring and short-to-medium range wireless communication.

Features

• Suitable for 915MHz wireless applications
• 3dBi gain, compact omnidirectional design
• SMA Male antenna connector

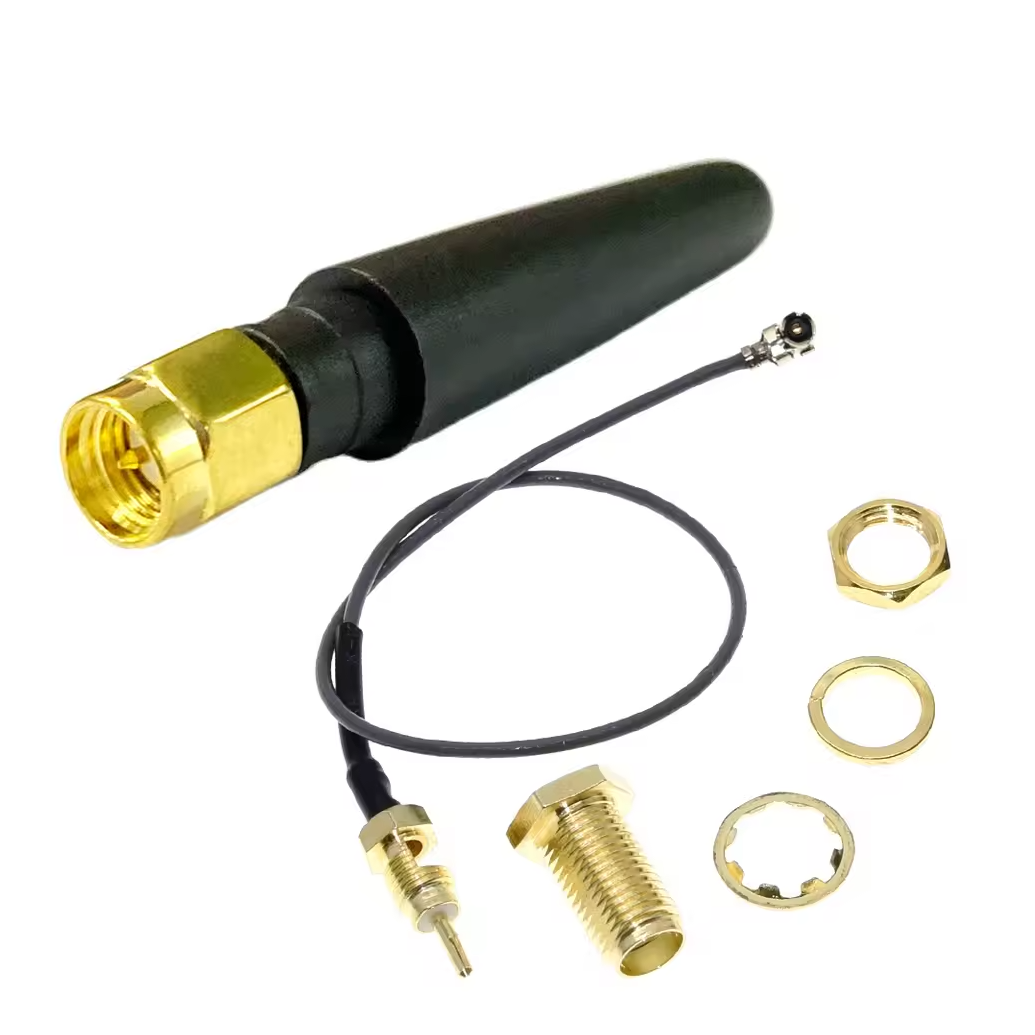

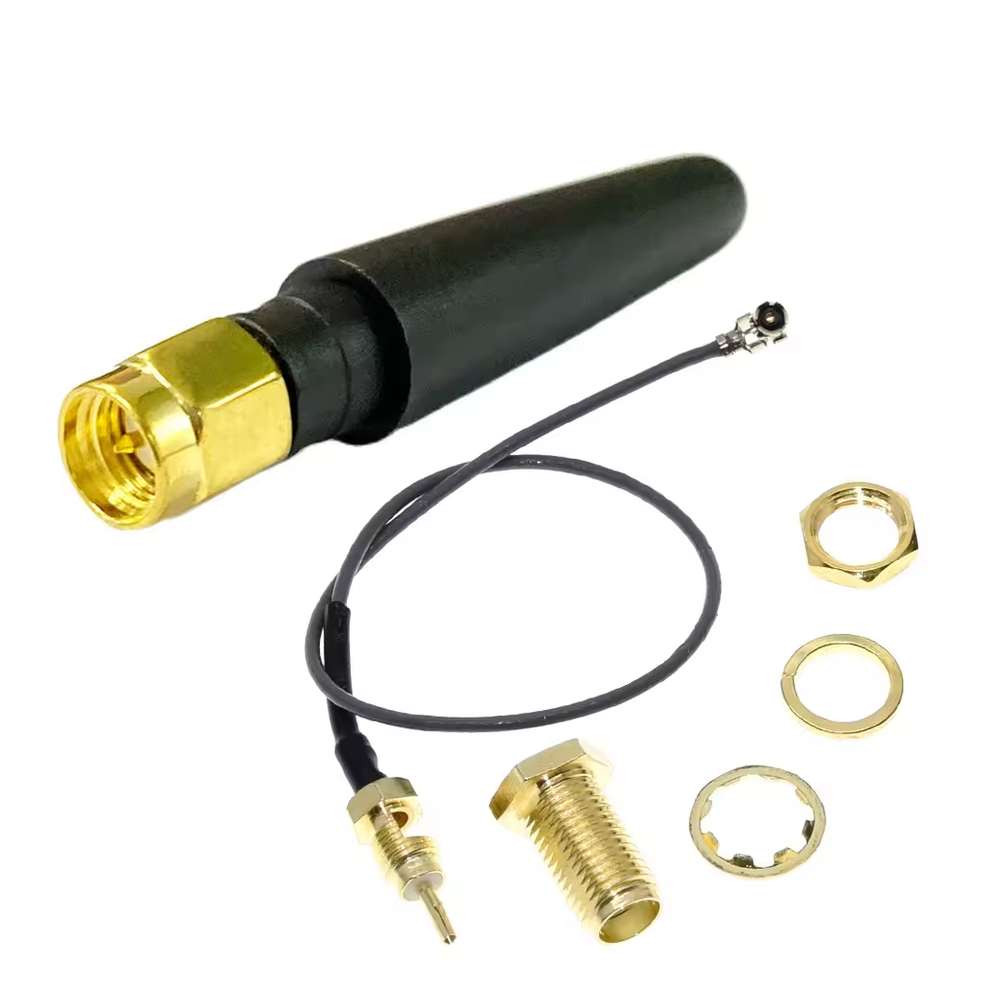

• Includes U.FL (IPEX) to SMA adapter cable
• Compact 5cm length for space-constrained builds
• Low VSWR for efficient signal transmission
• Handles up to 10W input power
• Compatible with ESP32 LoRa boards, Heltec, LilyGO and other IoT devices

Specifications

• Frequency: 915MHz
• Antenna Type: Omnidirectional
• Gain: 3dBi
• VSWR: ≤1.5
• Maximum Power: 10W
• Impedance: 50Ω
• Antenna Connector: SMA Male
• Included Cable Connector: U.FL (IPEX) to SMA

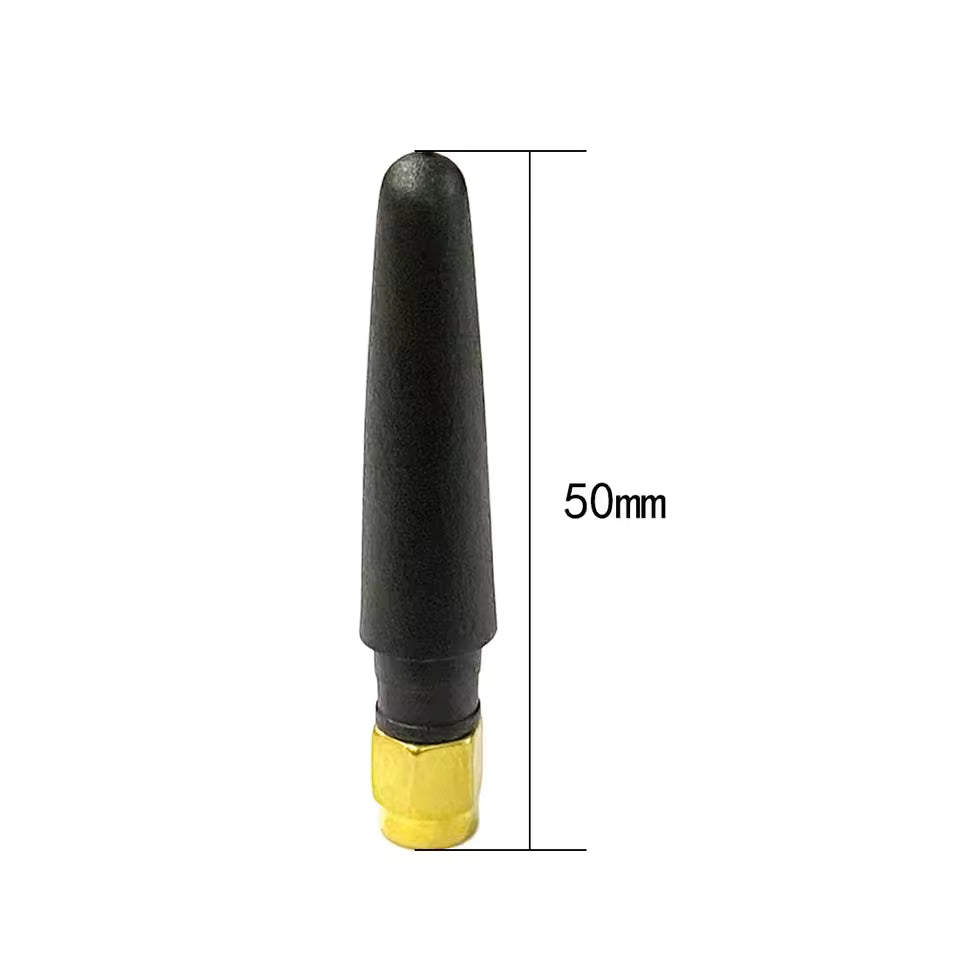

• Antenna Length: 5cm
