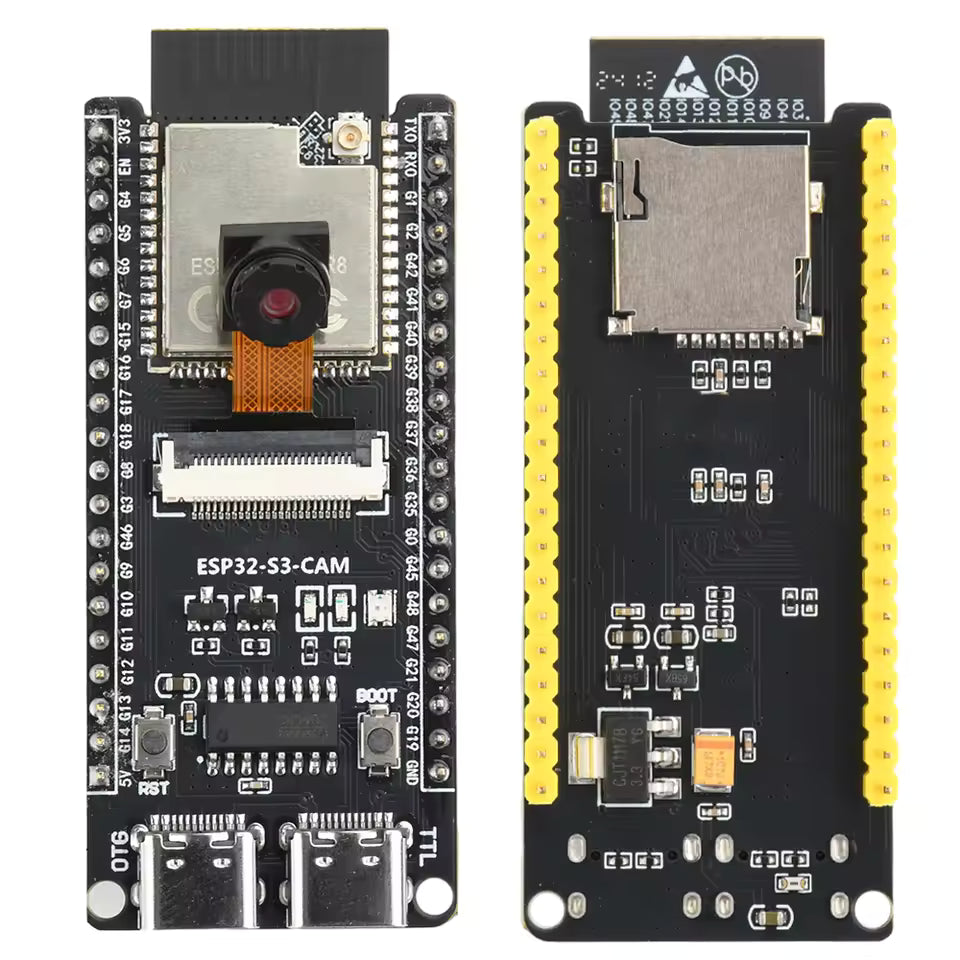

ESP32 S3 CAM Development Board + OV3660 Camera + Antenna
The ESP32 S3 CAM Development Board features the ESP32-S3-WROOM N16R8 chip, combining dual-core 32-bit LX7 processors with AI acceleration and Bluetooth 5.0 / Wi-Fi 2.4GHz connectivity. With 16MB of flash memory, 512KB SRAM, and support for both PCB and external antennas, this board is ideal for AI, IoT, and camera-based projects. It comes equipped with the high-resolution OV3660 Camera for capturing detailed images and video.
Full Specifications
- Chip: ESP32-S3-WROOM N16R8
- Processor: Dual-core 32-bit LX7 up to 240MHz
- Flash: 16MB
- SRAM: 512KB
- Wireless: Wi-Fi 2.4GHz, Bluetooth 5.0
- Camera: OV3660
- Interfaces: SPI, I2C, UART, PWM, ADC, DAC
- Power: 5V via USB-C or 3.3V regulated
- Antennas: Onboard PCB and external SMA/IPEX support
For a non-S3 camera option, explore the ESP32-CAM Development Board. If you want a complete non-S3 USB-C motherboard kit with antenna included, see the ESP32-CAM + Camera + MB (USB-C Version) + 2.4GHz Antenna - Full Set.

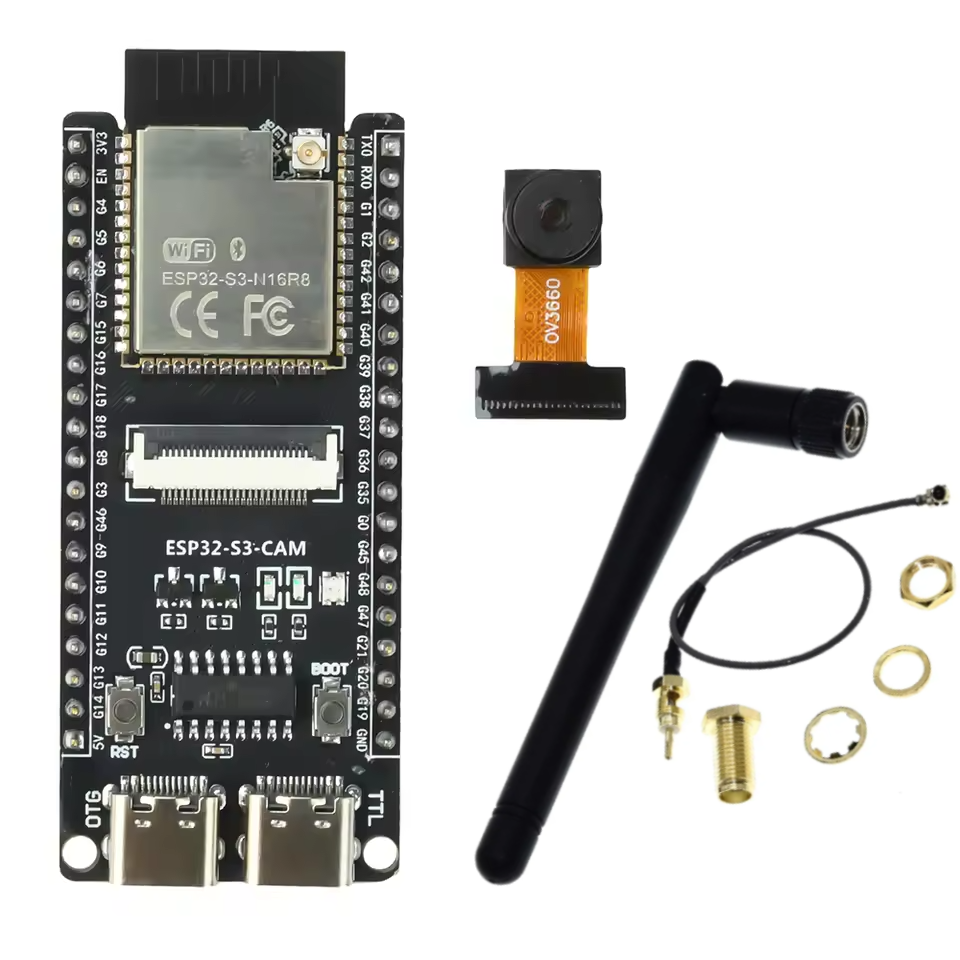

This board set includes a 2.4GHz 3dBi Wi-Fi antenna with SMA to IPEX Connector for extended wireless range.
