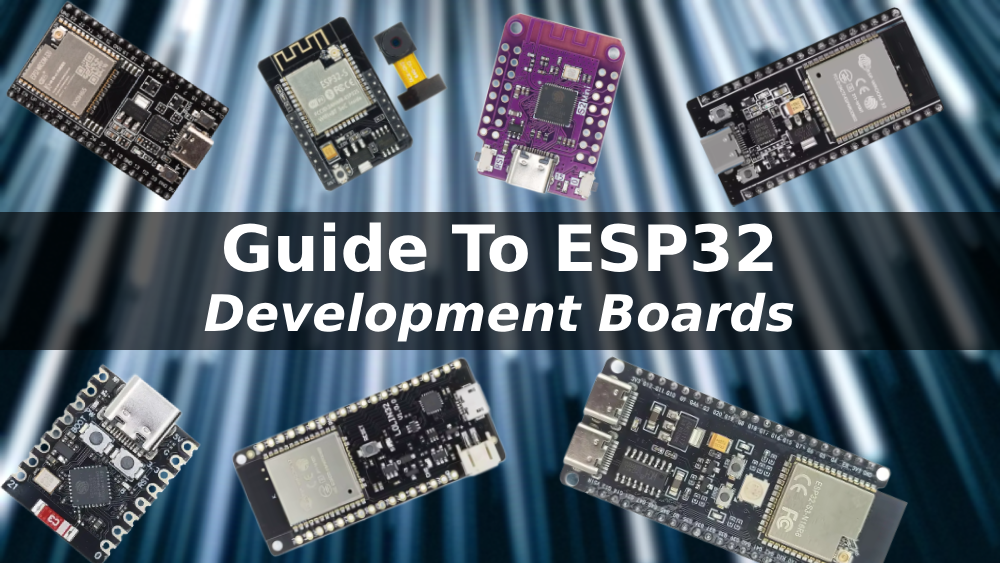

Detailed Guide to ESP32: Exploring Popular Models, Features, and Applications

Introduction to ESP32

The ESP32, developed by Espressif Systems, is a powerful, low-cost microcontroller with integrated Wi-Fi and Bluetooth capabilities. It has become a cornerstone in IoT (Internet of Things) projects, offering versatility for hobbyists, developers, and industrial applications. This guide explores the most popular ESP32 models, including the ESP32-C3, ESP32-WROOM-32, ESP32-S3, ESP32-WROOM-32U, ESP32-S2, and ESP32 camera kits, highlighting their specifications, use cases, and unique features. We’ll also touch on its predecessor, the ESP8266, and compatibility with platforms like Arduino.

What is ESP32?

The ESP32 is a series of microcontrollers featuring dual-core or single-core processors, Wi-Fi, and Bluetooth (Classic and BLE). It’s an evolution of the ESP8266, a single-core microcontroller with Wi-Fi but no Bluetooth, widely used in early IoT projects. The ESP32’s enhanced processing power, low power consumption, and rich peripheral set make it ideal for applications ranging from smart homes to industrial automation. Its compatibility with Arduino and MicroPython further broadens its appeal for rapid prototyping.

Popular ESP32 Models

1. ESP32-C3 (SuperMini and Standard Version)

•
  Processor: Single-core 32-bit RISC-V at 160 MHz

• Memory: 400 KB SRAM, 384 KB ROM, 4 MB flash (standard), 4 MB or less (SuperMini)
• Connectivity: Wi-Fi 802.11b/g/n, Bluetooth 5.0 (LE)
• GPIO: 22 (standard), ~12 (SuperMini)
• Features: Compact size (SuperMini is one of the smallest ESP32 boards), low power consumption, and RISC-V architecture for efficient performance.
• Use Cases: Wearables, smart sensors, and battery-powered IoT devices due to its small footprint and LiPo battery compatibility.

2. ESP32 with ESP-WROOM-32 Chip

• Processor: Dual-core Xtensa LX6 at 240 MHz

• Memory: 520 KB SRAM, 448 KB ROM, 4-16 MB flash
• Connectivity: Wi-Fi 802.11b/g/n, Bluetooth 4.2/BLE
• GPIO: Up to 36
• Features: High performance, extensive GPIO, and support for external antennas. It’s the go-to choice for general-purpose IoT projects.
• Use Cases: Smart home devices, robotics, and prototyping with Arduino due to its robust feature set.

3. ESP32-S3 (N16R8 and N8R2 Versions)

• Processor: Dual-core Xtensa LX7 at 240 MHz

• Memory: 512 KB SRAM, 384 KB ROM, 8 MB flash (N8R2) or 16 MB flash (N16R8), 8 MB PSRAM (N16R8)
• Connectivity: Wi-Fi 802.11b/g/n, Bluetooth 5.0 (LE)
• GPIO: Up to 45
• Features: AI acceleration, USB OTG, and enhanced memory for demanding applications. N16R8 offers more flash and PSRAM, while N8R2 is more compact.
• Use Cases: Machine learning, multimedia applications, and advanced IoT systems requiring high memory and processing power.

4. ESP32 32U With WROOM-32U

• Processor: Dual-core Xtensa LX6 at 240 MHz

• Memory: 520 KB SRAM, 448 KB ROM, 4-16 MB flash
• Connectivity: Wi-Fi 802.11b/g/n, Bluetooth 4.2/BLE
• GPIO: Up to 36
• Features: Similar to the ESP-WROOM-32 but with a U.FL connector for external antennas, improving range for specific applications.
• Use Cases: Long-range IoT applications, such as agricultural sensors and smart city infrastructure.

5. ESP32-S2 (Mini and Standard Version)

• Processor: Single-core Xtensa LX7 at 240 MHz

• Memory: 320 KB SRAM, 128 KB ROM, 4-8 MB flash
• Connectivity: Wi-Fi 802.11b/g/n, no Bluetooth
• GPIO: Up to 43
• Features: USB OTG, capacitive touch sensors, and a focus on security with secure boot and flash encryption.
• Use Cases: Smart locks, touch-based interfaces, and cost-sensitive IoT projects requiring Wi-Fi but not Bluetooth.

6. ESP32 Camera Kits (ESP32-CAM with OV2640)

• Processor: Dual-core Xtensa LX6 at 240 MHz (typically based on ESP32-S module)

• Memory: 520 KB SRAM, 4-8 MB flash, 4 MB PSRAM
• Connectivity: Wi-Fi 802.11b/g/n, Bluetooth 4.2/BLE
• GPIO: ~10 accessible (limited due to camera and SD card usage)
• Features: Integrated OV2640 2MP camera, microSD card slot for image storage, and an MB (motherboard) for USB connectivity (via CP2102 or CH340 USB-to-serial chip). Includes an external antenna connector for improved Wi-Fi range.
• Use Cases: Surveillance systems, video streaming, and IoT projects requiring image capture, such as smart doorbells or wildlife monitoring. Supports LiPo battery connections for portable applications.

ESP32 vs ESP8266

The ESP8266, Espressif’s earlier microcontroller, offers Wi-Fi but lacks Bluetooth and dual-core processing. It has fewer GPIOs (~17) and less memory (80 KB SRAM, 1-4 MB flash). While suitable for simple IoT tasks, the ESP32’s enhanced capabilities, including camera support in kits like ESP32-CAM, make it the preferred choice for modern applications. Both are Arduino-compatible, but the ESP32 supports more complex projects due to its processing power and connectivity options.

Arduino Compatibility

The ESP32, including camera kits, is compatible with a wide range of development platforms. You can program it using the Arduino IDE with C/C++, taking advantage of familiar libraries for Wi-Fi, Bluetooth, and camera modules (such as the ESP32-CAM library). It also supports MicroPython, enabling rapid scripting and prototyping, as well as other environments like PlatformIO and ESP-IDF for more advanced projects. This flexibility makes the ESP32 ideal for hobbyists and developers looking to work across different languages and ecosystems.

Use Cases and Portability

The ESP32’s versatility makes it suitable for a wide range of applications:

• Smart Home: Control lights, thermostats, and appliances via Wi-Fi or Bluetooth.
• Wearables and Portability: The ESP32-C3 SuperMini, ESP32-S2 Mini, and ESP32-CAM support LiPo battery connections with built-in charging circuits, enabling portable projects like fitness trackers, GPS loggers, or mobile surveillance cameras.
• Industrial Automation: Monitor and control machinery with real-time data transmission.
• IoT Sensors: Collect environmental data (temperature, humidity) and send it to cloud platforms.
• Multimedia and Imaging: The ESP32-CAM excels in video streaming, time-lapse photography, and facial recognition for security systems.
• Surveillance: ESP32-CAM kits are used in low-cost security cameras and remote monitoring systems, leveraging the OV2640 camera and microSD storage.

Industrial Product Example

One notable industrial product using the ESP32 is the Shelly Plus 1, a smart relay switch by Shelly. It leverages the ESP32’s Wi-Fi and processing power to enable remote control of appliances, integration with home automation systems, and support for MQTT and HTTP protocols. Its compact design and robust connectivity make it a popular choice for smart home and industrial automation.

Programming and Development

• Arduino IDE: Simplifies development with pre-built libraries for Wi-Fi, Bluetooth, sensors, and camera functions (e.g., for ESP32-CAM).
• ESP-IDF: Espressif’s official framework for advanced control and optimization.
• MicroPython: Ideal for rapid prototyping and scripting.
• LiPo Support: Many ESP32 boards, including the ESP32-CAM, include LiPo charging circuits, making them suitable for portable, battery-powered applications like mobile cameras or IoT sensors.

Conclusion

The ESP32 series, including models like the ESP32-C3, ESP32-WROOM-32, ESP32-S3, ESP32-WROOM-32U, ESP32-S2, and ESP32-CAM kits, offers unmatched flexibility for IoT, smart home, multimedia, and industrial applications. With Arduino compatibility, LiPo support for portability, and advanced features like AI acceleration, Bluetooth, and camera integration, the ESP32 is a go-to choice for developers. Whether you’re building a wearable, a smart home device, a surveillance system with the ESP32-CAM, or an industrial solution like the Shelly Plus 1, the ESP32 delivers performance and scalability.
