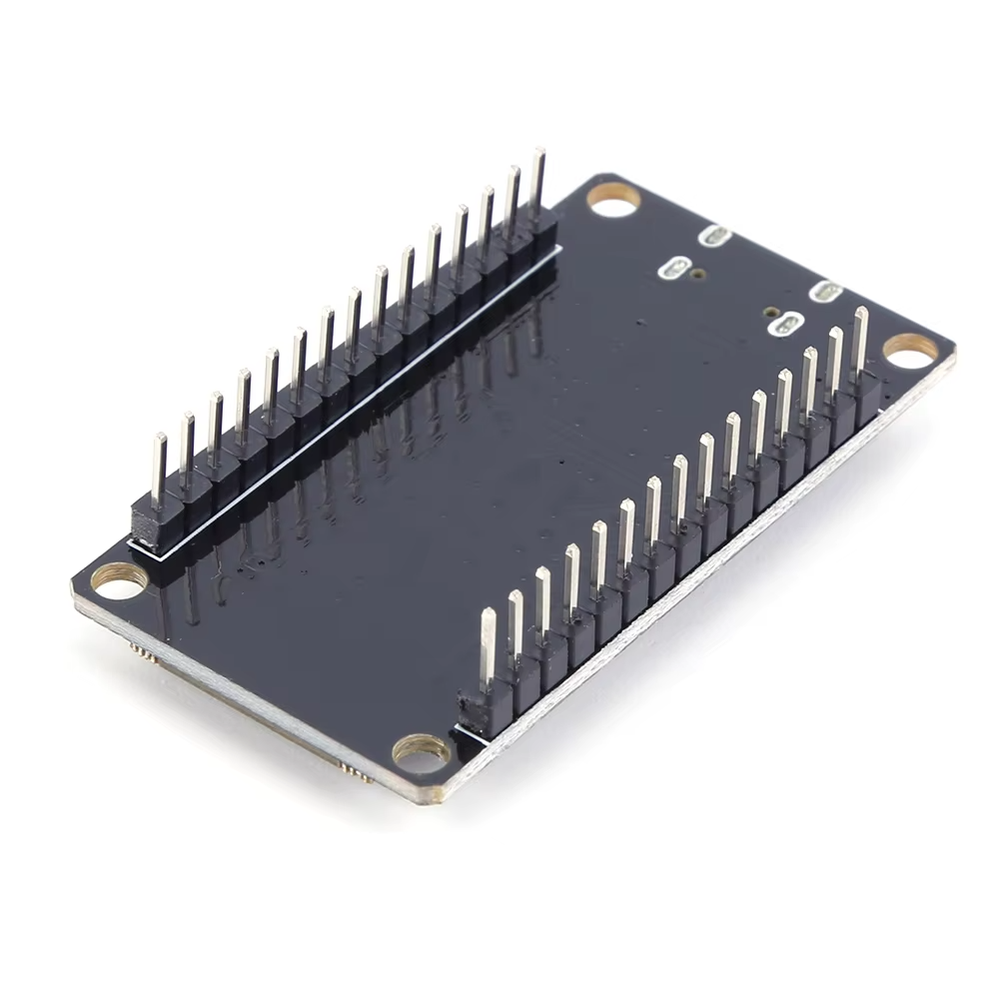

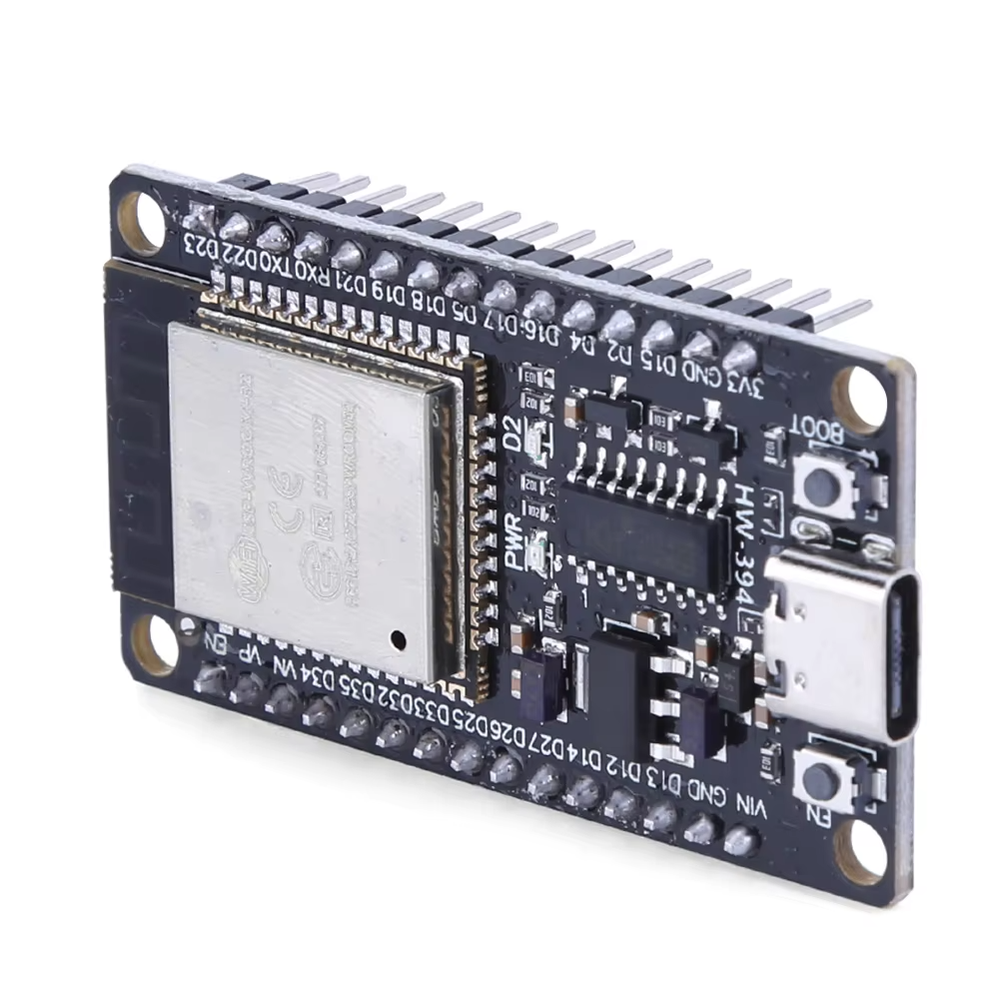

ESP32 USB Type-C Wi-Fi + Bluetooth Development Board - 30 Pin

The ESP32 with USB C connection is a versatile and high-performance solution perfect for a wide range of Internet of Things (IoT) applications. Featuring the robust ESP-WROOM-32 module, this 30-pin board delivers exceptional processing power and seamless wireless connectivity, making it ideal for smart home systems, sensor networks, and wearable technology.

Key Features:

ESP-WROOM-32 Module:

• Dual-core 32-bit LX6 microprocessor running at up to 240 MHz for efficient multitasking.
• Memory: 520 KB SRAM, 448 KB ROM, and 16 KB RTC SRAM, ensuring smooth operation for complex tasks.

Wireless Connectivity:

• Wi-Fi: 802.11 b/g/n, capable of data rates up to 150 Mbps for stable and fast connections.
• Bluetooth: Compliant with Bluetooth 4.2, supporting both Classic Bluetooth and BLE for versatile wireless communication.

Versatile GPIOs:

• Multiple GPIO pins for interfacing with sensors, motors, and other peripherals.
• Built-in ADC and DAC for easy analog signal processing.

Analog and Digital Capabilities:

• 16 channels of 12-bit SAR ADC and 2 channels of 8-bit DAC for precise measurements and signal output.
• Onboard capacitive touch sensors for responsive touch inputs in your projects.

Comprehensive Serial Communication:

• Supports multiple interfaces: 2 x I2C, 3 x UART, 2 x SPI, and I2S, providing flexibility for communication with other devices.

Compact Design:

• Measures 48mm x 25mm, making it easy to integrate into space-constrained projects.
• Onboard PCB antenna for optimized wireless performance, ensuring reliable signal strength.

Additional Specifications:

• Flash Memory: 32Mbit SPIFlash for storing firmware and data.
• Security: Built-in support for WPA/WPA2 encryption, ensuring secure connections.
• Frequency Range: 2412 ~ 2484 MHz, suitable for worldwide use.
• Default Baud Rate: 115200 BPS for efficient serial communication.

Power Supply:

• USB power: 5V, making it convenient for prototyping.
• Pin Power: Supports 3.3V input for embedded systems.

Operating Conditions:

• Operating Temperature: -40°C to 85°C for reliable performance in extreme environments.
• Storage Temperature: -65°C to 150°C with a maximum humidity of 95% RH.

This ESP32 Compact Wi-Fi + Bluetooth Development Board is designed to bring your IoT ideas to life, offering a powerful and feature-rich platform for developers and hobbyists alike. Whether you’re building a remote sensor network or a Bluetooth-enabled smart device, this board provides all the tools you need for rapid and reliable development.
