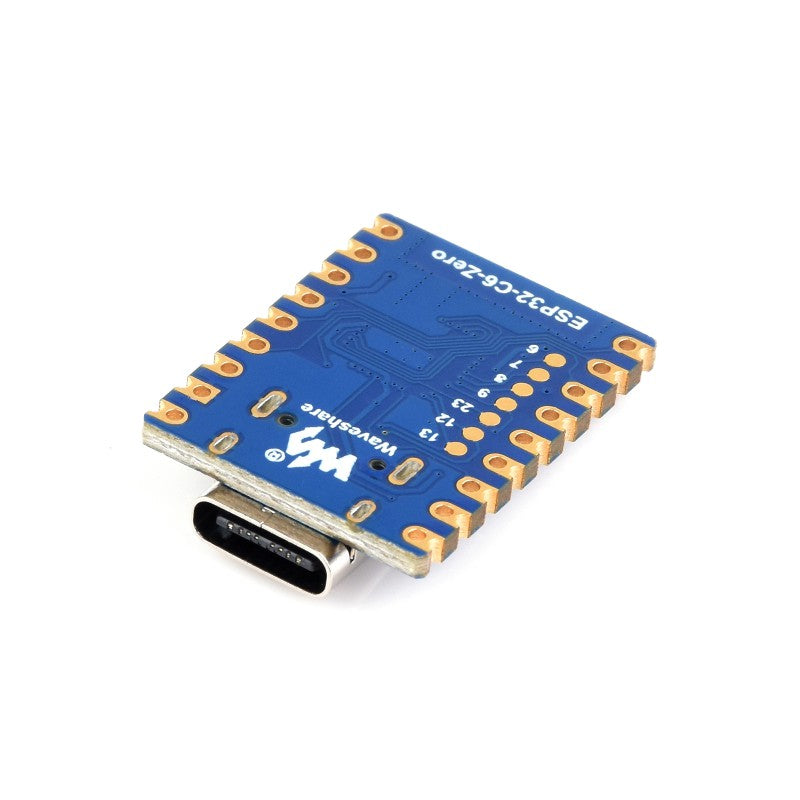

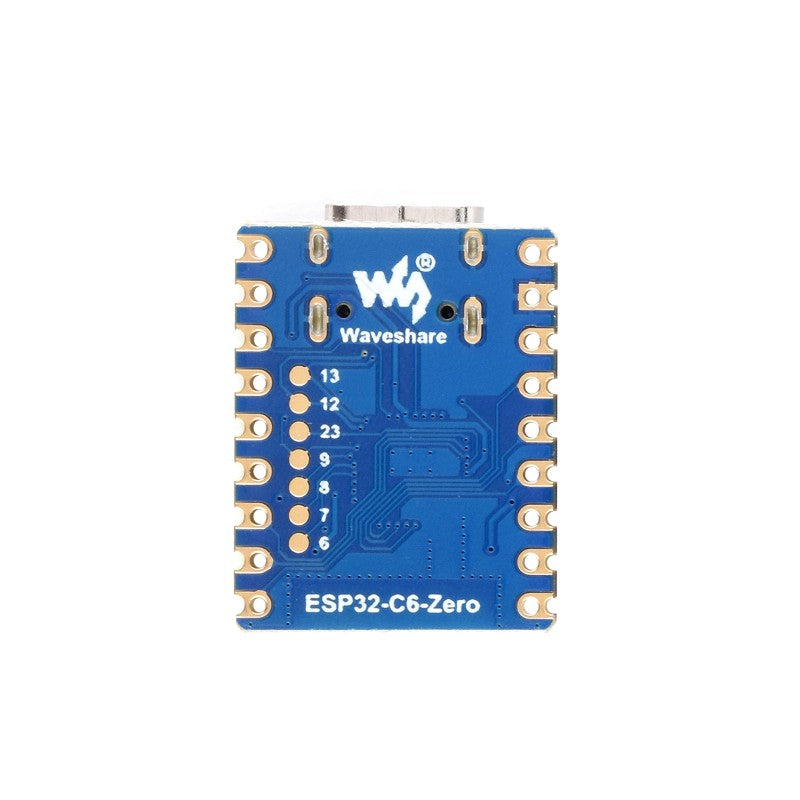

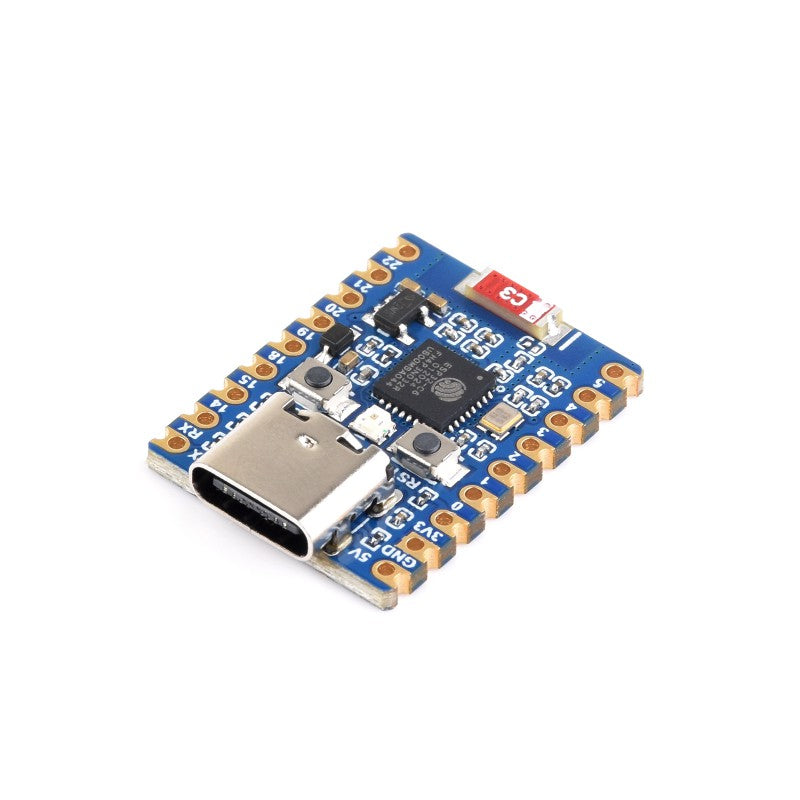

ESP32-C6 Mini Development Board - 2.4GHz WiFi & Bluetooth - Unsoldered
Waveshare | SKU:
WS-27035
$8.75 AUD
Unit price
/
Unavailable
$7.95 exc GST
ESP32-C6 Mini Development Board - 2.4GHz WiFi & Bluetooth - Unsoldered is backordered and will ship as soon as it is back in stock.
ESP32-C6 Mini Development Board - 2.4GHz WiFi & Bluetooth - Uns...
$8.75 AUD
Unit price
/
Unavailable
Board specifications
- Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
- Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
- Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions

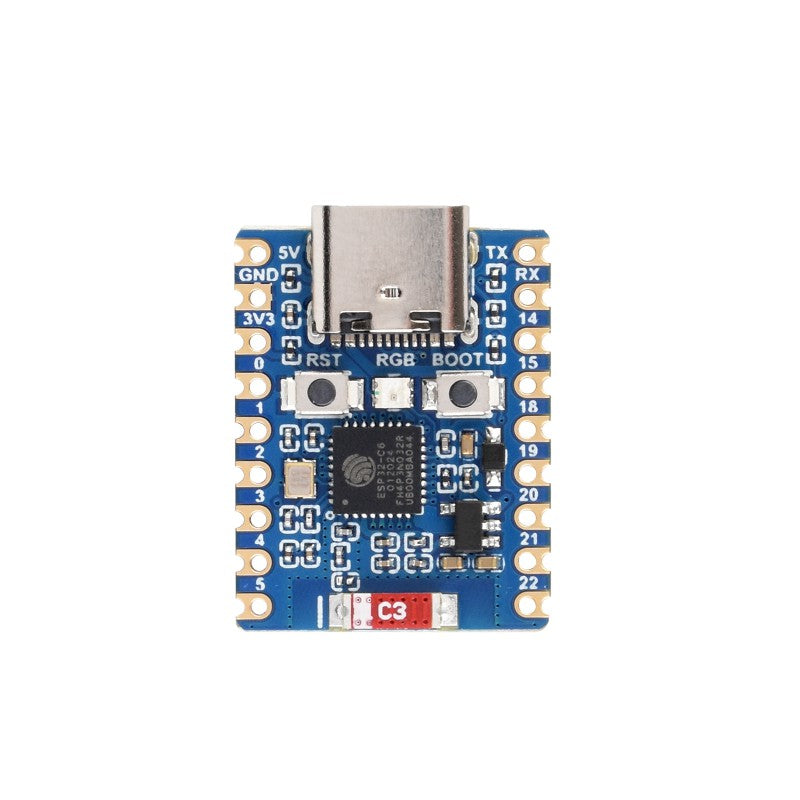

What's On Board
-
ESP32-C6FH4
Built-in dual processors, main frequency is up to 160 MHz -
USB Type-C Port
for downloading programme and debugging -
ME6217C33M5G
low dropout LDO, 800mA (Max) - WS2812 RGB LE
- 2.4G ceramic antenna
-
BOOT button
Press it and then press the RESET button to enter download mode - RESET button
- ESP32-C6FH4 pins
