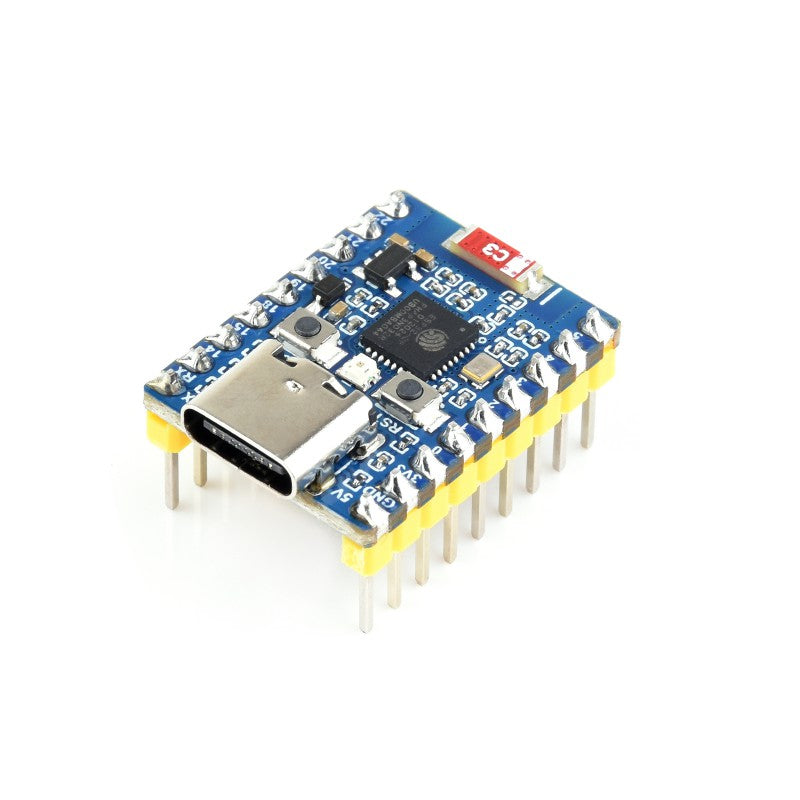

ESP32-C6 Mini Development Board - 2.4GHz WiFi & Bluetooth - Soldered

Waveshare  |  SKU: WS-26976
$10.25 AUD
$9.32 exc GST

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
  • Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
  • Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
  • Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
Board specifications
  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
  • Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
  • Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions
What's On Board

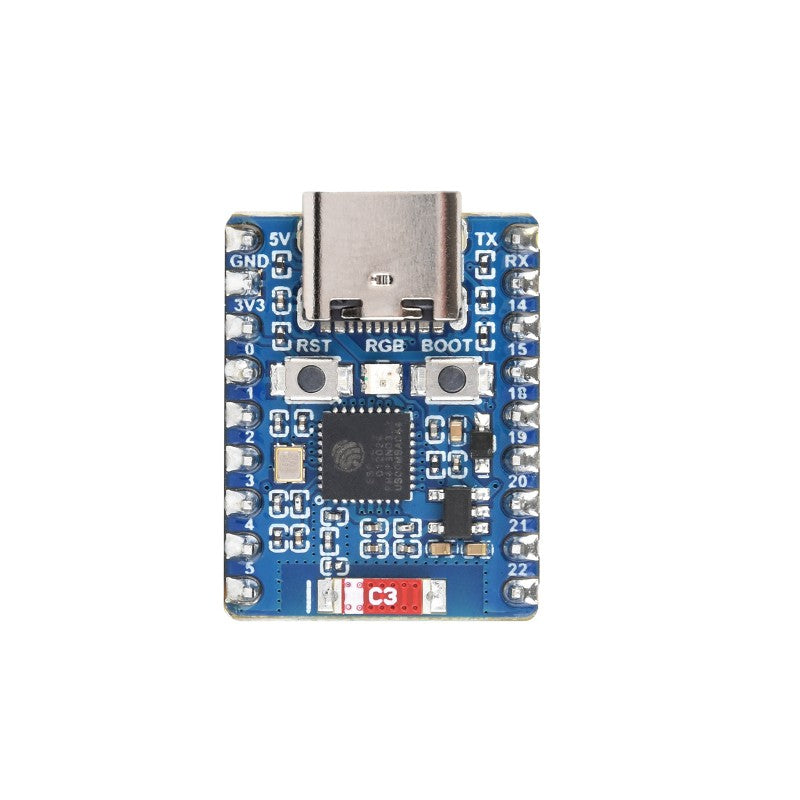

ESP32-C6-Zero, onboard components

  1. ESP32-C6FH4
    Built-in dual processors, main frequency is up to 160 MHz
  2. USB Type-C Port
    for downloading programme and debugging
  3. ME6217C33M5G
    low dropout LDO, 800mA (Max)
  4. WS2812 RGB LE
  1. 2.4G ceramic antenna
  2. BOOT button
    Press it and then press the RESET button to enter download mode
  3. RESET button
  4. ESP32-C6FH4 pins

ESP32-C6-Zero, pin definitionESP32-C6-Zero outline dimensions

Wiki: www.waveshare.com/wiki/ESP32-C6-Zero
