ESP32-C3 Mini Development Board - 2.4GHz WiFi & Bluetooth - Unsoldered
Waveshare | SKU:
WS-25452
$6.55 AUD
Unit price
/
Unavailable
$5.95 exc GST
ESP32-C3 Mini Development Board - 2.4GHz WiFi & Bluetooth - Unsoldered is backordered and will ship as soon as it is back in stock.
ESP32-C3 Mini Development Board - 2.4GHz WiFi & Bluetooth - Uns...
$6.55 AUD
Unit price
/
Unavailable
Board specifications
- Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
- 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, 15 × GPIO pins allows flexibly configuring pin functions
- 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, 2 × ADC, etc.

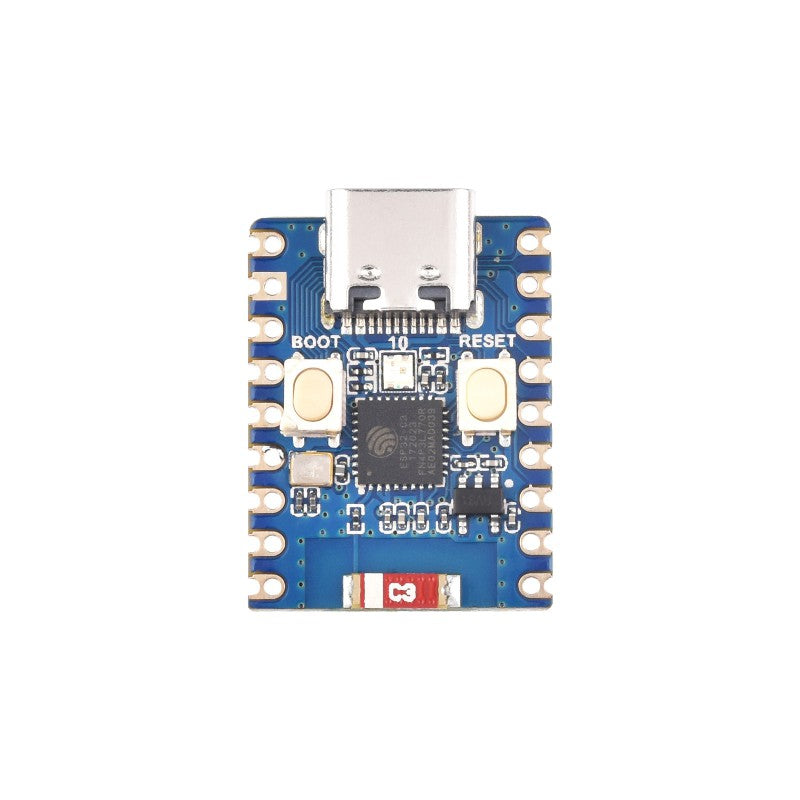

What's On Board
- USB Type-C Port
-
BOOT button
Press it and then press the RESET button to enter download mode - RESET button
- WS2812 RGB LED
-
ME6217C33M5G
Low dropout regulator, 800mA output (Max.) -
ESP32-C3FH4 single-core processor
up to 160MHz operating frequency - 2.4G ceramic antenna

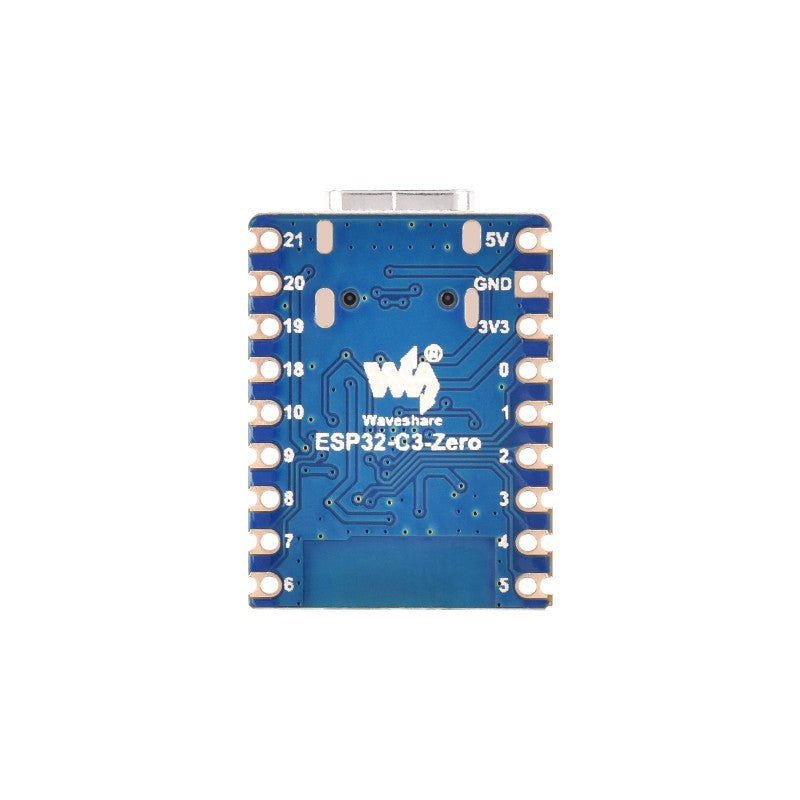

Pin definition
