ESP32-H2 Mini Development Board - Zigbee 3.0, Thread & Bluetooth 5 LE - Unsoldered

The Waveshare ESP32-H2-Zero is a tiny development board built around the ESP32-H2, Espressif's low-power chip for Zigbee 3.0, Thread and Bluetooth 5 (LE). It is designed for battery-powered smart home sensors, Matter over Thread devices, Zigbee end devices and Bluetooth Mesh networks. This version comes with pin headers unsoldered, so you can solder it straight onto a carrier board or fit headers yourself.

Note: the ESP32-H2 does not have Wi-Fi. If your project needs Wi-Fi as well as Zigbee or Thread, see the ESP32-C5-Zero, which adds dual-band Wi-Fi 6.

A RISC-V processor, 4MB Flash, USB-C and an onboard RGB LED fit into a thumbnail-sized footprint, and its castellated edges let it be soldered directly onto a PCB like a module. It can be programmed with ESP-IDF or the Arduino IDE.

Versions

Features

• ESP32-H2FH4S chip with 32-bit RISC-V single-core processor, up to 96MHz
• IEEE 802.15.4 radio for Zigbee 3.0 and Thread
• Bluetooth 5 (LE) and Bluetooth Mesh
• 4MB built-in Flash and 320KB SRAM
• Onboard 2.4GHz ceramic antenna
• USB Type-C for power, programming and debugging
• SPI, UART, I2C, I2S, LED PWM and ADC interfaces
• Castellated module, can be soldered directly to carrier boards
• Onboard WS2812 RGB LED, BOOT and RESET buttons
• Supports ESP-IDF and Arduino IDE

Applications

• Matter over Thread smart home devices
• Zigbee sensors and switches for Home Assistant (ZHA or Zigbee2MQTT)
• Thread border router and network projects
• Bluetooth LE and Bluetooth Mesh devices
• Low-power battery-operated sensors

Specifications

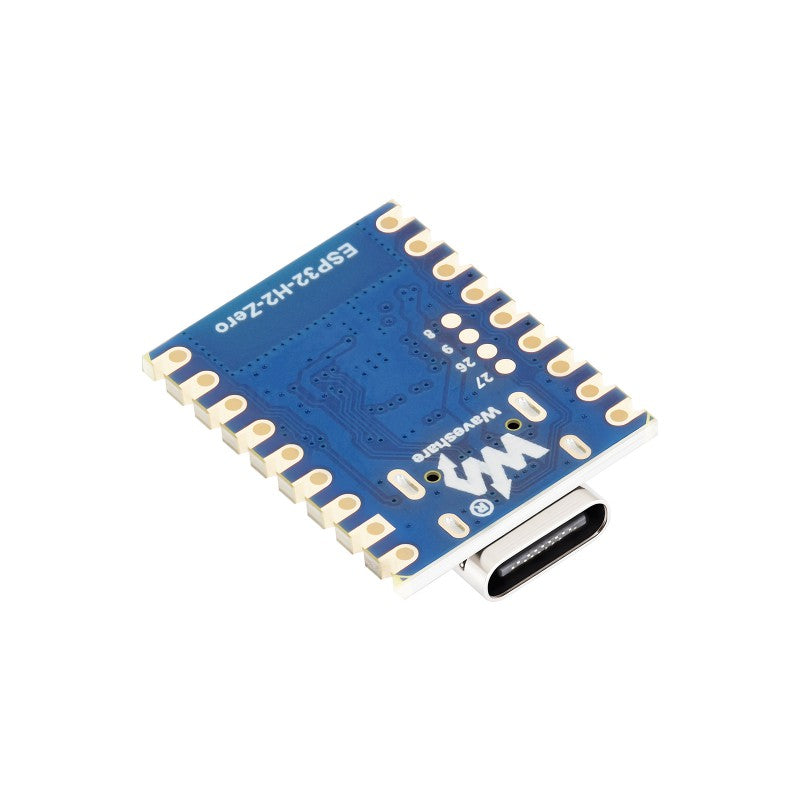

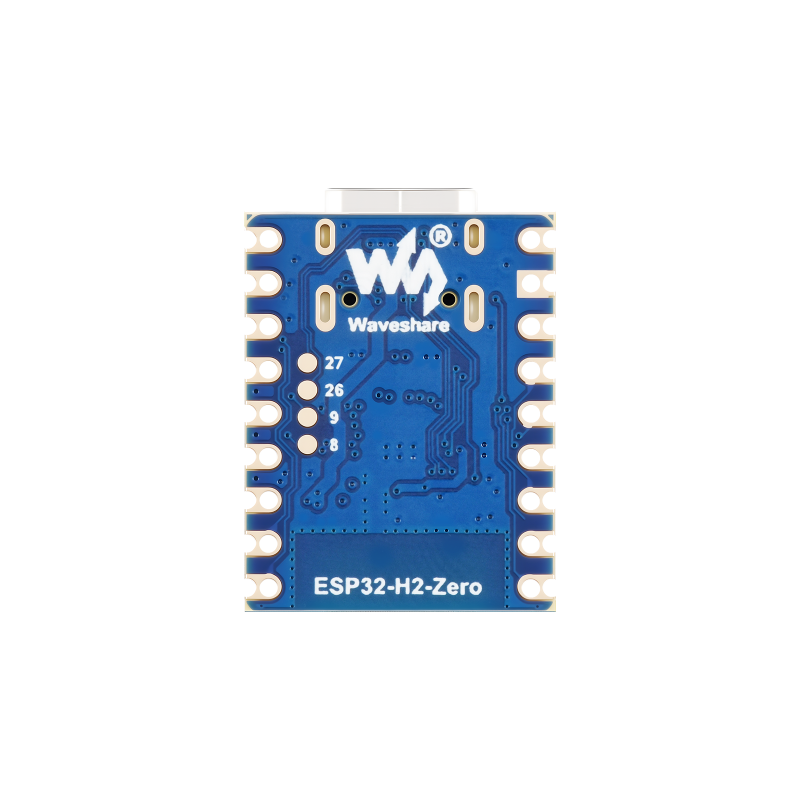

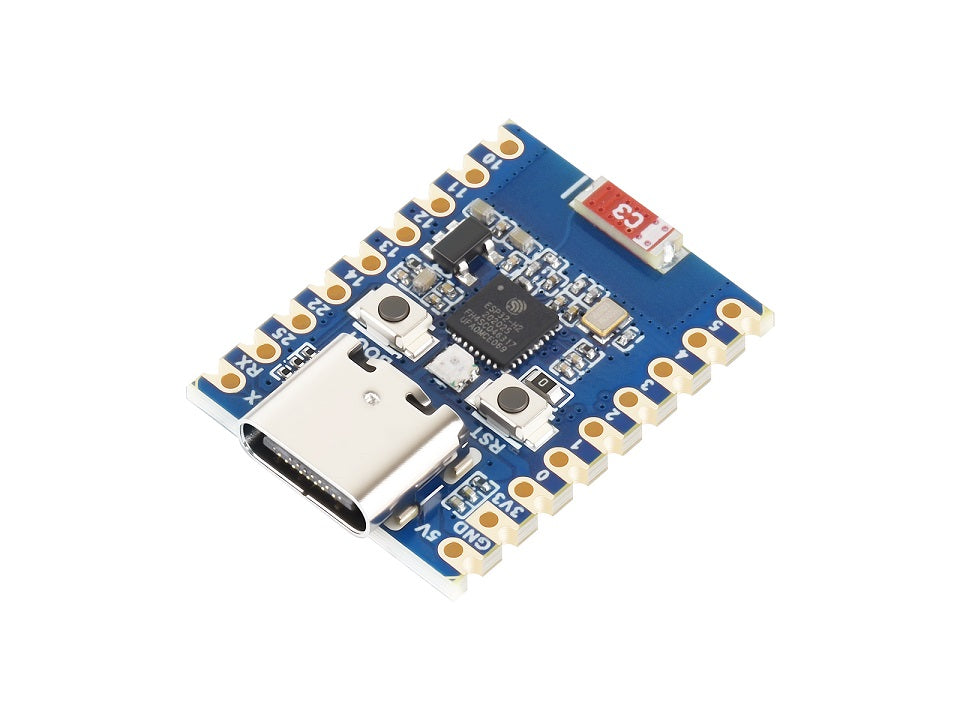

What's On Board

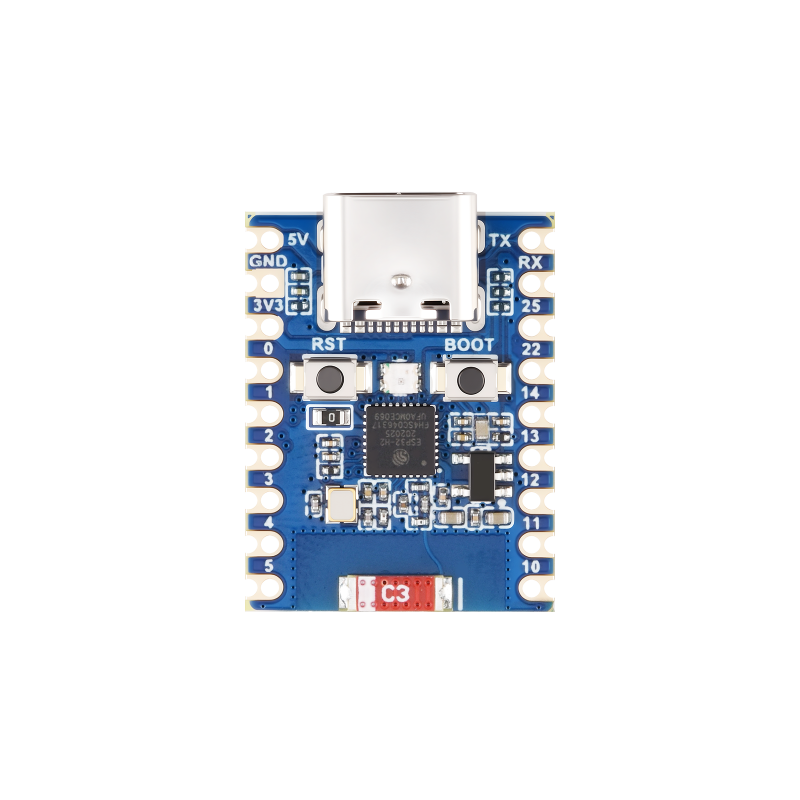

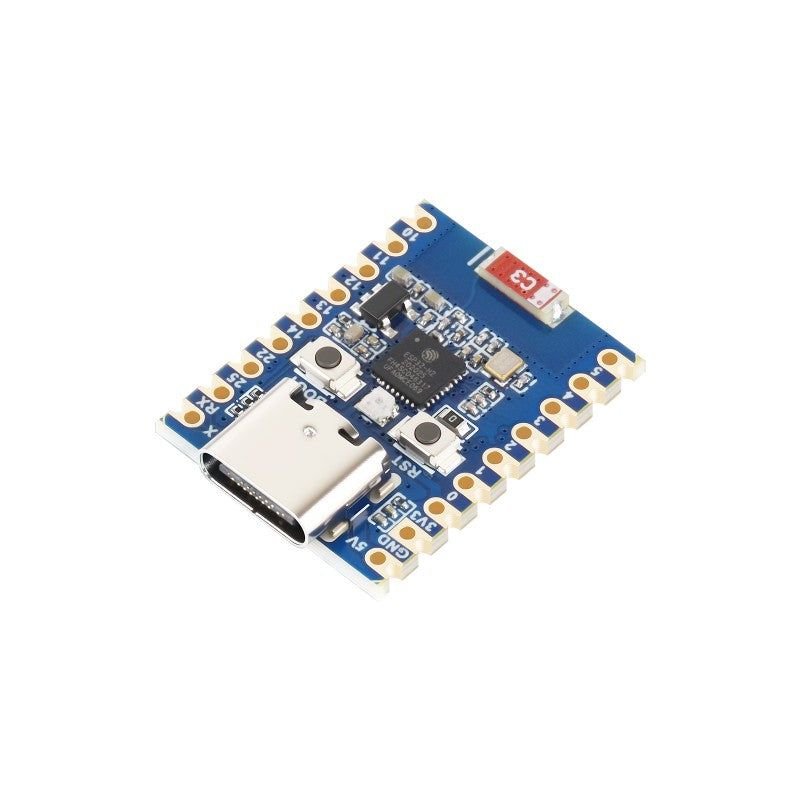

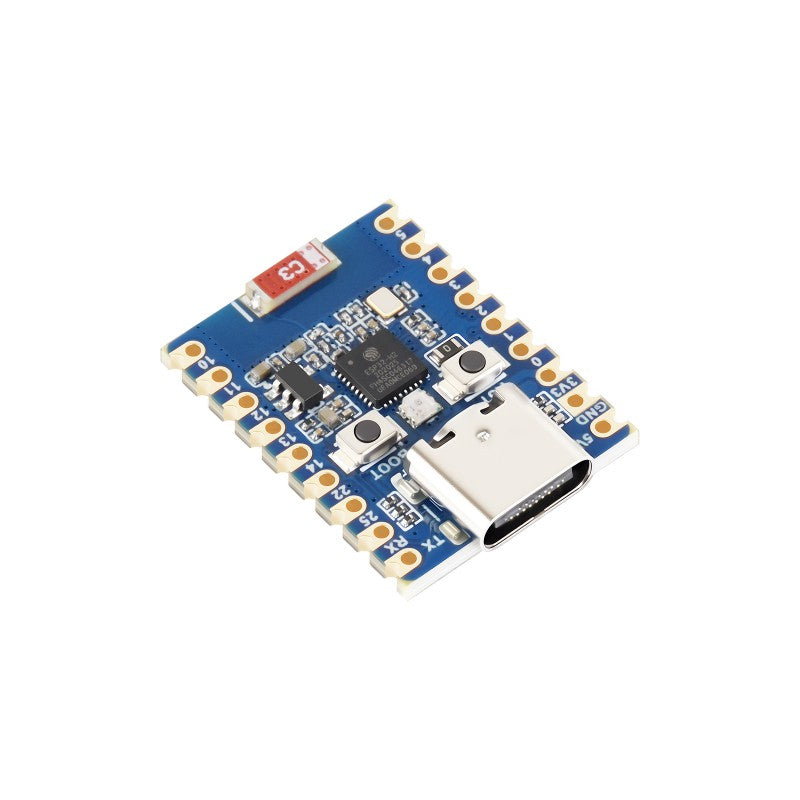

1. ESP32-H2FH4S: RISC-V single-core processor, up to 96MHz
2. 2.4GHz ceramic antenna
3. ME6217C33M5G: low dropout regulator, 800mA max
4. WS2812 RGB LED
5. BOOT button: hold it and press RESET to enter download mode
6. RESET button
7. USB Type-C port: for programming and debugging
8. ESP32-H2 pins

Pinout

Dimensions

Documentation: ESP32-H2-Zero Wiki

Resources

• Detailed Guide to ESP32: Exploring Popular Models, Features, and Applications
• Installing and Configuring Arduino IDE for ESP32
• Arduino, ESP32, & Raspberry Pi Pinout Reference for I2C, SPI, and UART
