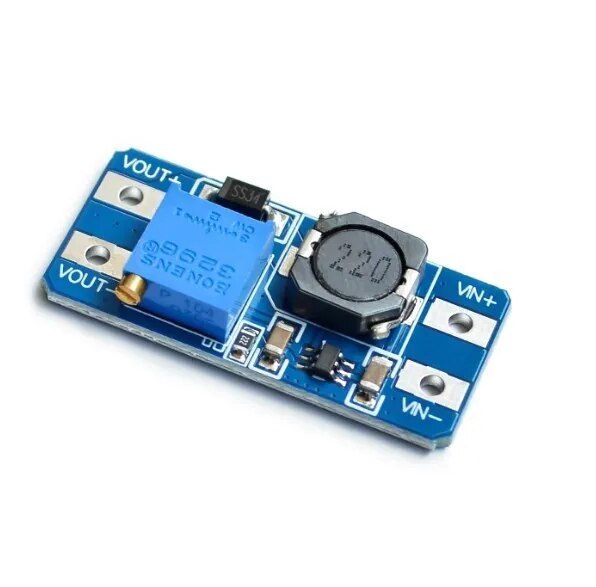

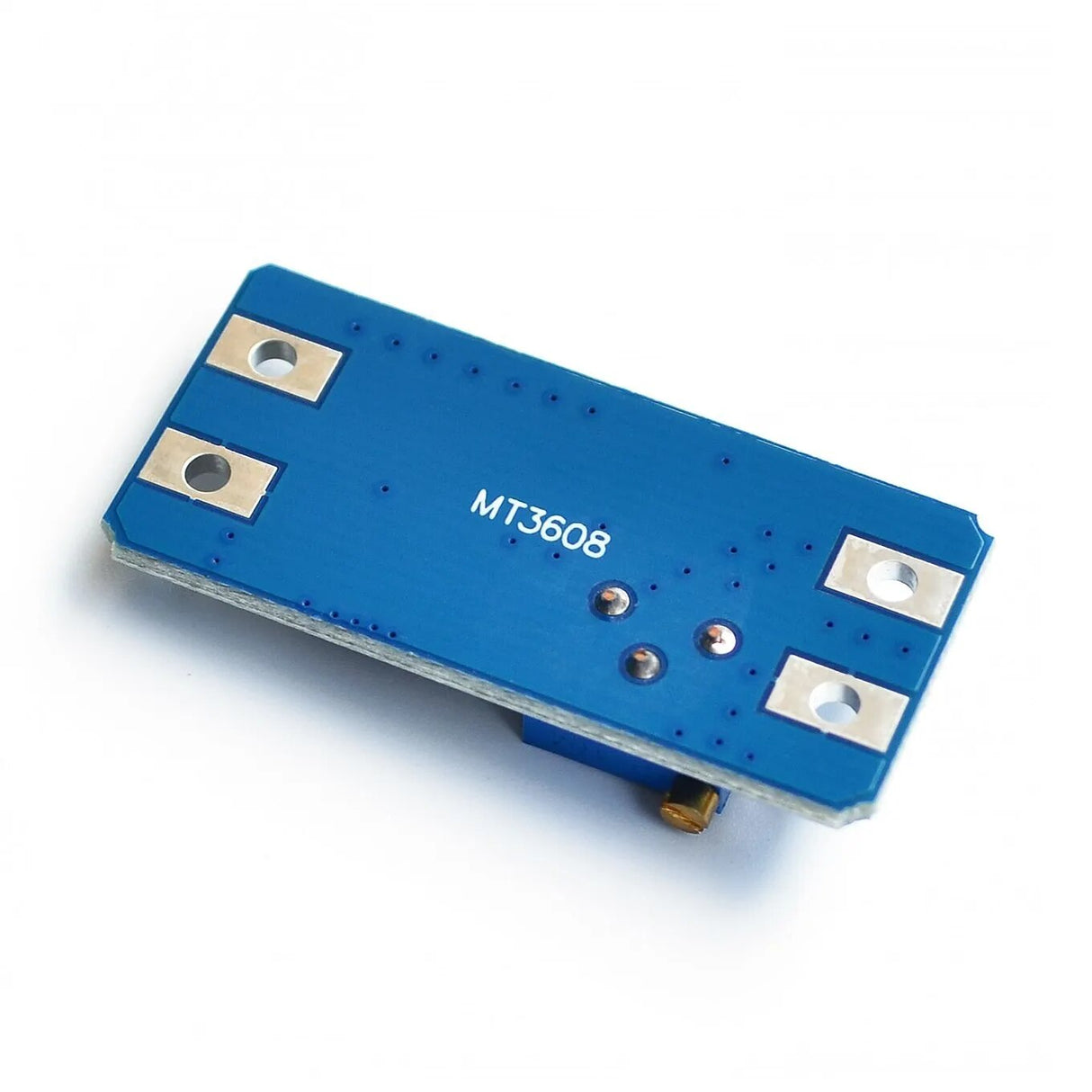

MT3608 Step Up Module
$2.90 AUD
Unit price
/
Unavailable
The MT3608 is a compact and efficient step-up (boost) converter module designed for small and low-power applications. Whether you need to increase the voltage from a lower source to power your project or drive higher loads, the MT3608 provides a simple and reliable solution.
Features:
- High Conversion Efficiency:
- Achieves up to 95% efficiency.
- Adjustable Output:
- Allows customization of the output voltage.
- Maximum Output Current:
- Capable of delivering a maximum output current of 2A.
- Output Voltage Range:
- Regulates the output voltage from 5V to 28V DC.
- Input Voltage Range:
- Accepts input voltages from 2V to 24V DC.
- Compact Size:
- Module dimensions: Approximately 37mm (L) x 17.3mm (W) x 6mm (H).
Full Specifications:
- Input Voltage: DC 2V-24V
- Output Voltage: DC >5V-28V
- Maximum Output Current: 2A
- Maximum Conversion Efficiency: 95%
- Maximum Operating Temperature: -45°C to +85°C
- Switching Frequency: 1.2MHz
- Output Ripple: Less than 100mV
Note:
- The maximum input voltage should not exceed the desired output voltage (since this is a step-up converter, not a step-down converter).
- Ensure that the input voltage does not exceed the maximum input voltage (24V).
- To adjust the output voltage, simply turn the potentiometer counterclockwise.
The MT3608 is a reliable choice for boosting voltage efficiently in various applications.
