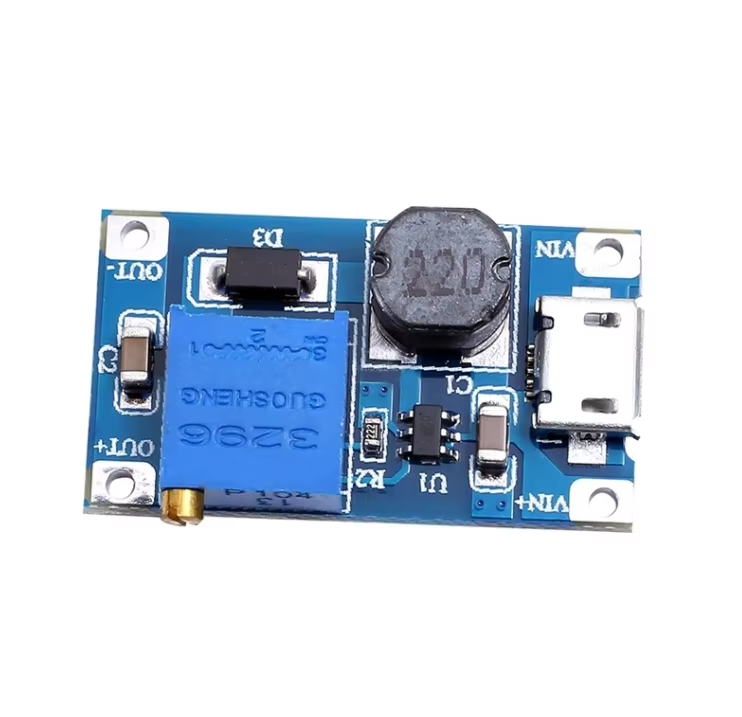

MT3608 Micro USB Step Up Module

The MT3608 Micro USB Step Up Module is a highly efficient DC-DC boost converter designed to step up low input voltages to a higher, stable output. With a convenient Micro USB input, this compact module is perfect for powering projects from USB sources or lithium batteries, providing adjustable voltage for a wide range of DIY electronics and portable applications.

Key Features:

• Input Voltage Range: 2V–24V DC, suitable for low-voltage sources.
• Adjustable Output: Regulate output voltage up to 28V for flexibility in your projects.
• Micro USB Input: Simplifies power connections from USB chargers or battery packs.
• Maximum Output Current: Up to 2A, supporting small to medium load devices.
• High Efficiency: Achieves up to 93% efficiency for minimal power loss.
• Compact Form Factor: Easily integrates into portable or space-constrained projects.
• Protection Features: Built-in safeguards against over-temperature and short-circuit conditions.

Usage Notes:

• Ideal for boosting voltage from USB or lithium battery sources.
• Adjust output voltage carefully using the onboard potentiometer.
• Not suitable for high-current applications above 2A continuous load.
