LM2596 Buck Voltage Converter

Zaitronics
$3.50 AUD

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
  • Pickup: $0. Email us to arrange a pickup from our location in Brighton East 3187 in Melbourne at support@zaitronics.com.au.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.

Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.

Ships directly from Melbourne

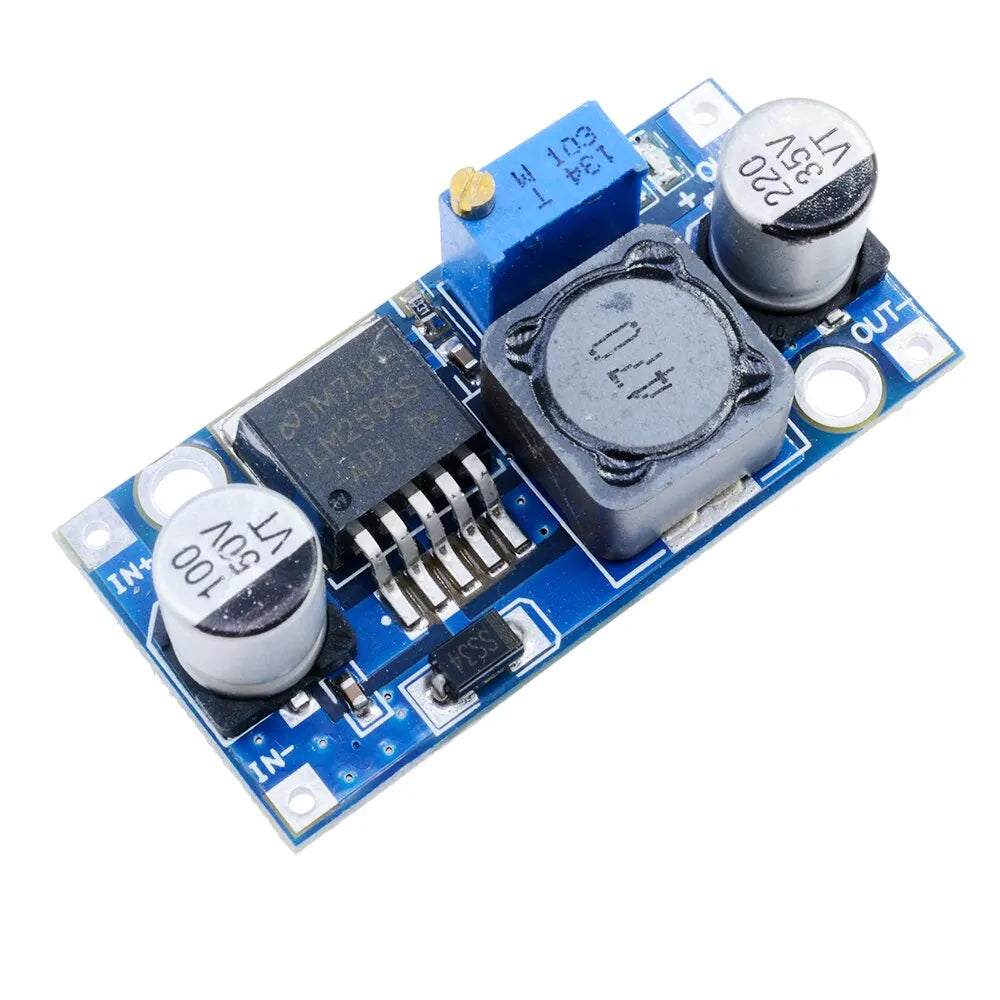

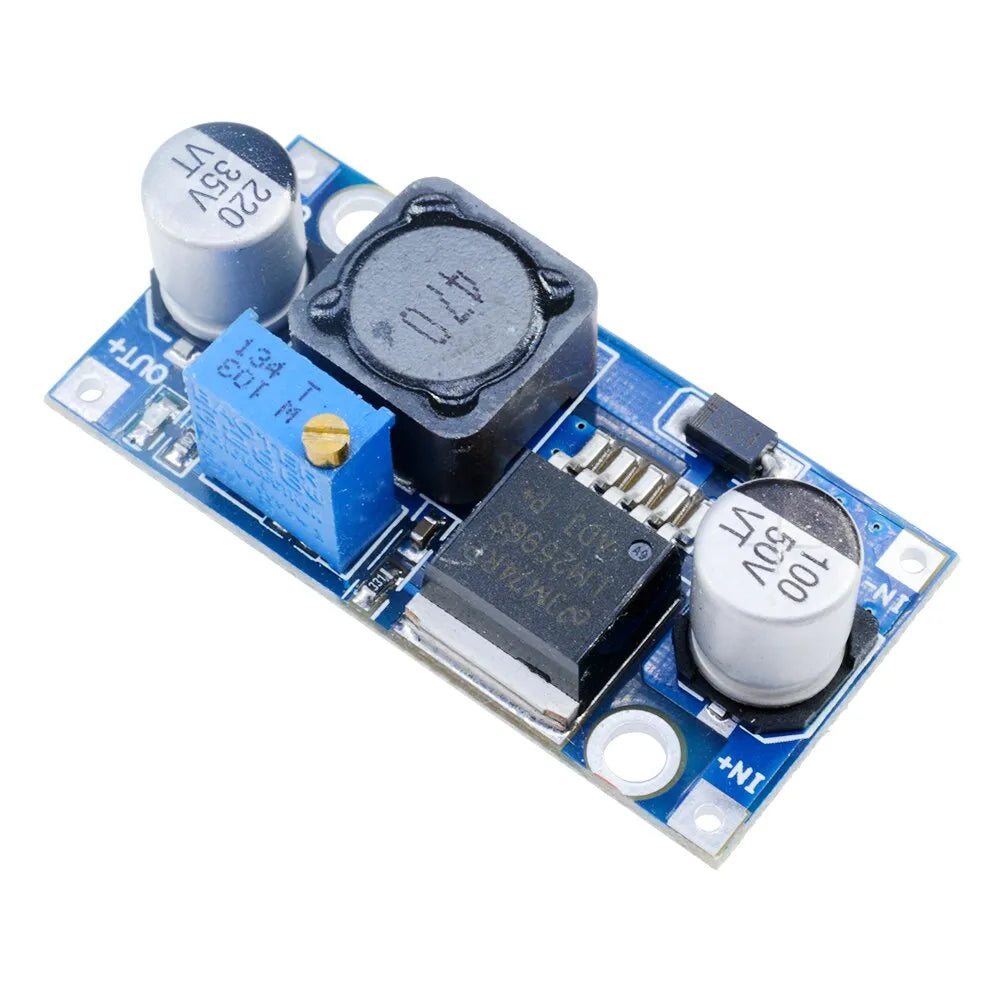

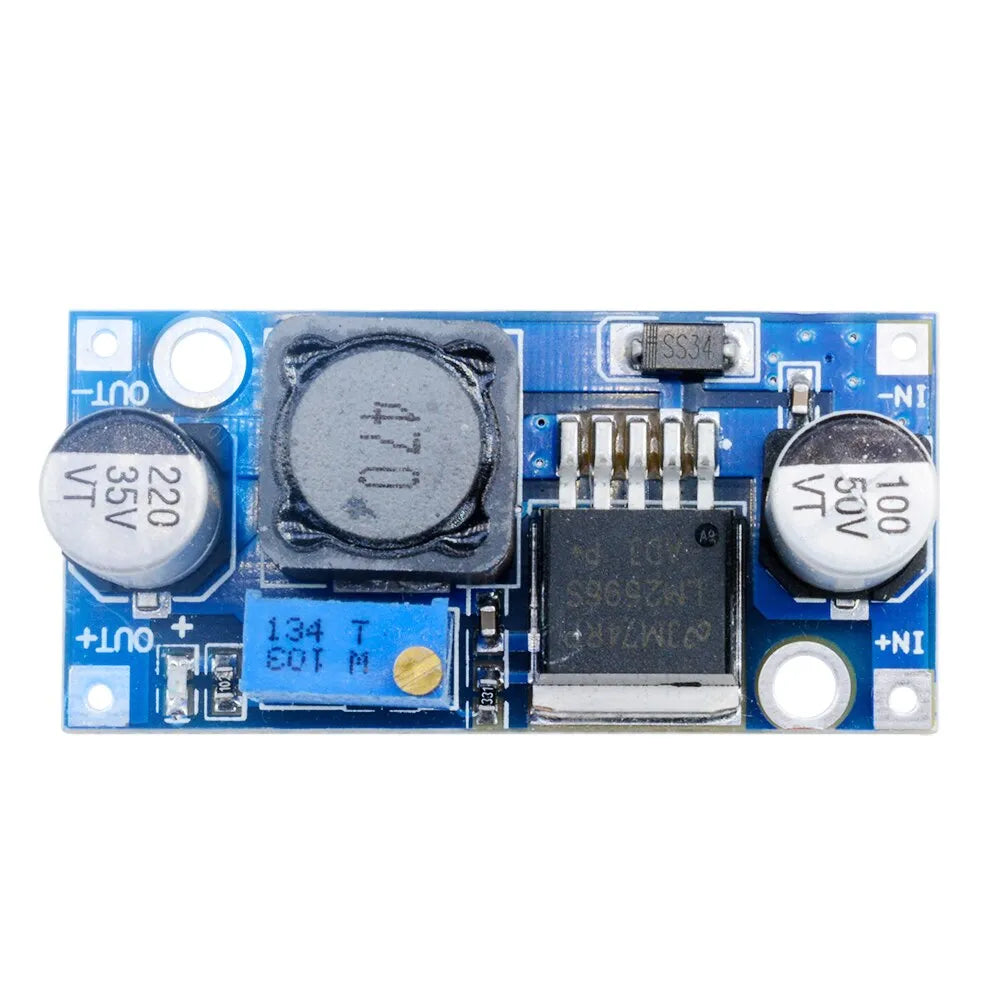

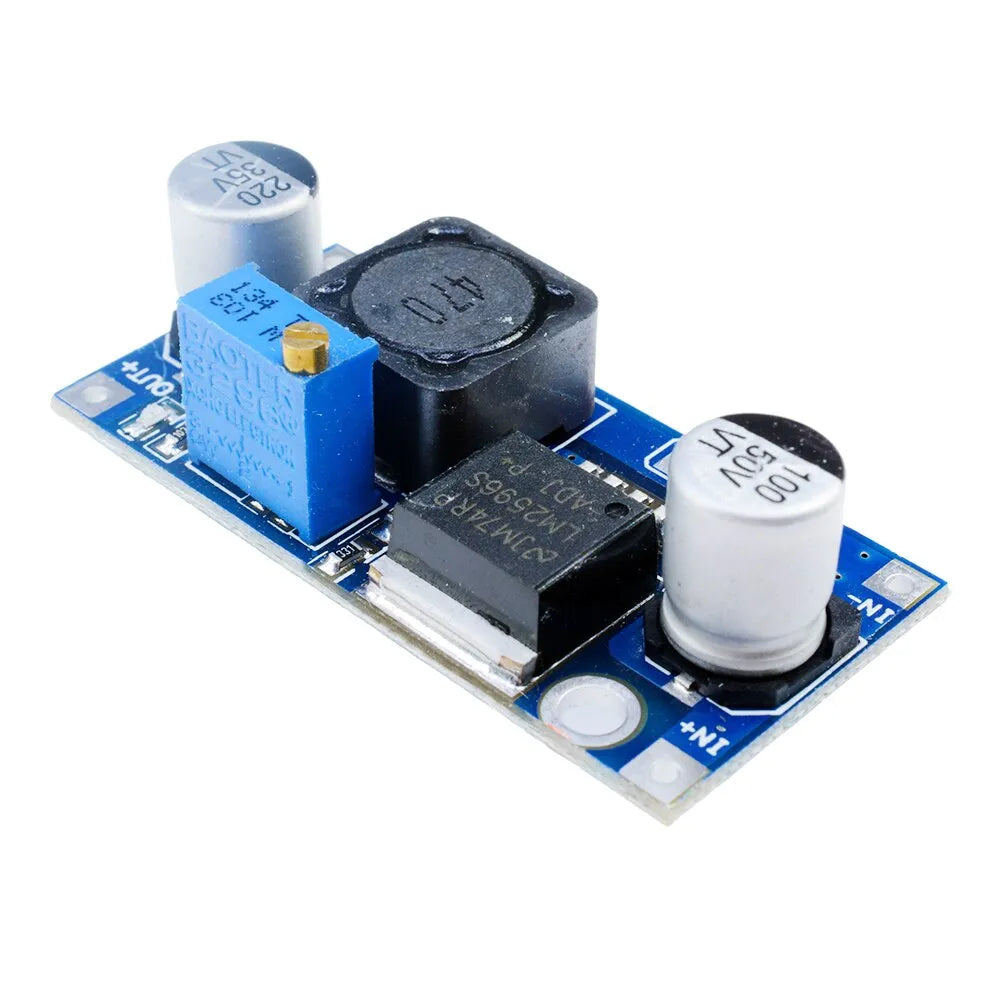

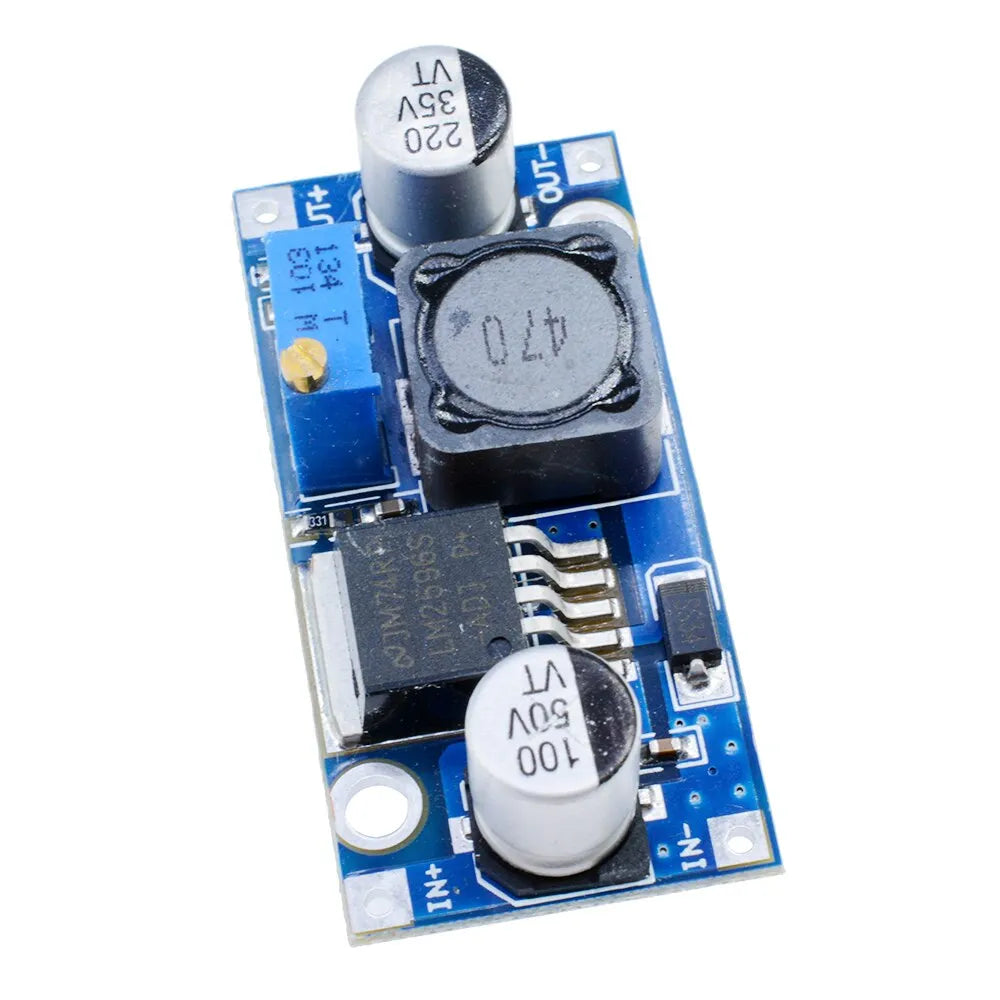

The LM2596S Step-Down Converter Module is a versatile voltage regulator designed to efficiently convert higher input voltages to lower output voltages. Whether you’re building a DIY project, upgrading an existing system, or optimizing power delivery, this module provides reliable performance.



Key Features:

  1. Adjustable Output:
    • The step-down power supply module features adjustable output voltage.
    • Customize the output to match your specific requirements.
  2. High Efficiency:
    • With a conversion efficiency of up to 90%, this module minimizes energy loss.
    • Ideal for applications where power efficiency matters.
  3. Low Ripple Output:
    • The output voltage remains stable and reliable due to low ripple.
    • Ensures clean power for sensitive components.
  4. Strong Heat Dissipation:

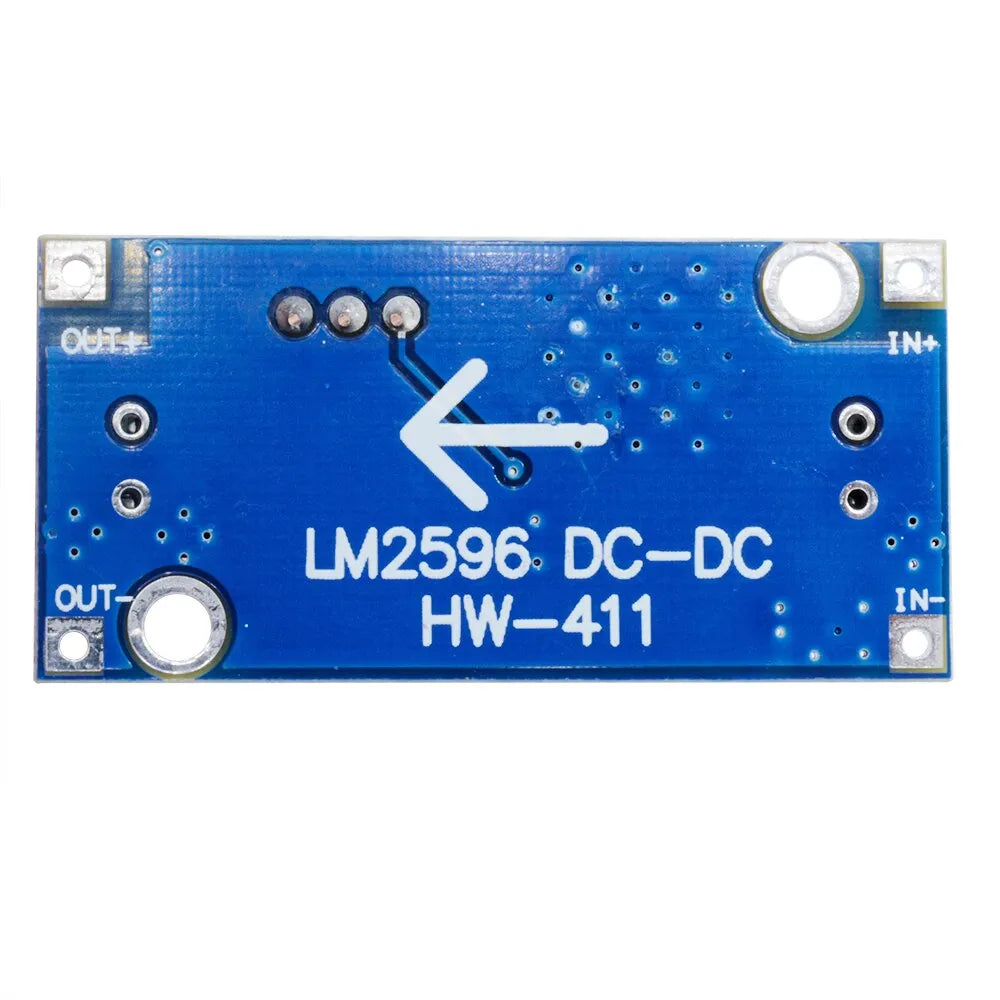

    • The module is designed with dense through-holes for efficient heat dissipation.
    • Suitable for projects demanding high power output.
  5. Wide Input Voltage Range:
    • Handles input voltages from 3.2V to 46V.
    • Versatile for various power supply scenarios.



Specifications:

  • Model: LM2596S DC-DC Buck Module
  • Input Voltage: 3.2V-46V
  • Output Voltage: 1.25V-35V
  • Output Current: Up to 3A (maximum)
  • Conversion Efficiency: Up to 92% (maximum)
  • Output Ripple: Less than 30mV
  • Switching Frequency: 65KHz
  • Operating Temperature: -45°C to +85°C
  • Product Size: 43mm x 21mm x 14mm



Installation Tips:

  1. Input Voltage vs. Output Voltage:
    • Ensure that the input voltage is higher than the desired output voltage.
    • For output currents up to 2A (or output power up to 10W), no additional heatsink is required.
  2. Heat Dissipation:
    • If operating at higher currents, consider adding a heatsink to prevent overheating during extended use.



Caution:

  • This is a buck module; input voltage must exceed the output voltage.
  • Use it for applications where efficient voltage conversion is essential.



Upgrade your power supply solutions with the LM2596S Step-Down Converter Module. Whether you’re powering motors, sensors, or microcontrollers, this module ensures reliable performance.
