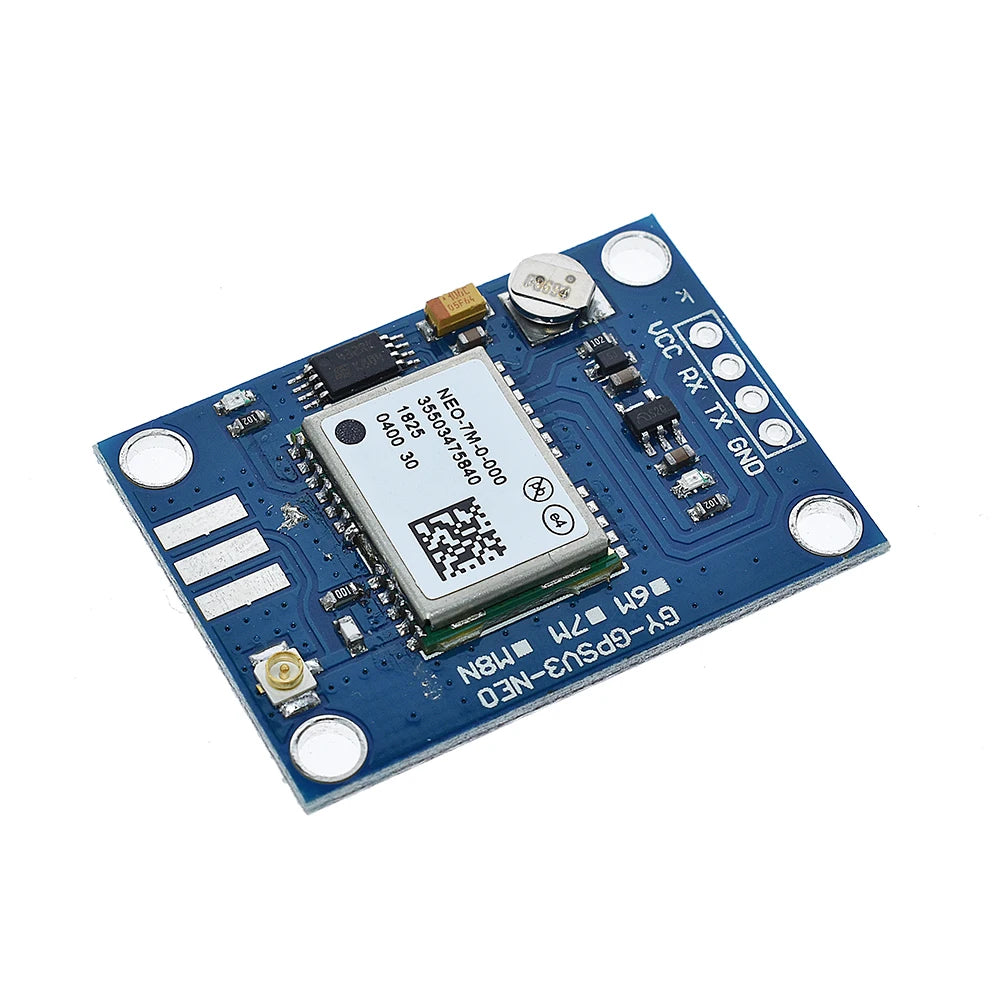

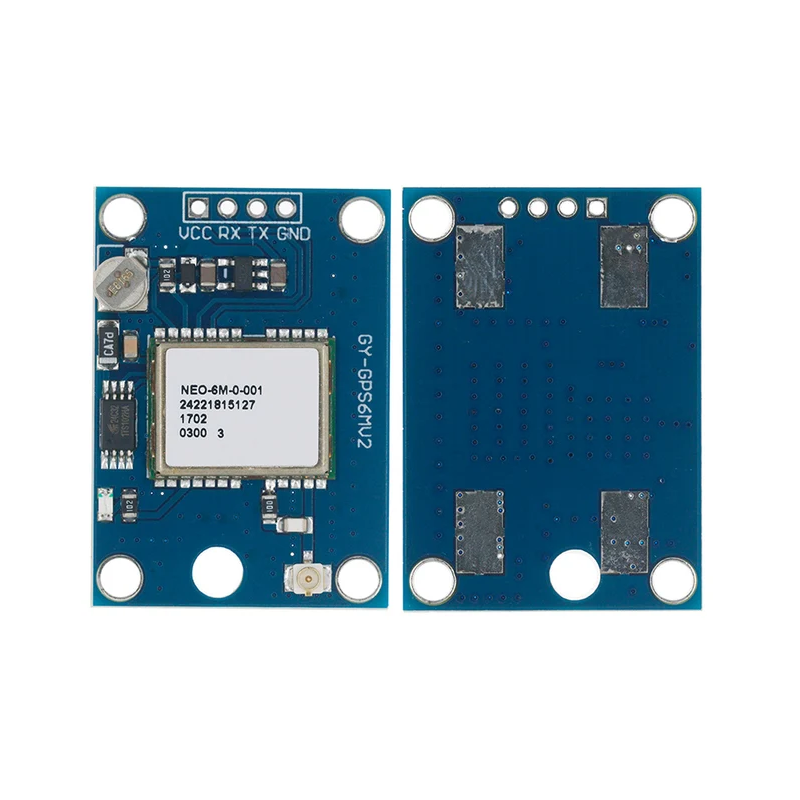

GPS Module GY-GPS6MV2 Ublox NEO6MV2 With Antenna
$7.50 AUD
Unit price
/
Unavailable
The GY-GPS6MV2 is a compact and reliable GPS module designed for flight control systems, Arduino projects, and Ardupilot applications.
Features:
- u-blox NEO-6M GPS Chip:
- The heart of this module is the NEO-6M GPS chip from u-blox.
- It can track up to 22 satellites across 50 channels.
- Achieves an impressive -161 dBm tracking sensitivity while consuming only 45 mA current.
- Provides 2.5m horizontal position accuracy with 5 location updates per second.
- Time-To-First-Fix (TTFF) is less than 1 second.
- Features a Power Save Mode (PSM) for reduced power consumption.
- Position Fix LED Indicator:
- The module includes an LED that indicates the status of the Position Fix:
- No blinking: Searching for satellites.
- Blink every 1 second: Position Fix is found (enough satellites detected).
- 3.3V LDO Regulator:
- The operating voltage range for the NEO-6M chip is 2.7V to 3.6V.
- The module comes with MICREL’s MIC5205 Ultra-Low Dropout 3V3 regulator.
- Compatibility:
- Compatible with various flight controller boards designed to work with a GPS module, including APM2.0 and APM2.5.

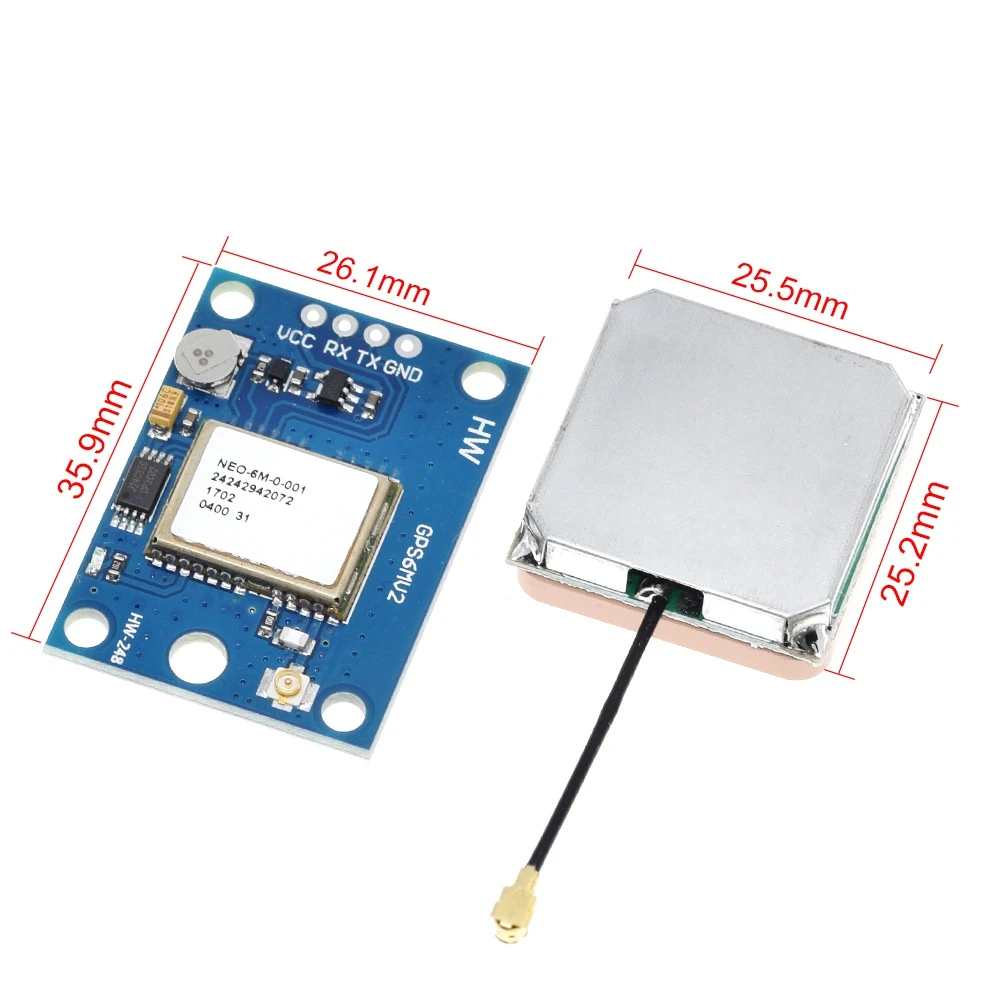

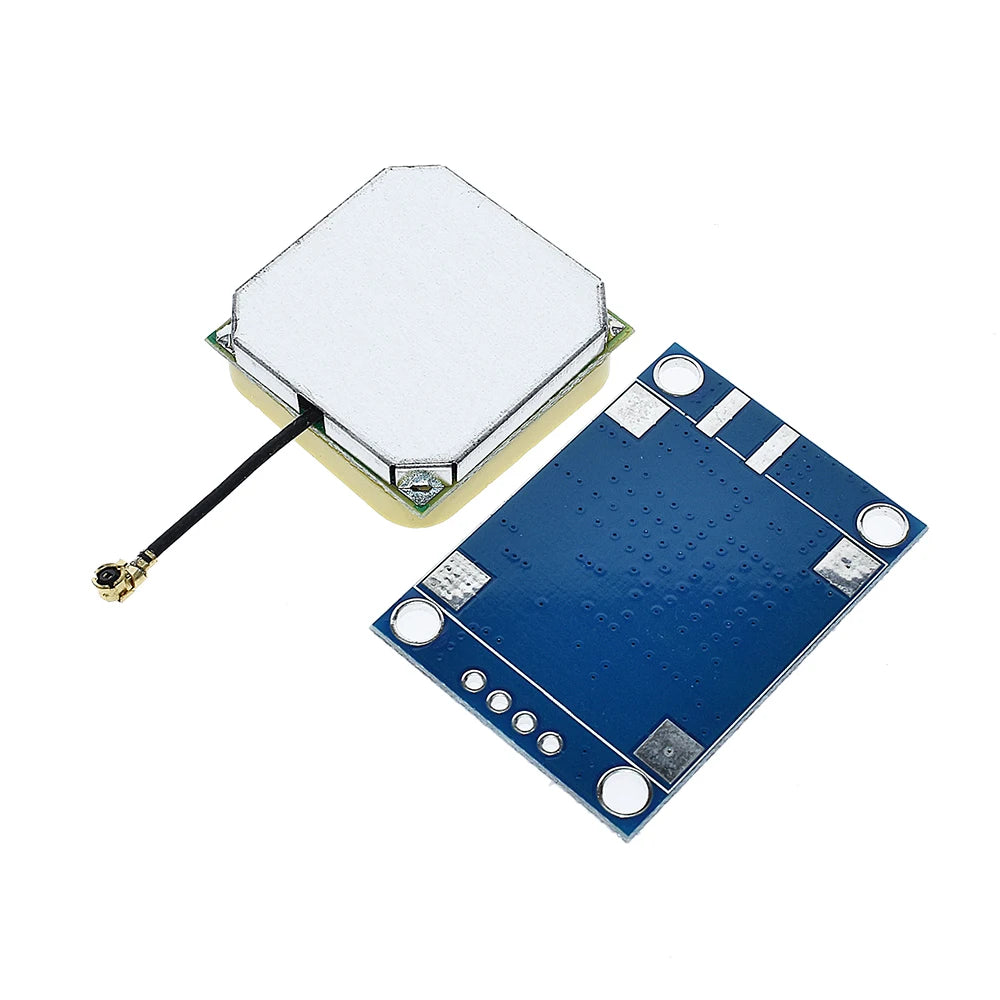

- External U.FL Ceramic Antenna:
- Equipped with an external antenna for better reception.
- Built-in EEPROM:
- The module features a small battery for hot-start and includes a built-in EEPROM.
Whether you’re building a drone, tracking a vehicle, or enhancing your Arduino project, the GY-GPS6MV2 Flight Controller Module provides accurate location data. Get ready to explore the world with precision!
