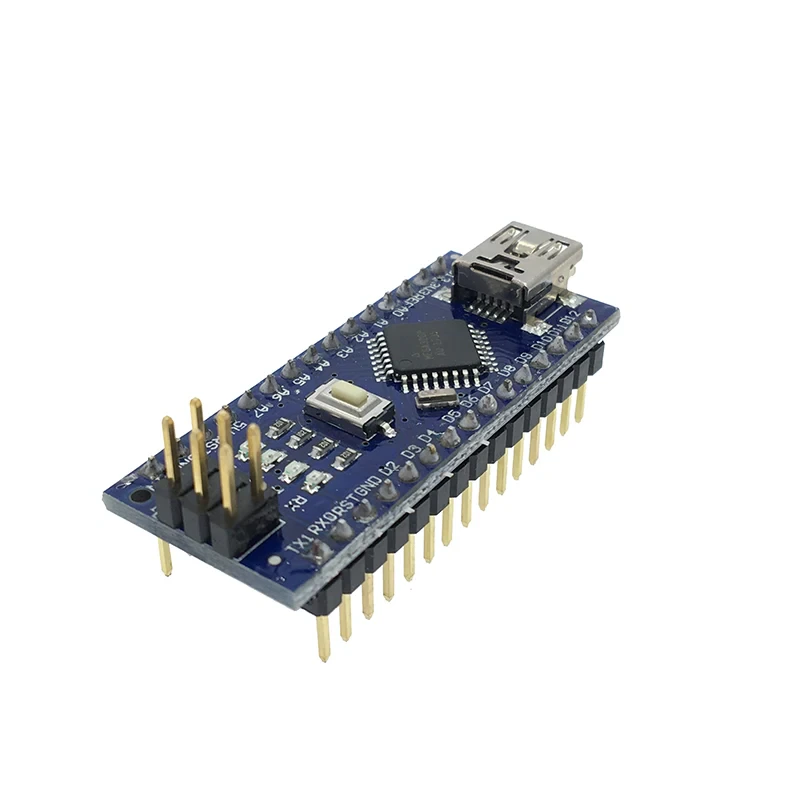

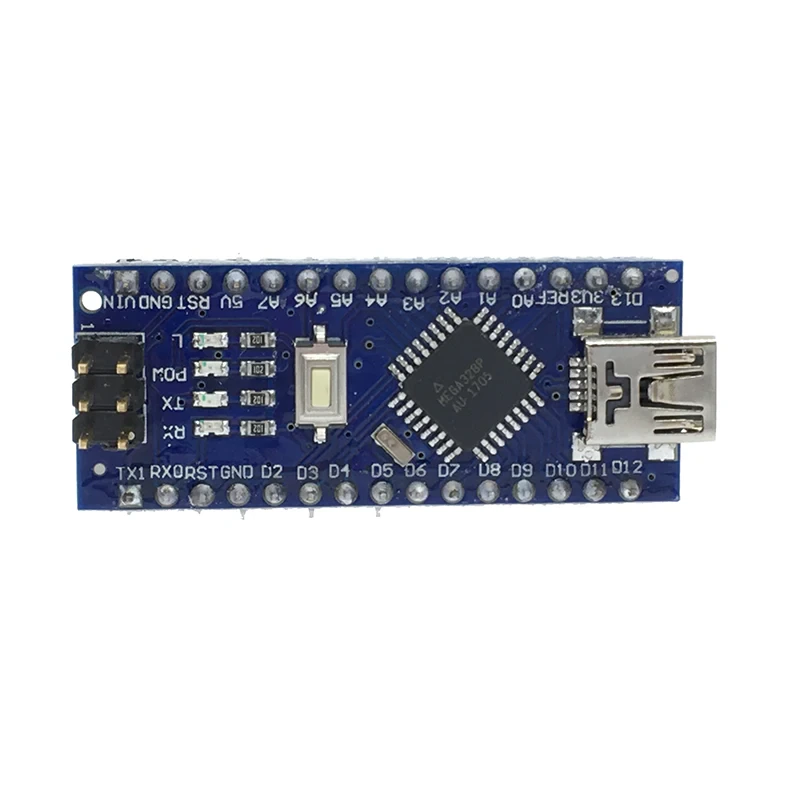

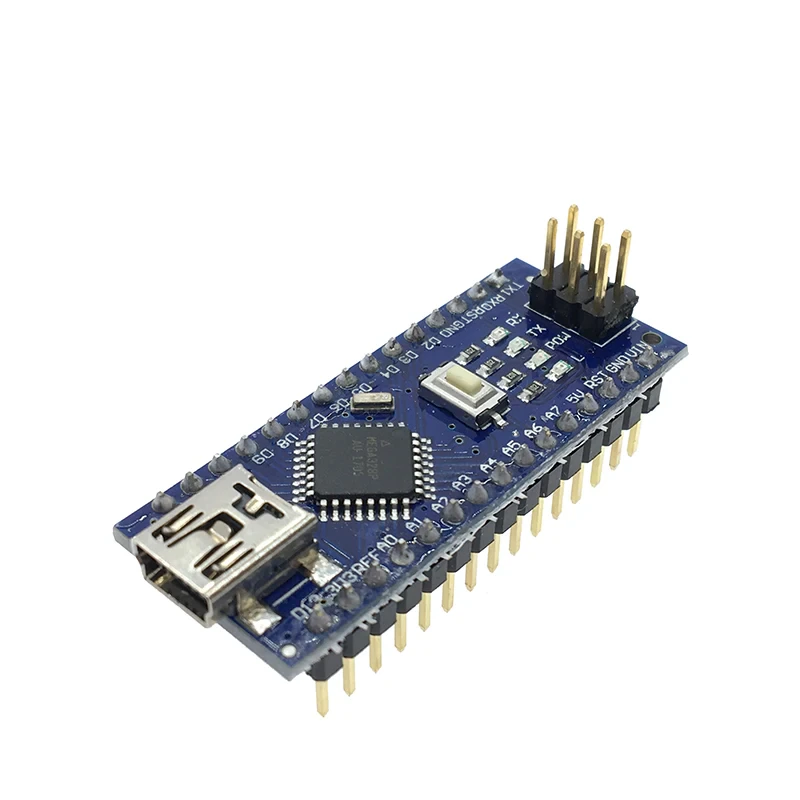

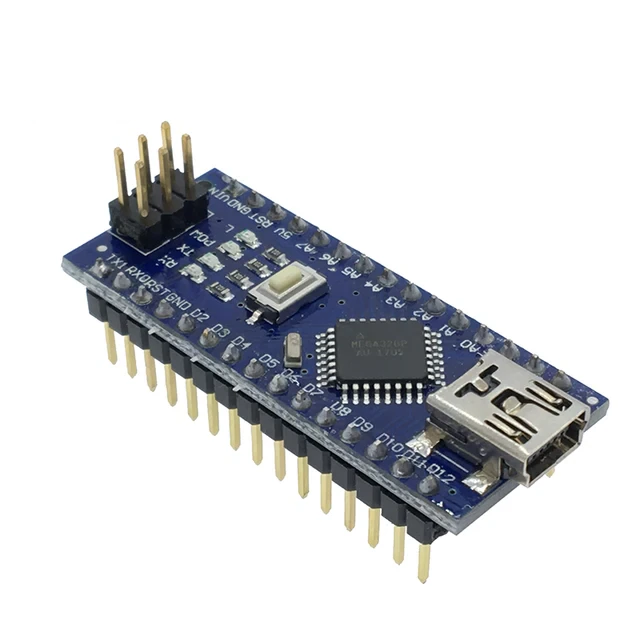

Soldered Arduino Nano Compatible Development Board
The Arduino Nano V3.0 Compatible is a compact and powerful microcontroller board designed for Arduino enthusiasts, hobbyists, and makers. This variation has its pins soldered. Whether you’re a beginner or an experienced developer, this board offers versatility, ease of use, and compatibility with the Arduino ecosystem.

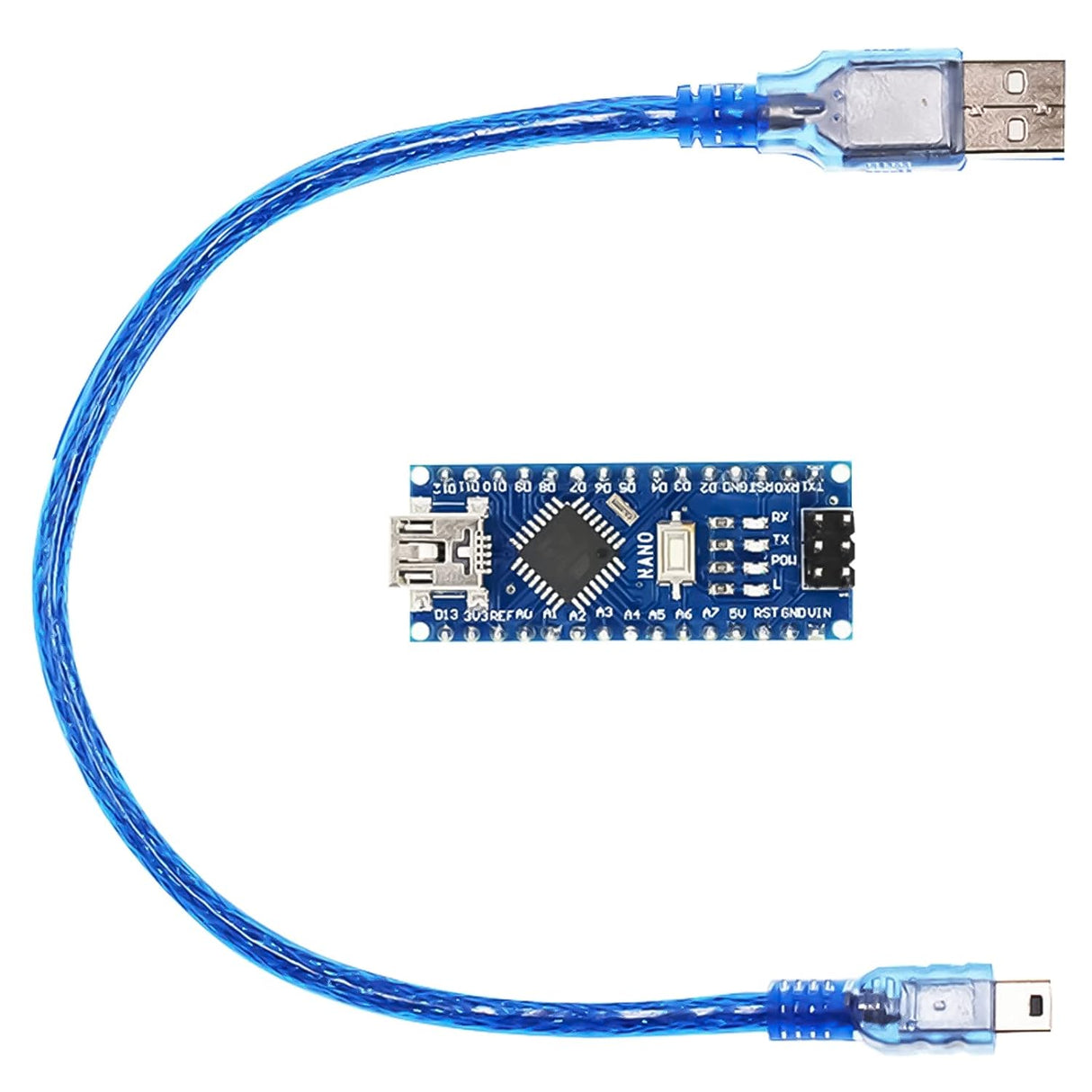

This product includes a USB A to Mini B cable
Key Specifications:
- Microcontroller: Atmel ATmega328P
- Operating Voltage (Logic Level): 5 V
- Input Voltage (Recommended): 7-12 V
- Input Voltage (Limits): 6-20 V
- Digital I/O Pins: 14
- PWM Pins: 6
- Analog Input Pins: 8
- Flash Memory: 32 KB (2 KB used by bootloader)
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- Bootloader: Pre-installed

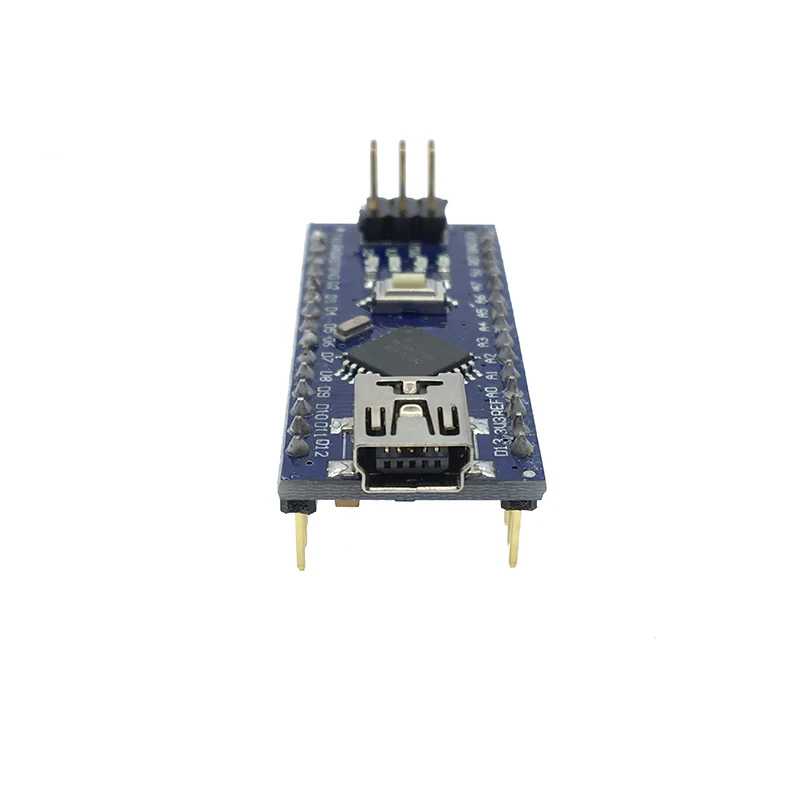

- USB Interface: Mini USB (Type-B)
Features:
- Compact Design:
- The Mini USB Nano V3.0 is smaller than the Arduino Uno, making it ideal for space-constrained projects.
- Its mini USB interface allows easy connection to your computer for programming and communication.
- Versatility:
- Use it for prototyping, experimenting, or building custom devices.
- Compatible with the Arduino Nano, so you can leverage existing libraries and code.
- USB Power and Communication:
- Connect the board to your computer via the mini USB port.
- Use it for both power supply and data communication.

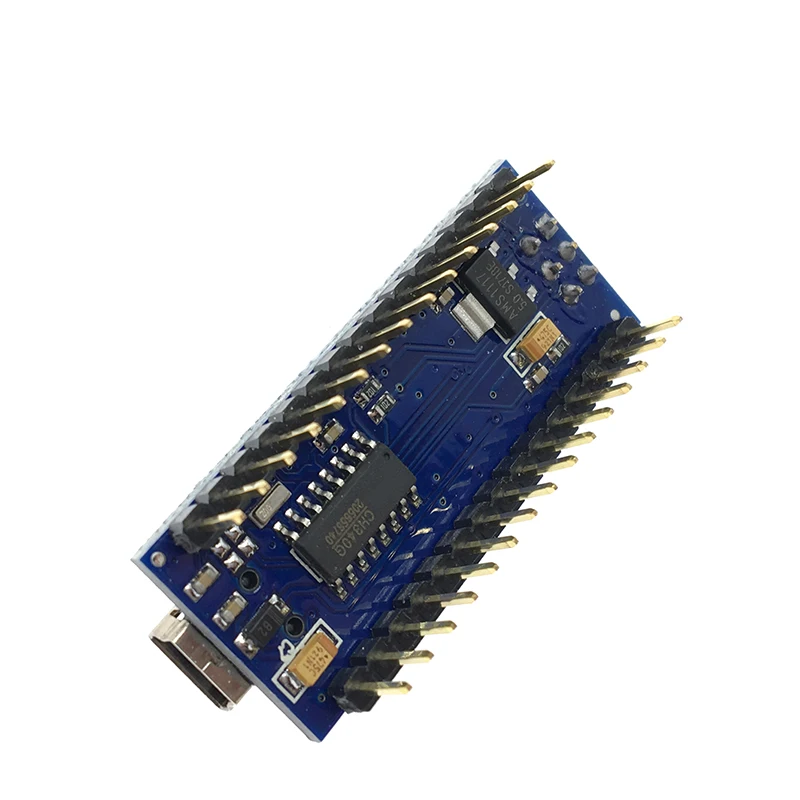

- CH340 USB-to-Serial Converter:
- The CH340G chip provides reliable USB-to-serial communication.
- No need for additional drivers on most systems.
- Built-in Bootloader:
- Start programming right away with the pre-installed bootloader.
- Upload your sketches using the Arduino IDE.
How to Get Started:
- Install the Arduino IDE:
- Download and install the Arduino IDE from the official website.
- Select “Arduino Nano” as the board type.
- Connect to Your Computer:
- Use a mini USB cable to connect the board to your computer.
- Install any necessary CH340 drivers (if required).
- Start Coding!:
- Write your Arduino sketches and upload them to the Mini USB Nano.
- Experiment, create, and bring your ideas to life!
This board is built from the open source Arduino® Nano design. To support the creates and the future innovations, we recommend to buy directly from the official Arduino store.
Arduino® is a trademark of Arduino AG.
Unlock your creativity with the Mini USB Nano V3.0 ATmega328P. Whether you’re building robots, sensors, or interactive art, this board is your gateway to endless possibilities.
