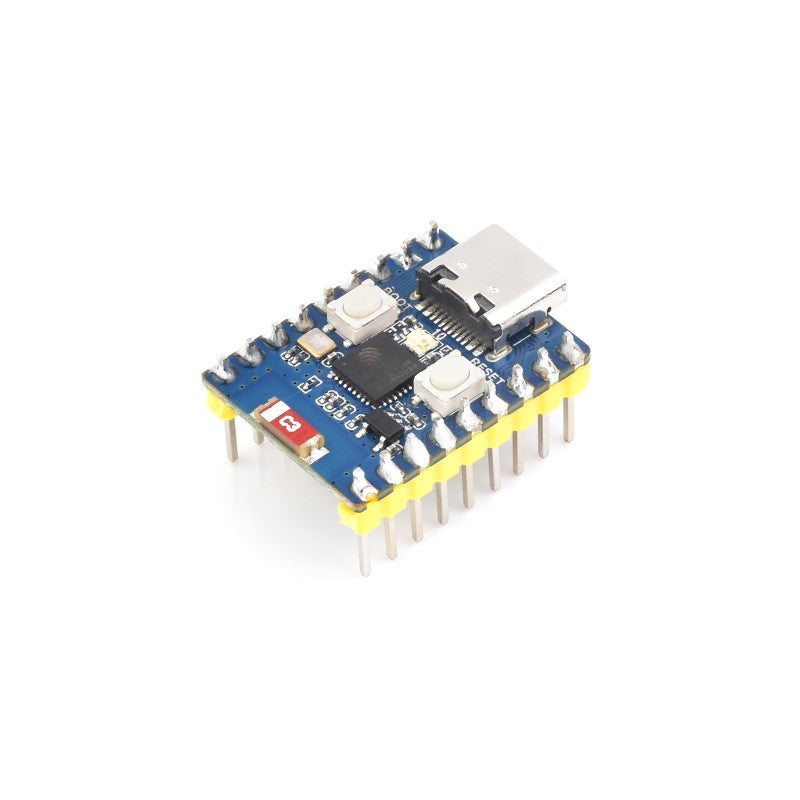

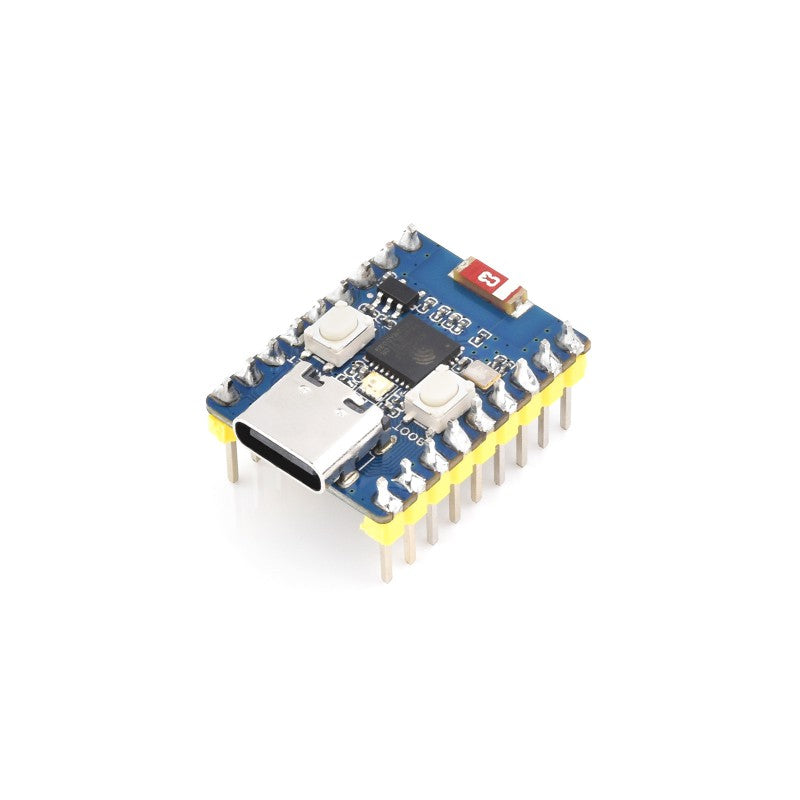

ESP32-C3 Mini Development Board - 2.4GHz WiFi & Bluetooth - Soldered

Waveshare  |  SKU: WS-25532
$8.20 AUD
$7.45 exc GST

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
  • Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
  • Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
  • Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
Board specifications
  • Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
  • 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
  • Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Integrated with USB serial port full-speed controller, 15 × GPIO pins allows flexibly configuring pin functions
  • 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, 2 × ADC, etc.

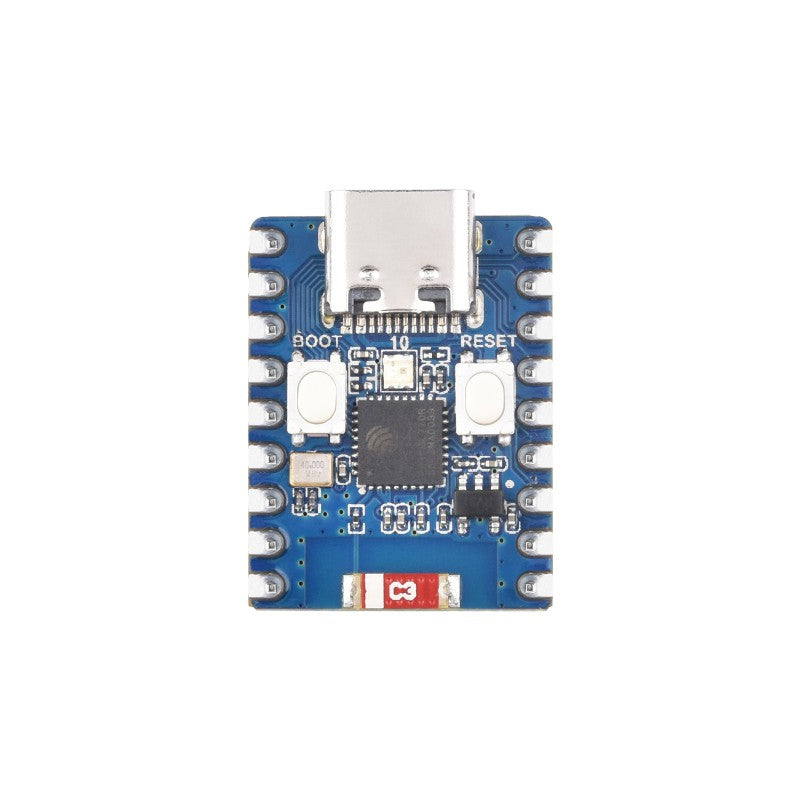

What's On Board
  1. USB Type-C Port
  2. BOOT button - Press it and then press the RESET button to enter download mode
  3. RESET button
  4. WS2812 RGB LED
  5. ME6217C33M5G - Low dropout regulator, 800mA output (Max.)
  6. ESP32-C3FH4 single-core processor - up to 160MHz operating frequency
  7. 2.4G ceramic antenna

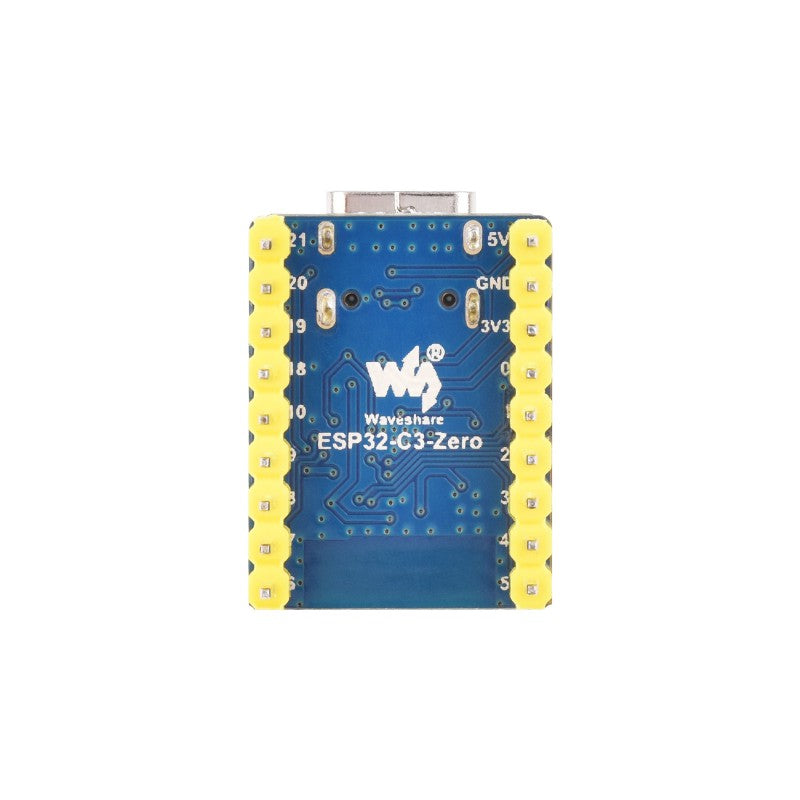

    Pin definition
