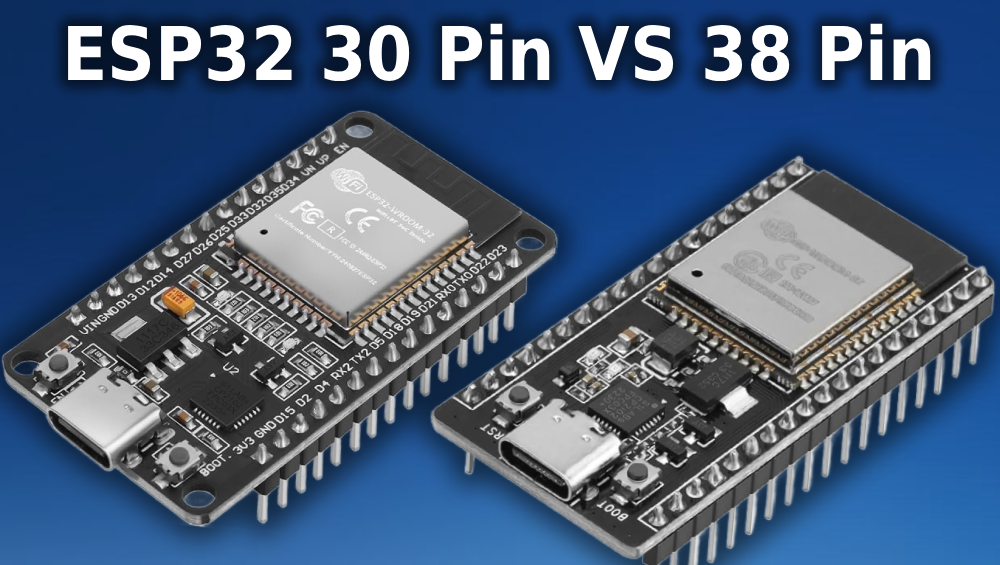

If you’re choosing an ESP32 development board for your next project, you’ve probably noticed two common versions: 30 pin and 38 pin. At first glance they look almost identical. Both use the same ESP32 chip, both support WiFi and Bluetooth, and both can be programmed using the Arduino IDE.
However, there are practical differences that affect GPIO access, breadboard compatibility, and project flexibility.
In this guide, we’ll break down the differences clearly so you can confidently choose the right board from our ESP32 development board collection.
New to ESP32? We recommend you check out our ESP32 beginner tutorials or follow the ESP32 IoT Systems Pathway if you're building WiFi or Bluetooth connected projects.
Quick Overview – 30 Pin vs 38 Pin ESP32
Both 30 pin and 38 pin boards are based on the ESP32 microcontroller, which internally provides up to 48 GPIO pins. However, not all of those pins are physically broken out to the header rows on development boards.
The key difference between 30 pin and 38 pin boards is simply how many of those GPIOs are exposed and accessible.
- 30 Pin Board – Fewer GPIOs broken out, wider physical width, more space friendly.
- 38 Pin Board – More GPIOs broken out, slightly narrower board, better for complex projects requiring maximum pin access.
It’s important to note that both 30 pin and 38 pin versions still have their own unique hardware variants. The pinout layout is generally the same within each category, but USB connector type, antenna configuration, and minor PCB layout differences can vary.
Common 38 Pin Versions
Common 30 Pin Versions
- 30 Pin ESP32 – Micro USB
- 30 Pin ESP32 – USB-C
- 30 Pin ESP32 DevKitC 32U – USB-C with External Antenna
30 Pin ESP32 – Pinout and Capabilities
Below is the standard 30 pin ESP32 development board pinout.
Although the ESP32 chip supports up to 48 GPIOs internally, the 30 pin board exposes a practical subset suitable for most beginner and intermediate projects.
30 Pin Key Capabilities
- 15 ADC Channels – 12-bit SAR ADC with selectable ranges of 0–1V, 0–1.4V, 0–2V, or 0–4V.
- 2 UART Interfaces – With flow control and IrDA support.
- 25 PWM Outputs – Ideal for motor control, LED dimming, and servo projects.
- 2 DAC Channels – Two 8-bit DACs for generating true analog voltages.
- SPI, I2C, and I2S – Three SPI interfaces, one I2C interface, and two I2S interfaces for displays, sensors, and audio projects.
- 9 Touch Pads – Capacitive touch capable GPIOs.
For most hobbyist builds such as relay control, sensor reading, OLED displays, or small IoT devices, the 30 pin version provides more than enough functionality.
38 Pin ESP32 – Pinout and Expanded GPIO Access
The 38 pin board exposes additional GPIOs that are not available on many 30 pin variants.
Key Pinout Details – 38 Pin Module
- Power – 3.3V, GND, and VIN 5V input.
- ADC Inputs – GPIOs 32–39, 34–36, 0, 2, 4, 12–15, 25–27.
- DAC Outputs – GPIO25 DAC1 and GPIO26 DAC2.
- I2C – SDA GPIO21, SCL GPIO22.
- SPI – SD2 GPIO9, SD3 GPIO10, CMD GPIO11, CLK GPIO6, SD0 GPIO7, SD1 GPIO8.
- UART – TX0/RX0 GPIO1/GPIO3, TX2/RX2 GPIO17/GPIO16.
- Touch Pins – T0–T9 on GPIO 4, 0, 2, 15, 13, 12, 14, 27, 33, 32.
Functionally, both boards are extremely similar because they use the same ESP32 chip. The 38 pin version simply gives you access to more physical GPIO header pins, which can be important in larger projects involving multiple sensors, relays, displays, and communication modules.
Physical Size and Breadboard Compatibility
One of the most overlooked differences between 30 pin and 38 pin ESP32 boards is physical width.
The 30 pin board is wider and typically fits across a standard breadboard while still leaving only one usable row, which can complicate wiring for beginners and prototyping work.
The 38 pin board is slightly slimmer due to the components being stretched out on a longer board. On most standard breadboards, it will leave an entire row on each side, perfect for jumper wires.
If you're following our ESP32 beginner tutorials, the 38 pin board is generally easier to work with during early projects simply because wiring is cleaner and less cramped, but we've ensured all projects are compatible with the 30 pin version.
For permanent installations or PCB-based builds, physical width usually does not matter, so either option can be used.
ESP32 30 Pin Breadboard Example:
ESP32 38 Pin Breadboard Example:
GPIO Differences – What Do You Actually Gain with 38 Pins?
Since both versions use the same ESP32 chip, the difference is not processing power or wireless capability. The difference is which pins are physically broken out to the header.
The ESP32 chip internally supports up to 48 GPIOs, but development boards expose a subset of those pins. The 38 pin board exposes more of them, particularly additional ADC-capable and input-only pins.
Additional Pins Commonly Available on 38 Pin Boards
- More ADC-capable GPIOs
- Extra input-only pins such as GPIO34–39
- Greater flexibility when assigning alternate functions
For small projects like:
- Reading a few sensors
- Driving a relay module
- Controlling LEDs
- Connecting a single I2C display
The 30 pin board is usually more than sufficient.
However, if you are building:
- Multi-sensor IoT systems
- Data logging projects with many analog inputs
- Robotics platforms with multiple PWM outputs
- Advanced home automation controllers
The extra accessible GPIOs on a 38 pin board can prevent you from running out of usable pins.
If you're planning WiFi dashboards, Bluetooth device control, or MQTT systems, you may also want to review the ESP32 IoT Systems Pathway to understand how many pins your full system might realistically require.
USB Type, Antenna Options, and Hardware Variants
Within both 30 pin and 38 pin categories, there are hardware variations that do not affect GPIO layout but may affect convenience or range.
USB Connector Type
Both 30 pin and 38 pin boards are available with:
- Micro USB
- USB-C
USB-C versions are generally preferred for newer cables and improved durability, but functionally there is no difference in how the board operates.
External Antenna Versions
Some 30 pin variants, such as the DevKitC 32U external antenna version, allow you to connect a 2.4 GHz antenna. This can significantly improve WiFi or Bluetooth range in enclosed environments or metal enclosures.
For standard desk-based prototyping or classroom use, the onboard PCB antenna found on most boards is completely sufficient.
For long range IoT deployments, enclosure installations, or projects with signal reliability concerns, an external antenna version can be a practical upgrade.
Which One Should You Choose?
If you're still unsure, the decision usually comes down to project size and wiring convenience.
Choose a 30 Pin ESP32 If
- You are just getting started with ESP32
- You are following beginner style tutorials
- You want easier breadboard wiring
- Your project uses a moderate number of sensors and modules
The 30 pin board covers the vast majority of hobbyist and IoT projects. For most WiFi dashboards, Bluetooth control apps, relay switching, and sensor monitoring builds, you will not run out of pins.
If you are new to the platform, starting with a 30 pin version and working through our ESP32 beginner tutorials is a practical way to build confidence before moving to more complex systems.
Choose a 38 Pin ESP32 If
- You need maximum GPIO access
- You are using multiple analog inputs
- You are building robotics or multi-module systems
- You want more flexibility for future expansion
The 38 pin board does not increase performance, but it reduces the chance of running out of accessible pins in larger builds.
Performance and Features – Are They Actually Different?
From a processing standpoint, there is no difference.
Both 30 pin and 38 pin development boards use the same ESP32 microcontroller with:
- Dual-core processor
- Integrated WiFi
- Integrated Bluetooth
- Hardware PWM
- ADC and DAC support
- Touch sensing capability
Clock speed, memory configuration, and wireless capability are determined by the ESP32 module itself, not by whether the board has 30 or 38 header pins.
The only real difference is how many of the chip’s available GPIOs are physically accessible.
Final Thoughts
If you want the safest recommendation for most users, the 38 pin ESP32 is easier to wire, more breadboard friendly and future proofs for larger systems. The 30 pin version is also great if you want a simpler and smaller ESP32 for low GPIO usage and size constraint projects
You can explore all available variants, including Micro USB, USB-C, and external antenna versions, inside our full ESP32 collection and choose the board that matches your project requirements.
Frequently Asked Questions – ESP32 30 Pin vs 38 Pin
Do 30 Pin and 38 Pin Boards Use Different ESP32 Chips?
No. In most cases, both versions use the same ESP32 module. The difference is the development board layout and how many GPIO pins are broken out to the headers.
The ESP32 chip itself supports up to 48 GPIOs internally, but development boards expose a practical subset. The 38 pin board simply exposes more of them.
Will Code Written for a 30 Pin Board Work on a 38 Pin Board?
Yes, as long as you are using the same GPIO numbers in your code.
GPIO numbering is defined by the ESP32 chip, not the board size. If your sketch uses GPIO21 for I2C SDA, it will work on both 30 pin and 38 pin versions provided that pin is physically available on the board.
Most Arduino IDE board settings are identical for both versions.
Are All 30 Pin Boards the Same?
No. While the pinout is generally consistent across 30 pin boards, there are hardware variations such as:
- Micro USB vs USB-C connectors
- Different USB to serial chips
- External antenna versions
- Slight PCB layout differences
However, for typical GPIO usage and beginner projects, the functional pin mapping remains largely the same.
Recommended Starting Point
If you are completely new to ESP32 development, start with a 30 pin USB-C or Micro USB version and work through structured tutorials.
Our ESP32 beginner tutorials cover GPIO basics, PWM, analog input, and WiFi projects. Once you understand real-world pin usage, you can confidently decide whether you need the additional GPIO access offered by the 38 pin board.
For more advanced wireless builds involving MQTT, dashboards, and multi-device communication, follow the ESP32 IoT Systems Pathway to plan your system architecture before selecting hardware.
Summary
- Both boards use the same ESP32 chip.
- Performance is identical.
- 38 pin boards expose more GPIOs.
- 30 pin boards are typically easier for breadboard prototyping.
- USB type and antenna configuration depend on the specific hardware variant.
For most beginners and intermediate builds, the 30 pin ESP32 is sufficient. For complex, expansion-heavy projects, the 38 pin ESP32 provides additional flexibility.
