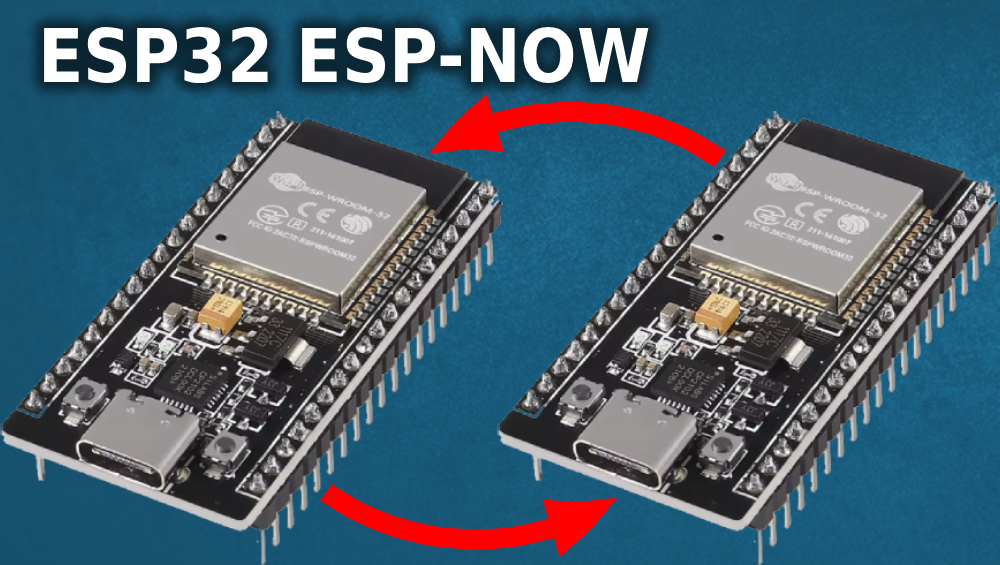

ESP32 ESP-NOW Tutorial (Arduino IDE) – Send Data Between Boards Without Wi-Fi

Getting Your ESP32 MAC Address

Every ESP32 board has a unique MAC address burned into its hardware at the factory. ESP-NOW uses this address to identify exactly which board to send data to, as there are no IP addresses, no hostnames, and no network configuration involved. Before writing any communication code, you need to know the MAC address of each board in your system.

Upload the following sketch to each ESP32 board individually and note the address printed in the Serial Monitor. If you need help opening and configuring the Serial Monitor, follow our Installing Libraries & Serial Monitor on ESP32 tutorial.

#include <WiFi.h>

void setup() {
  Serial.begin(115200);
  delay(1000);
  WiFi.mode(WIFI_STA);
  delay(100);
  Serial.print("MAC Address: ");
  Serial.println(WiFi.macAddress());
}

void loop() {
}

Open the Serial Monitor at 115200 baud. The MAC address will be printed in the format XX:XX:XX:XX:XX:XX, six pairs of hexadecimal characters separated by colons.

Hardware Required

At minimum you will need two ESP32 boards to follow this guide. Part 3 (one-to-many) requires a third board, but Parts 1 and 2 can be completed with two.

• 2× ESP32 development boards (3× for Part 3)
• LED
• 220Ω resistor
• Jumper wires
• Breadboard
• 2× USB cables (both boards must be connected to your computer simultaneously)

Installing the ESP-NOW Library

ESP-NOW is built directly into the ESP32 Arduino core, no additional library installation is required. As long as the ESP32 board package is installed in your Arduino IDE, the esp_now.h and WiFi.h headers are already available.

Every ESP-NOW sketch in this guide requires these two includes at the top:

#include <esp_now.h>
#include <WiFi.h>

Part 1 – One-Way Communication

The simplest ESP-NOW configuration has one board acting purely as a sender and one acting purely as a receiver. The sender transmits a struct containing data at regular intervals. The receiver unpacks that struct and prints the values to the Serial Monitor.

This is the foundation that Parts 2 and 3 build on. Get this working before moving forward.

Understanding the Struct Pattern

Rather than sending a plain text string, ESP-NOW projects should use a struct to package data. A struct lets you send multiple values of different types, an integer, a float, a boolean, in a single 250-byte transmission, without any manual string formatting or parsing on either end.

Both the sender and receiver must define an identical struct. The sender fills it with values and passes it to the send function as raw bytes. The receiver casts the incoming bytes back into the same struct and reads the named fields directly. If the structs do not match exactly, the received data will be garbage.

Throughout this guide we use the following struct as our example payload:

typedef struct {
  int   counter;
  float temperature;
  bool  ledState;
} MessageData;

MessageData myData;

This struct sends three values simultaneously: an incrementing counter, a temperature reading, and an LED state. You can replace these fields with whatever your project requires, as long as both boards use the same definition.

Sender Code

Upload this sketch to the board that will be sending data. Replace broadcastAddress with the MAC address of your receiver board.

#include <esp_now.h>
#include <WiFi.h>

/* ===== Receiver MAC Address ===== */
uint8_t broadcastAddress[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF}; // Replace the F characters with your receiver MAC

/* ===== Data Structure ===== */
typedef struct {
  int   counter;
  float temperature;
  bool  ledState;
} MessageData;

MessageData myData;

esp_now_peer_info_t peerInfo;

/* ===== Delivery Callback ===== */
void onDataSent(const uint8_t *mac_addr, esp_now_send_status_t status) {
  Serial.print("Delivery status: ");
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Success" : "Failed");
}

void setup() {
  Serial.begin(115200);
  WiFi.mode(WIFI_STA);

  // Initialise ESP-NOW
  if (esp_now_init() != ESP_OK) {
    Serial.println("ESP-NOW init failed");
    return;
  }

  // Register the delivery callback
  esp_now_register_send_cb(onDataSent);

  // Register the receiver as a peer
  memcpy(peerInfo.peer_addr, broadcastAddress, 6);
  peerInfo.channel = 0;
  peerInfo.encrypt = false;

  if (esp_now_add_peer(&peerInfo) != ESP_OK) {
    Serial.println("Failed to add peer");
    return;
  }
}

void loop() {
  // Populate the struct with values
  myData.counter++;
  myData.temperature = 24.6;
  myData.ledState = true;

  // Send the struct as raw bytes
  esp_now_send(broadcastAddress, (uint8_t *) &myData, sizeof(myData));

  Serial.print("Sent message #");
  Serial.println(myData.counter);

  delay(2000);
}

Receiver Code

Upload this sketch to the second board. No changes are needed as the receiver does not need to know the sender's MAC address to receive messages.

#include <esp_now.h>
#include <WiFi.h>

/* ===== Data Structure (must match sender exactly) ===== */
typedef struct {
  int   counter;
  float temperature;
  bool  ledState;
} MessageData;

MessageData receivedData;

/* ===== Receive Callback ===== */
void onDataReceived(const esp_now_recv_info *recv_info, const uint8_t *incomingData, int len) {
  memcpy(&receivedData, incomingData, sizeof(receivedData));

  Serial.println("--- Message Received ---");
  Serial.print("Counter:     "); Serial.println(receivedData.counter);
  Serial.print("Temperature: "); Serial.println(receivedData.temperature);
  Serial.print("LED State:   "); Serial.println(receivedData.ledState ? "ON" : "OFF");
}

void setup() {
  Serial.begin(115200);
  WiFi.mode(WIFI_STA);

  if (esp_now_init() != ESP_OK) {
    Serial.println("ESP-NOW init failed");
    return;
  }

  // Register the receive callback
  esp_now_register_recv_cb(onDataReceived);
}

void loop() {
  // Nothing needed here - onDataReceived fires automatically
}

Understanding the Code

The MAC address of the receiver is stored as an array of six bytes, matching the hardware format ESP-NOW expects.

uint8_t broadcastAddress[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};

Replace each 0xFF pair with the corresponding byte from your receiver's MAC address. For example, if the Serial Monitor printed A4:CF:12:8E:3B:70, the array becomes:

uint8_t broadcastAddress[] = {0xA4, 0xCF, 0x12, 0x8E, 0x3B, 0x70};

The onDataSent callback fires automatically after every transmission attempt. It does not need to be called manually, ESP-NOW calls it for you once the radio-level delivery result is known.

void onDataSent(const uint8_t *mac_addr, esp_now_send_status_t status) {
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Success" : "Failed");
}

Registering the peer tells ESP-NOW which device the sender is allowed to transmit to. The channel field is set to 0, which means the ESP32 will use the current channel automatically. Encryption is disabled for clarity, it can be enabled later if needed.

memcpy(peerInfo.peer_addr, broadcastAddress, 6);
peerInfo.channel = 0;
peerInfo.encrypt = false;
esp_now_add_peer(&peerInfo);

On the sender, data is transmitted by passing a pointer to the struct and its size. ESP-NOW reads the bytes starting at that memory address and sends exactly sizeof(myData) bytes.

esp_now_send(broadcastAddress, (uint8_t *) &myData, sizeof(myData));

On the receiver, the incoming bytes are copied back into the local struct using memcpy. Because both boards defined the same struct layout, the bytes map back to the correct fields automatically.

memcpy(&receivedData, incomingData, sizeof(receivedData));

The loop() function on the receiver is intentionally empty. The onDataReceived callback is triggered by an interrupt whenever a new packet arrives, there is nothing to poll.

Expected Output

With both boards running and their Serial Monitors open, you should see the following.

Sender Serial Monitor:

Receiver Serial Monitor:

A new message should appear on the receiver every two seconds, matching the delay(2000) in the sender's loop. The counter value on the receiver should increment with each message, confirming that every transmission is being delivered and received correctly.

Part 2 – Two-Way Communication

In Part 1, data only flowed in one direction. The sender transmitted and the receiver listened, but the receiver had no way to respond. Two-way communication changes this, both boards can initiate transmissions, and both boards can reply.

The key difference from Part 1 is that each board must now register the other as a peer. The sender already does this in Part 1, but the receiver does not, because it never needed to transmit. In Part 2, both boards run a combined sketch that handles sending and receiving simultaneously.

How Two-Way ESP-NOW Works

There is no concept of a "master" and "slave" in two-way ESP-NOW communication. Both boards are equal, either one can transmit at any time without waiting for permission. Each board registers the other as a peer during setup(), after which both the onDataSent and onDataReceived callbacks are active on each board simultaneously.

In this example, each board sends an outgoing struct every two seconds and immediately prints any incoming struct it receives. The two transmissions are independent, where Board A does not wait for a reply from Board B before sending its next message.

Two-Way Code (upload to both boards)

Before uploading, replace peerAddress with the MAC address of the other board. Board A gets Board B's address, and Board B gets Board A's address.

#include <esp_now.h>
#include <WiFi.h>

/* ===== MAC Address of the OTHER board ===== */
uint8_t peerAddress[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF}; // Replace with the other board's MAC

/* ===== Outgoing Data Structure ===== */
typedef struct {
  int   counter;
  float temperature;
  bool  ledState;
} MessageData;

MessageData outgoing;
MessageData incoming;

esp_now_peer_info_t peerInfo;

/* ===== Delivery Callback ===== */
void onDataSent(const uint8_t *mac_addr, esp_now_send_status_t status) {
  Serial.print("Delivery status: ");
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Success" : "Failed");
}

/* ===== Receive Callback ===== */
void onDataReceived(const esp_now_recv_info *recv_info, const uint8_t *incomingData, int len) {
  memcpy(&incoming, incomingData, sizeof(incoming));

  Serial.println("--- Incoming Message ---");
  Serial.print("Counter:     "); Serial.println(incoming.counter);
  Serial.print("Temperature: "); Serial.println(incoming.temperature);
  Serial.print("LED State:   "); Serial.println(incoming.ledState ? "ON" : "OFF");
}

void setup() {
  Serial.begin(115200);
  WiFi.mode(WIFI_STA);

  if (esp_now_init() != ESP_OK) {
    Serial.println("ESP-NOW init failed");
    return;
  }

  esp_now_register_send_cb(onDataSent);
  esp_now_register_recv_cb(onDataReceived);

  // Register the other board as a peer
  memcpy(peerInfo.peer_addr, peerAddress, 6);
  peerInfo.channel = 0;
  peerInfo.encrypt = false;

  if (esp_now_add_peer(&peerInfo) != ESP_OK) {
    Serial.println("Failed to add peer");
    return;
  }
}

void loop() {
  // Populate and send outgoing struct
  outgoing.counter++;
  outgoing.temperature = 24.6;
  outgoing.ledState = (outgoing.counter % 2 == 0);

  esp_now_send(peerAddress, (uint8_t *) &outgoing, sizeof(outgoing));

  Serial.print("Sent message #");
  Serial.println(outgoing.counter);

  delay(2000);
}

What Changed from Part 1

The struct definition is identical to Part 1. The meaningful differences are small but important.

Two separate struct instances are now declared, one for outgoing data and one for incoming data. This prevents a received message from overwriting values that are about to be sent.

MessageData outgoing;
MessageData incoming;

Both callbacks are now registered in setup(). In Part 1, the sender only registered onDataSent and the receiver only registered onDataReceived. Here, both are registered on each board because each board needs to do both.

esp_now_register_send_cb(onDataSent);
esp_now_register_recv_cb(onDataReceived);

The ledState field now toggles on each transmission using the modulo operator, so you can clearly see the value alternating between ON and OFF on the receiving side and confirm messages are arriving in sequence.

outgoing.ledState = (outgoing.counter % 2 == 0);

Expected Output

Both Serial Monitors should show a mix of outgoing confirmations and incoming message printouts, interleaved every two seconds. Because both boards transmit on the same interval, the outputs will appear roughly in sync, though the exact timing will drift slightly over time, which is normal.

Part 3 – One-to-Many (Broadcasting)

One-to-many communication allows a single sender to reach multiple receivers simultaneously. This is useful for systems where a central controller needs to push updates, including commands, settings, or sensor triggers, to several nodes at once without repeating the transmission for each one.

There are two ways to do this in ESP-NOW: register each receiver individually as a named peer, or use the broadcast MAC address FF:FF:FF:FF:FF:FF to reach all nearby ESP-NOW devices at once. Both approaches are covered below.

Option A – Register Each Receiver as a Named Peer

Registering each receiver individually gives you per-device delivery confirmation. You know exactly which boards received the message and which did not. This is the right approach when the receivers are known, fixed devices, for example, three sensor nodes in a permanent installation.

Each peer is registered separately in setup() using its own MAC address. The same struct is then sent to each peer in sequence inside loop().

#include <esp_now.h>
#include <WiFi.h>

/* ===== Receiver MAC Addresses ===== */
uint8_t receiver1[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF}; // Replace with Receiver 1 MAC
uint8_t receiver2[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF}; // Replace with Receiver 2 MAC
uint8_t receiver3[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF}; // Replace with Receiver 3 MAC

/* ===== Data Structure ===== */
typedef struct {
  int   counter;
  float temperature;
  bool  ledState;
} MessageData;

MessageData myData;

void registerPeer(uint8_t *mac) {
  esp_now_peer_info_t peerInfo = {};
  memcpy(peerInfo.peer_addr, mac, 6);
  peerInfo.channel = 0;
  peerInfo.encrypt = false;
  if (esp_now_add_peer(&peerInfo) != ESP_OK) {
    Serial.println("Failed to register peer");
  }
}

void onDataSent(const uint8_t *mac_addr, esp_now_send_status_t status) {
  Serial.print("Delivery to ");
  for (int i = 0; i < 6; i++) {
    Serial.printf("%02X", mac_addr[i]);
    if (i < 5) Serial.print(":");
  }
  Serial.print(" - ");
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Success" : "Failed");
}

void setup() {
  Serial.begin(115200);
  WiFi.mode(WIFI_STA);

  if (esp_now_init() != ESP_OK) {
    Serial.println("ESP-NOW init failed");
    return;
  }

  esp_now_register_send_cb(onDataSent);

  // Register all three receivers
  registerPeer(receiver1);
  registerPeer(receiver2);
  registerPeer(receiver3);
}

void loop() {
  myData.counter++;
  myData.temperature = 24.6;
  myData.ledState = true;

  // Send to each receiver individually
  esp_now_send(receiver1, (uint8_t *) &myData, sizeof(myData));
  esp_now_send(receiver2, (uint8_t *) &myData, sizeof(myData));
  esp_now_send(receiver3, (uint8_t *) &myData, sizeof(myData));

  Serial.print("Broadcast #");
  Serial.println(myData.counter);

  delay(2000);
}

The registerPeer() helper function is introduced here to avoid repeating the same peer registration block three times. Each call registers one receiver. The onDataSent callback now prints the MAC address of the specific peer it is reporting on, so you can see the delivery status for each receiver individually.

Option B – Broadcast MAC Address

Using the broadcast MAC address FF:FF:FF:FF:FF:FF sends the message to every ESP-NOW-capable device within radio range, without needing to know their individual MAC addresses in advance. This is useful during development, for discovery scenarios, or when the receiver pool changes dynamically.

The broadcast address is registered as a single peer. One esp_now_send() call then reaches all listening devices simultaneously.

#include <esp_now.h>
#include <WiFi.h>

/* ===== Broadcast MAC Address ===== */
uint8_t broadcastAddress[] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};

typedef struct {
  int   counter;
  float temperature;
  bool  ledState;
} MessageData;

MessageData myData;

void onDataSent(const uint8_t *mac_addr, esp_now_send_status_t status) {
  Serial.print("Broadcast status: ");
  Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Success" : "Failed");
}

void setup() {
  Serial.begin(115200);
  WiFi.mode(WIFI_STA);

  if (esp_now_init() != ESP_OK) {
    Serial.println("ESP-NOW init failed");
    return;
  }

  esp_now_register_send_cb(onDataSent);

  // Register the broadcast address as a peer
  esp_now_peer_info_t peerInfo = {};
  memcpy(peerInfo.peer_addr, broadcastAddress, 6);
  peerInfo.channel = 0;
  peerInfo.encrypt = false;
  esp_now_add_peer(&peerInfo);
}

void loop() {
  myData.counter++;
  myData.temperature = 24.6;
  myData.ledState = true;

  // Single send reaches all nearby ESP-NOW devices
  esp_now_send(broadcastAddress, (uint8_t *) &myData, sizeof(myData));

  Serial.print("Broadcast #");
  Serial.println(myData.counter);

  delay(2000);
}

Any board running the receiver code from Part 1 will receive this broadcast without any changes. The receiver does not need to know the sender's MAC address and does not need to register any peers, it simply listens for incoming ESP-NOW packets on its channel.

Named Peers vs Broadcast: Which to Use

Common Problems and Fixes

Most ESP-NOW issues come down to a small set of recurring mistakes. The problems below are drawn from the most common failure points, if your boards are not communicating, work through this list before looking elsewhere.

ESP-NOW Init Failed

If the Serial Monitor prints ESP-NOW init failed, the Wi-Fi radio was not initialised before esp_now_init() was called. ESP-NOW requires the radio to be active in Station mode first.

Check that this line appears in setup() before the esp_now_init() call:

WiFi.mode(WIFI_STA);

If WiFi.mode() is called after esp_now_init(), or is missing entirely, initialisation will fail.

Delivery Status Always Shows Failed

A consistent Failed result in the onDataSent callback almost always means the MAC address in the sender's peerAddress array does not match the receiver's actual MAC address.

Check the following:

• You ran the MAC address sketch on the receiver board specifically, not the sender
• Each byte pair is entered in the correct order
• There are no typos, 0x8E and 0x8F look similar in the Serial Monitor
• The receiver board is powered on and running its sketch

Delivery Shows Success but Receiver Prints Nothing

This is the most confusing failure mode because the sender reports everything working correctly. It means the transmission completed at the radio level, but the receiving board is not running a sketch that handles ESP-NOW packets, or it is running the wrong sketch entirely.

Check that:

• The receiver board has the correct sketch uploaded and is running, not just powered on from a previous upload
• esp_now_register_recv_cb(onDataReceived) is present in the receiver's setup()
• The receiver's Serial Monitor is open and set to 115200 baud
• In Part 2, you have not accidentally entered your own MAC address instead of the other board's

Received Data is Garbage or Incorrect Values

If the receiver is printing values that make no sense, a counter of 1,342,177,280 instead of 1, or a temperature of 0.00 when it should be 24.6, the struct definition on the receiver does not match the struct definition on the sender.

Both boards must define the struct with identical field names, types, and order. Even changing a single field type, for example, declaring counter as long on one board and int on the other, will shift all subsequent fields in memory and produce incorrect values.

// Sender defines this:
typedef struct {
  int   counter;     // 4 bytes
  float temperature; // 4 bytes
  bool  ledState;    // 1 byte
} MessageData;

// Receiver must define EXACTLY this - same types, same order
typedef struct {
  int   counter;
  float temperature;
  bool  ledState;
} MessageData;

Communication Stops After One Board Resets

If one board resets or loses power, the other board's peer registration remains intact and transmissions will resume automatically once the reset board is back online and running its sketch. No re-pairing is needed.

However, if you re-upload a sketch to a board while the other is transmitting, the board being uploaded will miss messages during the upload window. This is expected, once the upload completes and the sketch restarts, communication resumes normally.

Boards Cannot Communicate Across Different Wi-Fi Channels

ESP-NOW operates on a specific Wi-Fi channel. If one board is also connected to a Wi-Fi router, it locks to that router's channel. A board that is not connected to any router defaults to channel 1.

If you are mixing ESP-NOW with a Wi-Fi connection on one board, and that board cannot reach a board that is not on any network, a channel mismatch is the likely cause. Both boards must be on the same channel for ESP-NOW to work.

You can force a specific channel by adding the following line before esp_now_init():

esp_wifi_set_channel(1, WIFI_SECOND_CHAN_NONE);

Replace 1 with the channel number your router uses if you are combining ESP-NOW with a Wi-Fi connection. This is an advanced use case not covered in this guide, but the channel requirement is worth understanding now to avoid confusion later.

Failed to Add Peer

If Failed to add peer appears in the Serial Monitor, the most common causes are:

• The same MAC address has already been added as a peer, each MAC address can only be registered once
• The peer limit of 20 has been reached
• esp_now_init() was not called successfully before esp_now_add_peer()

In the one-to-many example, calling registerPeer() twice with the same MAC address will produce this error on the second call. Ensure each MAC address in your arrays is unique.

ESP-NOW vs MQTT: Choosing the Right Protocol

After working through this guide and the MQTT guide in this pathway, you now have two capable wireless communication tools available. The right choice depends entirely on what your project needs to do.

ESP-NOW is the better choice when your devices need to communicate directly with each other and there is no network infrastructure available, or when you specifically want to avoid depending on one. A remote sensor node sending readings to a central ESP32 in a shed with no router, a wireless button panel controlling lights without a home automation hub, or a fleet of battery-powered devices that need to conserve power by transmitting in short bursts and sleeping the rest of the time, these are all natural fits for ESP-NOW.

MQTT becomes the better choice the moment you need data to leave the local device cluster. If a dashboard, a phone notification, remote access from outside the home, or integration with a cloud service is part of the requirement, MQTT is the right tool. Its unlimited payload size also makes it the only viable option when you need to send more than 250 bytes per message.

Conclusion

In this guide you learned how ESP-NOW works at the protocol level, how to retrieve the MAC address of each board, and how to implement all three core communication architectures, one-way, two-way, and one-to-many broadcasting, with full working code.

You also learned how to use structs as the standard data format for ESP-NOW transmissions, how delivery callbacks work on both the sender and receiver side, and how to diagnose the most common problems that prevent boards from communicating.

ESP-NOW is one of the most practically useful features built into the ESP32. The ability to send data between boards instantly, without any network infrastructure, opens up a range of projects that would be significantly more complex using Wi-Fi alone.

ESP32 IoT Systems Pathway

• Step 0 (prerequisite): Installing & Configuring Arduino IDE for ESP32
• Step 1: Connecting to Wi-Fi & Hosting a Simple Web Page
• Step 2: Building a Real-Time Sensor Dashboard with a DHT11/DHT22
• Step 3: Implementing MQTT on ESP32 – Publish, Subscribe & Control Over Wi-Fi
• Step 4: ESP32 ESP-NOW Tutorial – Send Data Between Boards Without Wi-Fi
