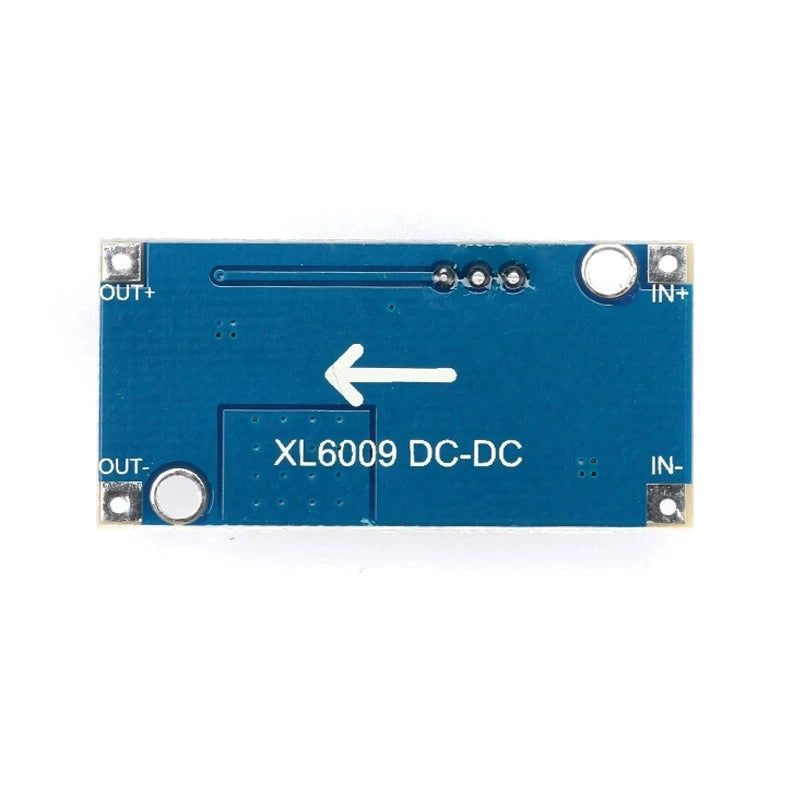

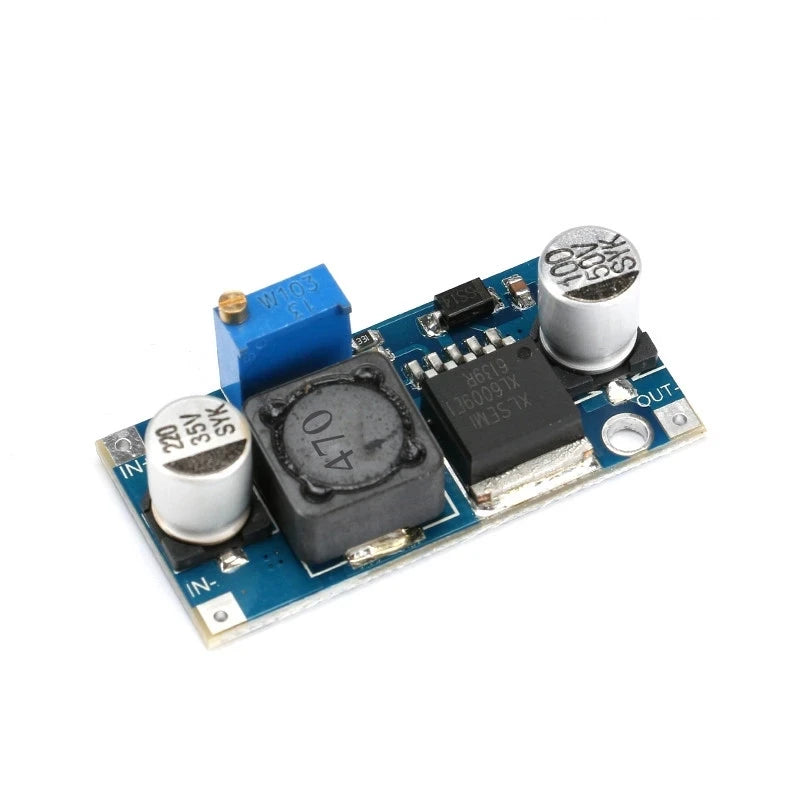

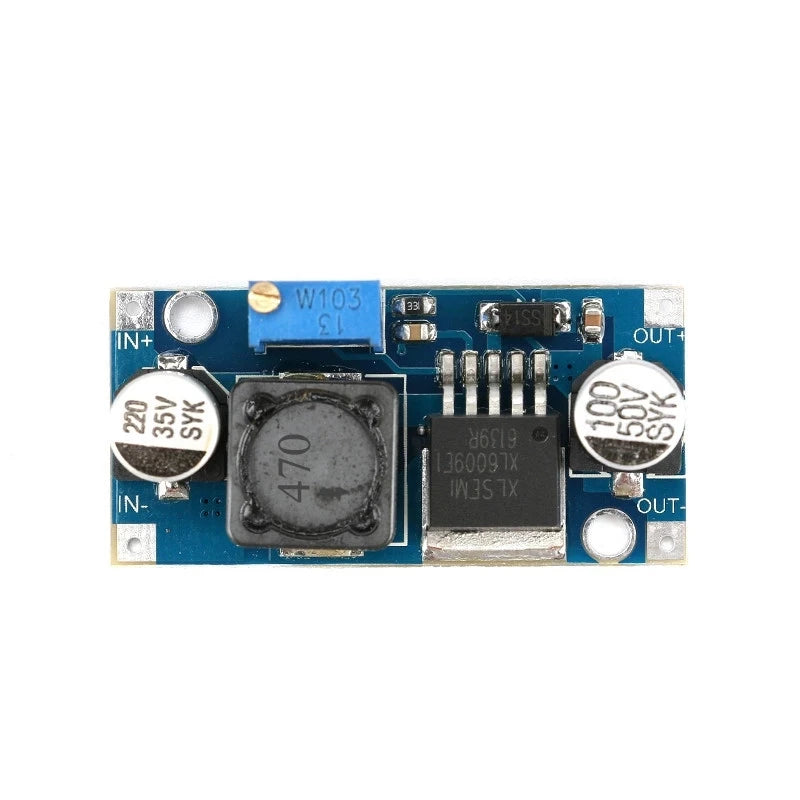

XL6009 Step-Up Voltage Converter
The XL6009 Step-Up Voltage Converter is a high-efficiency DC-DC boost module that increases lower input voltages to higher, stable output voltages. Perfect for hobbyists, makers, and professionals, this compact module delivers reliable performance for DIY electronics, microcontrollers, sensors, motors, and other high-demand applications.
Key Features:
- Non-Isolated Boost Converter: Efficiently steps up input voltage with a non-synchronous rectifier design.
- Wide Input Voltage Range: Operates from 4.3V to 32V, suitable for a variety of DC power sources.
- Adjustable Output Voltage: Supports outputs up to 35V (some units can reach ~40V) to meet flexible project requirements.
- High Output Current: Handles up to 4A, with 2–3A recommended for sustained operation.
- Compact Design: Small footprint makes it easy to integrate into projects.
- LED Version Available: For real-time voltage monitoring, check out the XL6009 + LED Step-Up Voltage Converter.
- Alternative Smaller Module: For a lower-power, compact option, see the MT3608 Step-Up Module.
- More Voltage Modules: Explore additional power conversion modules in our voltage converter collection.
Specifications:
- Model: XL6009 DC-DC Step-Up Module
- Input Voltage: 4.3V–32V
- Output Voltage: Up to 35V (some units ~40V)
- Maximum Output Current: 4A (2–3A recommended)
- Efficiency: Up to 94%, typical ~85%
- Switching Frequency: 400kHz
- Output Ripple: 50mV
- Regulation: ±0.5% load and voltage
- Operating Temperature: -40℃ to +85℃
- Dimensions: 6.98cm x 3.80cm
Applications:
- DIY electronics projects requiring boosted voltage
- Microcontroller power supply adjustments
- Sensor and motor projects needing precise voltage control
- Battery-powered devices requiring voltage boost
The XL6009 Step-Up Voltage Converter provides a compact, high-efficiency solution for boosting DC voltage in electronics projects. With options for LED monitoring or smaller alternative modules, it’s a versatile addition to any toolkit.
