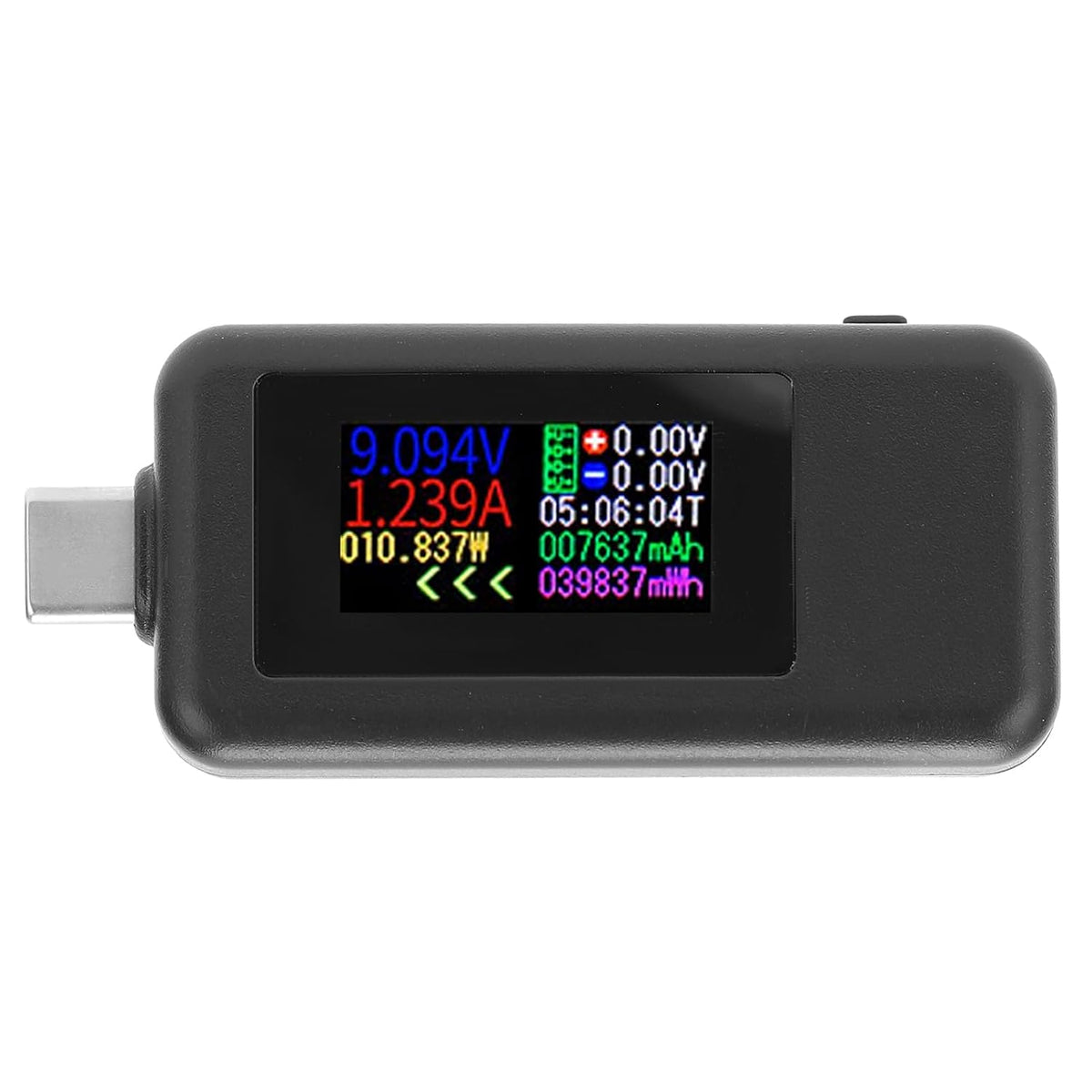

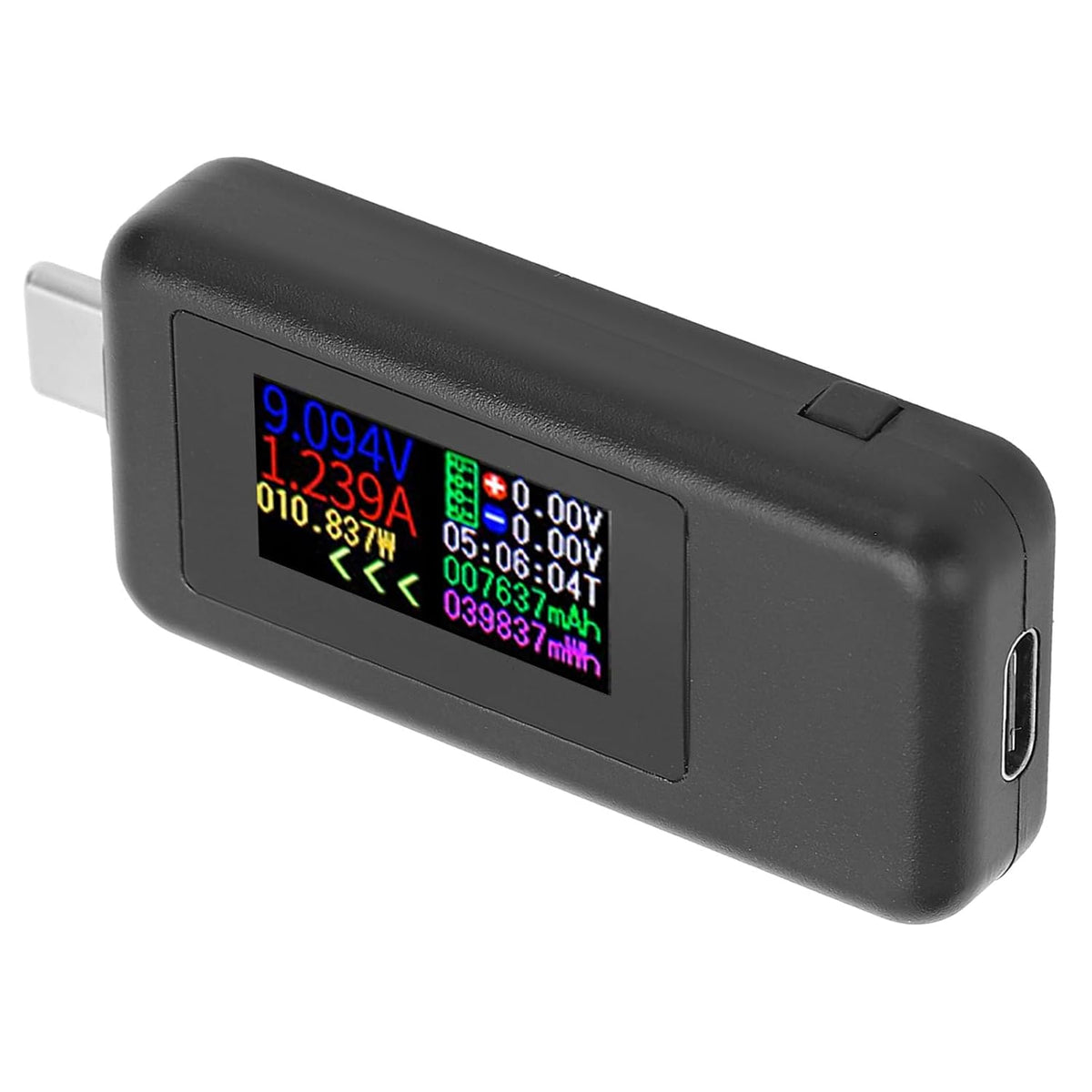

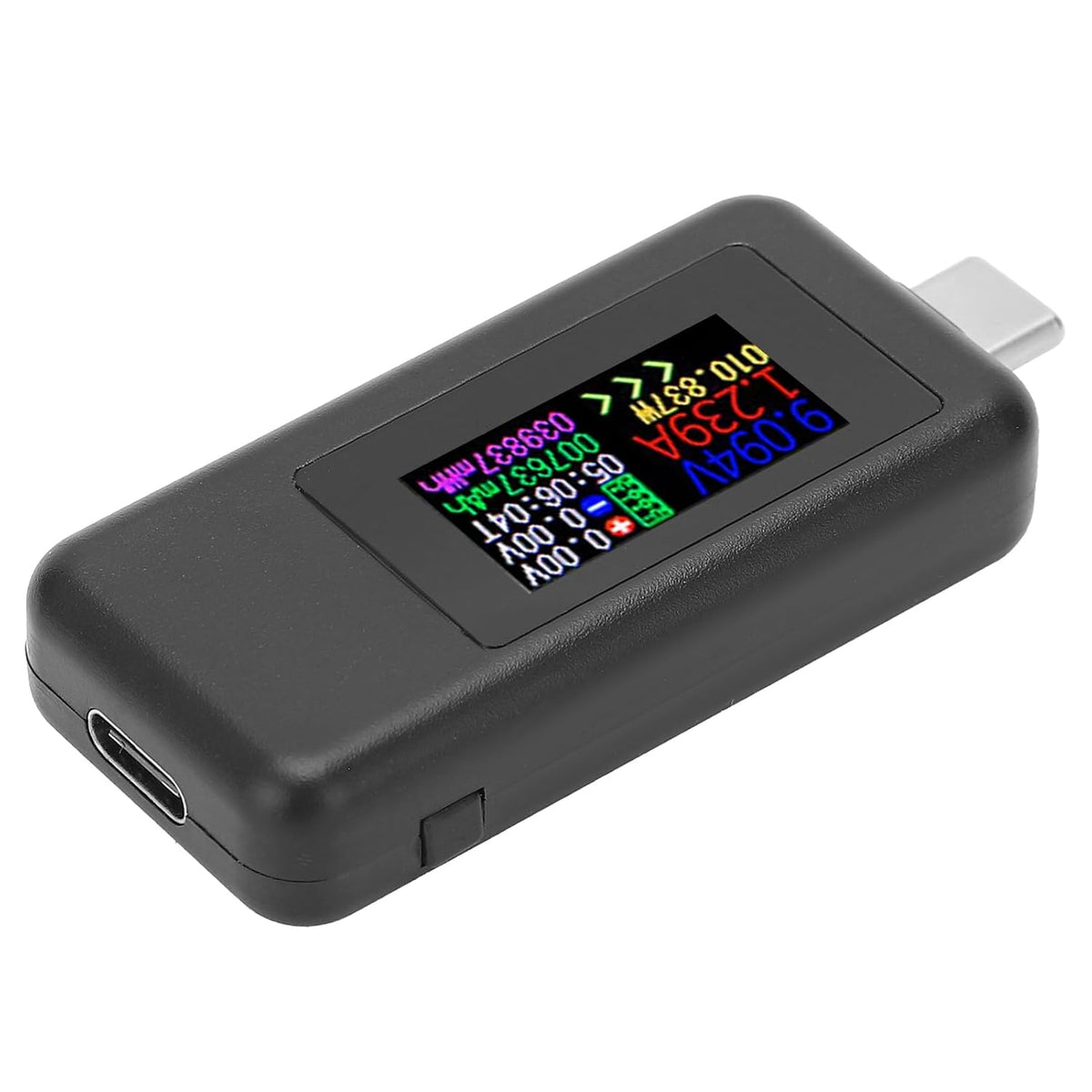

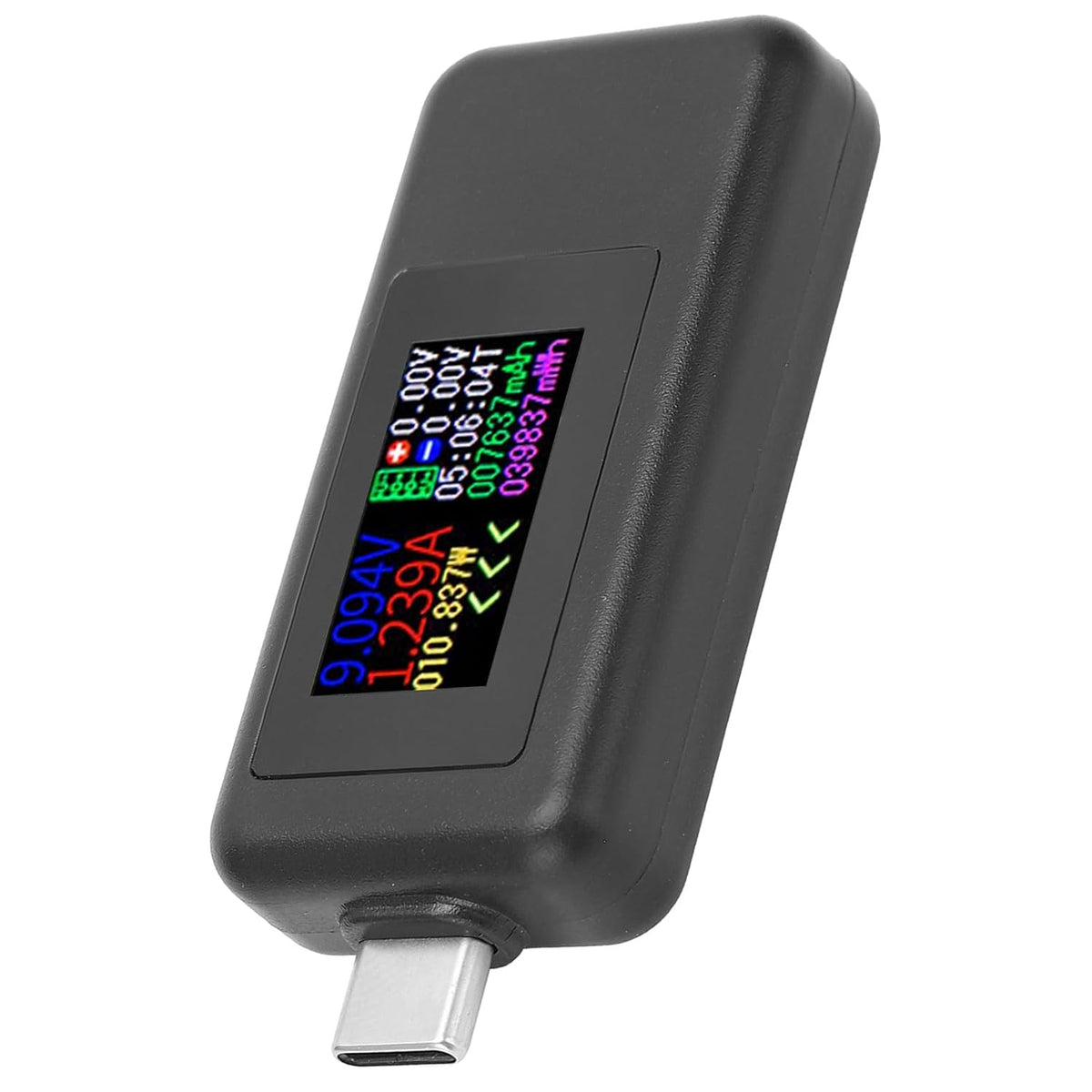

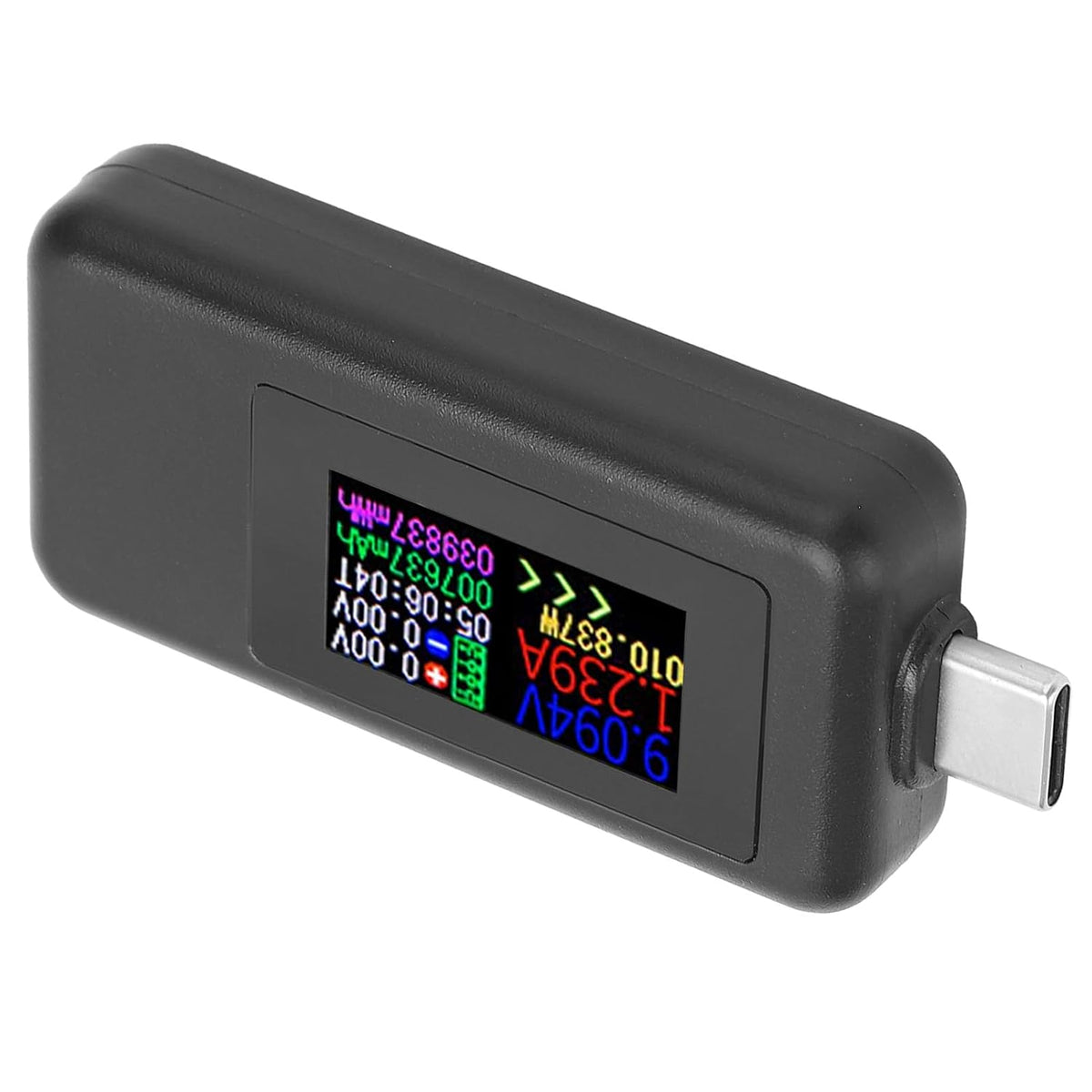

USB-C Power Meter Tester KWS-1902C – 4–30V 0–5A 150W Bidirectional with 0.96" Colour Display

The KWS-1902C USB-C Power Meter is a compact inline tester that shows exactly what is flowing through a USB-C connection. Plug it between a charger and a device to read voltage, current, power, capacity and energy in real time on its 0.96" colour display.

It handles 4 to 30V at up to 5A (150W) and measures in both directions, so it works with chargers, power banks, laptops, phones and USB-C powered projects. Use it to check whether a charger is delivering its rated output, compare cables, measure battery capacity, or troubleshoot a device that charges slowly. An animated arrow shows the direction of current, changing colour and speed as the current rises.

Features

• Measures voltage, current, power, capacity (mAh), energy (mWh), load resistance and charge time
• Wide 4 to 30V voltage range and 0 to 5A current range, up to 150W
• High resolution readings: 0.002V and 0.002A
• Bidirectional testing, so it can be used either way round
• 0.96" colour display with rotatable screen orientation
• Animated current direction arrow that changes from green to yellow to orange to red as current increases
• Shows terminal voltages for checking fast charge signalling
• Compatible with QC2.0 and QC3.0 fast charging
• Built-in timer records charge time up to 99 hours
• Single button control and user calibration
• Compact 55 × 26.5 × 11.5mm size, weighing only 15g

Applications

• Testing USB-C chargers and power adapters
• Checking USB-C cable quality and voltage drop
• Measuring power bank and battery capacity
• Monitoring phone, tablet and laptop charging
• Measuring power draw of USB-C powered projects and dev boards

Specifications

How to Use

1. Change display page: press the button once.
2. Rotate the screen: double press the button.
3. Clear saved data: hold the button for 3 seconds.
4. Current direction indicator: the arrow shows which way current is flowing. Its colour changes from green to yellow to orange to red and it scrolls faster as current increases. No arrow is shown when there is no current.
5. Calibration: connect a precise 5.000V source, then hold the button while powering on. Release the button when "Factory setting" appears and the meter will calibrate automatically. Do not connect any load during calibration.

What's Included

• 1 × USB-C power meter tester
• 1 × User manual
