Wio-SX1262 LoRa Module for Seeed Studio XIAO - 862-930MHz
Wio-SX1262 LoRa Module for Seeed Studio XIAO - 862-930MHz has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
Wio-SX1262 LoRa Module for Seeed Studio XIAO - 862-930MHz

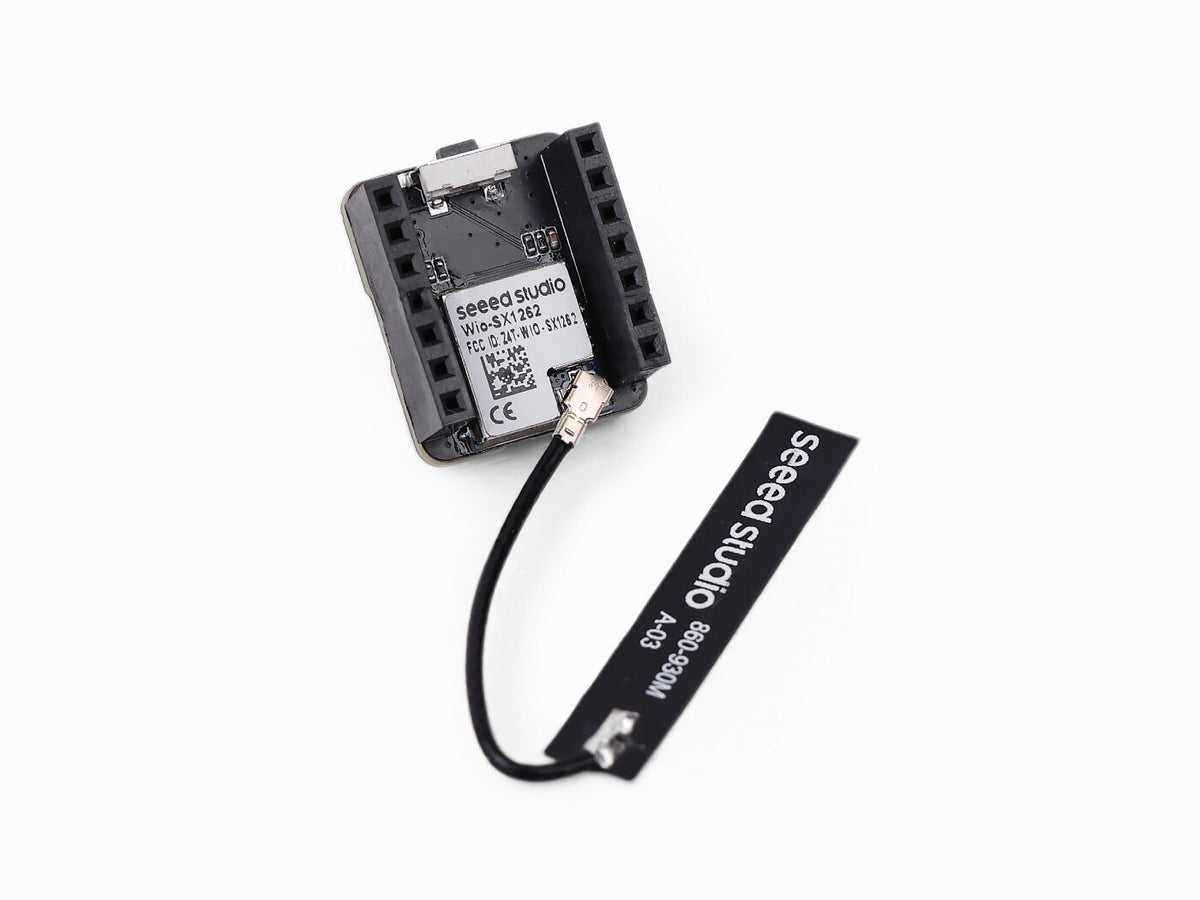

The Seeed Studio Wio-SX1262 for XIAO adds long-range, low-power LoRa communication to your XIAO board. Built around the Semtech SX1262 transceiver, it covers 862-930MHz, which includes both the 868MHz and 915MHz bands (AU915 in Australia). It stacks directly onto a XIAO through standard pin headers, so you can go from a bare board to a working LoRa node without any wiring.
Pair it with a compatible Seeed Studio XIAO board to build sensor nodes, remote monitors and LoRa experiments in a package barely bigger than the XIAO itself.
Features
- Plug-and-play with XIAO: Standard XIAO pin headers, so it stacks straight onto the board.
- Long-range LoRa: Semtech SX1262 transceiver with up to 22dBm output power across 862-930MHz.
- Very low power: 1.62µA sleep current, suited to battery and solar-powered nodes.
- Compact: Stacks with the XIAO for a total height of 21mm, ideal for space-limited builds.
- Onboard user button: Handy for wake-up, pairing or test triggers.
- Documentation and examples: Seeed provides development documentation, example code and tutorials to get you started quickly.
Specifications
| LoRa Chip | Semtech SX1262 |
| Frequency | 862-930MHz |
| Max Output Power | 22dBm @ 862-930MHz |
| Sleep Current | 1.62µA |
| Interface | Standard XIAO pin headers (SPI to XIAO), 1x user button |
| Dimensions | Stacks with XIAO, total height 21mm |

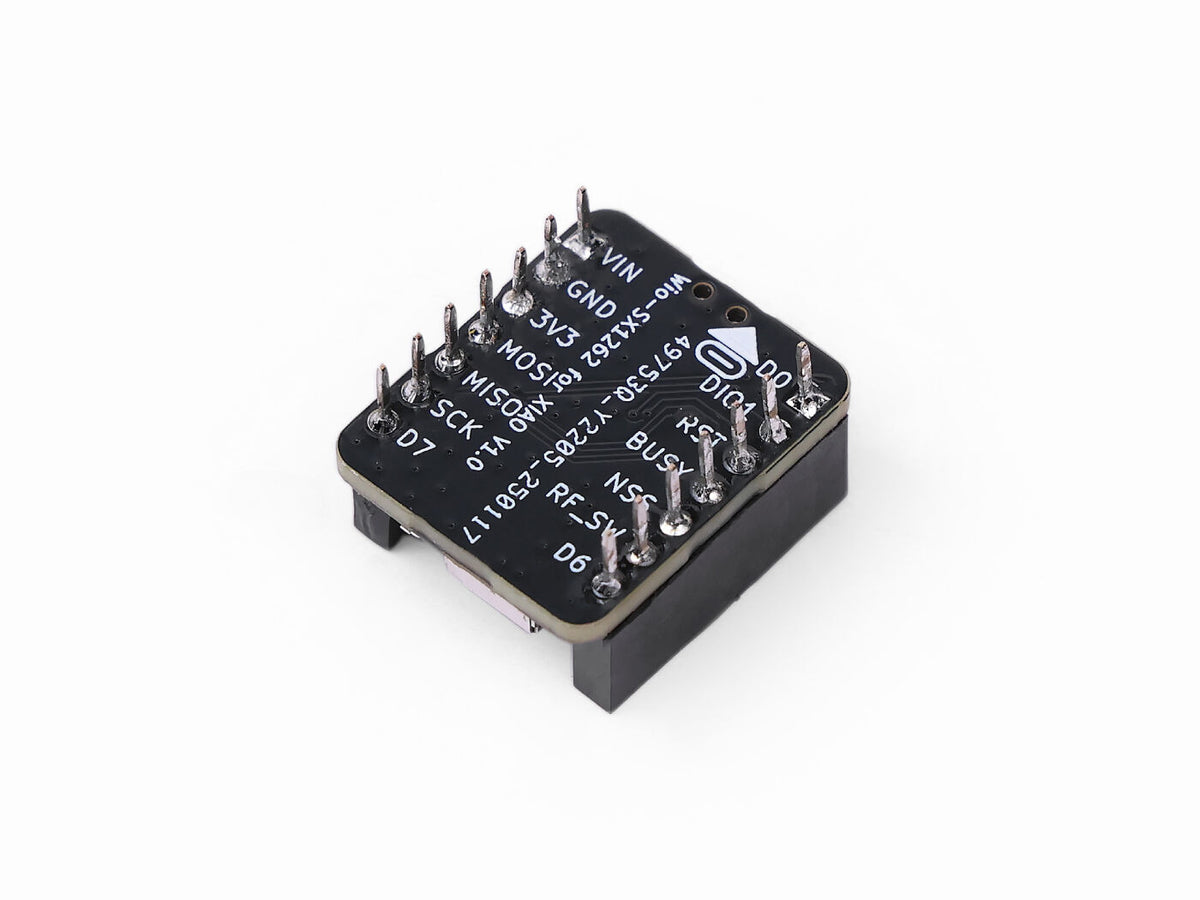

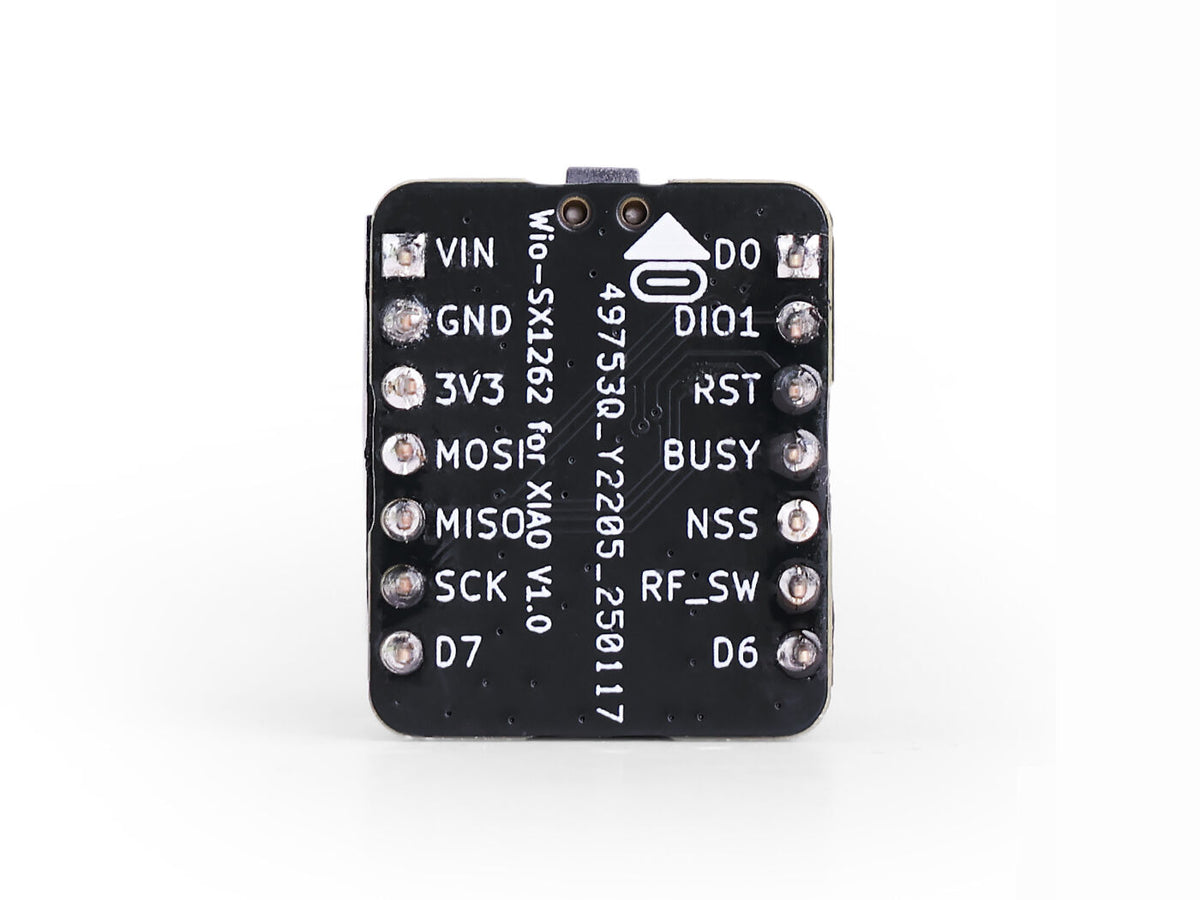

Pinout

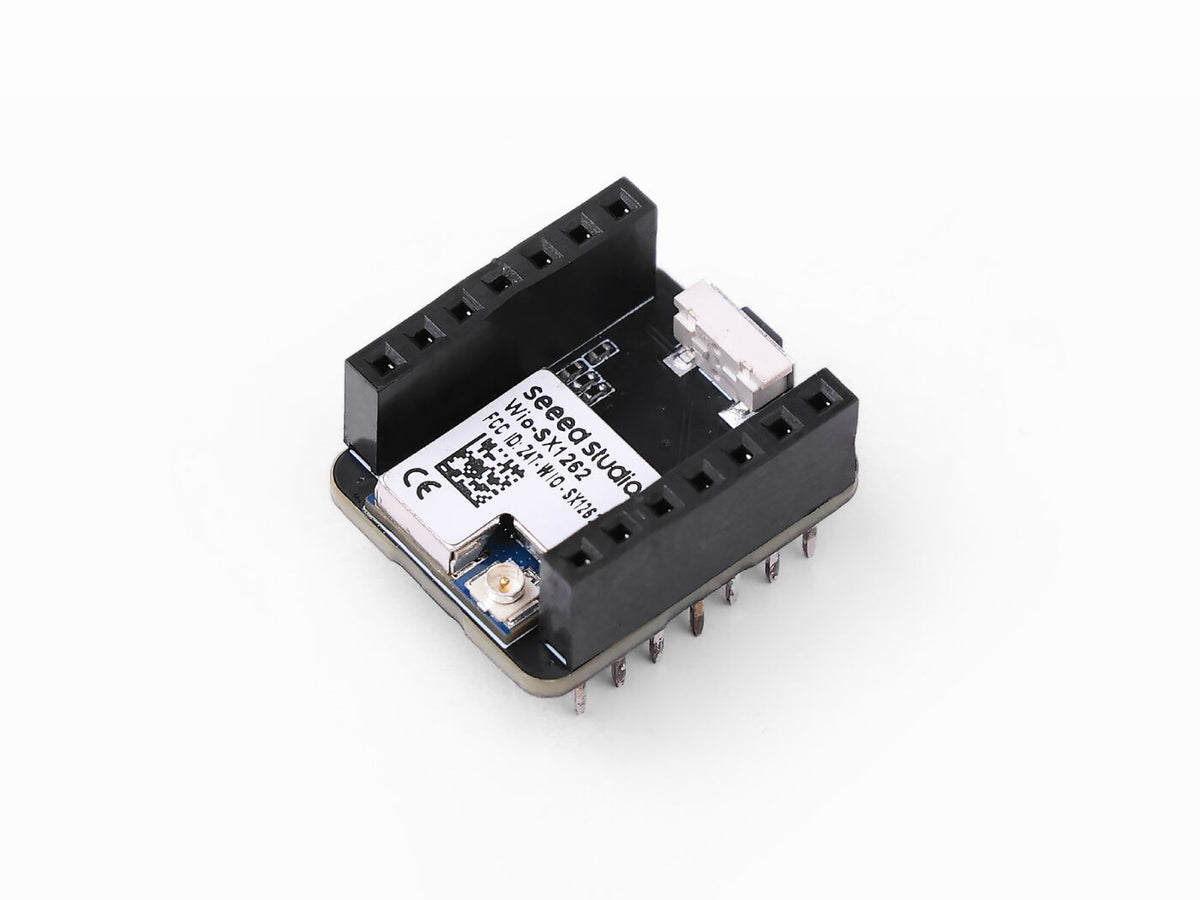

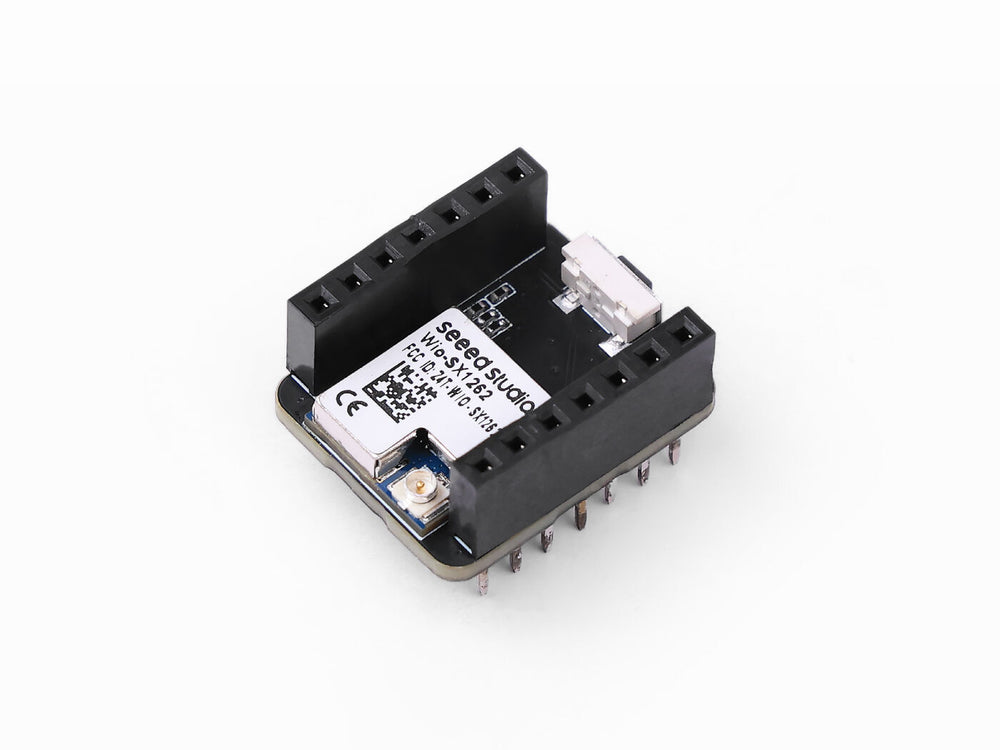

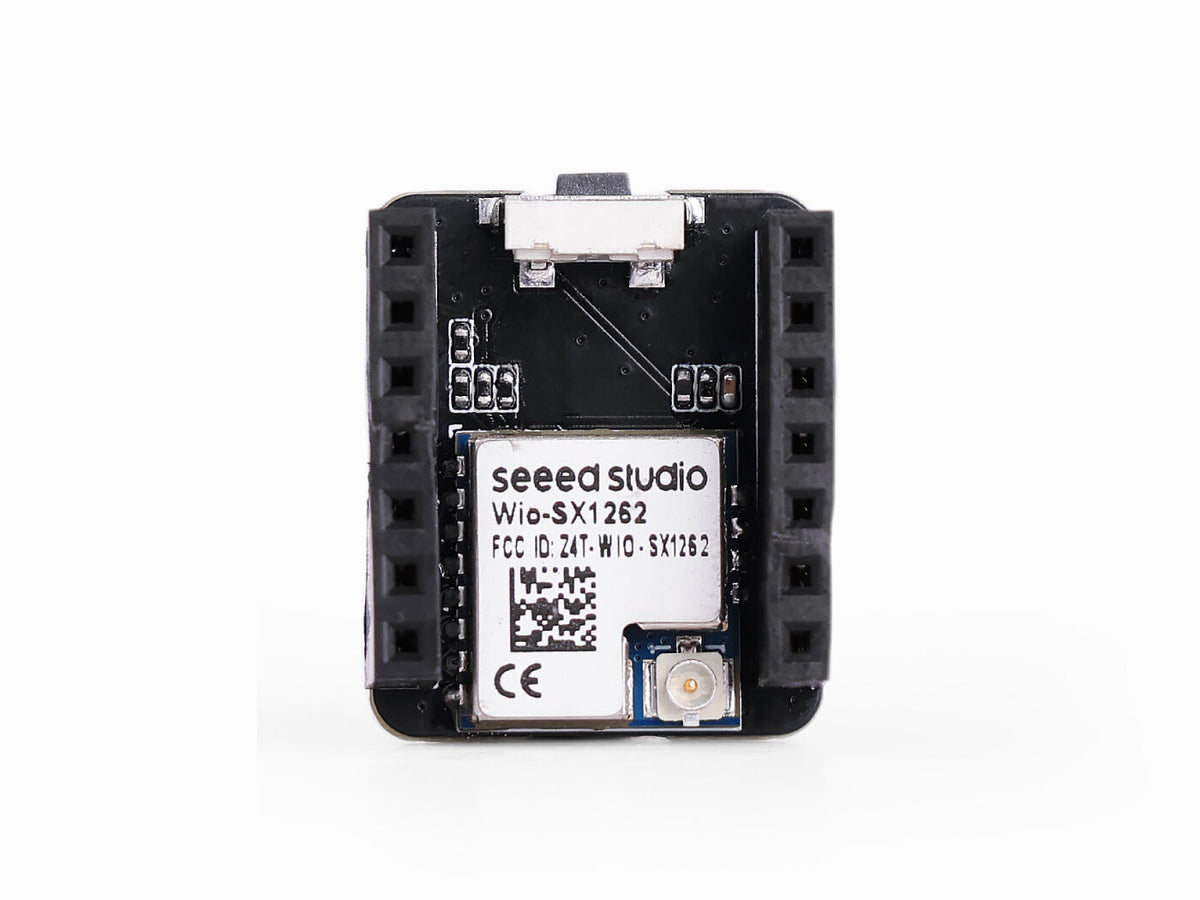

Hardware Overview
Applications
- Smart agriculture: Remote soil moisture and temperature monitoring.
- Industrial IoT: Collect data from and control remote equipment.
- Environmental monitoring: Low-power nodes for river levels and weather tracking.
- Education and open-source: Learn and experiment with LoRa in student and maker projects.
