USB Type-B Breakout Board 4 Pin

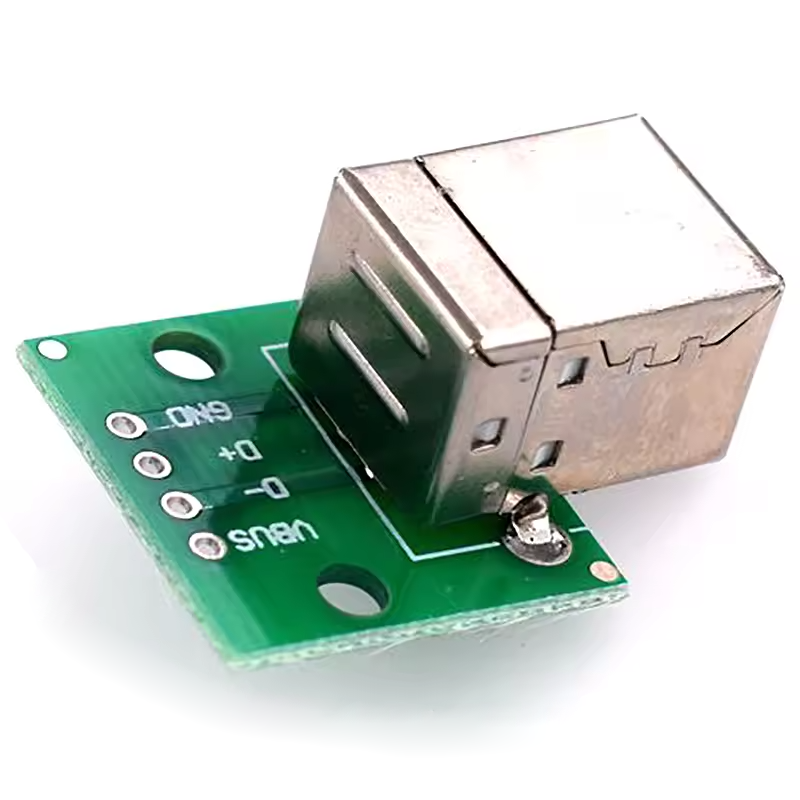

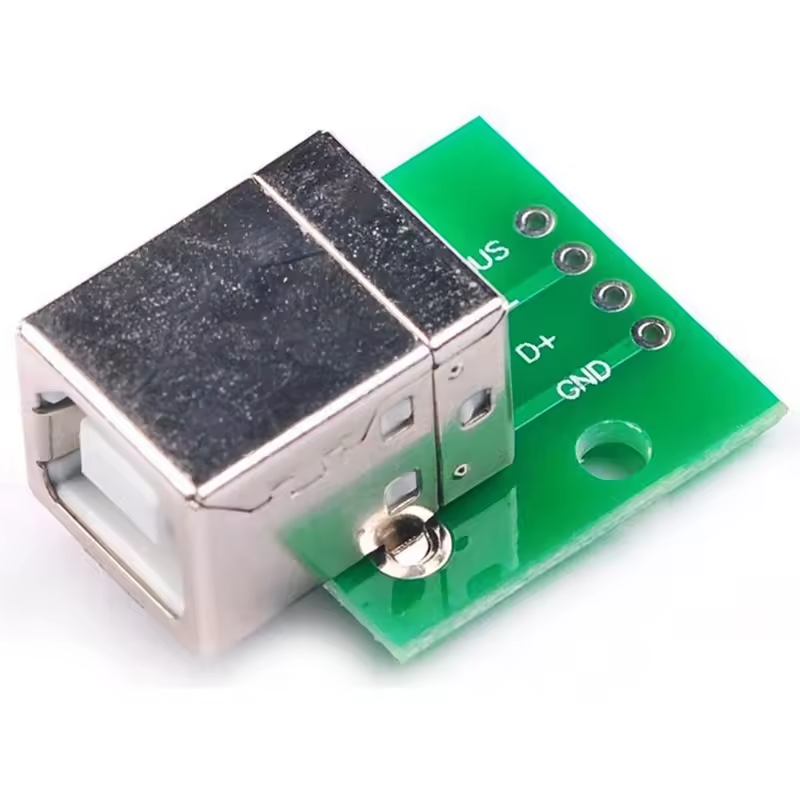

This USB Type-B Breakout Board provides a simple way to integrate a standard USB Type-B connector into your electronics projects. The four essential USB connections are broken out to clearly labelled pads, making wiring straightforward for prototyping, repairs, and custom builds.

Ideal for Arduino-style projects, USB device development, and embedded systems that require a reliable panel-mountable USB connection.

Features

• USB Type-B female connector
• 4-pin breakout
• Clearly labelled pads
  • GND
  • D+
  • D-
  • VBUS (5V)
• Two mounting holes for secure installation
• Through-hole pads for easy soldering

Applications

• Microcontroller USB device projects
• Custom USB peripherals
• Replacement or repair work
• Embedded system integration
• Test fixtures and development setups

Specifications

• Connector type: USB Type-B Female
• Pins broken out: GND, D+, D-, VBUS
• Board dimensions: 20mm x 20mm
• Mounting hole inside diameter: 3.00mm (0.119")

A practical solution for adding a sturdy USB Type-B connection to your project with clean, accessible solder points.
