Seeed Studio XIAO RA4M1

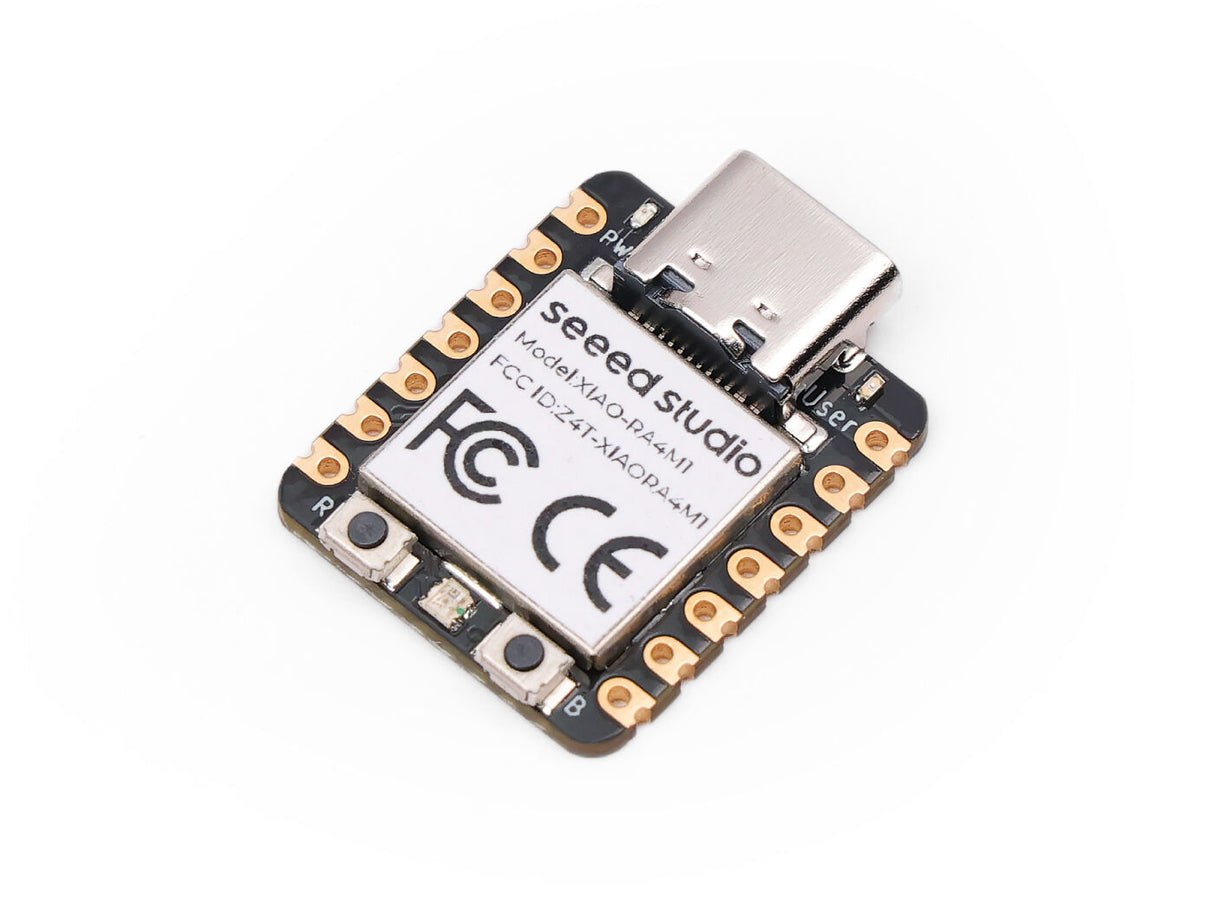

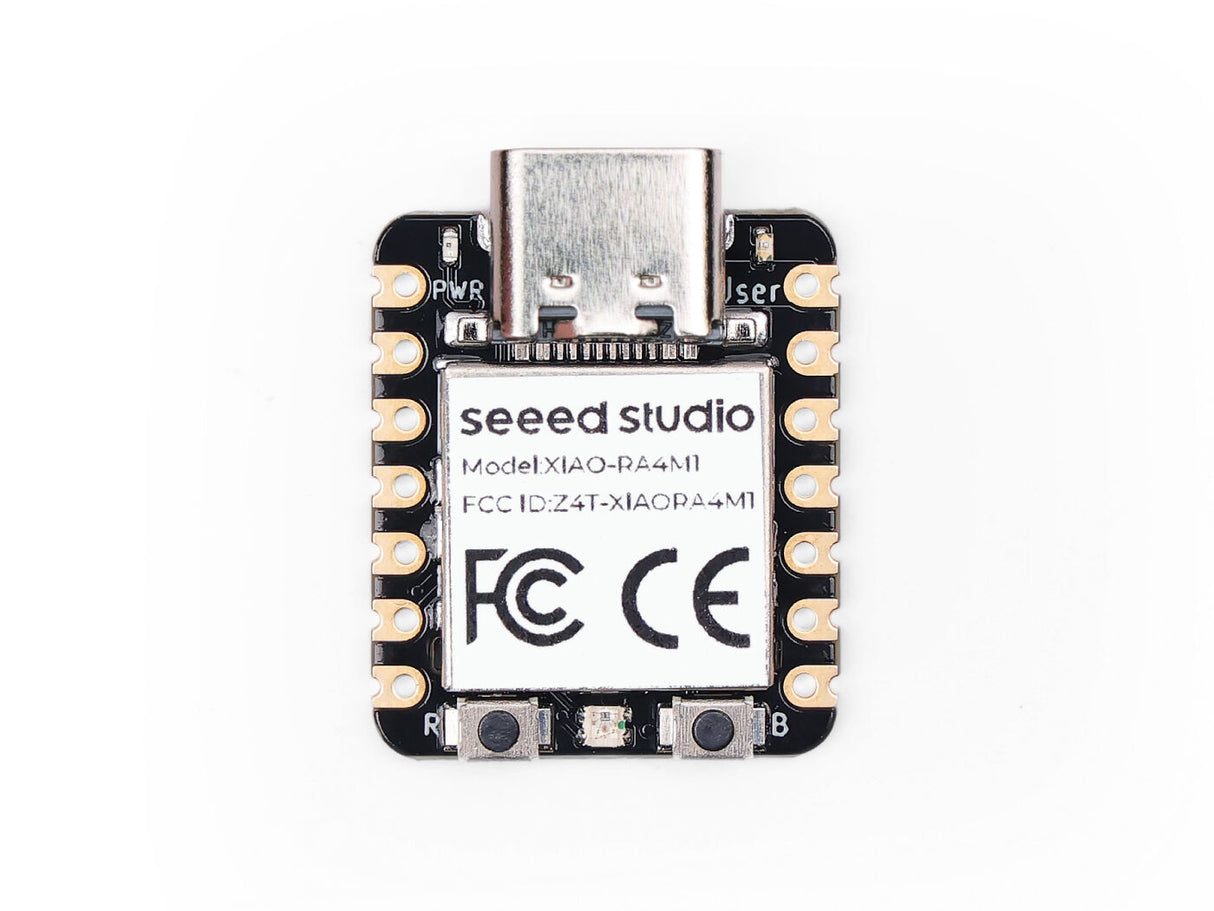

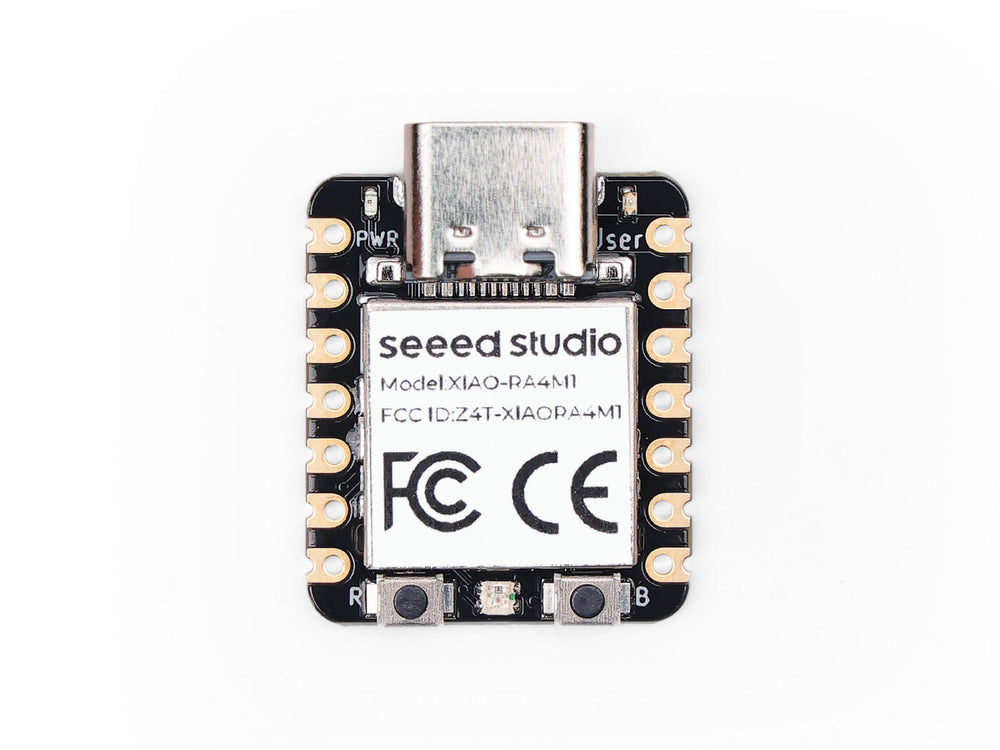

Seeed Studio XIAO RA4M1 integrates Renesas' RA4M1 chip, a 32-bit ARM Cortex-M4 MCU running at up to 48 MHz with FPU, into the classic 21 x 17.8mm XIAO form factor. It offers 256KB flash, 32KB SRAM, 8KB EEPROM, a USB 2.0 connector, a 14-bit ADC, a 12-bit DAC, and a CAN bus interface, and shares the same 32-bit microcontroller as the Arduino Uno R4, making it natively compatible with the Arduino IDE.
Expanded I/O for More Complex Projects

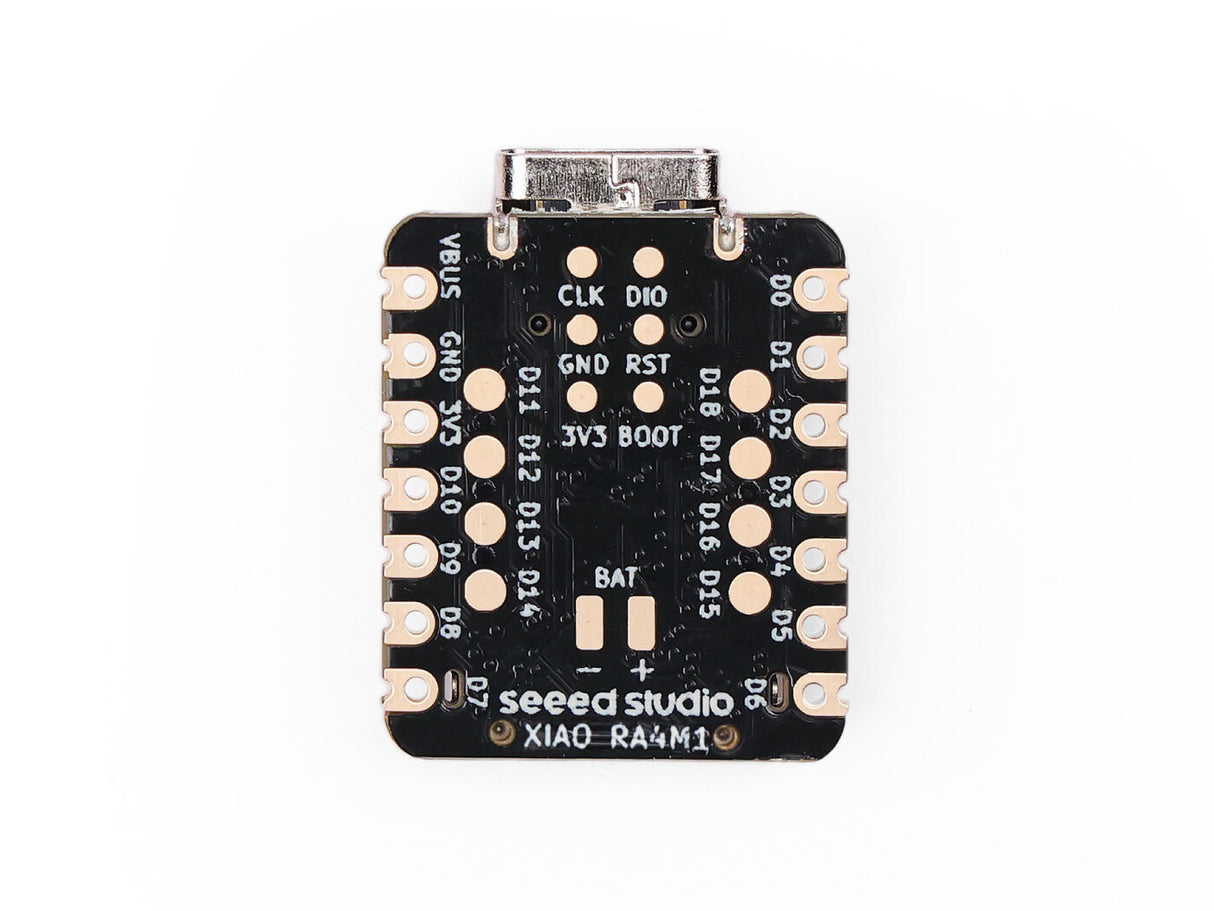

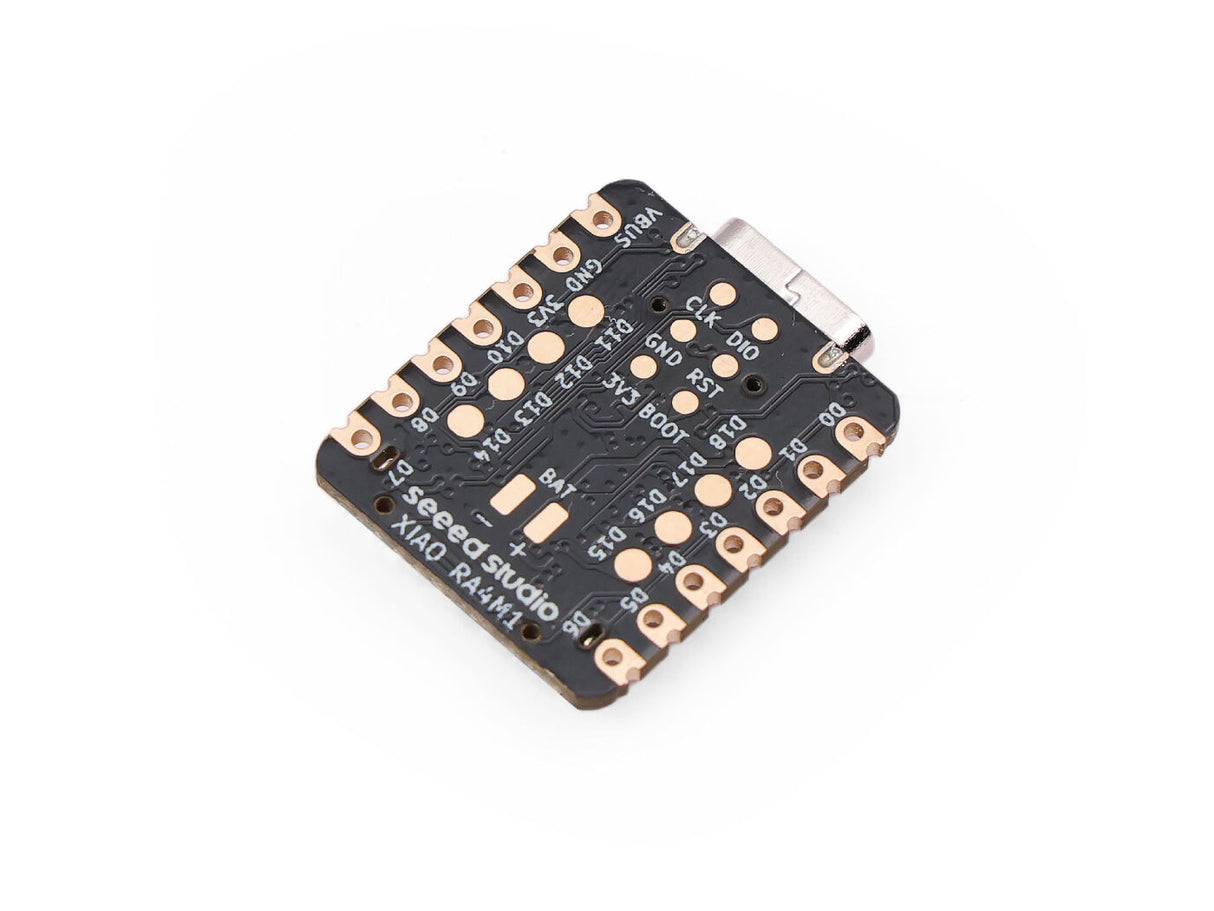

The board adds 8 new IO pins on the back compared to earlier XIAO boards, bringing the total to 19 GPIOs. That extra I/O headroom makes it a better fit for more complex applications that would otherwise outgrow a standard XIAO board.
Onboard Resources and Security
Alongside the 14-bit ADC and 12-bit DAC, the board includes USB 2.0 and an onboard RGB LED. Built-in hardware encryption, secure boot, and key storage add a level of application security for projects that need it, backed by AES128/256.
Efficient Power Design
Four operating modes are available, with deep sleep consumption as low as 45μA, along with onboard charging circuitry and support for lithium battery charge management, making it a solid option for battery-powered applications.
Compact and Production-Friendly
At 21 x 17.8mm, it keeps the classic thumb-sized XIAO form factor. Its SMD design places all components on the front with stamp holes on both sides, suited to efficient mass production as well as bench prototyping.
What's Included

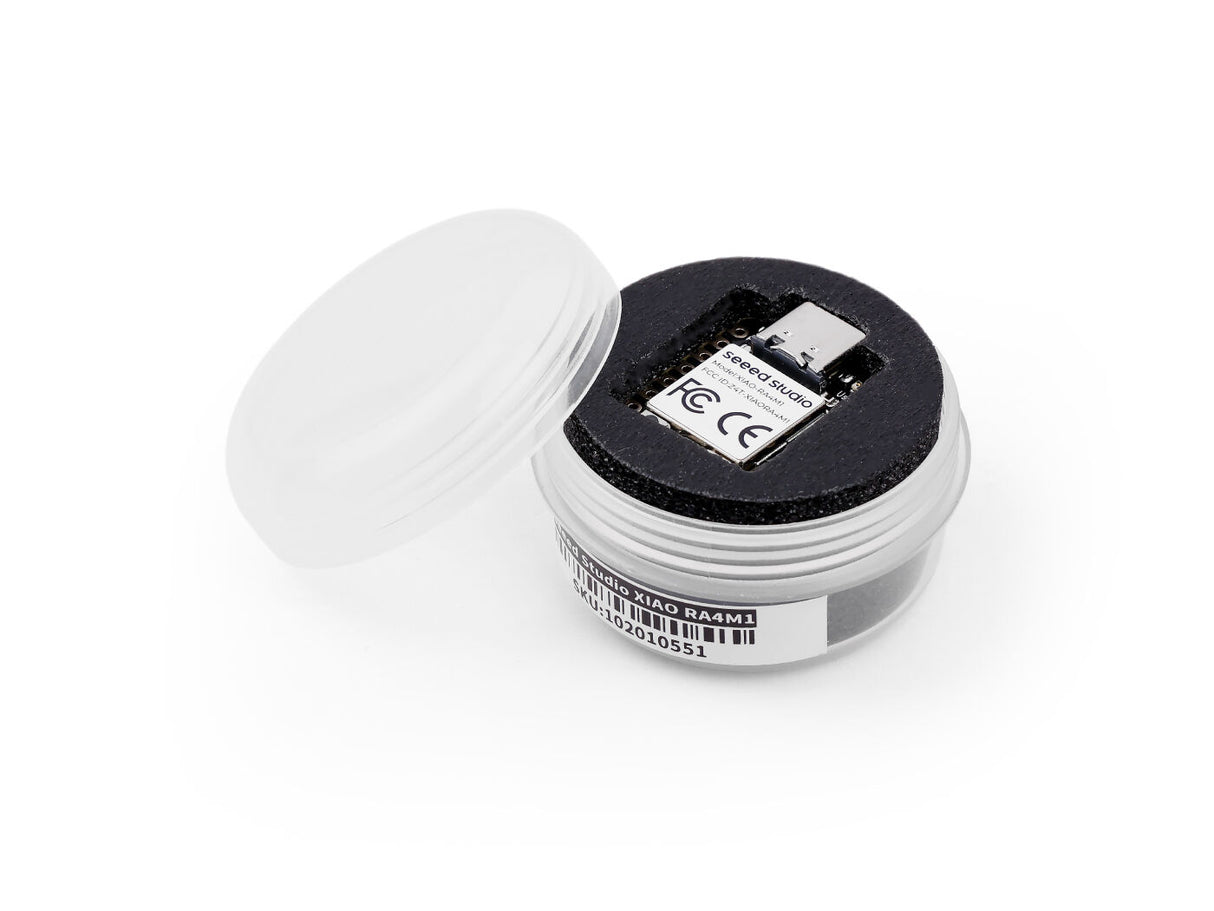

- XIAO RA4M1 board
- 2x 7-pin headers
Specifications
| Processor | Renesas RA4M1, 48MHz ARM Cortex-M4 with FPU |
| RAM | 32KB SRAM |
| Flash | 256KB |
| LEDs | User LED, Power LED, RGB LED |
| Interfaces | 19 IOs total, 6x analog, 19x digital, 2x I2C, 2x UART, 2x SPI |
| Buttons | Reset Button, Boot Button |
| Security | AES128/256 |
| Low Power (Typ.) | 42.6μA@3.7V |
| Software Compatibility | Arduino IDE |
| Working Temperature | -20°C to 70°C |

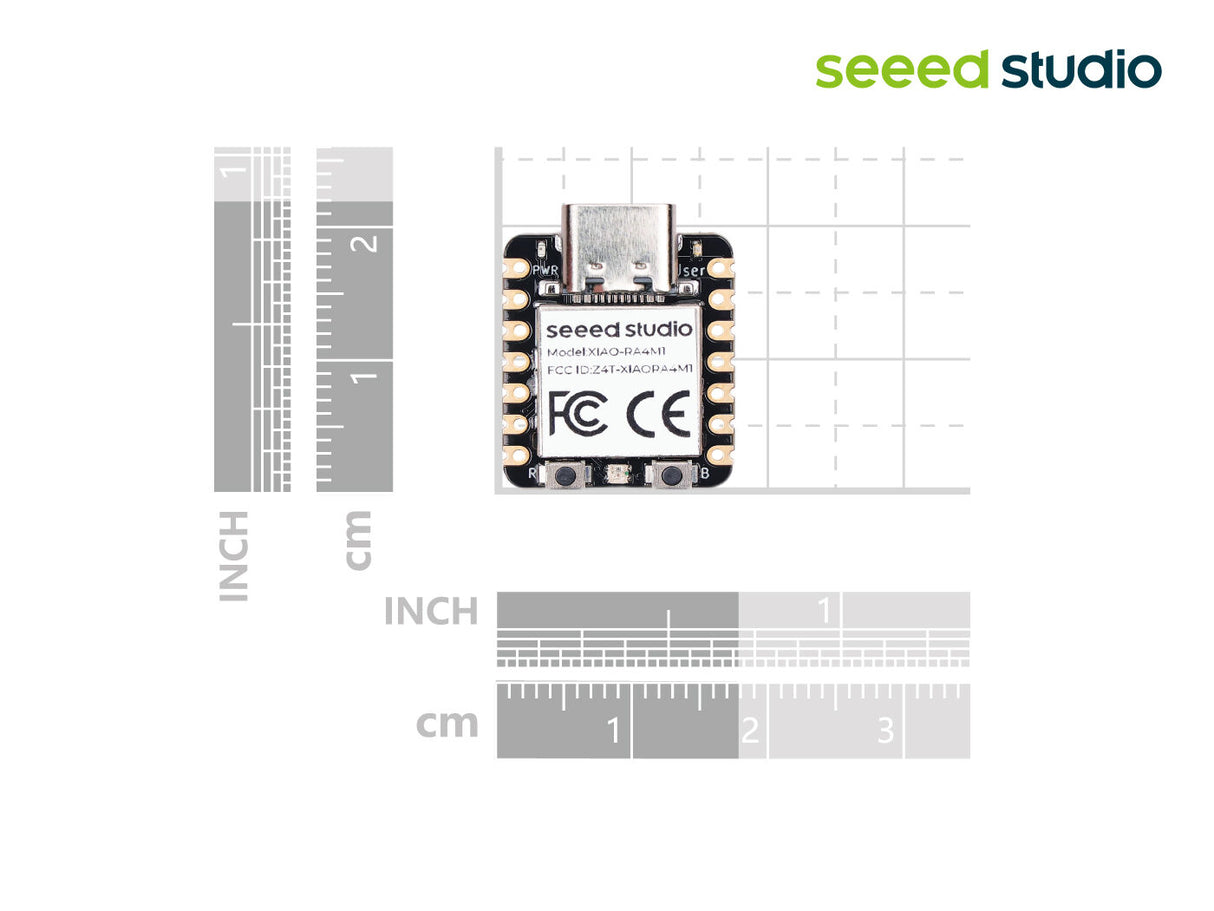

| Dimensions | 21 x 17.8mm |
Pinout
Resources
- Seeed Studio Wiki, full setup guides, pinout diagrams, and project examples
- Renesas RA4M1 Datasheet
- Browse our full range of XIAO Expansion & Breakout Boards
Prefer plug-and-play? Grab the pre-soldered XIAO RA4M1 instead.
