Seeed Studio XIAO ESP32-C6
Seeed Studio XIAO ESP32-C6 is a cost-effective microcontroller board based on Espressif's ESP32-C6, built for Matter-compliant smart home applications with support for 2.4GHz Wi-Fi 6, Bluetooth Low Energy 5.0, Zigbee, and Thread. It keeps the thumb-sized, single-sided mount footprint of the XIAO series, making it a good fit for space-limited projects that need broad wireless protocol support.
Multi-Protocol Wireless for Smart Home Projects
The board combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5 (LE), and an IEEE 802.15.4 radio, giving you access to Thread and Zigbee alongside standard Wi-Fi and BLE. That native Matter support makes it well suited to building interoperable smart home devices, with an onboard antenna offering up to 80m of BLE/Wi-Fi range and a reserved interface for an external U.FL antenna if you need more.
On-Chip Security
Built around the ESP32-C6, the board includes secure boot, encryption, and a Trusted Execution Environment (TEE) on-chip, adding a level of built-in security for smart home and IoT projects without extra components. It also integrates easily with major IoT cloud platforms, including ESP RainMaker, AWS IoT, Microsoft Azure, and Google Cloud.
Dual RISC-V Processors and Low Power Design
Two 32-bit RISC-V processors are onboard, a high-performance core running up to 160 MHz and a low-power core clocking up to 20 MHz. Power management offers four working modes, with deep sleep consumption as low as 15 μA, plus support for lithium battery charge management.
Classic XIAO Form Factor

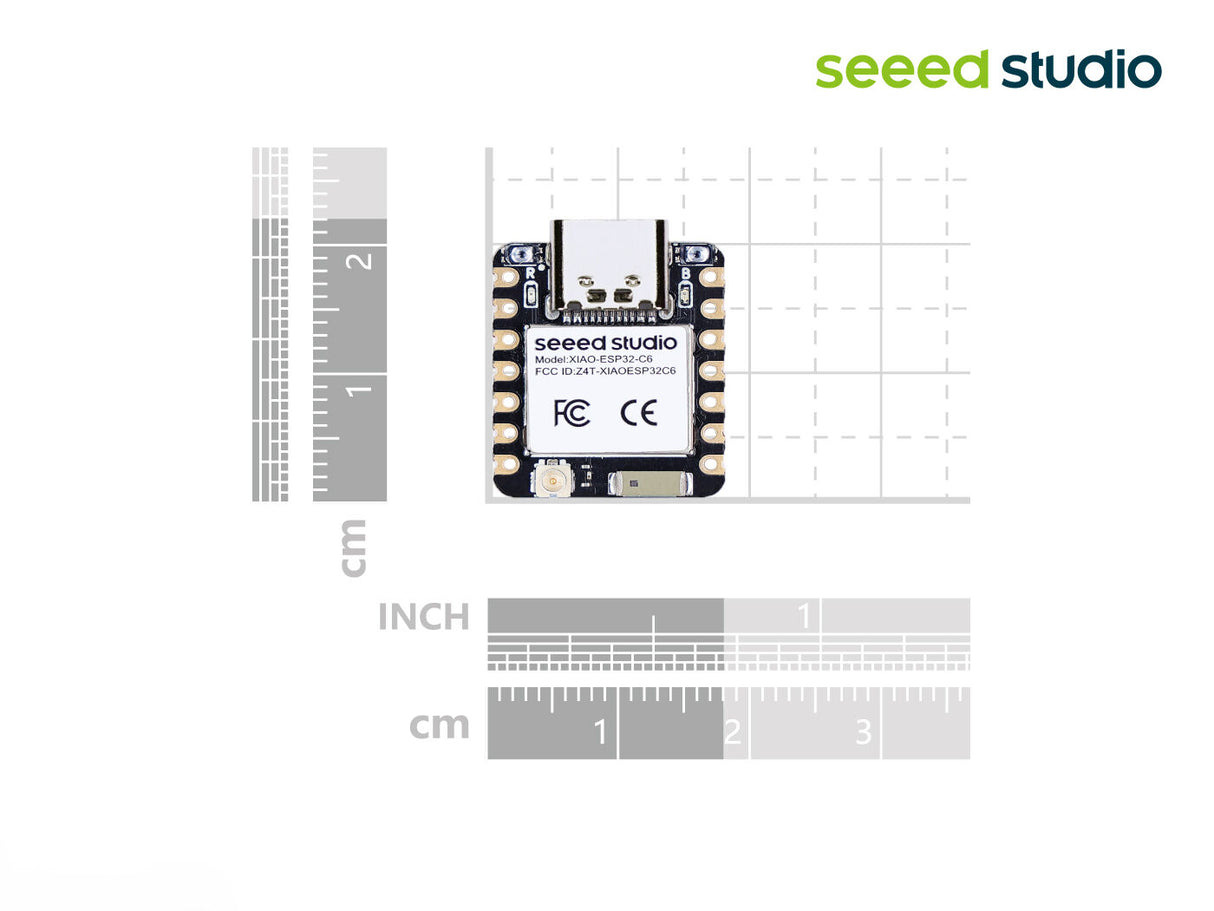

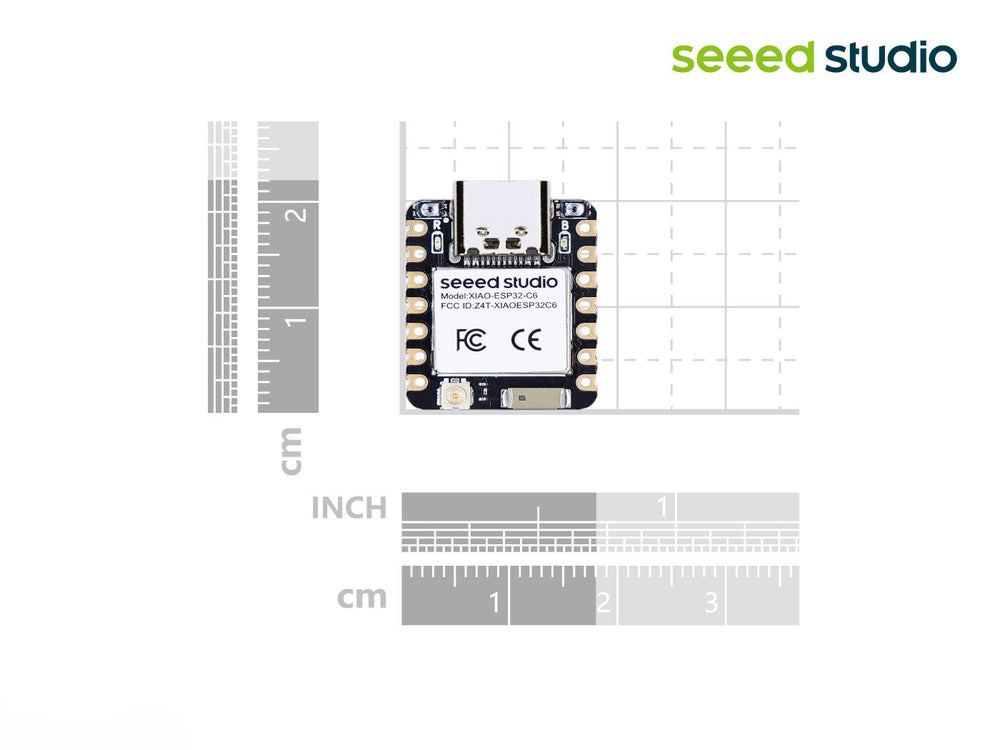

At 21 x 17.8mm with a single-sided component mount, it keeps the familiar compact XIAO footprint, suited to wearables and other space-constrained builds.
What's Included

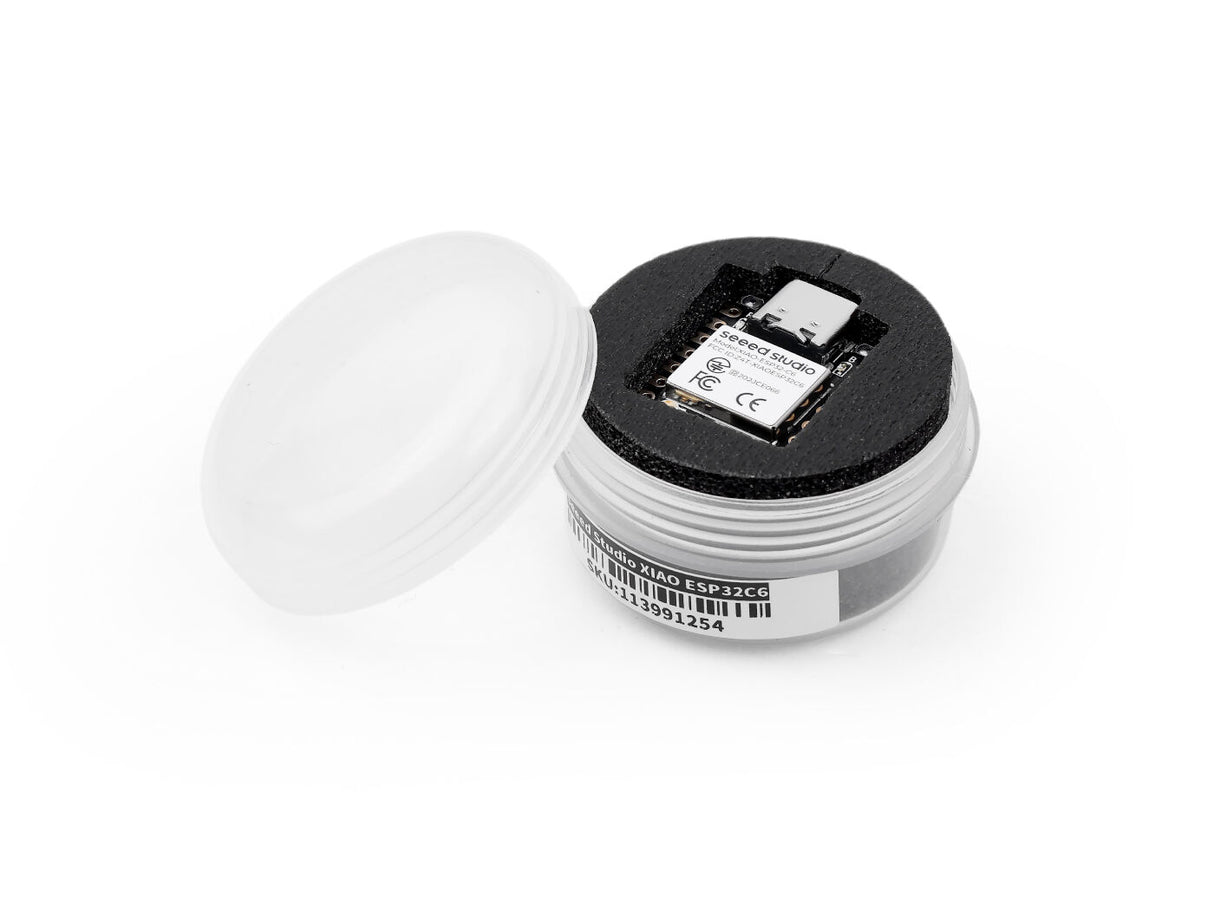

- XIAO ESP32-C6 board
- 2x 7-pin headers
Specifications
| Processor | Espressif ESP32-C6, dual 32-bit RISC-V, high-performance core up to 160 MHz, low-power core up to 20 MHz |
| Wireless | 2.4GHz Wi-Fi 6, Bluetooth Low Energy 5.0, Zigbee, Thread, IEEE 802.15.4 |
| On-chip Memory | 512KB SRAM, 4MB flash |
| Interface | 1x UART, 1x LP_UART, 1x I2C, 1x LP_I2C, 1x SPI, 11x GPIO (PWM), 7x ADC, 1x SDIO, Reset Button, Boot Button |
| Dimensions | 21 x 17.8mm |
| Power | 5V via Type-C, 3.7V via BAT |
| Low Power Modes | 30mA modem-sleep, 3.1mA light-sleep, 15 μA deep sleep |
| Working Temperature | -40°C to 85°C |
Pinout
Resources
- Seeed Studio Wiki, full setup guides, pinout diagrams, and project examples
- ESP32-C6 Datasheet
- Browse our full range of XIAO Expansion & Breakout Boards
Prefer plug-and-play? Grab the pre-soldered XIAO ESP32-C6 instead.
