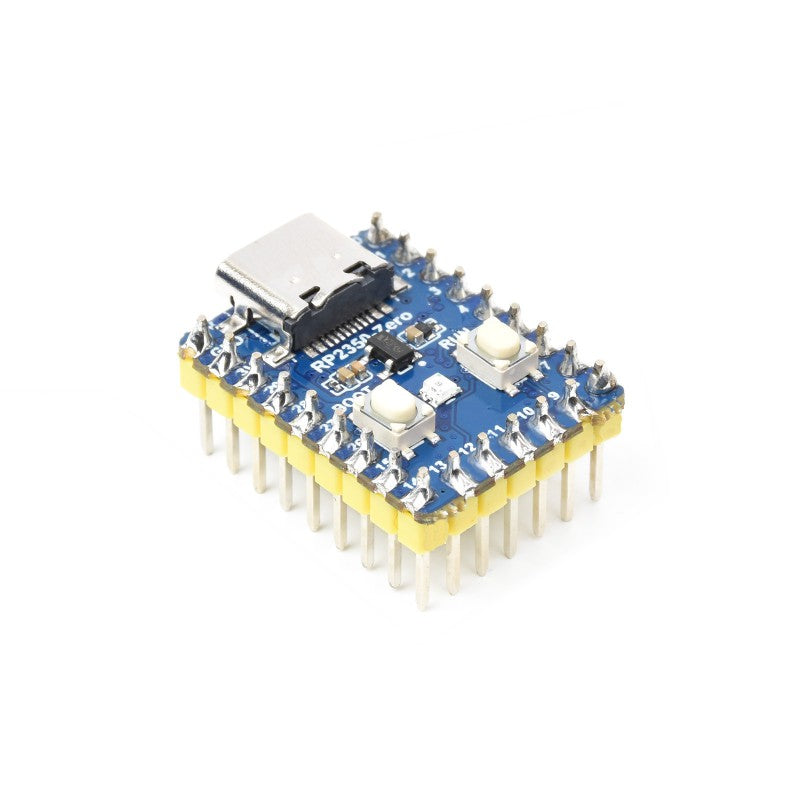

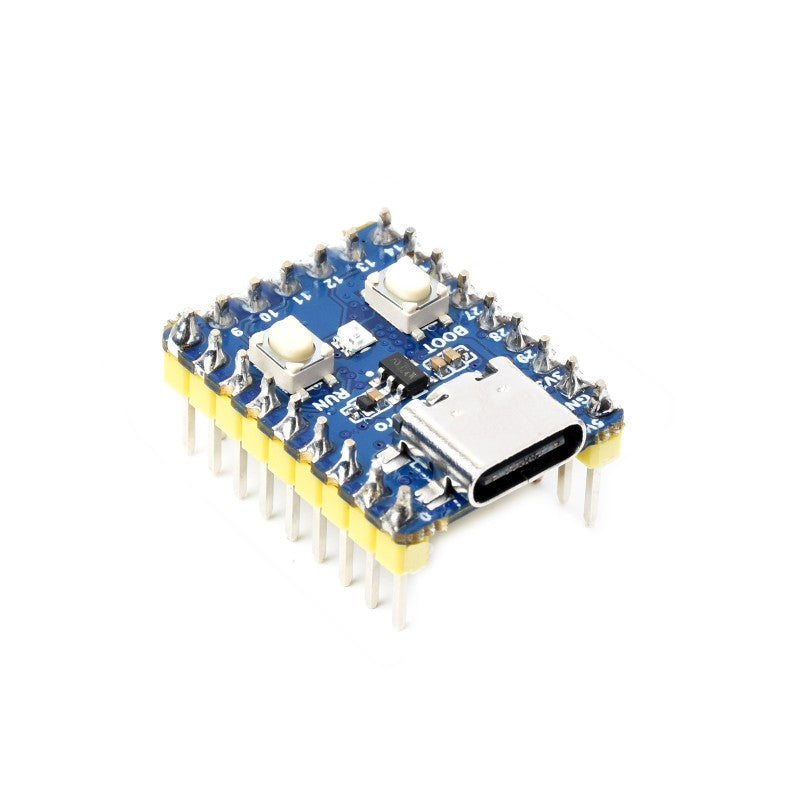

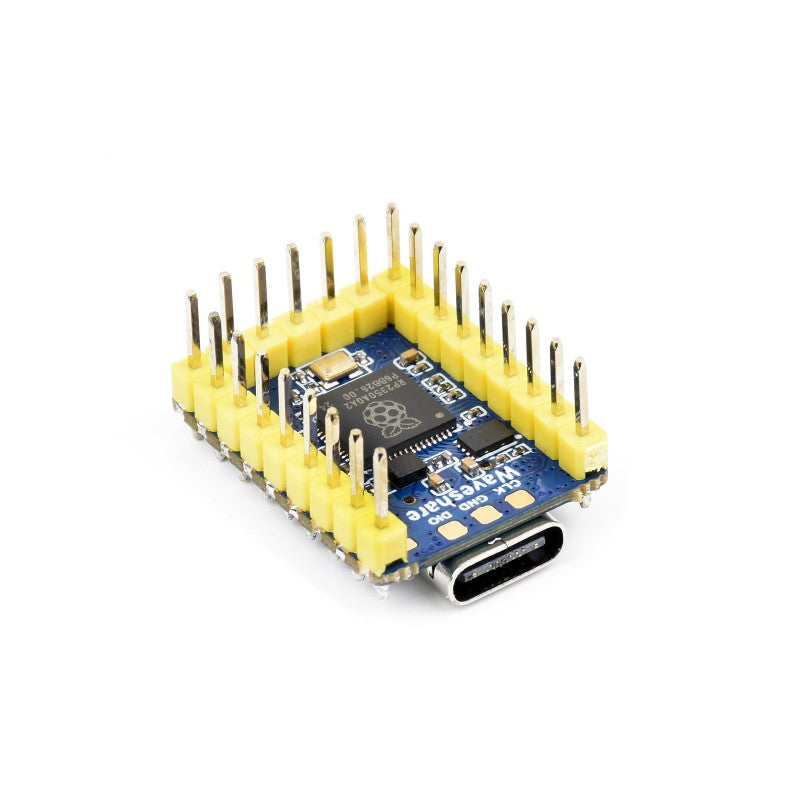

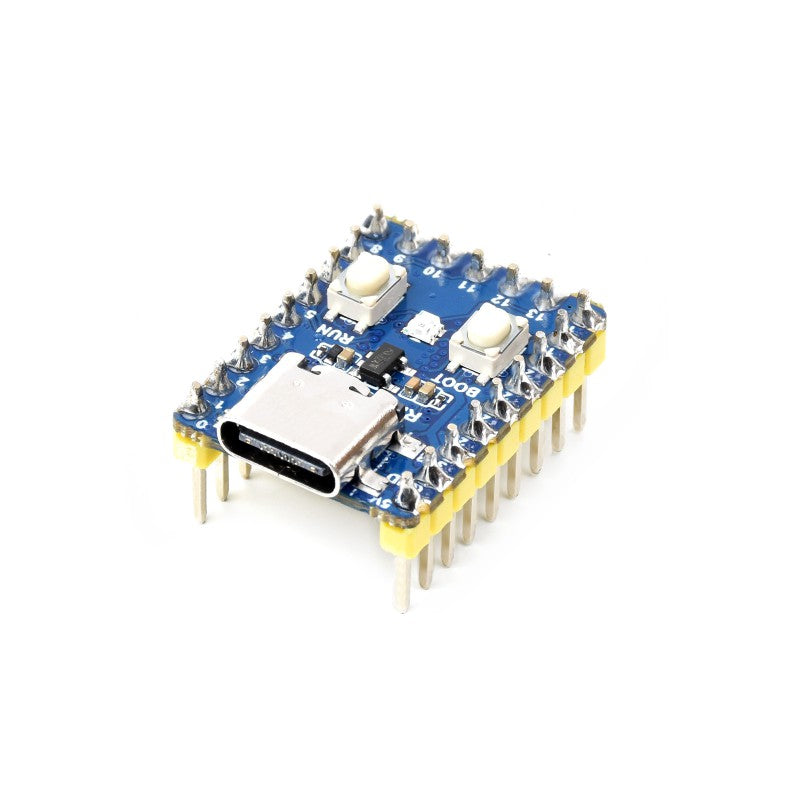

RP2350-Zero Mini Development Board (Soldered)

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of on-board Flash memory
• Type-C connector, keeps it up to date, easier to use
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

29 × multi-function GPIO pins

Configurable pin function, allows flexible development and integration

What's On Board
