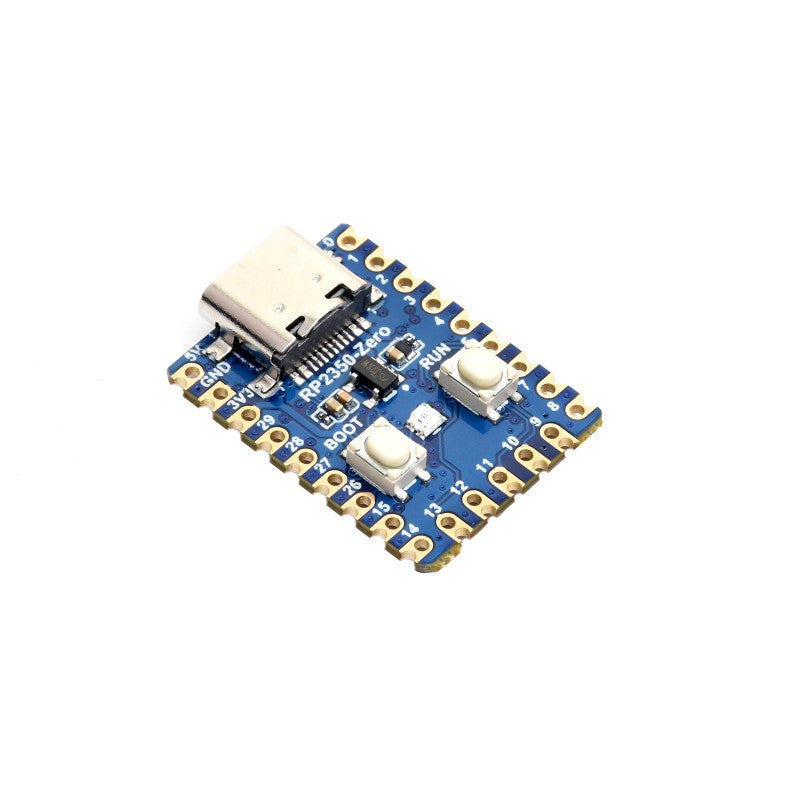

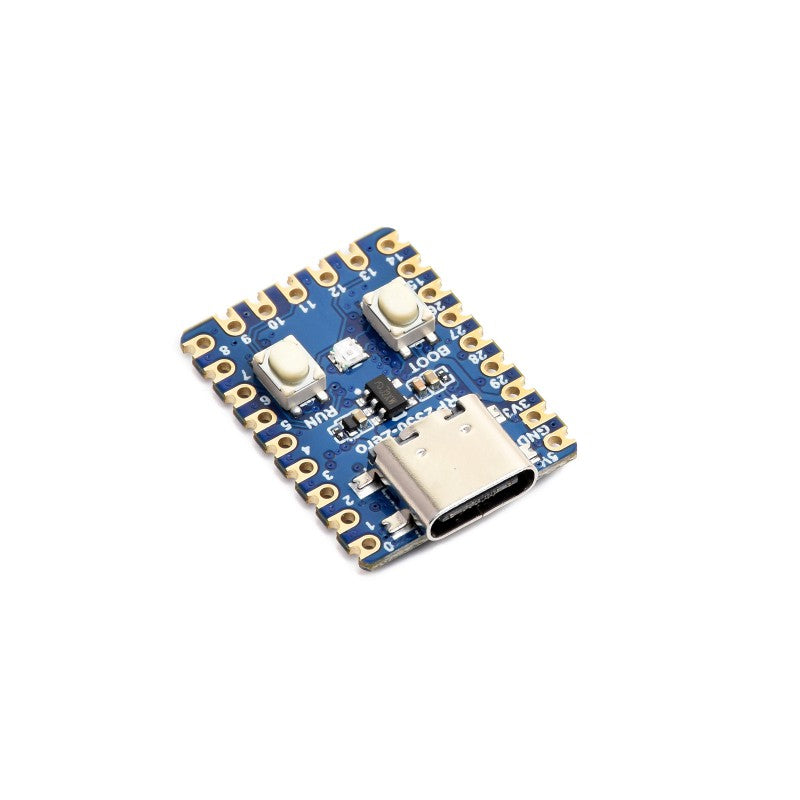

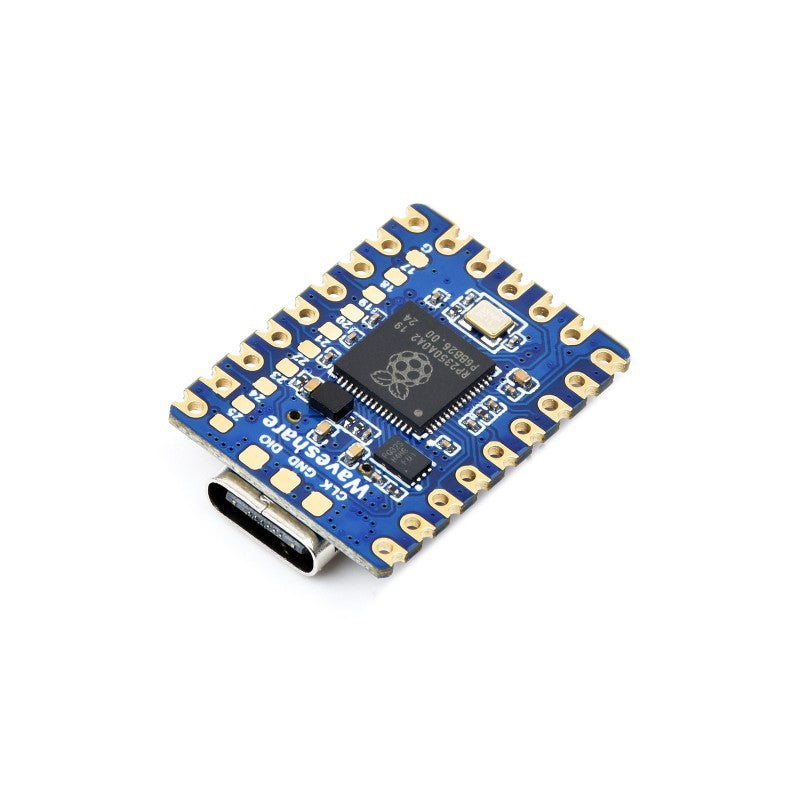

RP2350-Zero Mini Development Board (Unsoldered)
Waveshare | SKU:
WS-28816
$8.15 AUD
Unit price
/
Unavailable
$7.41 exc GST
RP2350-Zero Mini Development Board (Unsoldered) has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
★
★
★
★
★
Board specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 4MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use
- Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
29 × multi-function GPIO pins
Configurable pin function, allows flexible development and integration

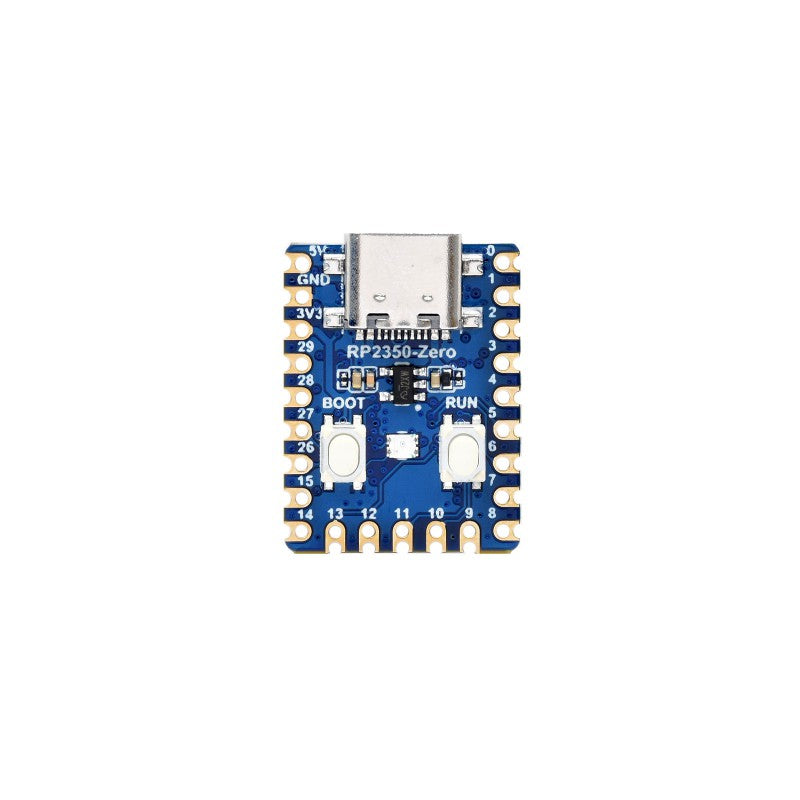

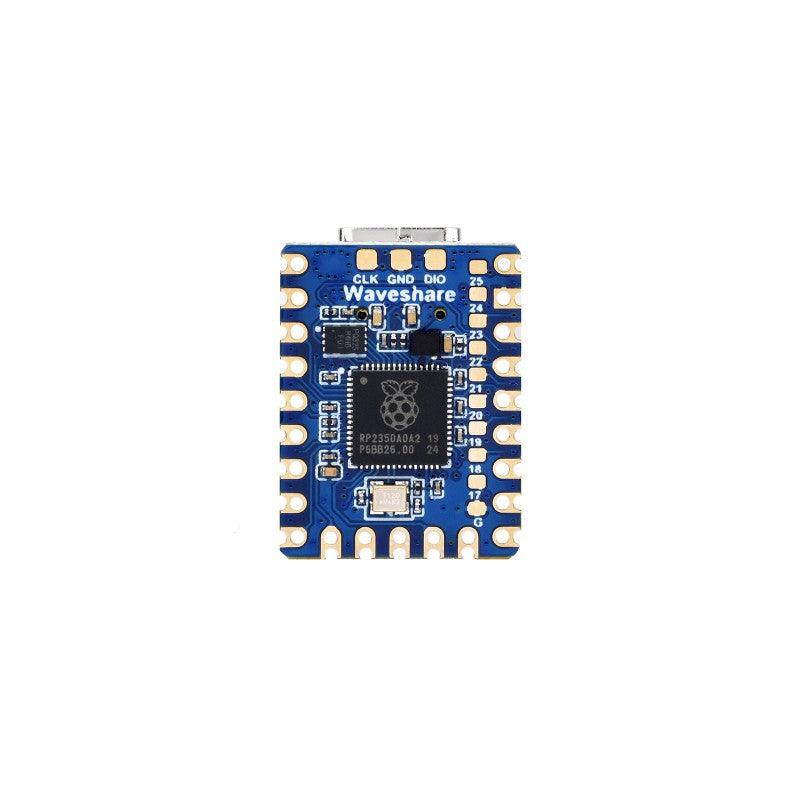

What's On Board
1. USB Type-C connector
for program downloading, supports USB1.1 hosts and slave devices
2. ME6217C33M5G
Low dropout regulator, 800mA output (Max.)
3. BOOT button
Press it when resetting to enter download mode
4. RUN reset button
5. WS2812
cool RGB LE
6. P25Q32SH-UXH-IR
4MB NOR-Flash
7. RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
8. RP2350A pins
10x solder points, 9 of which are GPIO pins
9. Debug pins
Outline Dimensions
Wiki:This product can be found here:
