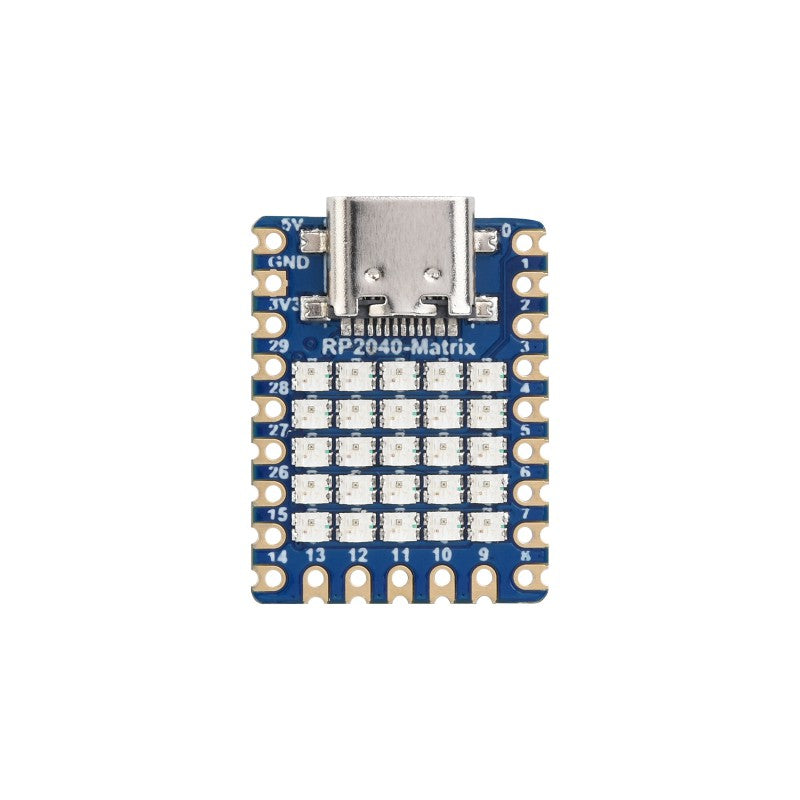

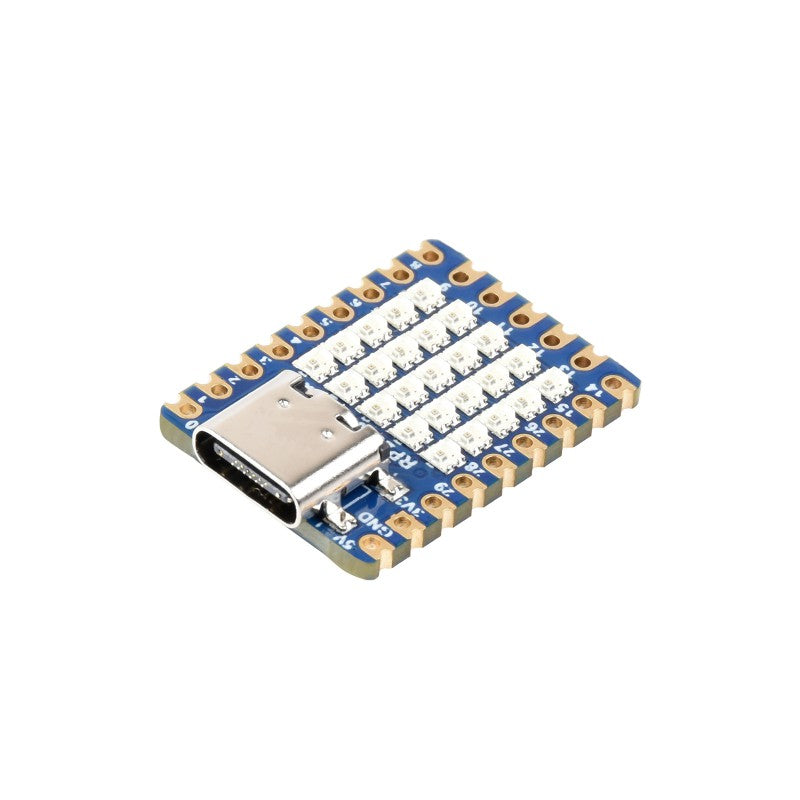

RP2040-Matrix Development Board - Onboard 5×5 RGB LED Matrix

Waveshare  |  SKU: WS-24594
$14.00 AUD
$12.73 exc GST

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
  • Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
  • Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
  • Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
Board specifications
  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory

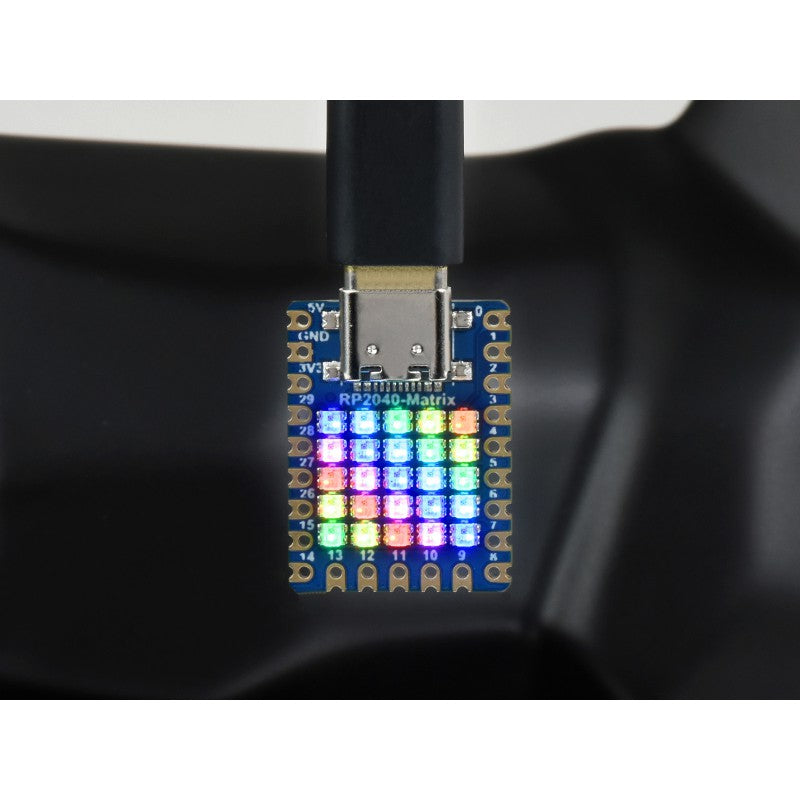

  • Onboard 5 × 5 RGB LED matrix for colorful lighting display
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 20 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

  1. USB Type-C connector
  2. 5×5 RGB LED Matrix
  3. BOOT button
    press it when resetting to enter download mode
  4. RESET button
  5. RT9013-33GB
    500mA low dropout, low noise, ultra-fast LDO
  6. W25Q16JVUXIQ
    2MB NOR-Flash
  7. RP2040
    dual-core processor, up to 133MHz operating frequency
