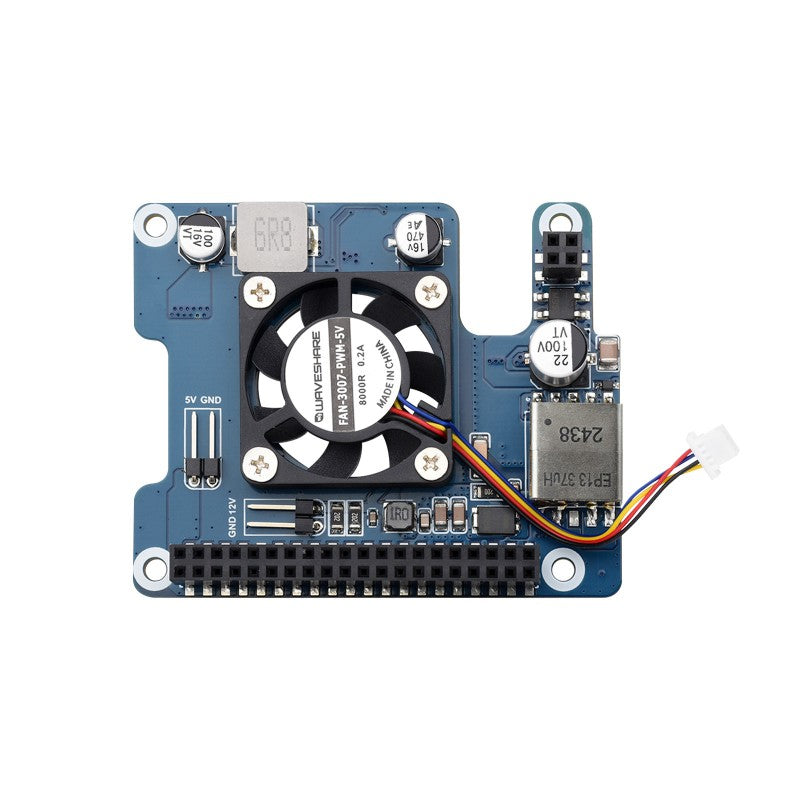

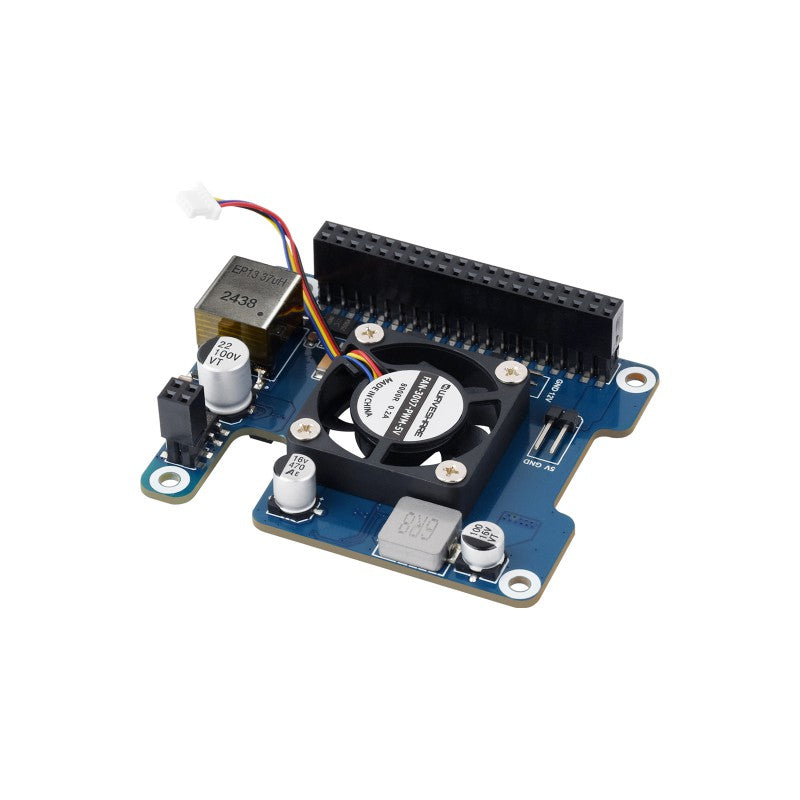

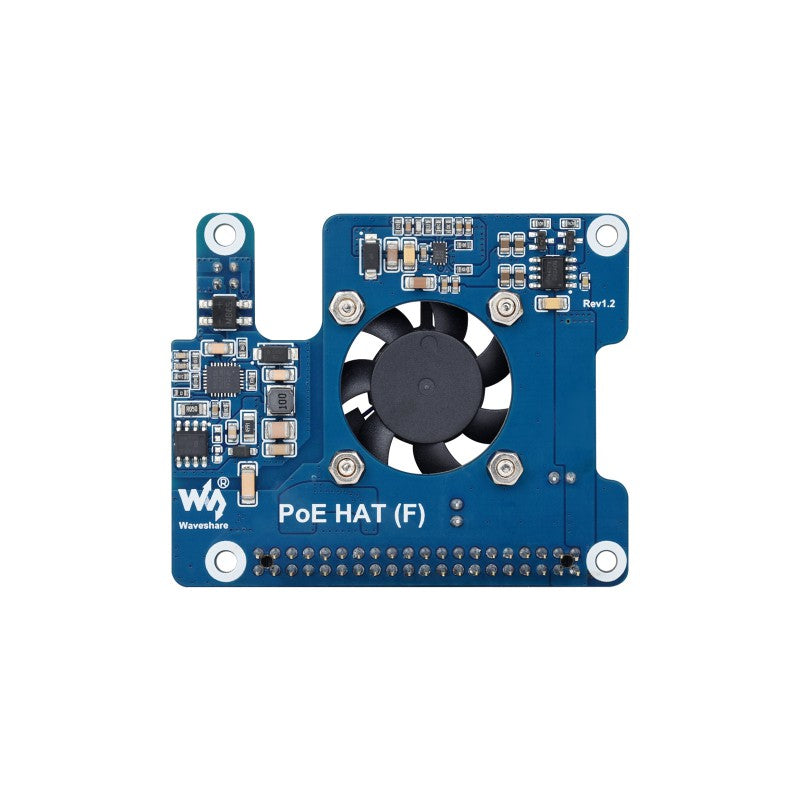

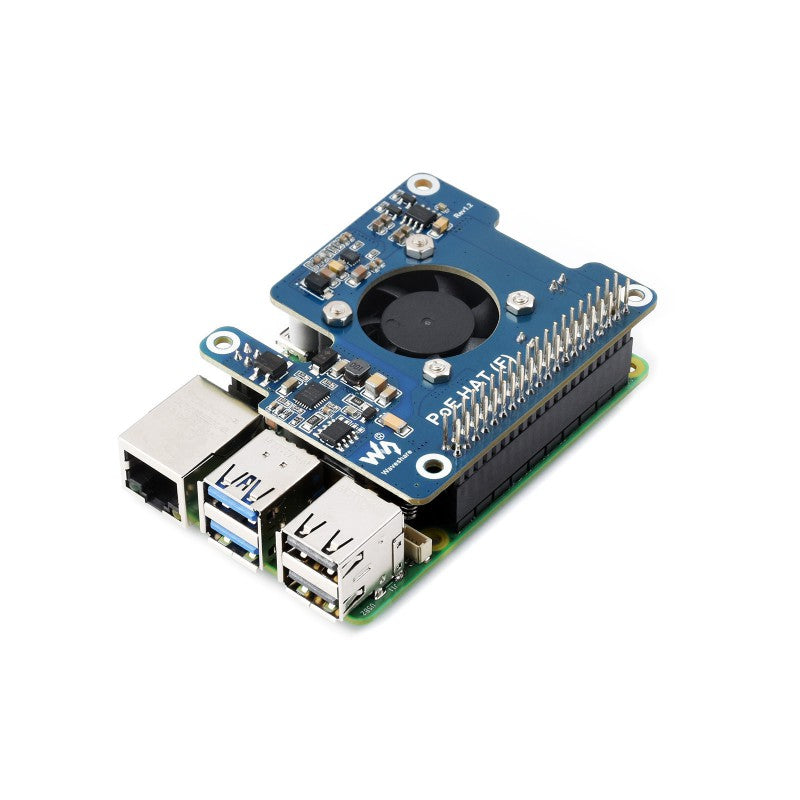

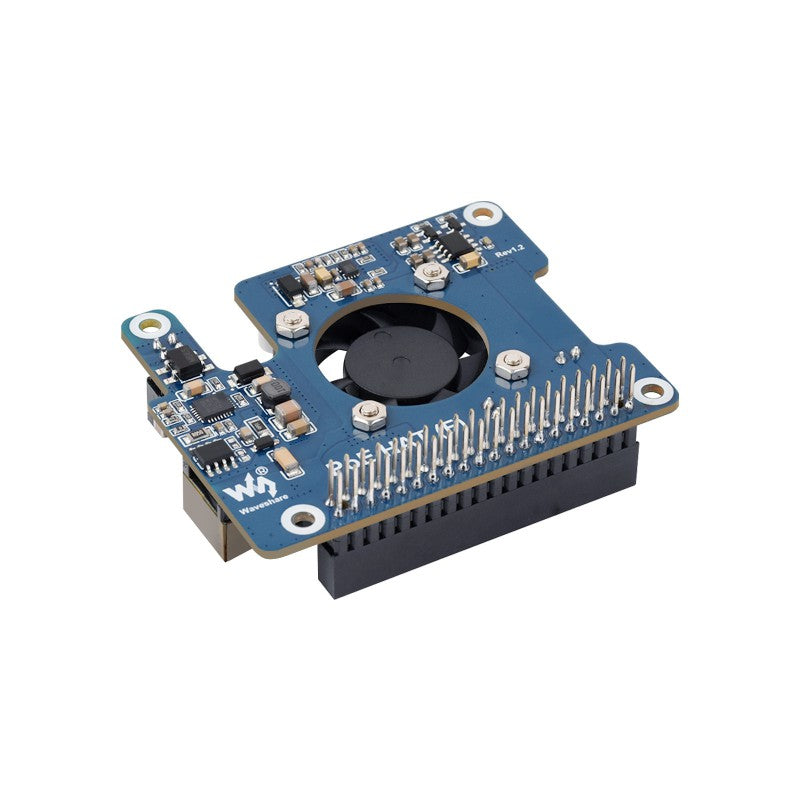

Power over Ethernet HAT (F) for Raspberry Pi 5

Waveshare  |  SKU: WS-26399
$31.60 AUD
$28.73 exc GST

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
  • Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
  • Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
  • Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
Features at a glance

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory (PoE+) for the Raspberry Pi 5 / CM 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 / CM 5
  • PoE / PoE+ capability,IEEE 802.3af/at-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
Specifications
PoE power input 38V ~ 57V DC in
Power output GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)
Dimensions 56.5 × 70.0mm
Network standard IEEE 802.3af/at PoE / PoE+


Suitable for Raspberry Pi 5 / CM 5

Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi
