LC76G Multi-GNSS Module - Supports GPS, BDS, GLONASS, Galileo, QZSS
Waveshare | SKU:
WS-24370
$23.85 AUD
Unit price
/
Unavailable
$21.68 exc GST
LC76G Multi-GNSS Module - Supports GPS, BDS, GLONASS, Galileo, QZSS has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
★
★
★
★
★

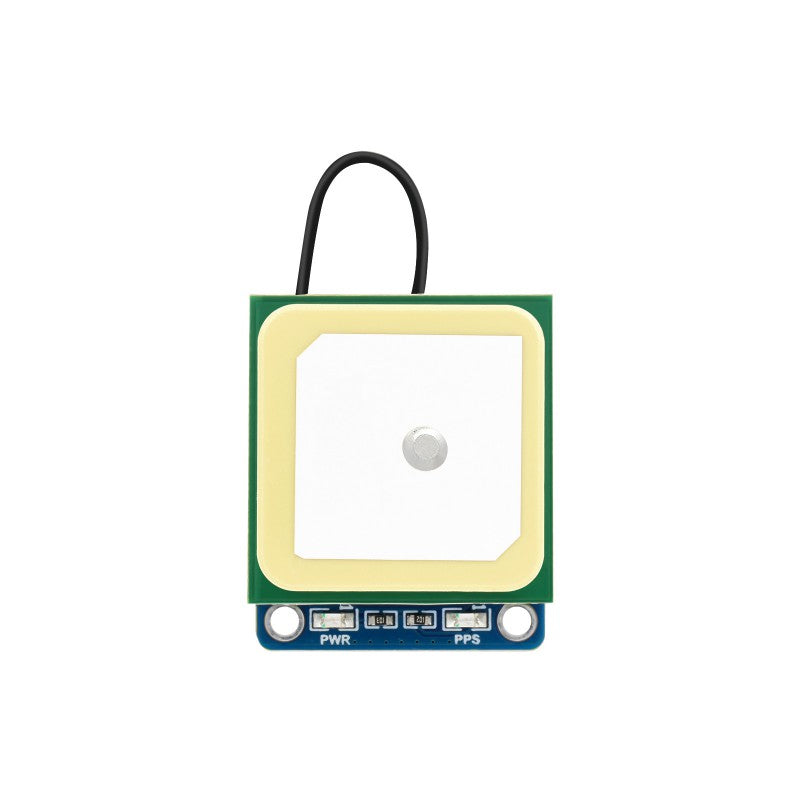

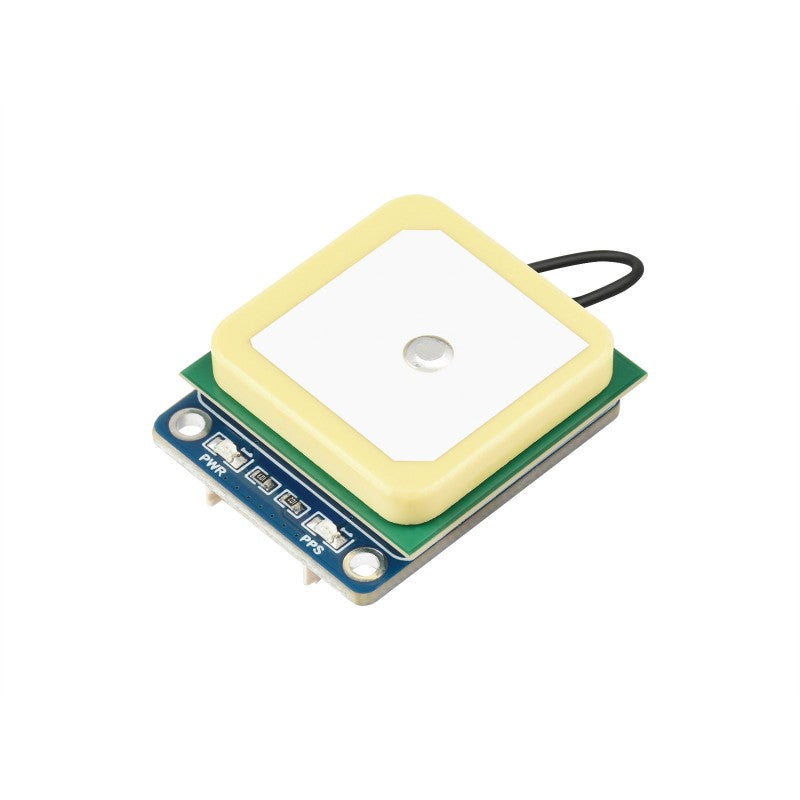

LC76G GNSS Positioning Module
Supports GPS, Beidou(BDS), Glonass, Galileo, QZSS
I2C/UART communication, provides multi-platform resources and tutorials for secondary development and integration
Features
The LC76G GPS Module is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS, Galileo and QZSS systems, allows multi-system combined or single-system independent positioning. Supports EPO™ (Extended Predictive Orbit) and EASY™ (Embedded Assist System) function, provides a good positioning experience of fast, accurate, high-performance.
- Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS
- Supports UART and I2C communication
- Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
- Supports EPO™ (Extended Predictive Orbit) and EASY™ (Embedded Assist System) function
- Supports 1PPS
- UART communication baudrate: 9600~921600bps (115200bps by default)
- Onboard rechargeable Li battery MS621FE, for preserving ephemeris information and hot starts
- 2x LEDs for indicating the module working status

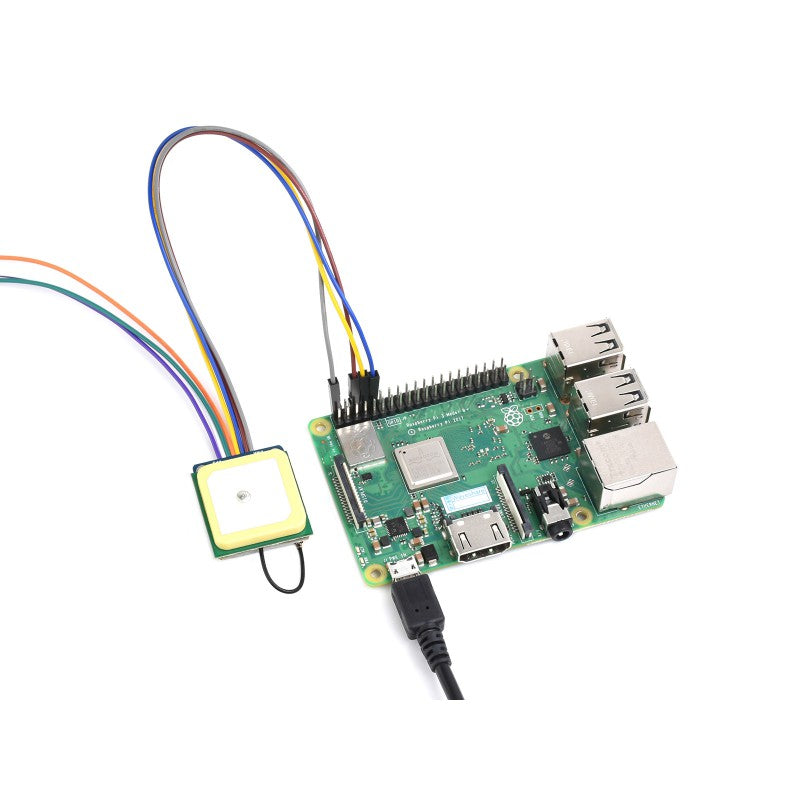

- Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Jetson Nano/Arduino/ESP32)

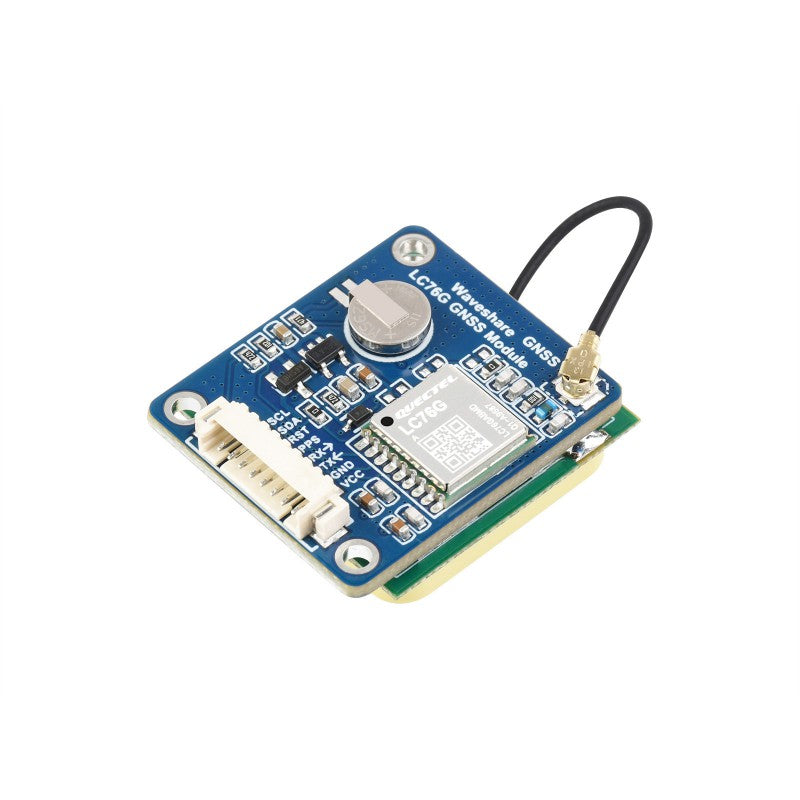

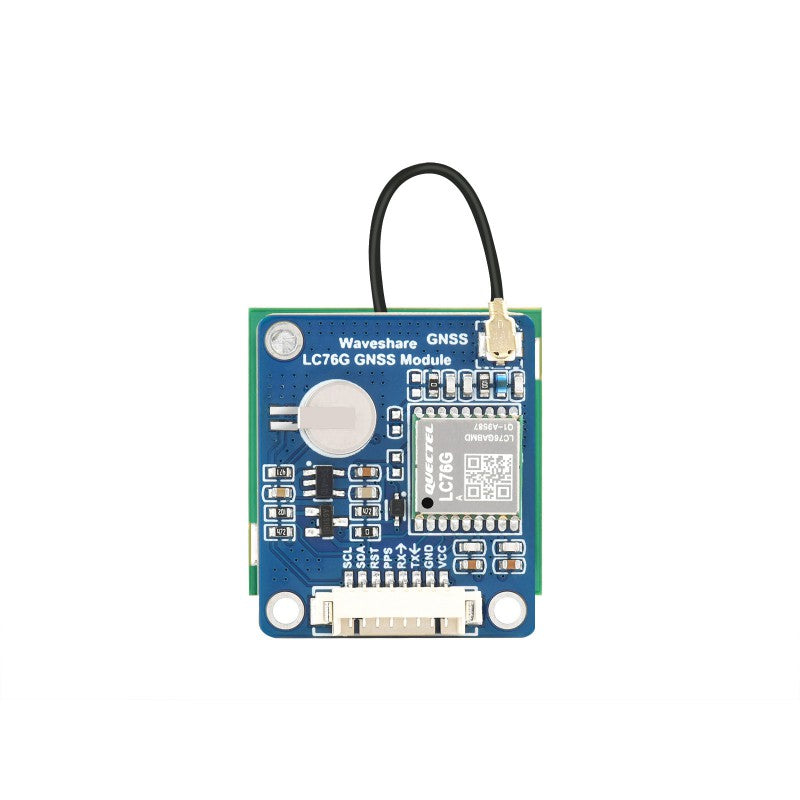

What's on board
| Pinout definition | |
|---|---|
| VCC | Power supply (3.3V/5V) |
| GND | Gound |
| TX | Connect to MCU.RX (Signal direction: TX >> MCU.RX) |
| RX | Connect to MCU.TX (Signal direction: MCU.TX >> RX) |
| PPS | GPS status indicator |
| RST | Reset Pin |
| SDA | I2C data pin |
| SCL | I2C clock pin |
Dimensions
