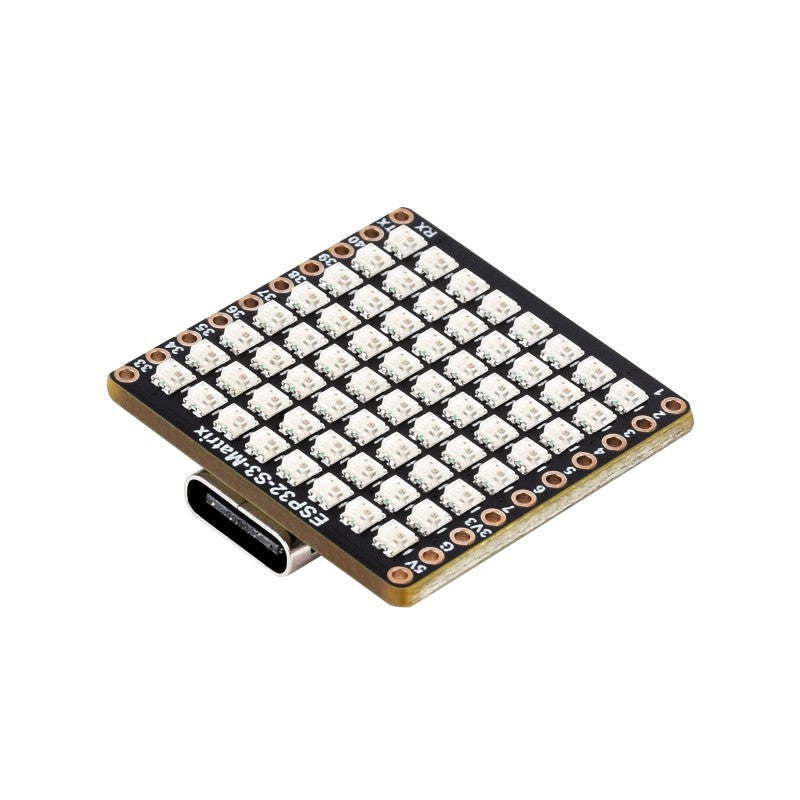

ESP32-S3-Matrix Development Board - 8×8 RGB LED Matrix & QMI8658 6-Axis Sensor

Zaitronics  |  SKU: WS-27119
$18.75 AUD
$17.05 exc GST

Delivery and Shipping

Delivery Options

We offer several delivery choices to fit your needs:

  • FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
  • AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
  • AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
  • AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
  • Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.

Additional Information

  • Non-metro addresses in WA, NT, SA & TAS may require extra time.
  • Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
  • We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
  • Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
  • Note: Orders containing backordered item will delay delivery until all items are available

Warranty & Refund Policy

Warranty & Refund Policy

  • Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
  • Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
  • Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
  • Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
  • Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
ESP32-S3 RGB LED Matrix Board

Based on ESP32-S3, 17 × multi-function GPIO pins

240 MHz Xtensa 32-bit LX7 Dual-core Processor

Board specifications
  • Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
  • Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory
  • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
  • Type-C connector, easier to use
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)

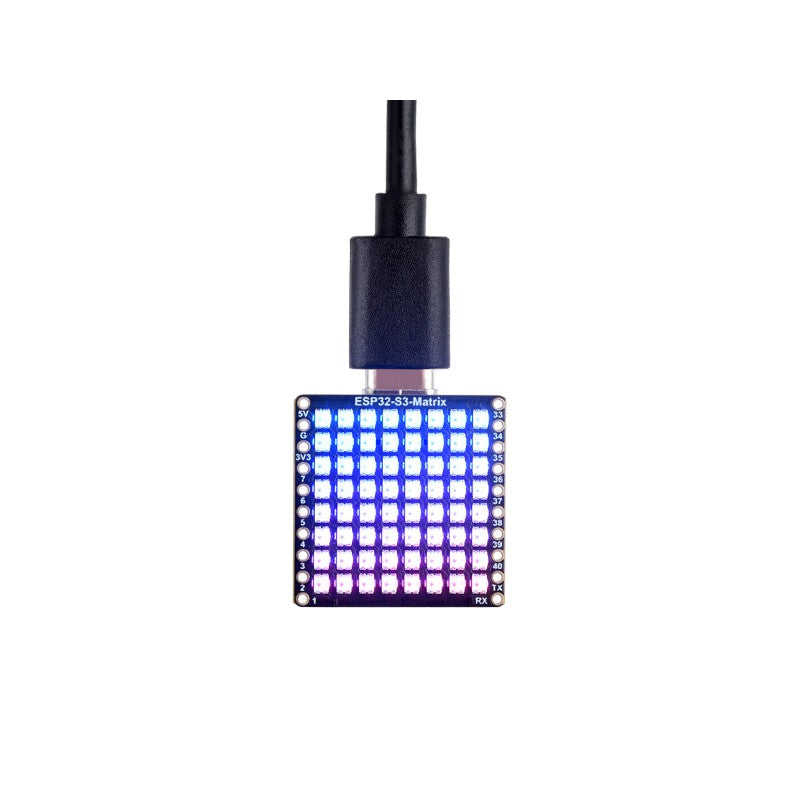

  • Onboard 8 × 8 RGB LED matrix for colorful lighting display
  • Adapting Dout pin for extending RGB matrix
  • 17 × multi-function GPIO pins
  • Rich peripheral interfaces for achieving various functions flexibly
  • Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
QMI8658 gyroscope sensor

Onboard QMI8658 6-axis IMU for tilt angle and speed measurement

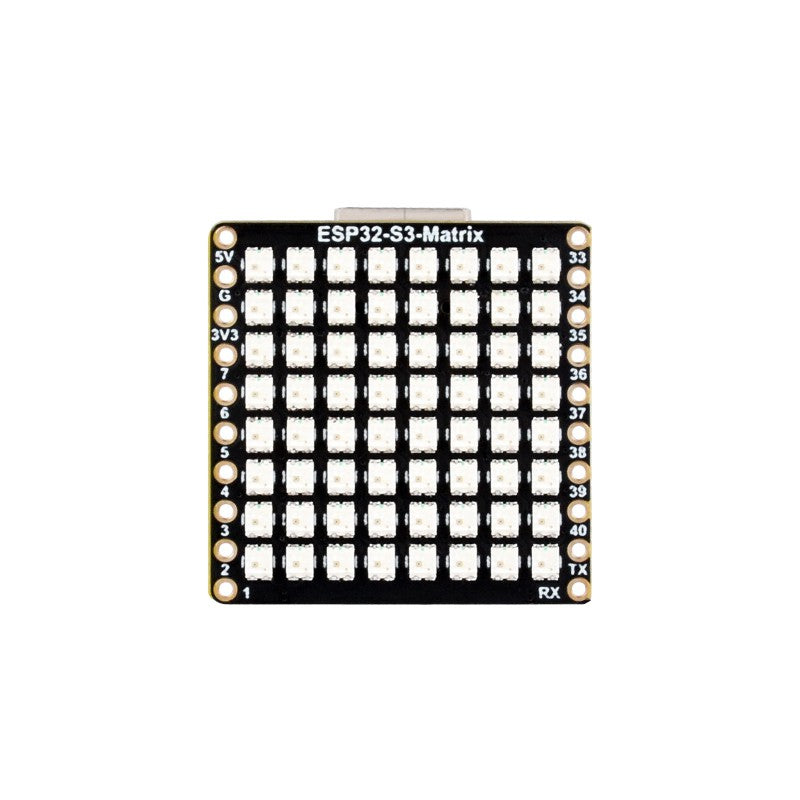

ESP32-S3-Matrix Development Board 17 × multi-function GPIO pins

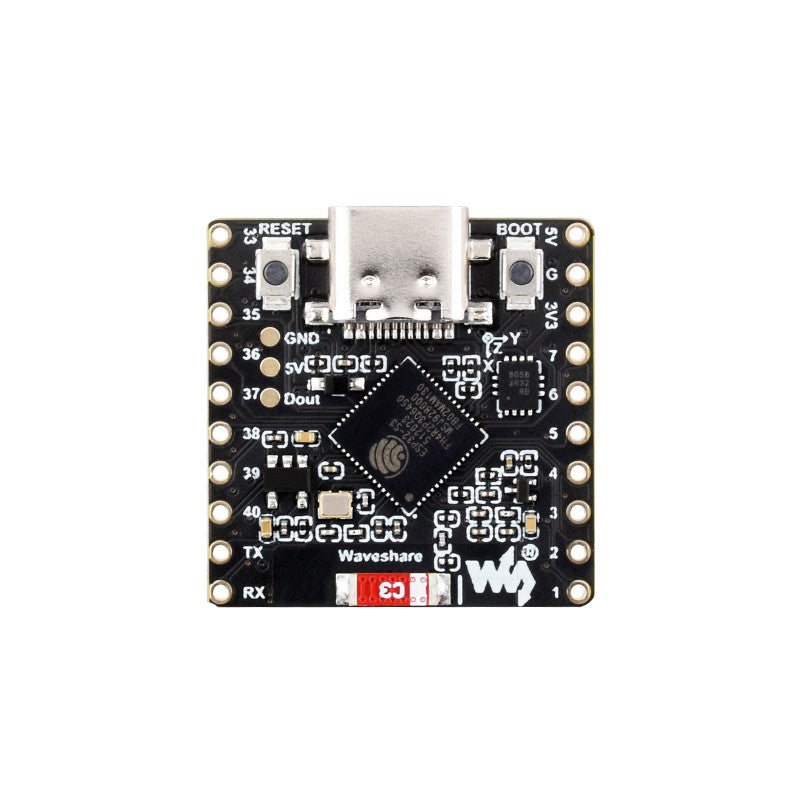

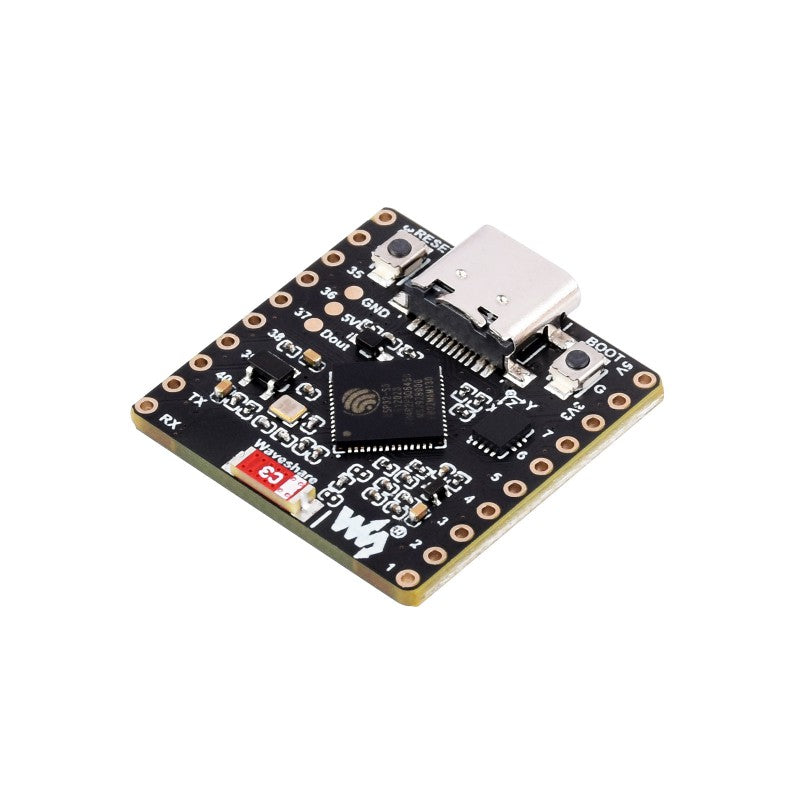

ESP32-S3-Matrix Development Board onboard components

  1. USB Type-C connector
  2. 8×8 RGB LED Matrix
  3. BOOT button
    press it when resetting to enter download mode
  4. RESET button
  5. ME6217C33M5G
    Low dropout LDO, 800mA (Max)
  6. QMI8658
    QST 6-axis sensor (3-axis accelerometer, 3-axis gyroscope)
  7. ESP32-S3
    dual-core processor, up to 240MHz operating frequency
  8. Dout pin
    for extending RGB matrix

ESP32-S3-Matrix Development Board outline dimensions

Wiki: www.waveshare.com/wiki/ESP32-S3-Matrix
