ESP32-C6 Development Board with RGB LED and 8MB Flash
ESP32-C6 Development Board with RGB LED and 8MB Flash has a 5-10 day lead time before dispatch. Order will only be sent once all items are available for delivery.
ESP32-C6 Development Board with RGB LED and 8MB Flash
The ESP32-C6 development board is a compact and powerful platform designed for modern IoT applications. Built around the latest ESP32-C6 chipset, it combines Wi-Fi 6, Bluetooth LE, and 802.15.4 support in a single solution, making it ideal for next-generation connected devices.
Key Features
- ESP32-C6 RISC-V single-core processor running up to 160 MHz
- 8MB onboard SPI flash for firmware and data storage
- Integrated 2.4 GHz Wi-Fi 6 for improved efficiency and performance
- Bluetooth LE 5 support for low-power wireless communication
- Zigbee and Thread compatibility via 802.15.4 radio
- Onboard addressable RGB LED connected to GPIO8
- USB-C interface for power and programming
- Reset and boot buttons for easy flashing and control
- Fully broken-out GPIO pins for flexible prototyping
Compact Form Factor

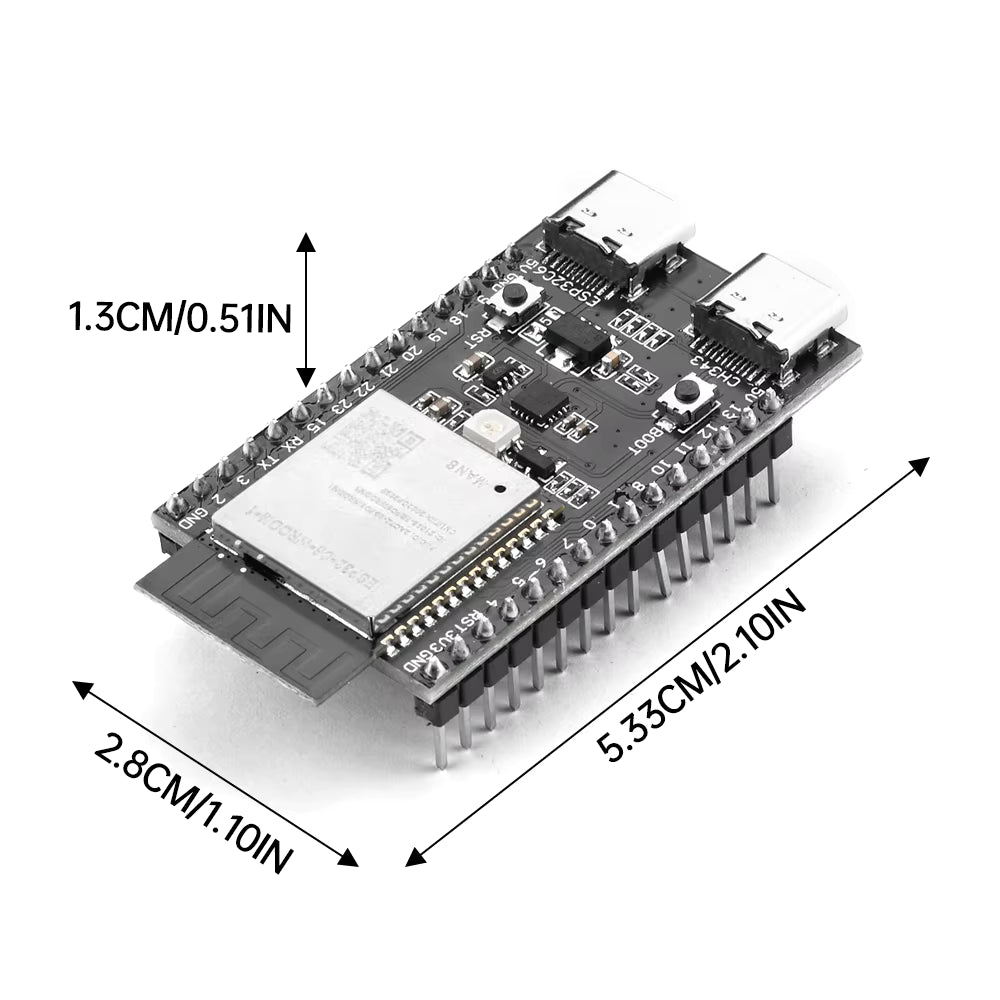

With dimensions of 53.3 mm x 28 mm, this board offers a space-efficient design that fits easily into embedded projects while still providing access to all essential interfaces and peripherals.

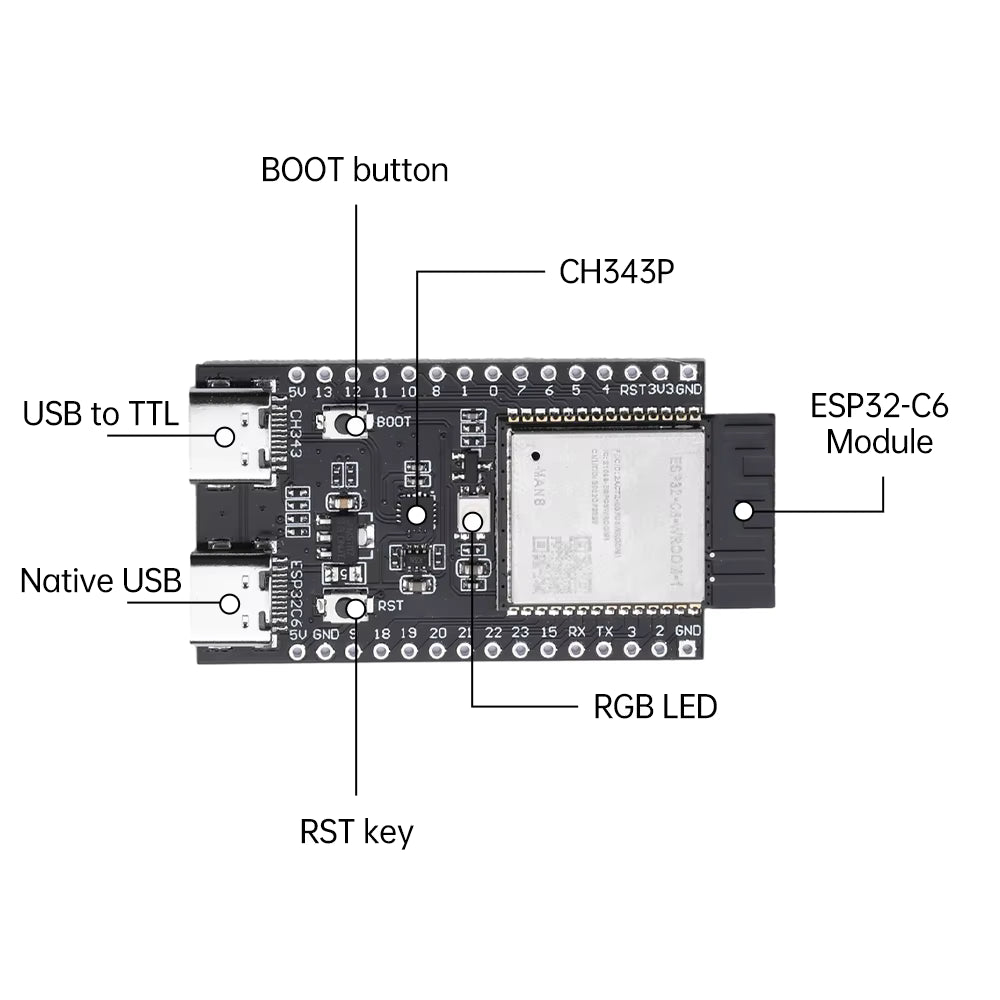

Onboard RGB LED
The integrated RGB LED allows for visual feedback, status indication, and user interaction without requiring additional components. As an addressable LED, it supports full colour control for advanced lighting effects.
Connectivity for Modern IoT
The ESP32-C6 stands out with its support for multiple wireless protocols. Wi-Fi 6 improves network efficiency and performance in dense environments, while Bluetooth LE enables low-power communication. The addition of Zigbee and Thread makes this board well suited for Matter-compatible smart home systems and mesh networks.
Ideal Applications
- Smart home devices and hubs
- IoT sensor nodes
- Wireless control systems
- Prototyping Matter and Thread devices
- Educational and embedded development projects
Easy Development
Compatible with popular development environments such as Arduino IDE and ESP-IDF, this board provides a straightforward path from prototyping to deployment. The onboard USB-C interface ensures simple setup without additional hardware.
This ESP32-C6 board delivers a strong balance of performance, connectivity, and compact size, making it a versatile choice for both hobbyists and professional developers.
