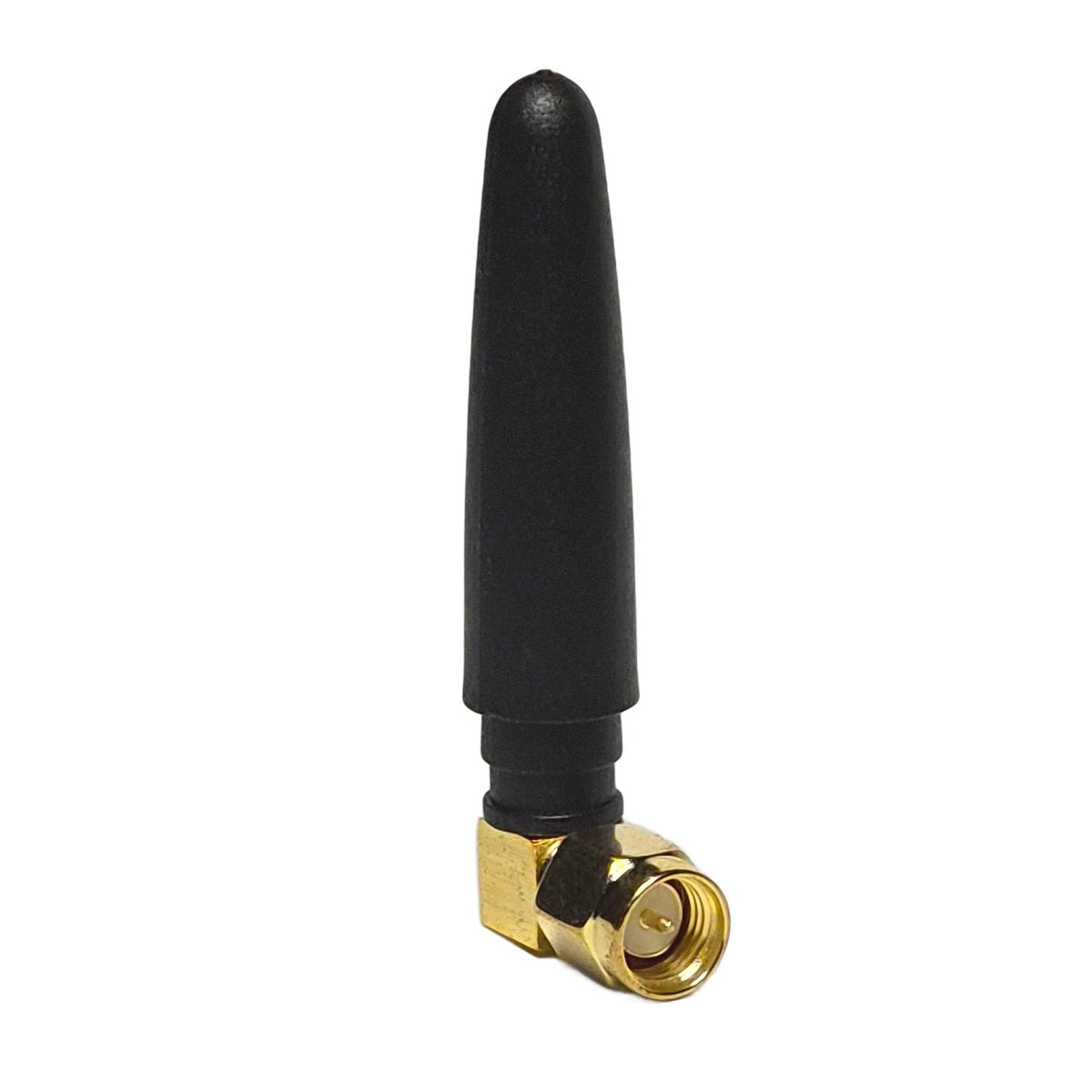

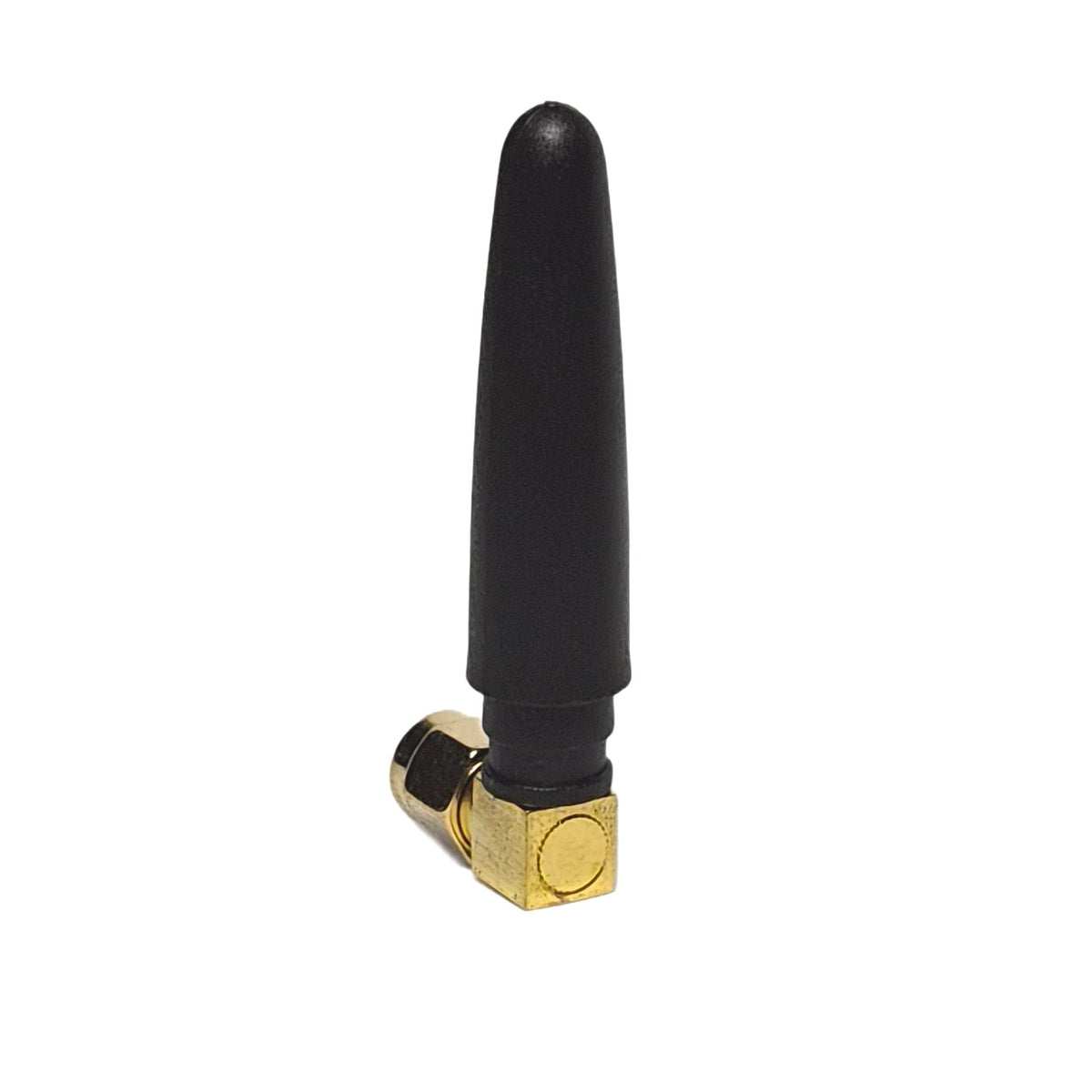

700-2700MHz 5dBi 4G LTE SMA Male Antenna - Angled Compact 5cm

A compact, angled 700 to 2700MHz wideband antenna for 4G LTE, cellular and 2.4GHz projects. At just 5cm long with a right-angle profile, it suits small enclosures, trackers and portable devices where a full-size cellular antenna isn't practical.

Its wide frequency range covers all the main Australian 4G LTE bands (700, 850, 900, 1800, 2100 and 2600MHz) as well as legacy 3G bands and 2.4GHz Wi-Fi, Bluetooth and ZigBee, making it a versatile choice for SIM7600, SIM7000, A7670 and other cellular modem boards.

Features

• Wideband 700 to 2700MHz coverage
• Suits 4G LTE, 3G and 2.4GHz Wi-Fi/Bluetooth applications
• 5dBi gain, vertically polarised
• SMA Male antenna connector
• Angled compact design, 5cm long
• Standard 50Ω impedance for direct connection to cellular and RF modules

Specifications

• Frequency Range: 700 to 2700MHz
• Polarisation: Linear (vertical)
• Gain: 5dBi
• VSWR: ≤1.8
• Impedance: 50Ω
• Antenna Connector: SMA Male

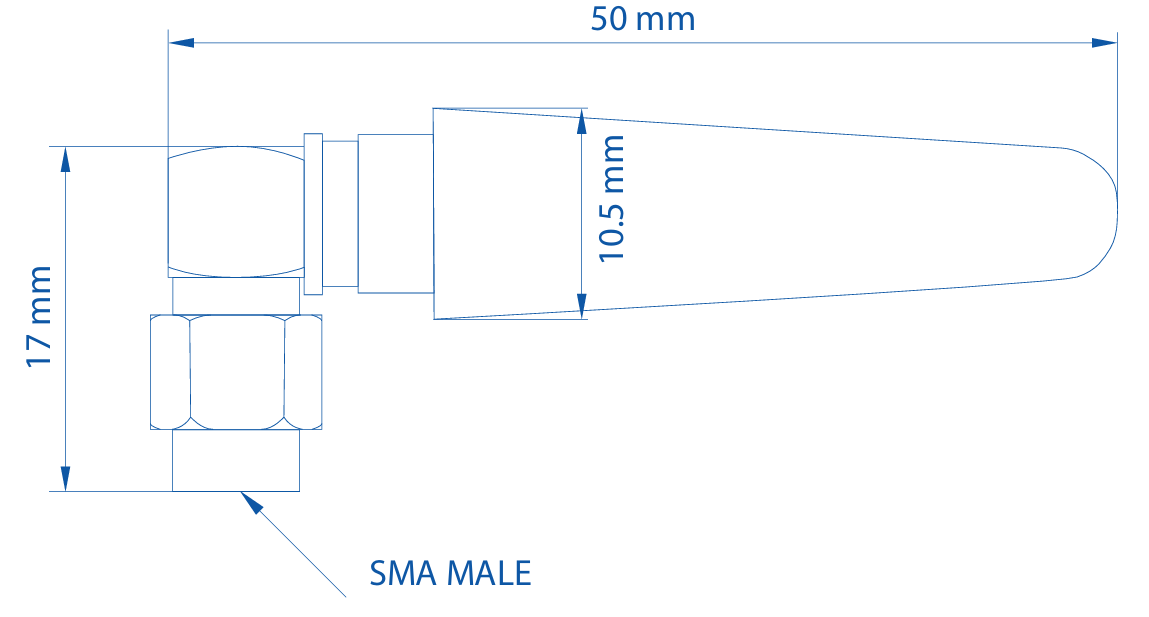

• Dimensions: 50 x 17 x 11mm

Compatibility Notes

• Not suitable for 5GHz Wi-Fi or 3.5GHz (n78) 5G

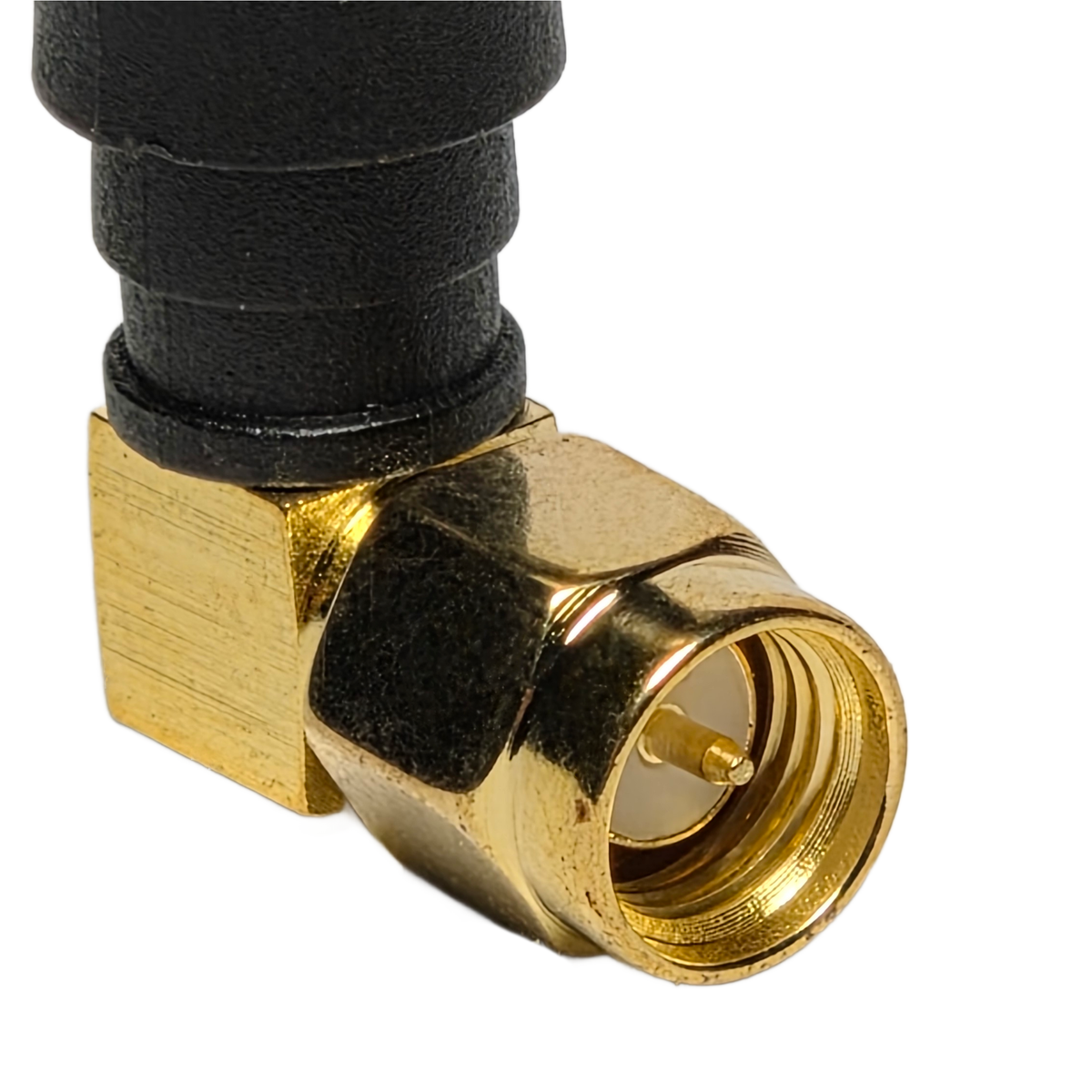

• SMA Male (centre pin). Not compatible with RP-SMA connectors

Ideal for 4G LTE modem boards, GPS trackers with cellular uplink, remote monitoring nodes and compact IoT devices that need reliable cellular connectivity in a small footprint.
