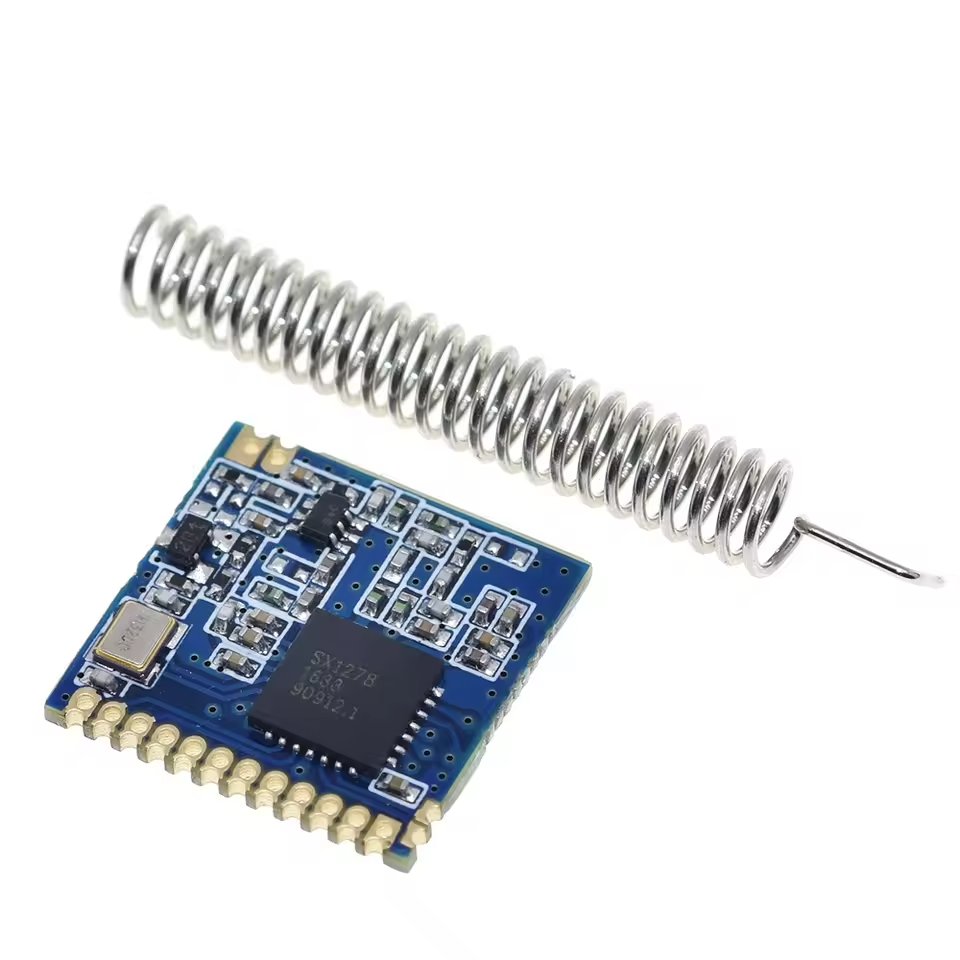

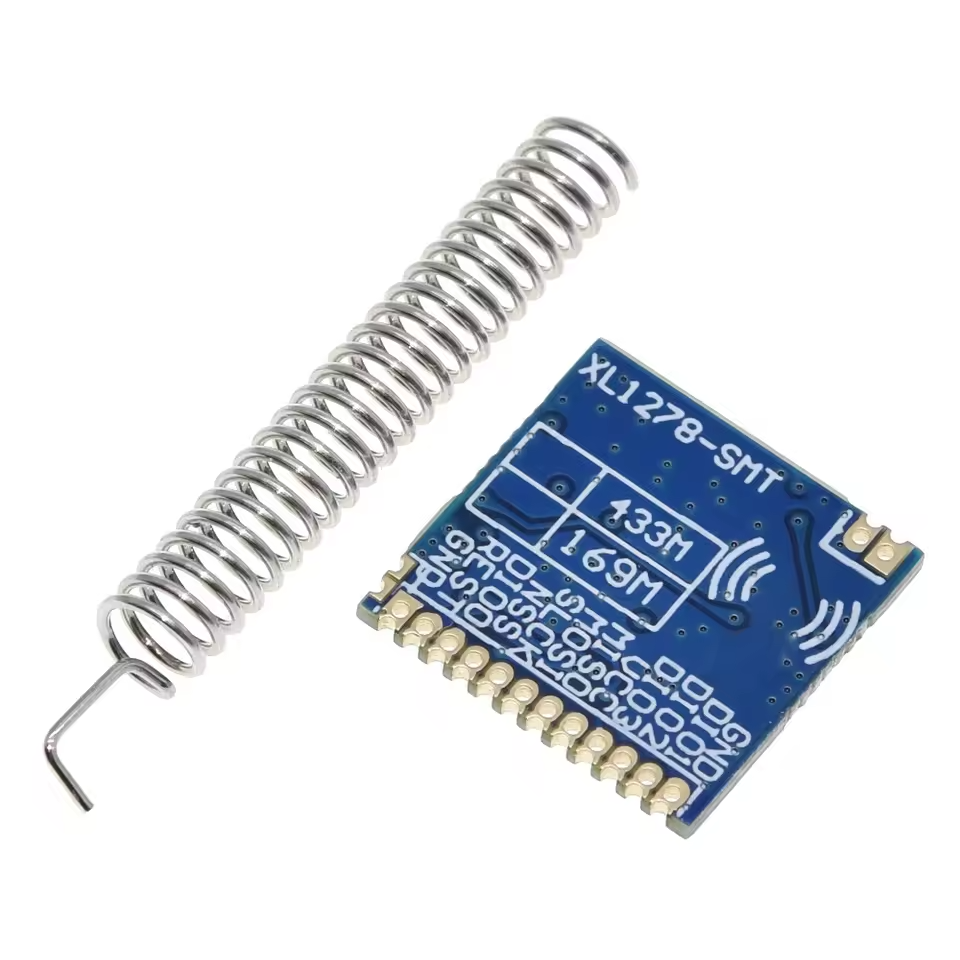

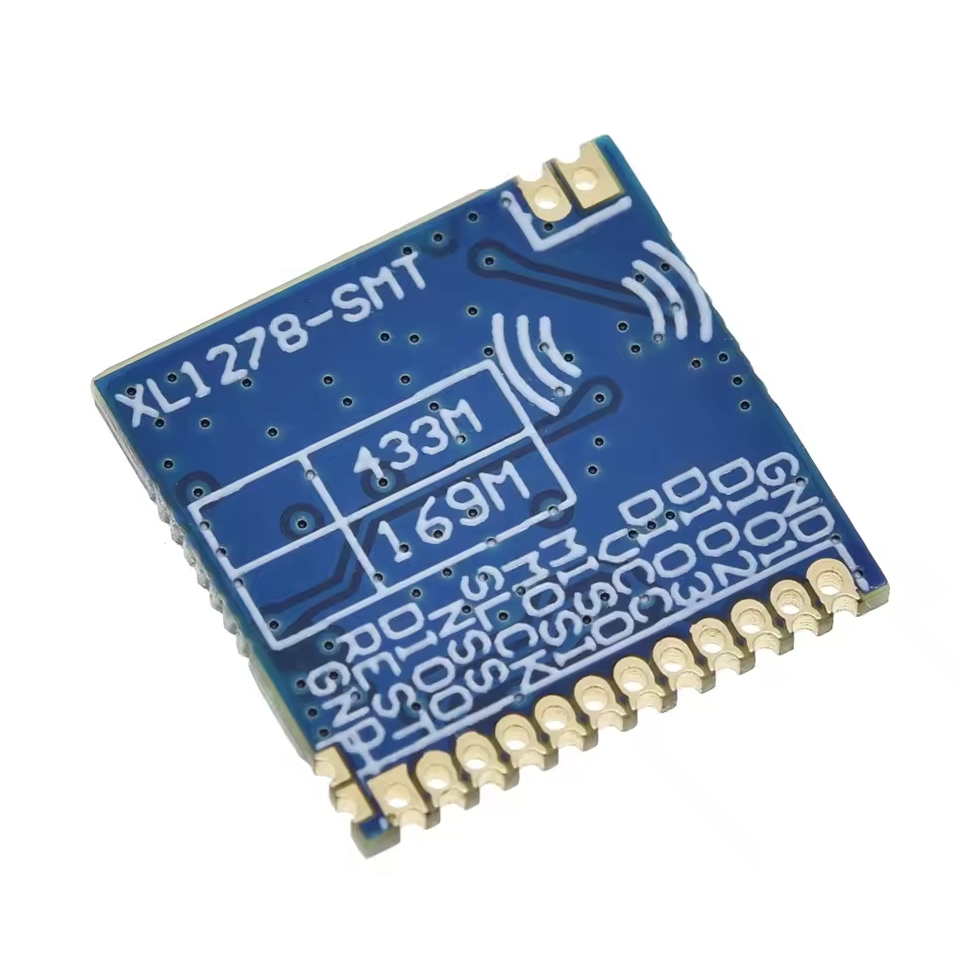

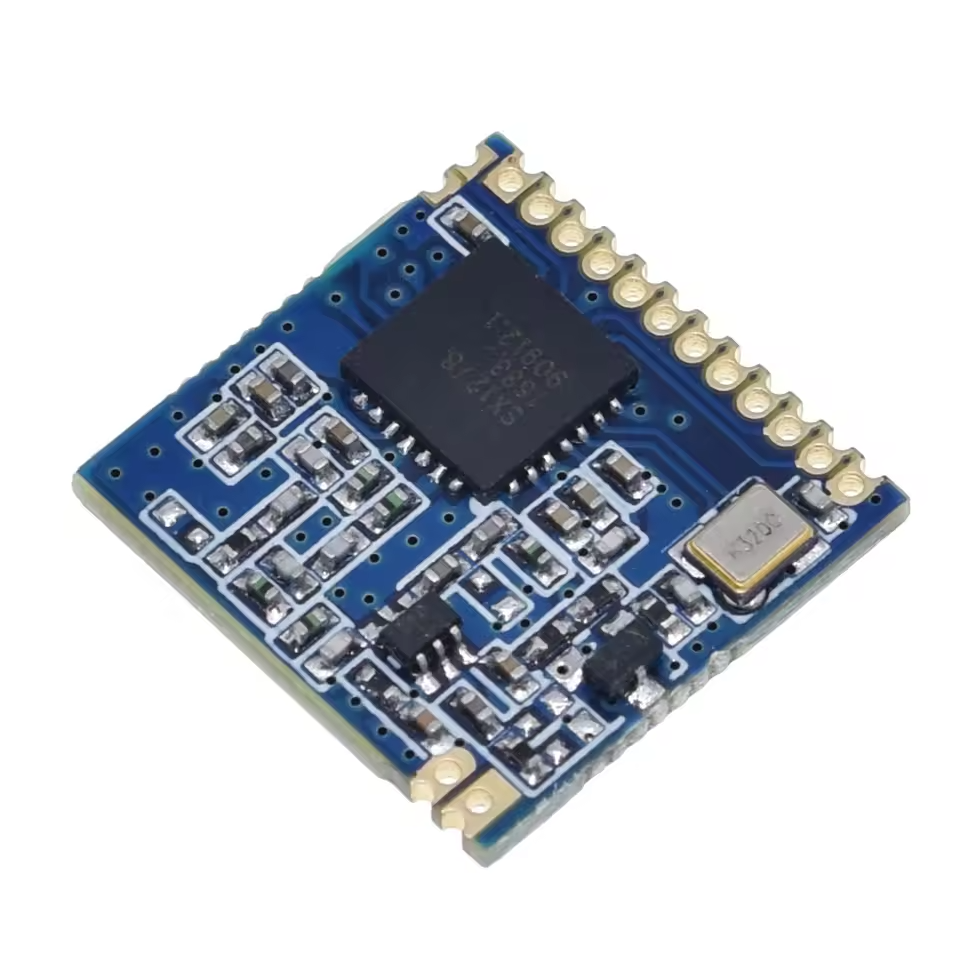

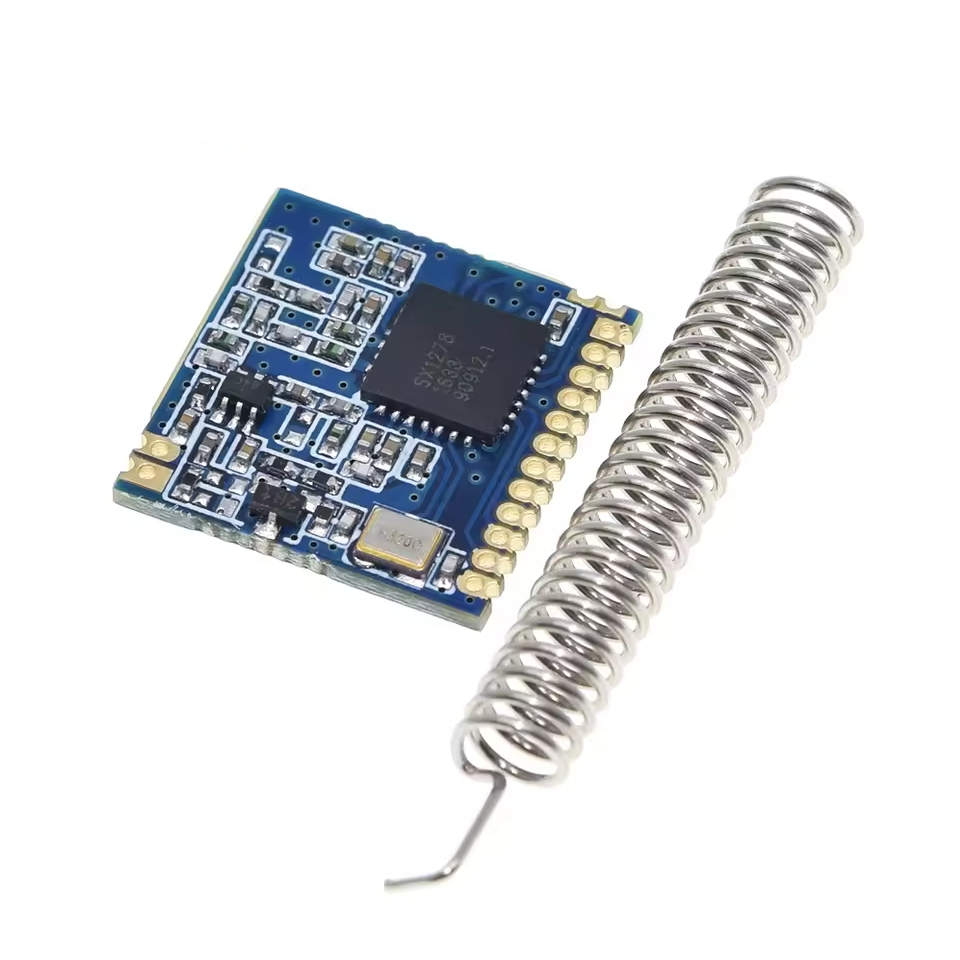

433MHz SX1278 LoRa Long Range Wireless Transceiver + Antenna
Zaitronics | SKU:
$8.50 AUD
Unit price
/
Unavailable
$7.73 exc GST
433MHz SX1278 LoRa Long Range Wireless Transceiver + Antenna is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Delivery Options
We offer several delivery choices to fit your needs:
- FREE Delivery: $0. Enjoy Free AusPost Parcel Standard Delivery on orders over $100 in value. Exclusions may apply.
- AusPost Untracked Letter: $3. Delivery in 3-8 business days (untracked). No refunds or replacements without proof of receiving the order.
- AusPost Parcel Standard: $9. Tracked delivery in 2-6 business days.
- AusPost Parcel Express: $13. Express tracked delivery in 1-3 business days.
- Pickup: $0. Email us to arrange a pickup from our location in Huntingdale 3166 in Melbourne at support@zaitronics.com.au. More details can be found in our contact page.
Additional Information
- Non-metro addresses in WA, NT, SA & TAS may require extra time.
- Certain batteries (like LiPo) cannot be shipped by air, affecting Express Post availability.
- We recommend selecting tracked options for valuable items. Untracked orders will not receive tracking numbers or refunds without proof of delivery.
- Note: Wherever possible, we will combine orders to save on shipping and reduce packaging waste.
- Note: Orders containing backordered item will delay delivery until all items are available
Warranty & Refund Policy
Warranty & Refund Policy
Warranty & Refund Policy
- Standard Warranty: 12 months for all products. Low-cost hobby parts have a 90-day warranty unless safe handling is shown.
- Exceptions: Kits and interfaceable electronics may not be covered if damaged due to misuse.
- Returns: Contact support via your order confirmation email within 14 days of purchase. Items must be unopened and in original packaging. Proof of purchase is required.
- Defective/Damaged Items: Notify us within 30 days for a free refund or replacement. Exclusions apply.
- Return Shipping Costs: Paid by the customer unless the item is defective. Shipping costs are non-refundable.
433MHz SX1278 LoRa Long Range Wireless Transceiver + Antenna
$8.50 AUD
Unit price
/
Unavailable
The SX1278, also known as the XL1278, is a compact wireless transceiver module based on LoRa spread spectrum technology. It offers reliable long-range communication, low power consumption, and strong anti-interference performance—ideal for embedded wireless projects.
Key Specifications:
- Frequency: 433MHz ISM band (license-free)
- Modulation: LoRa, FSK/GFSK
- Communication: Half duplex
- Sensitivity: up to -139dBm (32M passive 10ppm crystal)
- Output Power: up to +20dBm
- Anti-interference: 56dB channel rejection ratio
- Receiving Current: 10–12mA (low power)
- Transmission Range: up to 5km (open space)
- Interface: SPI
- Transmission Mode: FIFO / direct mode (FIFO recommended)
- Buffer: 256-bit FIFO TX/RX
- Features: RSSI channel detection, intelligent reset, low voltage monitoring, timed wake-up, sleep mode, AFC, air wake-up, carrier sense, FEC error correction, AEC encryption
- Supports multi-frequency, multiple data rates, FDMA and FM tech
- Module Size: 22.8 × 22.7 × 4.2mm
Compact, powerful, and easy to integrate for long-distance wireless communication.
