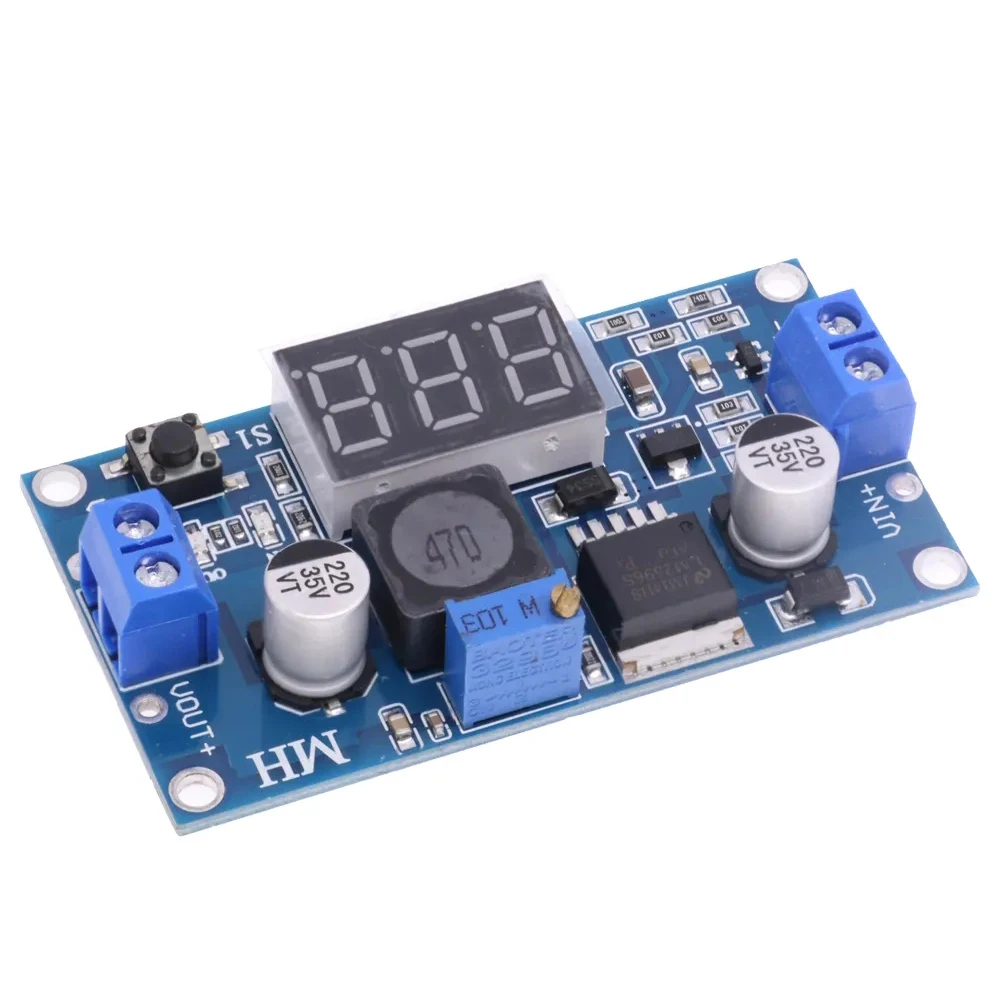

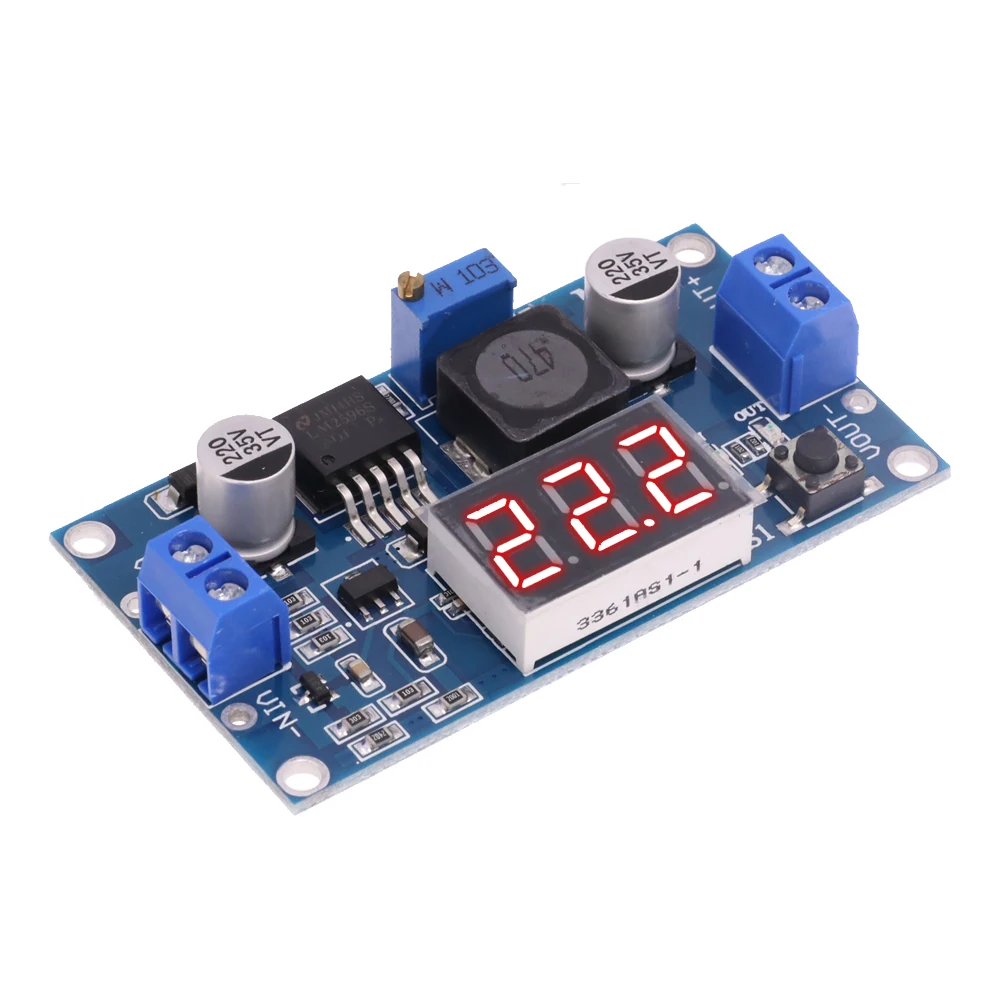

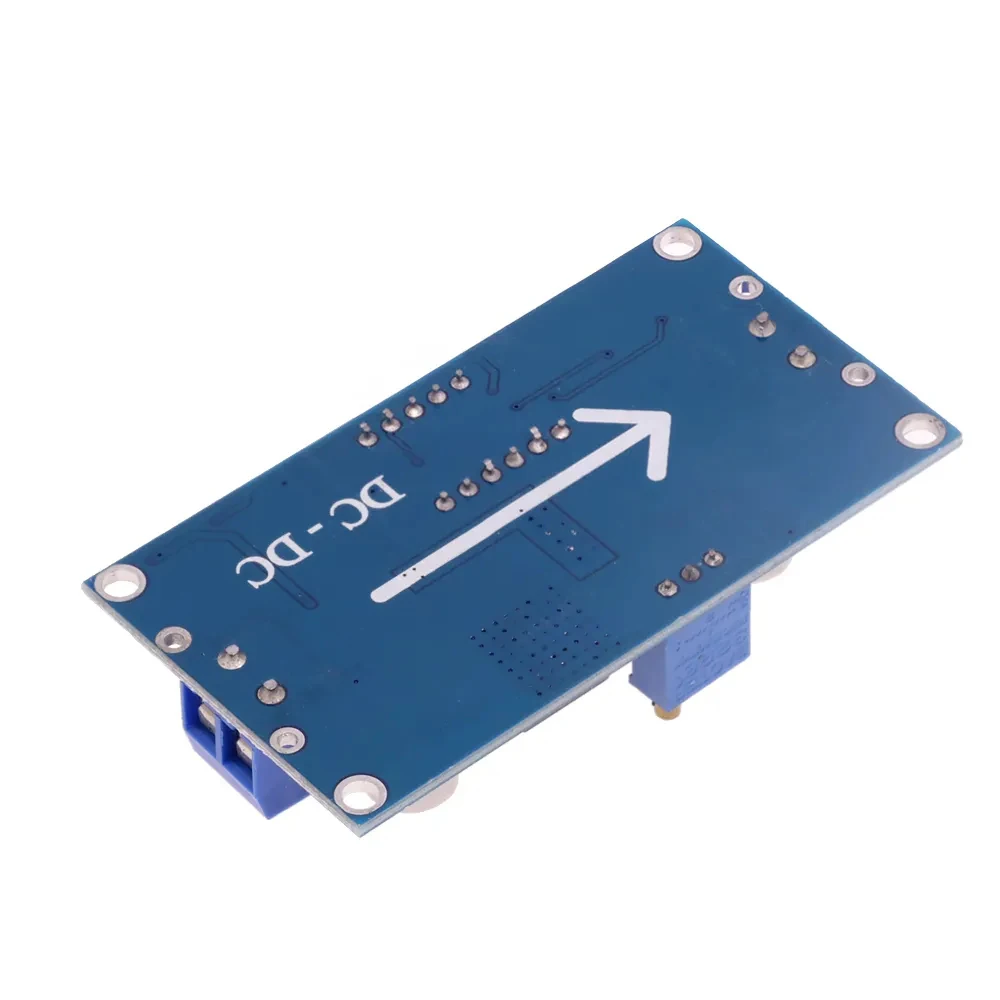

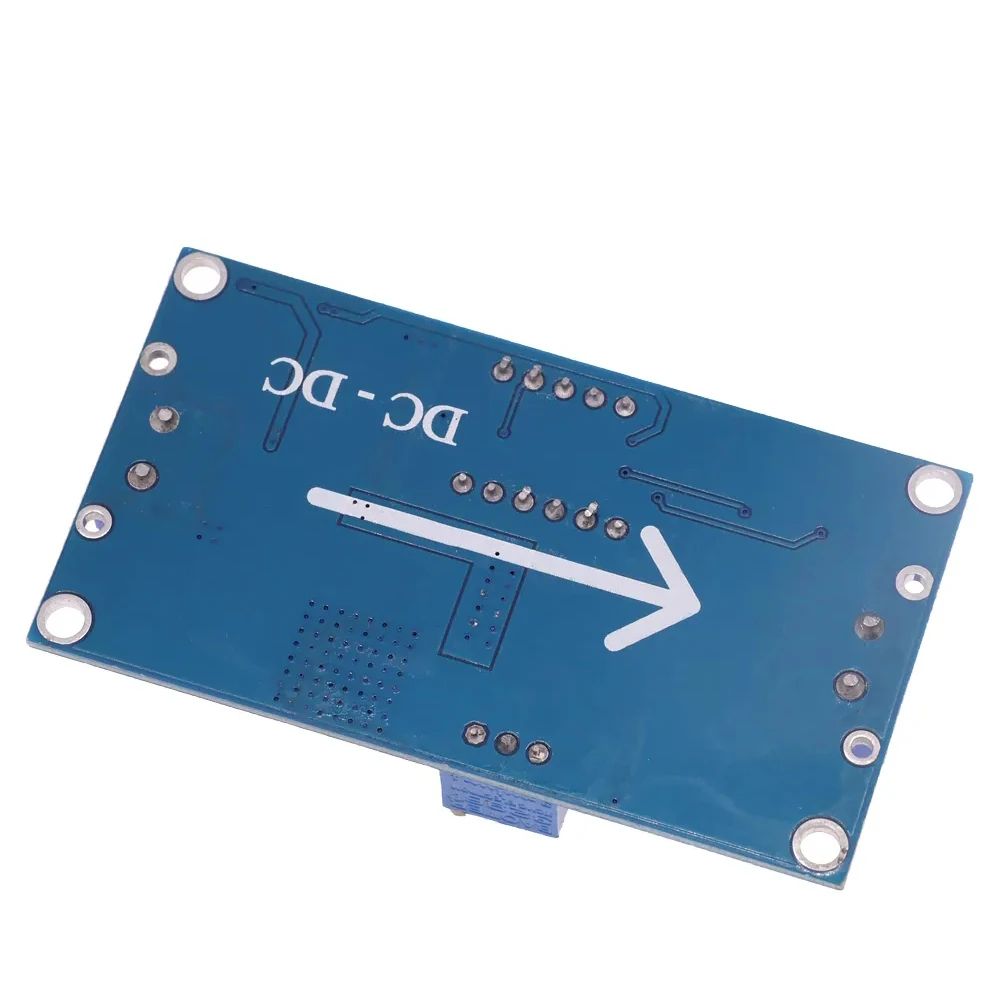

XL6009 + LED Step-Up Voltage Converter

The XL6009 + LED Step-Up Voltage Converter is a high-efficiency DC-DC boost converter designed to increase lower input voltages to higher, stable output voltages. With a bright LED display for real-time monitoring, this module is perfect for hobbyists, makers, and professionals who need precise voltage control for DIY electronics, microcontrollers, sensors, and other high-demand applications.

Key Features:

• Non-Isolated Boost Converter: Step up input voltages efficiently with a non-synchronous rectifier design.
• Wide Input Voltage Range: Operates from 4.3V to 32V, suitable for a variety of DC power sources.
• Adjustable Output Voltage: Supports outputs up to 35V (some units can reach ~40V) for flexible project requirements.
• High Output Current: Handles up to 4A, with 2–3A recommended for sustained operation.
• LED Display: Monitor input and output voltages in real-time for accurate adjustments.
• High Efficiency: Achieves up to 94% efficiency with minimal ripple, ensuring stable power for sensitive components.
• Compact Design: Measures 6.98cm x 3.80cm, easy to integrate into your project setup.
• Reliable Operation: ±0.5% load and voltage regulation, switching frequency 400kHz, operating temperature -40℃ to +85℃.
• Step-Down Alternative: For reducing voltage instead of boosting, check out the LM2596 LED Buck/Step-Down Converter or the LM2596 Buck Voltage Converter.
• Standard XL6009 Module: For a version without the LED display, see the XL6009 Step-Up Voltage Converter.
• Alternative Smaller Module: For a compact, lower-power option, consider the MT3608 Step-Up Module.
• More Voltage Modules: Explore additional power conversion modules in our voltage converter collection.

Applications:

• DIY electronics projects requiring higher voltage output
• Microcontroller power supply adjustments
• Sensor and motor applications needing precise voltage control
• Battery-powered devices requiring voltage boost

With its LED display, wide input range, and high efficiency, the XL6009 + LED Step-Up Voltage Converter ensures reliable, adjustable power for your projects, making it a versatile addition to any electronics toolkit.
