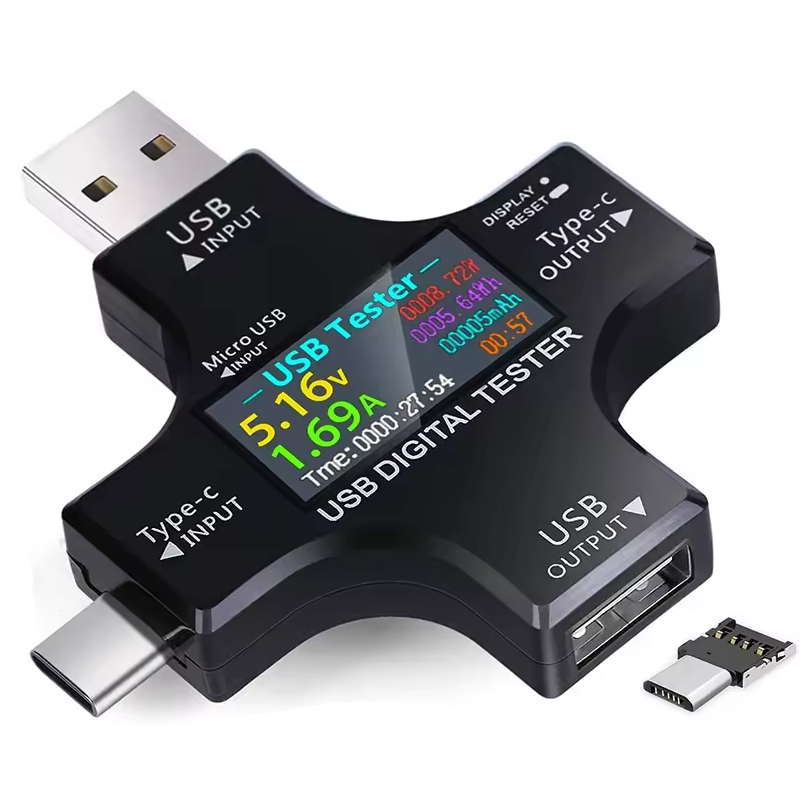

USB Tester - Inline Voltage & Current Meter Battery Tester

Measure and monitor USB power with precision using this USB Type-C Digital Tester. Designed for USB-C devices, it accurately displays real-time voltage (3.6–32V), current (0–5.1A), power (up to 150W), capacity (mAh), energy (Wh), impedance (Ω), and temperature (℃). Compatible with QC3.0, PD3.1, Apple 87W, and Huawei SuperCharge protocols.

Key Functions:

• Short press to cycle screen views
• Double/triple/quadruple click: reset capacity, energy, or timer
• Five-click to switch data group
• Long press to reset all group data
• System settings for OVP, LVP, OPC, screen flip, and more
• Adjustable curve update speed (0.5s–5s)

Upgraded Features:

• 1mΩ low-resistance sampling for higher accuracy
• Supports fast charging up to 6.5A
• 180° display rotation for flexible viewing
• USB-C male with tighter copper contacts
• Memory function to retain data after power-off

Ideal for testing USB-C chargers, cables, and devices. A must-have tool for technicians, hobbyists, and developers.
